prime power 12 kw 15 kva 3 phase generator with chinese weifang engine
prime power 12 kw 15 kva 3 phase generator with chinese weifang engine
prime power 12 kw 15 kva 3 phase generator with chinese weifang engine
prime power 12 kw 15 kva 3 phase generator with chinese weifang engine
prime power 12 kw 15 kva 3 phase generator with chinese weifang engine
prime power 12 kw 15 kva 3 phase generator with chinese weifang engine
prime power 12 kw 15 kva 3 phase generator with chinese weifang engine

prime power 12 kw 15 kva 3 phase generator with chinese weifang engine

Share on (60496465585):


Price:

Quantity:


Product Overview

Description


Product Description

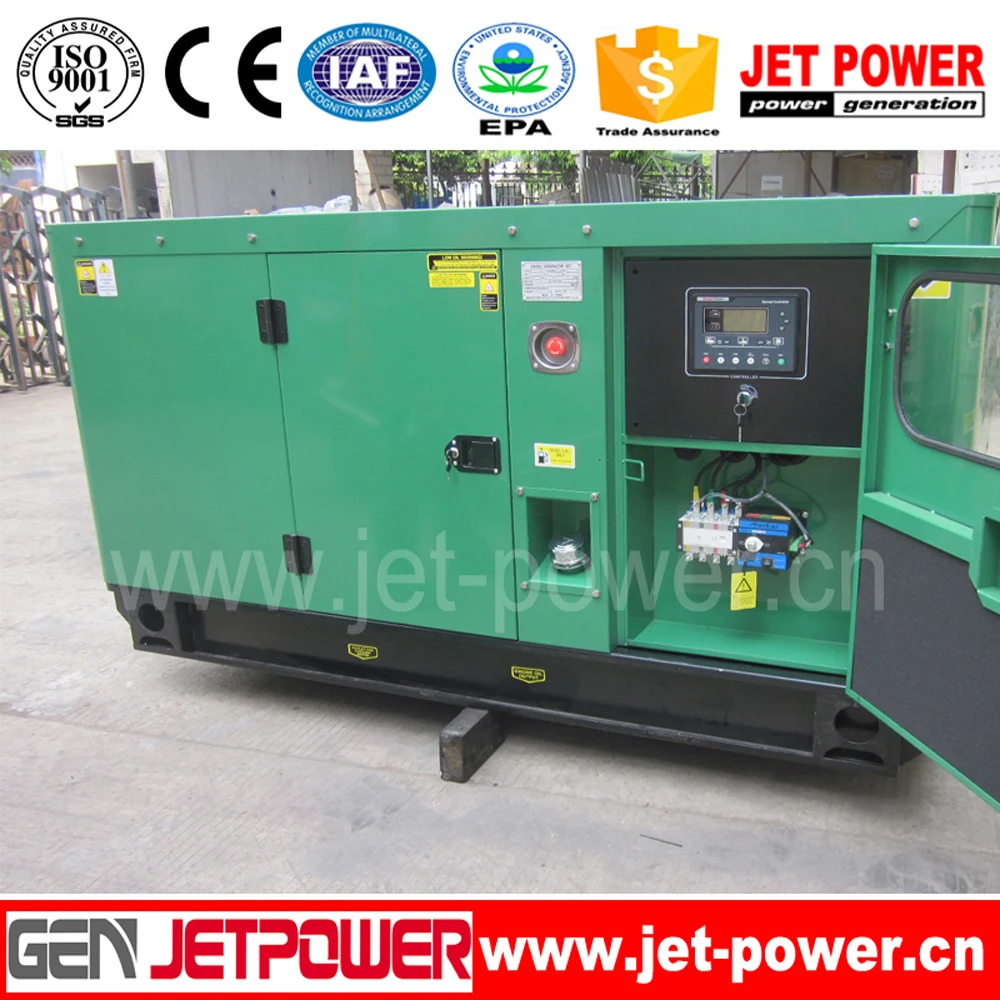

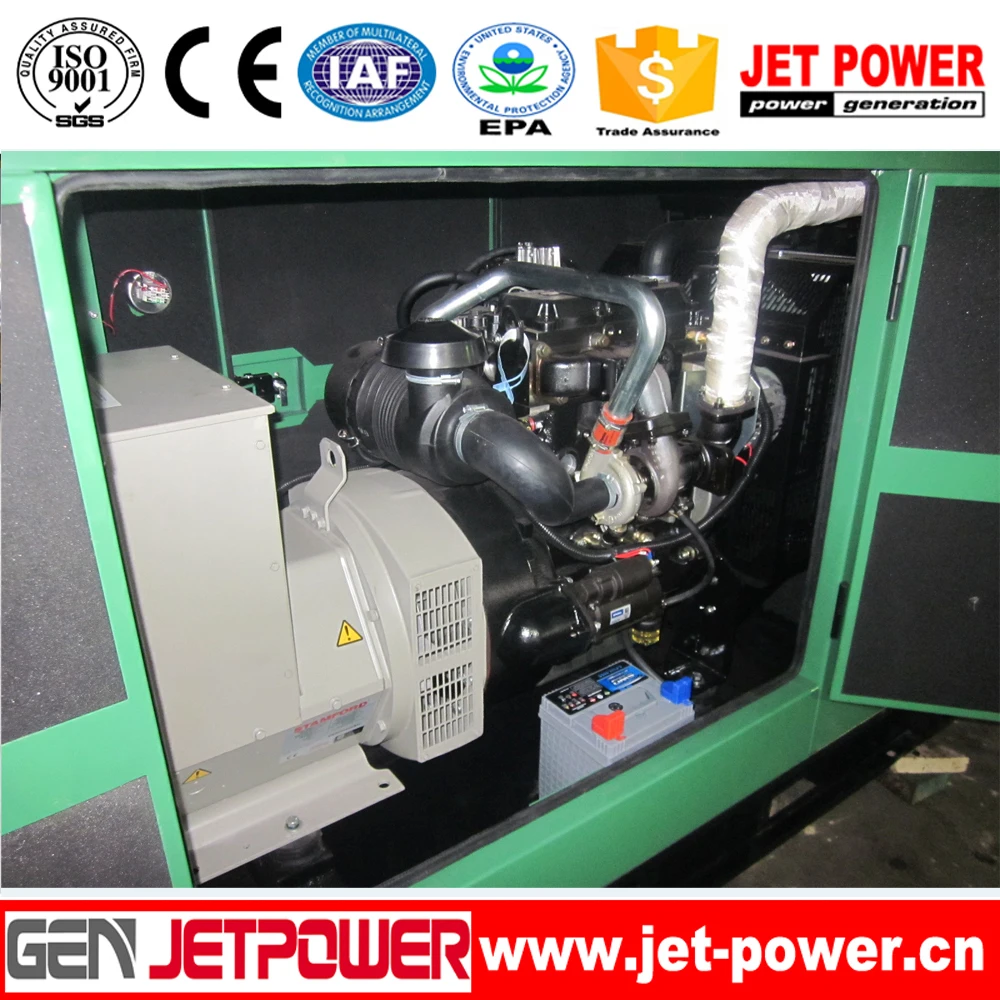

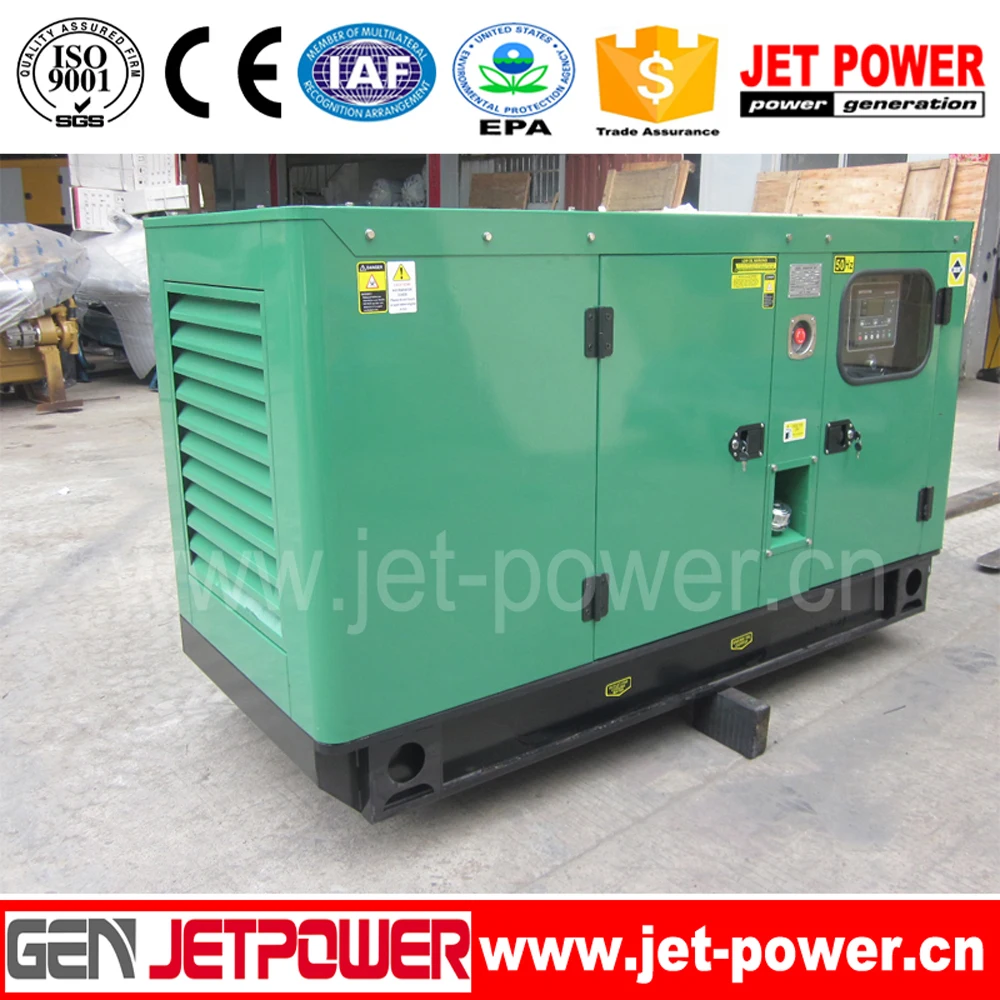

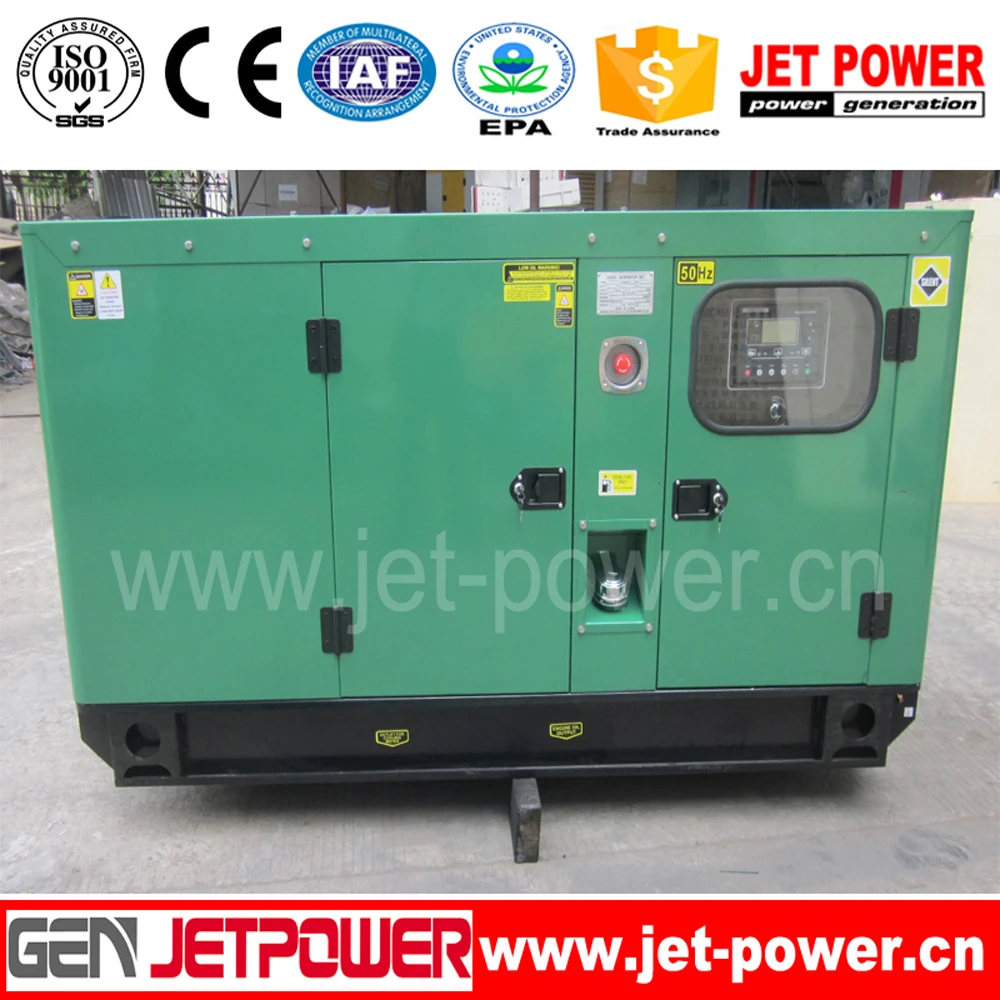

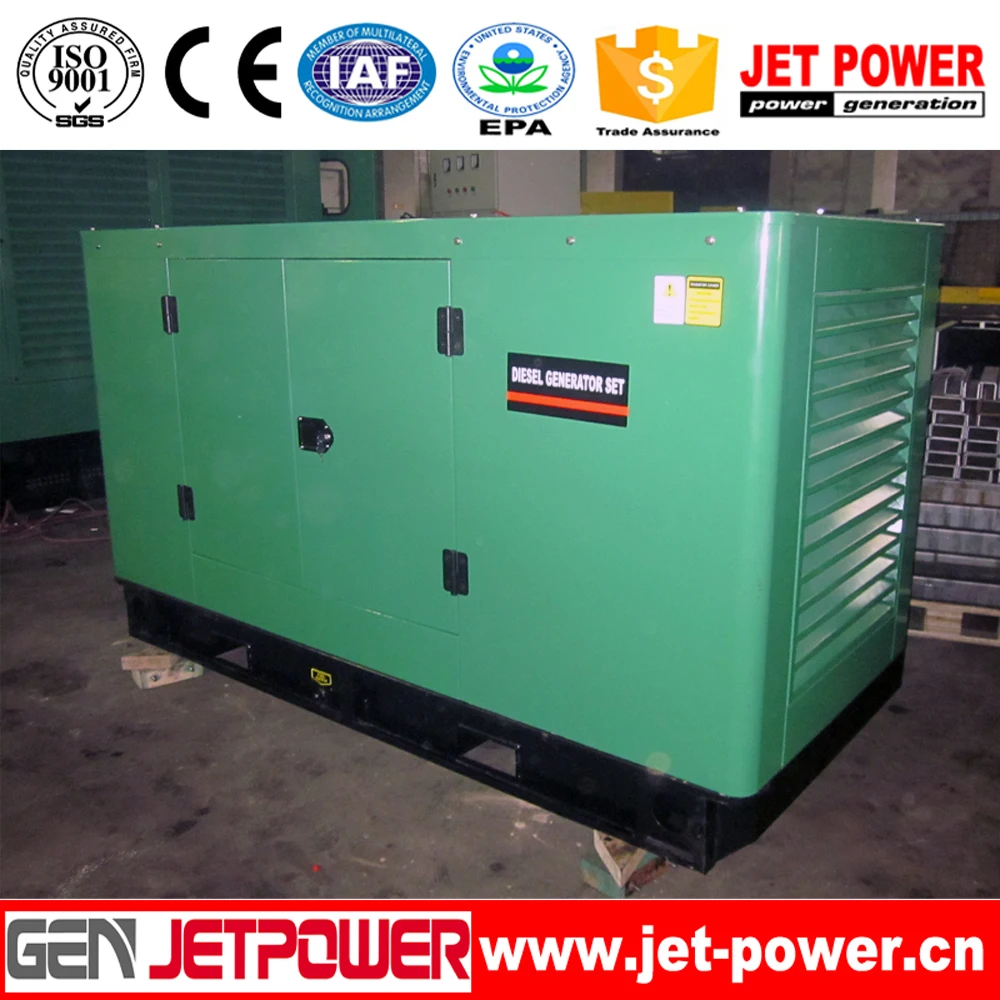

prime power 12 kw 15 kva 3 phase generator with chinese weifang engine Photos

Model Specification



Model
50hz/60hz 1500/1800rpm
                     engine
Alternator
Control system
standby power
prime power


engine model


Cylinder

alternator model


Smartgen
kva
kw
kva
kw
GF-8
11
8.8
10
8
2105D
L2
JET164B










PLC-6120
GF-10
14
11
13
10
2105D
L2
JET164C
GF-12
17
13.2
15
12
4100D
L4
JET164D
GF-15
21
16.5
19
15
4100D
L4
JET184E
GF-20
28
22
25
20
K4100D
L4
JET184F
GF-24
33
26
30
24
K4100D
L4
JET184G
GF-30
41
33
38
30
K4100ZD
L4
JET184H
GF-40
55
44
50
40
K4105ZD
L4
JET224D
GF-50
69
55
63
50
K4105AZD
L4
JET224E
GF-70
96
77
88
70
R6105ZD
L6
JET224G
GF-80
110
88
100
80
R6105ZLD
L6
JET274C
GF-90
125
100
113
90
R6105ALD
L6
JET274D
GF-100
138
110
125
100
R6105IZLD
L6
JET274ES
GF-120
165
132
150
120
R6110ZLD
L6
JET274F
GF-150
206
165
188
150
TH6113AZLD
L6
JET274G
GF-180
248
198
225
180
R6126ZLD-1
L6
JET274J
GF-200
275
220
250
200
R6135BZLD
L6
JET274K
GF-240
330
264
300
240
618ZLD
L6
JET444D
GF-250
344
275
313
250
618AZLD
L6
JET444E
GF-300
413
330
375
300
12V135AZLD
12V
JET444FS
GF-360
495
396
450
360
12V135BZLD
12V
JET544C
GF-400
550
440
500
400
12V135BZLD-1
12V
JET544D
GF-500
688
550
625
500
SY630 Electric
12V
JET544FS
GF-600
825
660
750
600
SY720 Electric
12V
JET634B
Generator details

Engine

Powered by Perkins  Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, Xichai, SDEC, Weichai, MTU, Ricardo, Jichai.



alternstor

Brand: Stamford, Leroy Somer, Marathon, JET, Mecc alte



main standards
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Prime output power
2.8 KVA to 2500KVA
Generator Phase and connecting
 3 phase, 4wire
Rated frequency
50Hz/1500rpm or 60Hz/1800rpm
Alternator excited type
Brushless, self excited or PMG optional
Alternator Insulation
Class H
Alternator Protection
IP21 ~ IP23
Voltage regulation
AVR automatic control 1%
Altitude above sea level
≤1000 meters
Ambient air temperature
≤40°C
Relative air humidity
≤ 90%

Spare parts

control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
1. PLC-1780 model Standard control panel, including digital genset control model:HGM1780, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker

2. PLC-6020, PLC-6120U, PLC-7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020
3. Automatic transfer switch (ATS) and Automatic parallel operation system

Why choose us
diesel generator advantage

1. High-quality steel are thickness canopy -- 2MM to 6MM
2. high density sound-absorbing material -- sound insulation, fireproofing
3.12V/ 24V DC battery with charger, battery connects wire
4. 10-12 hours fuel tank with fuel indicator, long time for working.
5.High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
9.All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type ,container type

Certifications
Our Service

one year or 1000 hours reach first from exfactory date.

1. During the guarantee-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

Our Company

FUZHOU JET ELECTRIC MACHINERY CO., LTD is a leadind manufacturer focus on Gasonline Generators, Disel Generators, Pump, Motor,Garden Machines. The factory is located in Fuan City Fujian provice, which is a well-konw electrical and machine city in China. For more convenient and efficient business, we set up company in HONGKONG and FUZHOU CITY.
