100W Bipolar Monopolar Dental Electrobisturi

Share on (60496512229):


Price:

Quantity:


Product Overview

Description

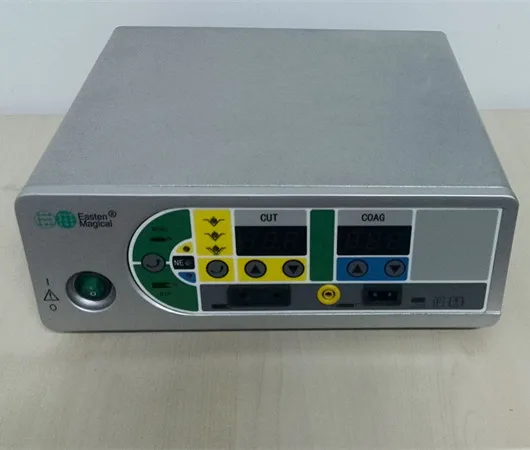

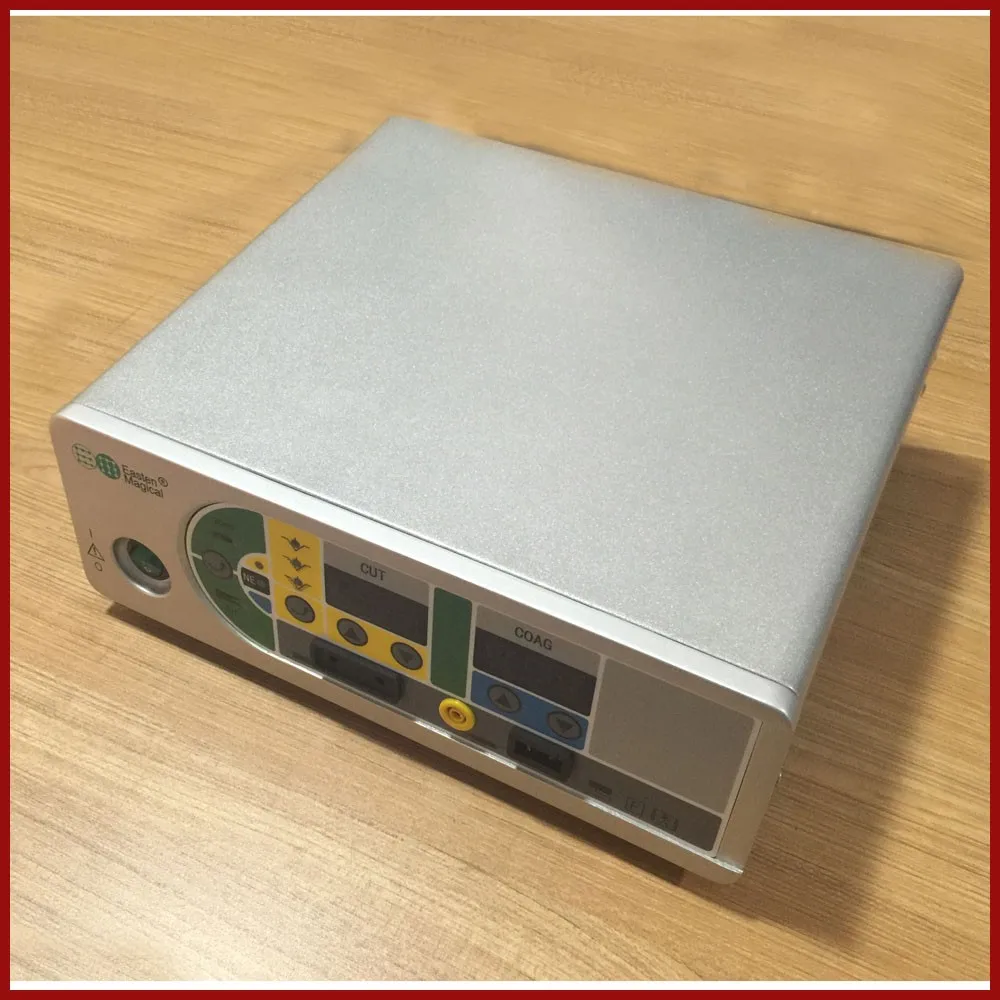

100W Bipolar Monopolar Dental Electrobisturi





Monopolar Cut ( Pure cut , Blend 1 ,Blend 2 ) 100W Bipolar Monopolar Dental Electrobisturi



Monopolar Coag



Bipolar Coag



Ali_ xin



DD-100D 4



DD-100D 2



Feature & Advantage

Various functions with Compact and light design

Monopolar Cut ( Pure cut , Blend 1 ,Blend 2 )

Monopolar Coag

Bipolar Coag,



Tissue Monitoring Technology

This technology monitors the tissue density, especially for polypectomy & papillotomy,

cutting is smartly divided incut & pause, so that coagulation occurs in each pause.

The system is intelligent to change the pause interval as

tissue density changes, hence produces fine cutting with coagulation effect.



Patient Return Electrode Monitoring (PREM)

REM (Return Electrode Monitoring) function monitors the range of contact area

between a patient and the neutral plate. If the size is inappropriate, it automatically

stop the high-frequency current with audible alarm to minimize the danger of burning incidents.



Compatible with other surgical equipment

Endoscopy, TURP , HV Argon Plasma Coagulator, Optimum Smoke Evacuation System.



Waterproof Panel Operation

Microcomputer Auto Control, Three-zone (LED ) digital display.



Technology Data



Working  Mode

Max Power

Rated Load



Monopolar Cut

Pure cut

100W

300Ω

Blend 1

80W

300Ω

Blend 2

60W

300Ω

Monopolar Coag

standard

50W

300Ω

Bipolar Coag

Bipolar Coag

50W

100Ω

                      Electrical requirement

Operating Voltage

220V±22V

Measuring Frequency

530KHZ ±2

Monopolar Rate Load

 300Ω

Bipolar Rate Load

        100Ω

Max Input Currency

1400VA

                  Environmental Conditions for Use

Condition

Range

Temperature

50°C to 40°C

Relative humidity

≤ 95% non-condensing

Pressure

700 hPa to 1060 hPa

            Environmental Conditions for Transport and Storage

Condition

Range

Temperature

-40°C to 55°C

Relative  humidity

≤ 93% non-condensing

Pressure

500 hPa to 1060 hPa

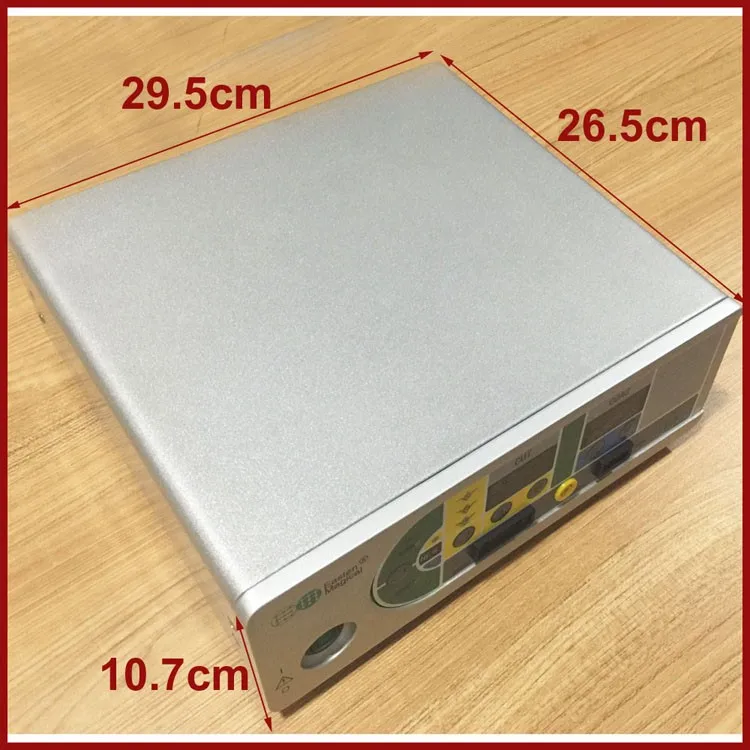

Dimension (L×W×H)

300mm×265 mm×107mm

Weight

10kg

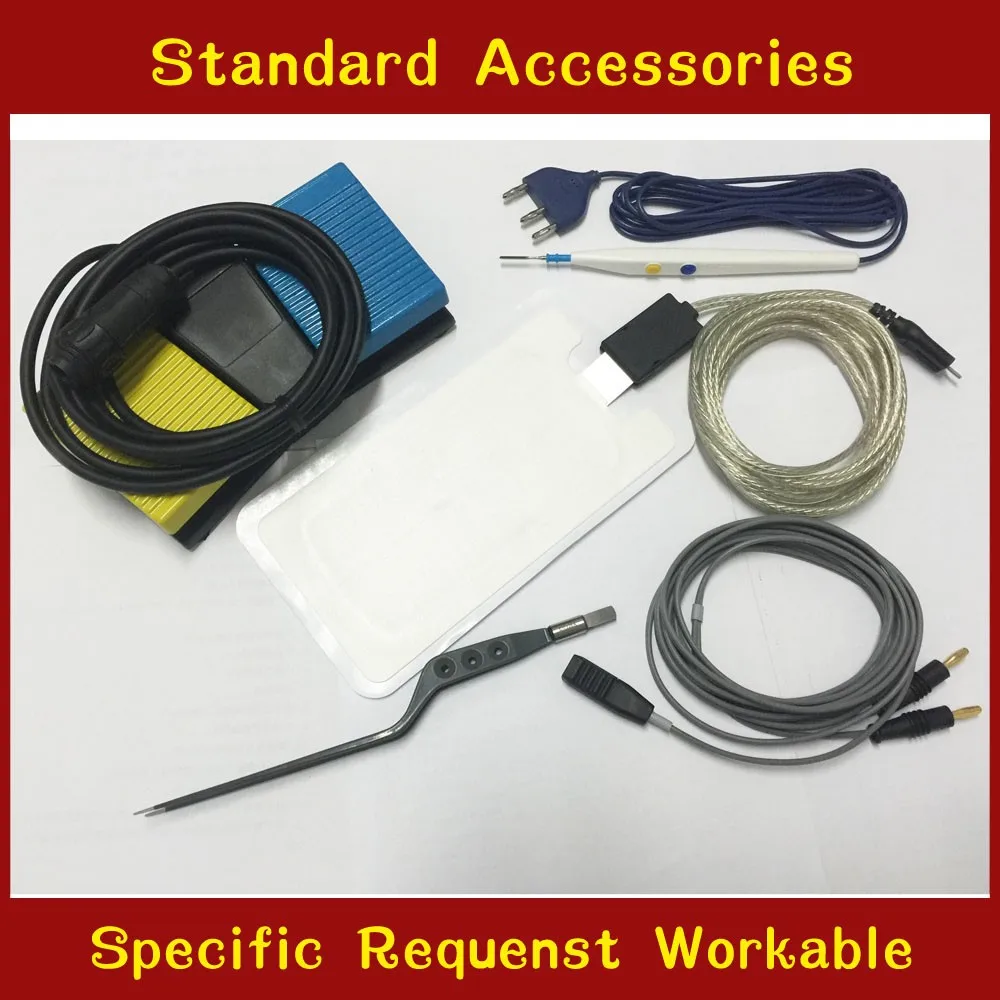

Standard Accessories

Code

                         Description

        Quantity

          1

                        Electrosurgical Unit

                  1

          2

Single-use ESU Pencil with Cable

                  2

          3

Single-use ESU Plate

                  5

          4

Reusable ESU Plate Cable

                  1

          5

 Bipolar ESU Forceps

                  1

          6

                      Reusable Bipolar cable

                  1

          7

                           Double Foot Swith

                  1

          8

                           Power Cable

                  1

          9

                         Service Manual

                  1


Hot Seller

  DD-2N 2   DD-2J  .jpg   RF-D120 A_.jpg

   DD-2N HF ESU 300W                           DD-2J HF ESU 300W/ 400W        RF ESU 120W/90W/60W/30W

        (With Endo Cut)                                (Economic Model )                          (Dual Radio Frequency 4.0MHZ)



   Rubber plate HIFI 750 1pencil.pngFORCEPS.png

Reusable Silicon Patient Plate                       Electrosurgical Pencil                       Bipolar Forceps

( REM / HIFI for Vallleylab ,Martin            (Disposable / Reusable)                    (Straight / Bayonet )

Erbe ,Bowa ,Commed)



 Footswitch

Company Information



Company Profile
IMG_0165

Certifications


FAQ

1.Q:Are you a factory or trading company?

   A: We are a factory of Electrosurigcal Generator since 1999 and we have owned PROPERTY



2. Q:How does your factory do regarding quality control?

    A:Quality is most importance.  We are professional manufacturer for more than 16 years

        and we always attach great importance to quality controlling by ISO and our products

        have been certified by CE



3.What is your brand and OEM is acceptable ?

Our owned brand is Easten Magical , OEM order are acceptable .



4. What is the MOQ and delivery item ?

  MOQ of 1 pc is acceptable and delivery lead time is about 5 days
