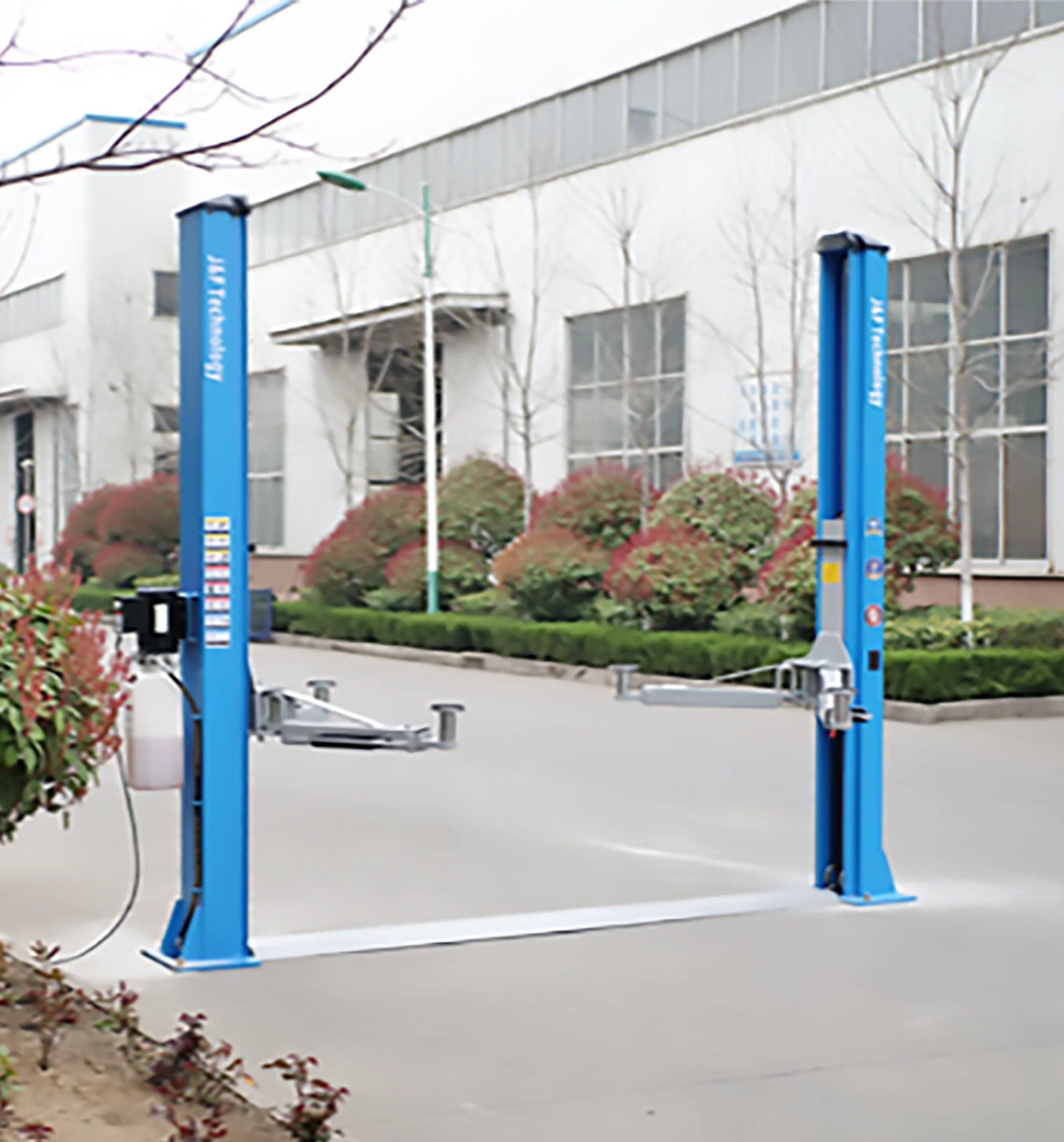

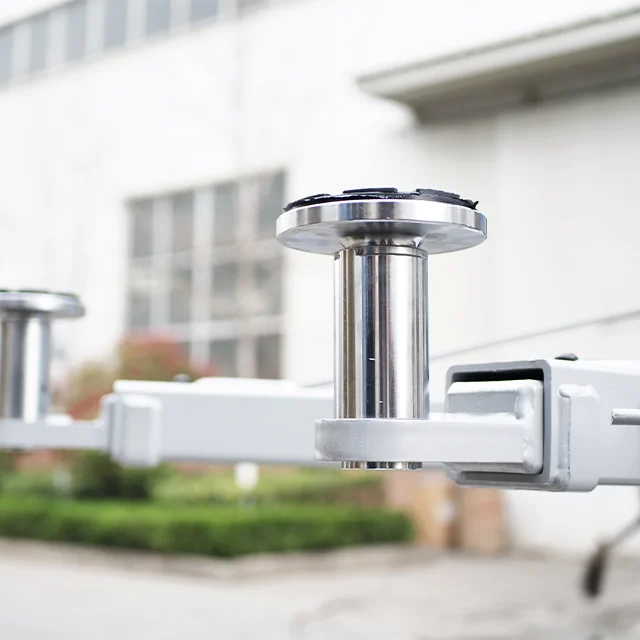

4.5 ton clearfloor two post garage auto lift
- Category: >>>
- Supplier: Beijing J&f Group Co. Ltd.
Share on (60496714888):
Product Overview
Description
Specification

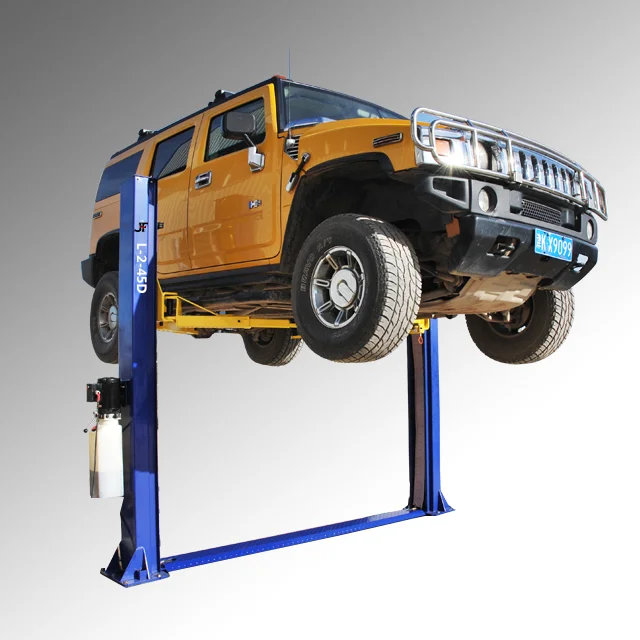

4.5T 10000lb Series Lift | L-2-45D | |

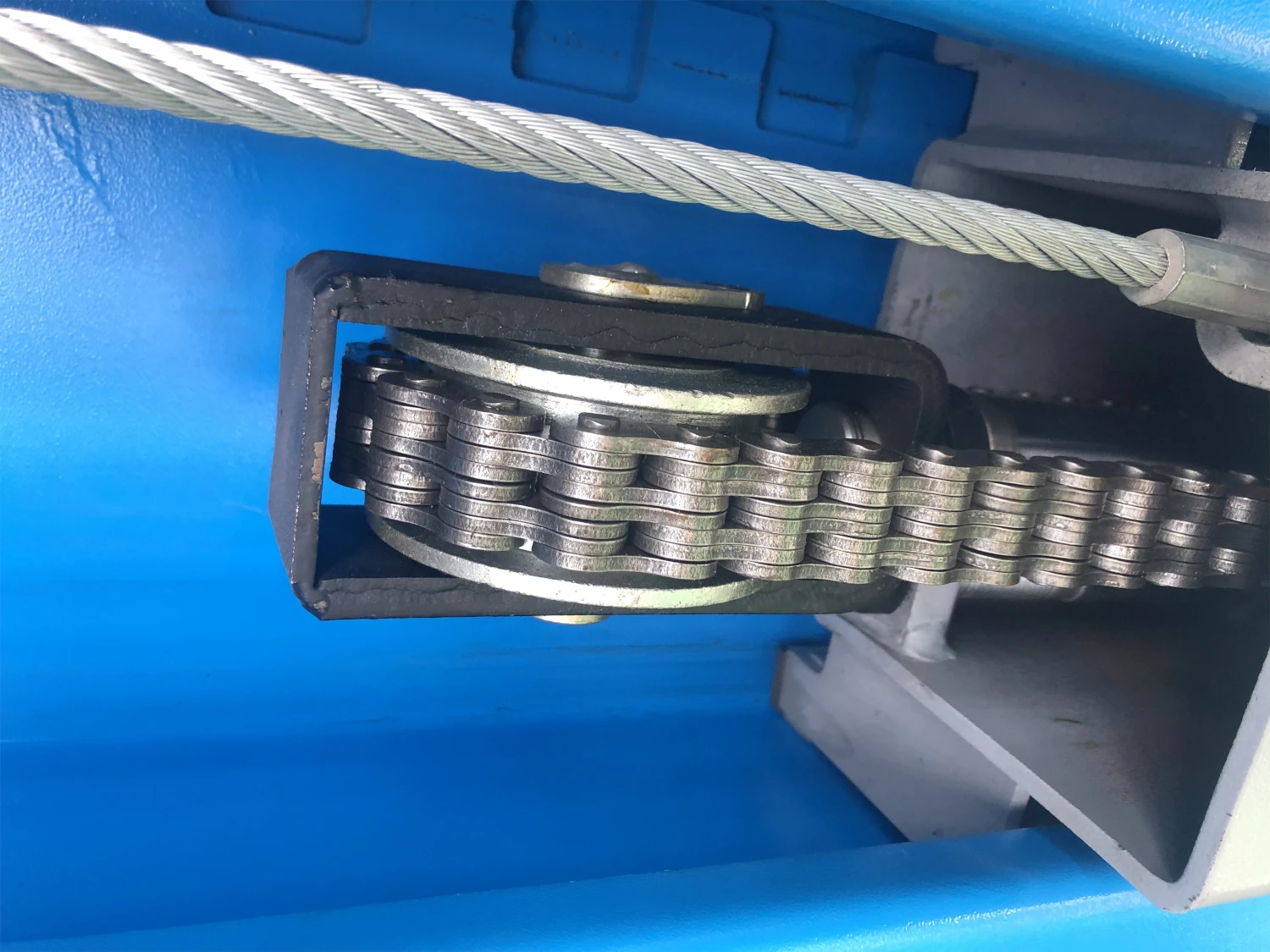

Lifting Method | Direct Drive | Chain Drive |
Lock Release System | Single Point | |
Lifting Capacity | 4500Kg(10000lb) | |
Lifting Height drop-in pad | A | 1850mm(74") |
Pad Min. height drop-in pad | B | 90mm(3.5") |
Height Overall | C | 3870mm(115") |
Width Overall | D | 3420mm(134.6") |
Drive Through | E | 2530mm(100") |
Width Between Columns | F | 2830mm(111.4") |
Limit Switch Height | G | 3720mm(146.5") |
Arm Reach(Sym.)Max | H | 1250mm(49.2") |
Arm Reach(Sym.)Min | I | 780mm(30.7") |
Concrete Thickness | J | 150mm(5.9") |
Lifting Time | <50S | |
Motor Power | 2.2Kw(3HP) |
Product Description
We Provide OEM/ODM Service For Our Customers
Company Profile
Mr. Jason Wang is the founder & CEO of J&F Group. J&F stands for Jason and Friends, Mr. Jason takes all Customers, Suppliers and Co-workers as his Friends, He believes that friendship first, then business. friends are for a lifetime.
Certifications
Packing & Delivery
Plywood frames, with iron racks and cartons for sea shipping.
FAQ
Quality Assurance:
5 years for structural parts
2 years for hydraulic and electrical parts
1. Motor does not operate:
A. Breaker or fuse blown.
B. Motor thermal overload tripped. Wait for overload to cool.
C. Faulty wiring connections; call electrician.
D. Defective up button call electrician for checking.
2. Motor functions but lift will not rise:
A. A piece of trash is under check valve. Push handle down and push the up button at the same time. Hold for 10-15 seconds. This should flush the system.
B. Check the clearance between the plunger valve of the lowering handle. There should be 1/16".
C. Remove the check valve cover and clean ball and seat.
D. Oil level to low. Oil level should be just under the vent cap port when the lift is down!!!

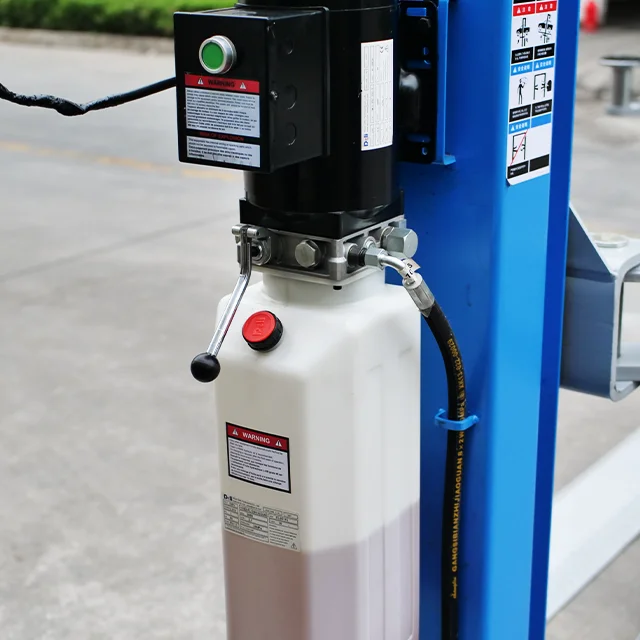

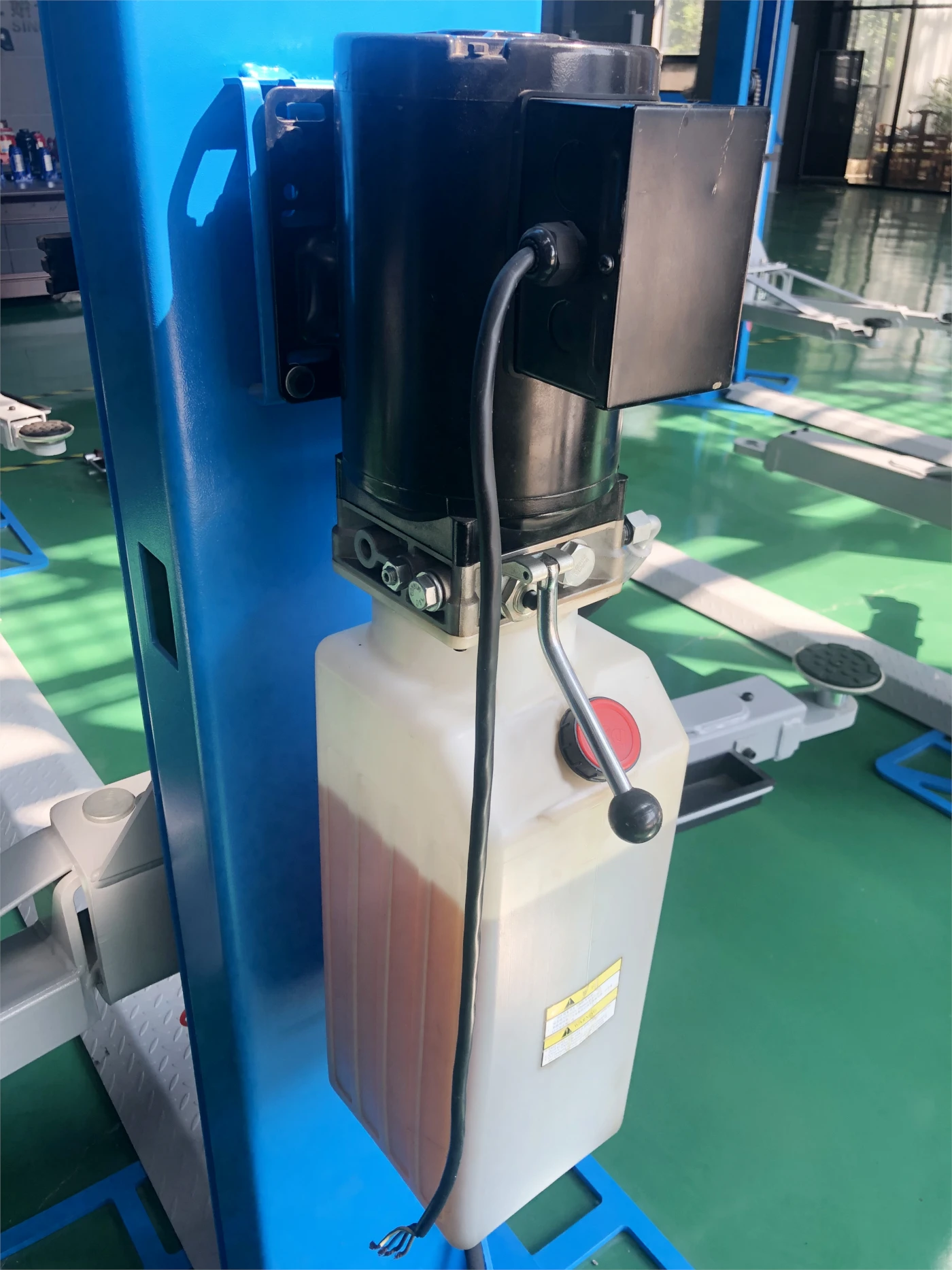

3. Oil blows out breather of power unit:
A. Oil reservoir overfilled.
B. Lift lowered too quickly while under a heavy load.
4. Motor hums and will not run:
A. Impeller fan cover is dented. Remove cover and straighten.
B. Faulty wiring...….... call electrician
C. Bad capacitor...….. Call electrician
D. Low voltage........... Call electrician
E. Lift overloaded. remove excessive weight from lift
5. Lift jerks going up and down:
Air in hydraulic system. Raise lift all the way to top and return to floor.Repeat 4-6 times.Do not let this overheat power unit.
6. Oil leaks
A. Power unit : if the power unit leaks hydraulic oil around the tank-mounting flange check the oil level in the tank. The level should be two inches below the flange of the tank. A screwdriver can be used as a “dipstick”.
B. Rod end of the cylinder: the rod seal of the cylinder is out. Rebuild or replace the cylinder.
C. Breather end of the cylinder: the piston seal of the cylinder is out. Rebuild or replace the cylinder.
7. Lift makes excessive noise.
A. Leg of the lift is dry and requires grease.
5 years for structural parts
2 years for hydraulic and electrical parts
1. Motor does not operate:
A. Breaker or fuse blown.
B. Motor thermal overload tripped. Wait for overload to cool.
C. Faulty wiring connections; call electrician.
D. Defective up button call electrician for checking.
2. Motor functions but lift will not rise:
A. A piece of trash is under check valve. Push handle down and push the up button at the same time. Hold for 10-15 seconds. This should flush the system.
B. Check the clearance between the plunger valve of the lowering handle. There should be 1/16".
C. Remove the check valve cover and clean ball and seat.
D. Oil level to low. Oil level should be just under the vent cap port when the lift is down!!!
3. Oil blows out breather of power unit:
A. Oil reservoir overfilled.
B. Lift lowered too quickly while under a heavy load.
4. Motor hums and will not run:
A. Impeller fan cover is dented. Remove cover and straighten.
B. Faulty wiring...….... call electrician
C. Bad capacitor...….. Call electrician
D. Low voltage........... Call electrician
E. Lift overloaded. remove excessive weight from lift
5. Lift jerks going up and down:
Air in hydraulic system. Raise lift all the way to top and return to floor.Repeat 4-6 times.Do not let this overheat power unit.
6. Oil leaks
A. Power unit : if the power unit leaks hydraulic oil around the tank-mounting flange check the oil level in the tank. The level should be two inches below the flange of the tank. A screwdriver can be used as a “dipstick”.
B. Rod end of the cylinder: the rod seal of the cylinder is out. Rebuild or replace the cylinder.
C. Breather end of the cylinder: the piston seal of the cylinder is out. Rebuild or replace the cylinder.
7. Lift makes excessive noise.
A. Leg of the lift is dry and requires grease.
