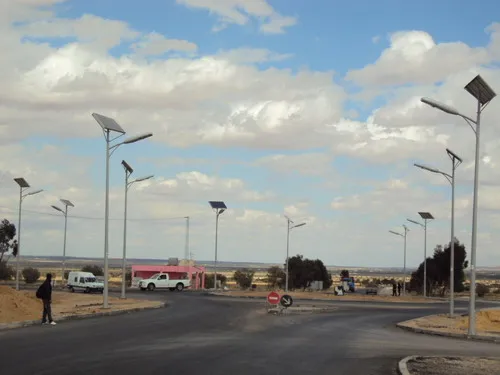

Energy saving high quality led solar street lamp with solar panel battery controller

Product Overview

Description

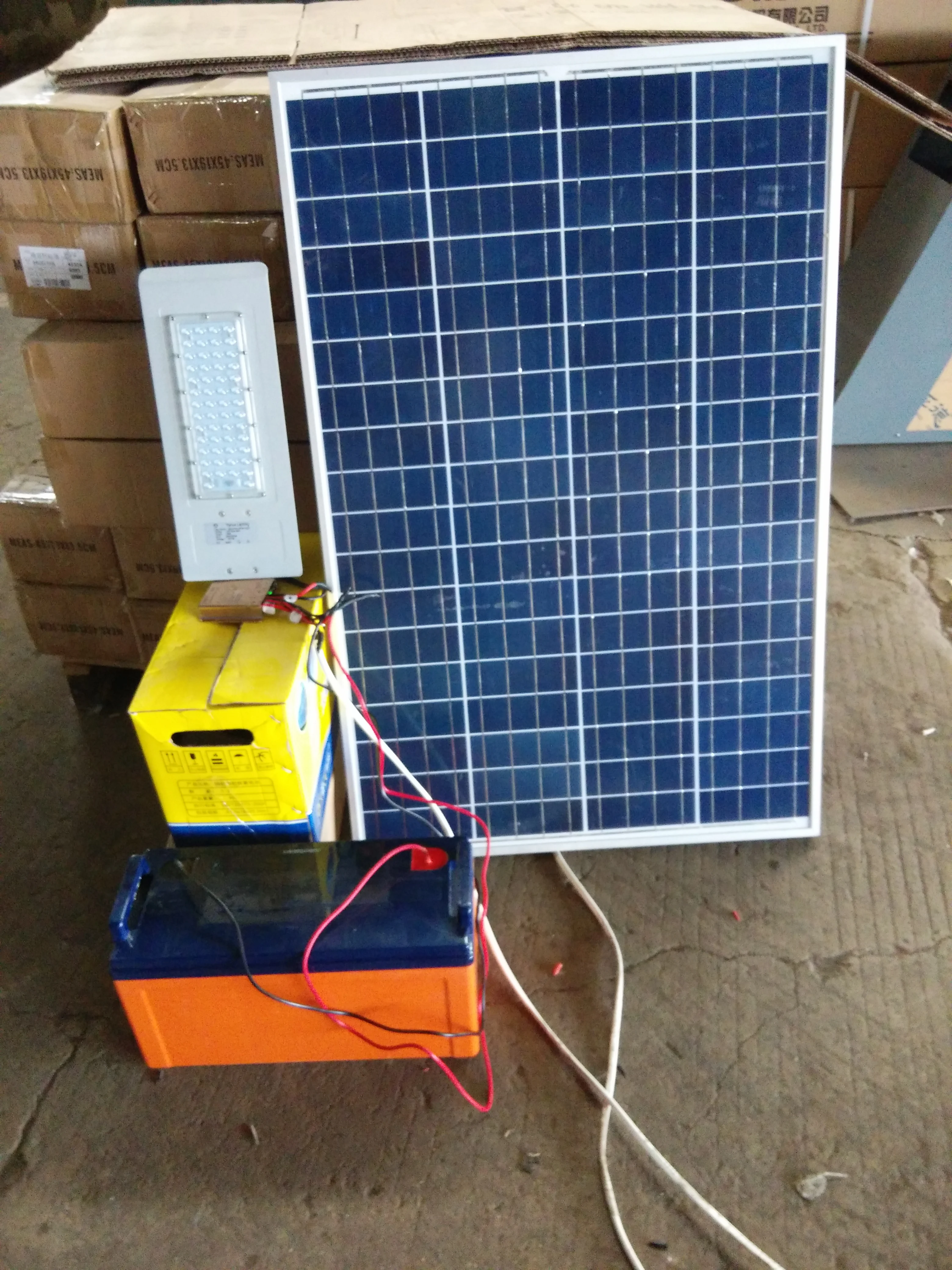

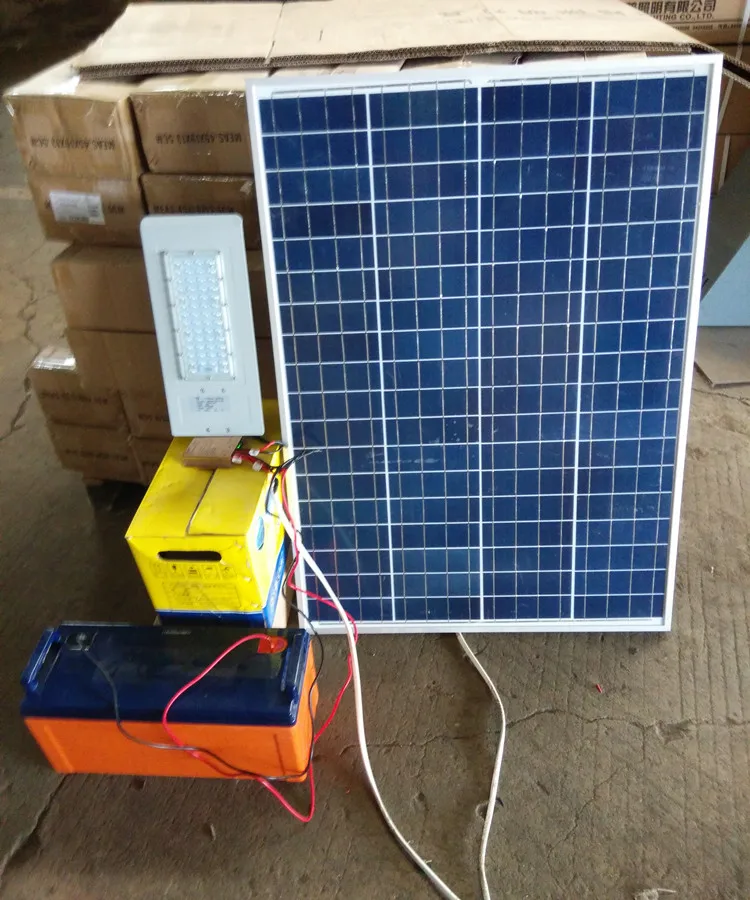

Energy saving high quality led street solar lamp with solar panel battery controller

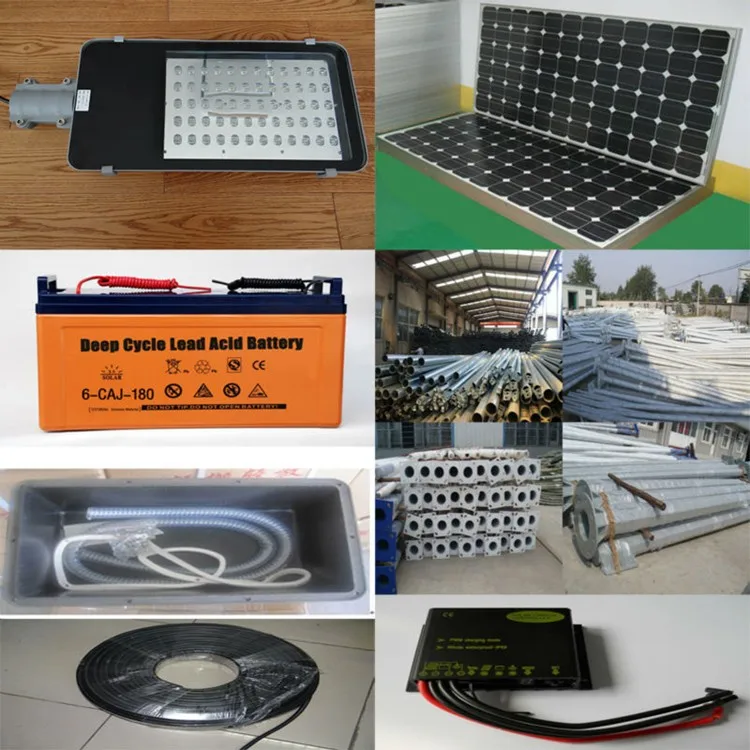

Item name	Specification

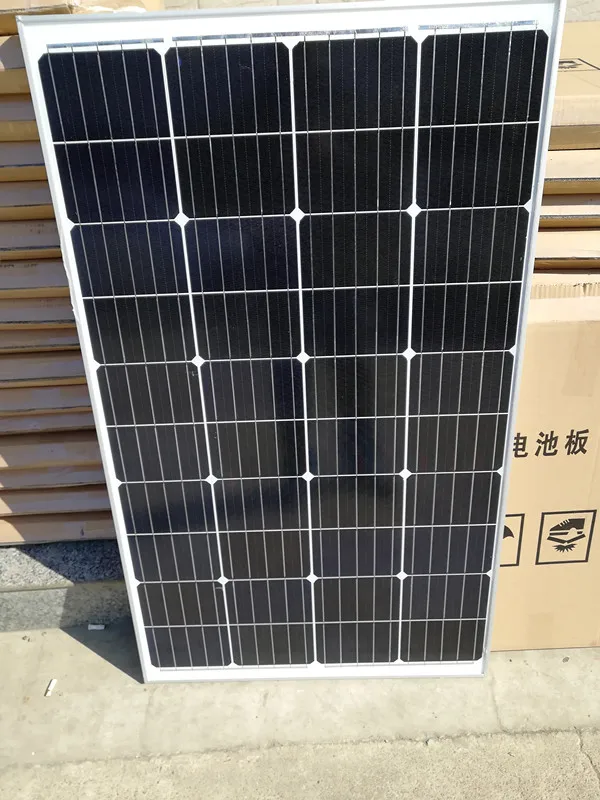

Solar panel	Mono Crystalline Silicon 150W*1PC Lifetime: 20years
Light source	Power: 50W, Woking Voltage DC12V/24V, General luminous:5000lm, LED Luminous Efficiency:100lm/W,Center illuminance:25lx,Ra>80,Color temperature:2700-7000K,Protection Grade :IP65,Working life ≥ 50000hours
Controller	12V/24VAutomatic identification , light control and time control, Protection Grade IP68

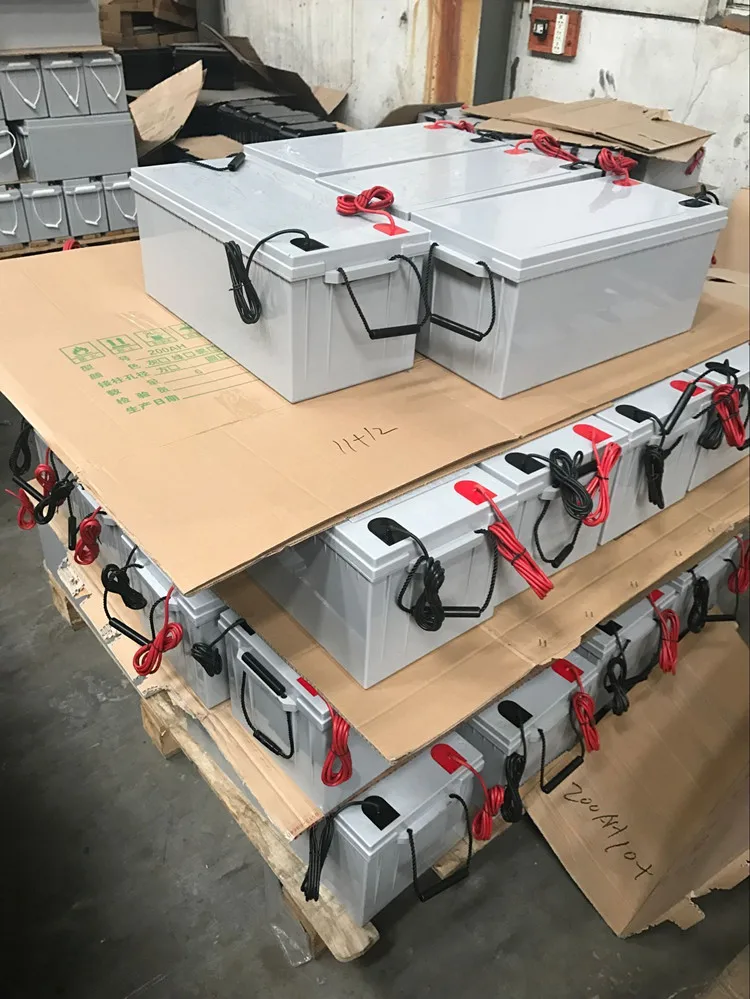

GEL Battery	150Ah;For the solar energy street lamp that in simple circulatory system. the advantage is that the small self -discharge rate ,the better deep discharge, Top charge acceptance, large capacity,strong start in low ,the good shock resistant and Anti-temperature charge Production Battery lifespan: 5-8 years

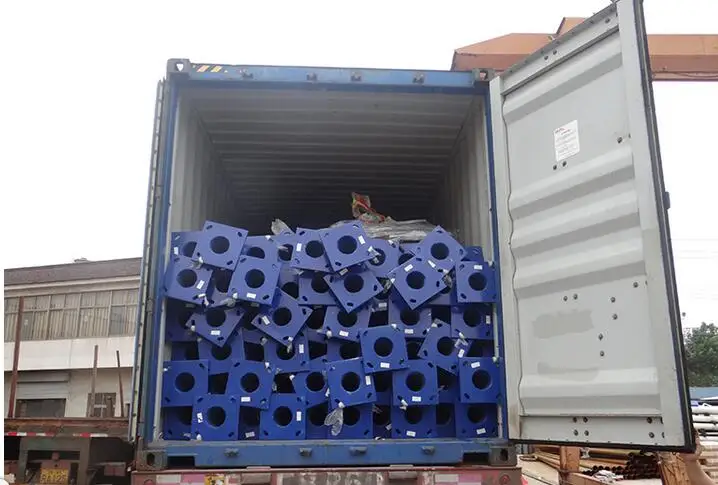

Pole	Pole height 8m, Best steel Q235 or Q345; hot dip galvanized and powder coated .
Warranty	5 years













Features:

1. Above system configurations are designed to allow the lamp to work for 10hrs per night, battery capacity with continuous 3 days backup. The configuration is based on scientific calculation and engineering project experience. For clients' specific project, please tell us the exact installation location and working hours, so that we can provide customized solution and quotation accordingly.

2. The batteries are suggested to be placed in a underground buried PVC battery box. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter. It's wateproofand, heat-dissipative and theftproof, easy for replacement in late period.

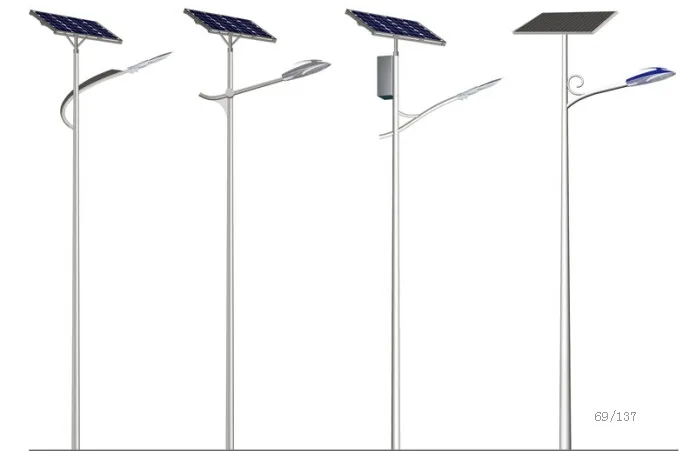

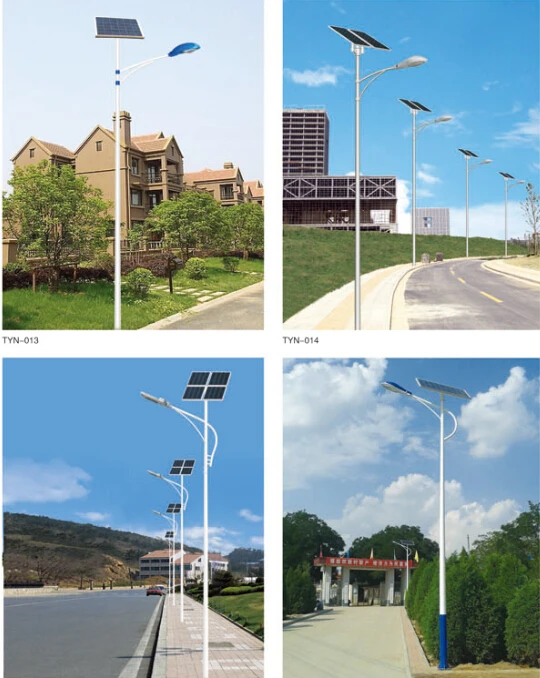

3. The pole patterns are standardized practical model recommended by us. It can be customized with more patterns available according to clients specific requirement.

4. All Parts are CE/ROHS certified, with high quality level meeting European standards.

5. Please contact us for more detailed technical specification of each part of the system, which can be sent upon client's email request.
