liquid chlorine / LPG top loading & unloading arm for truck and rail tank

Product Overview

Description



The type of land loading arm is divided into top loading arm and bottom loading arm.Our loading arm can be customized as the requirements of customer, characteristics of liquids, local conditions etc.

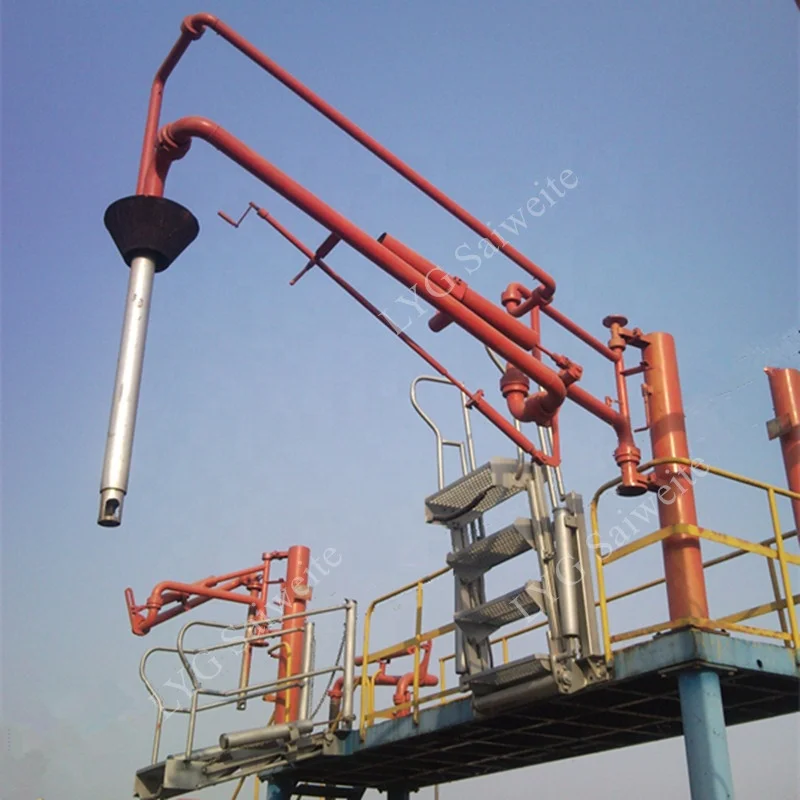

Equipped with loading platform, folding stairs and safety cage to make the loading arm into a complete loading system.



Product Features

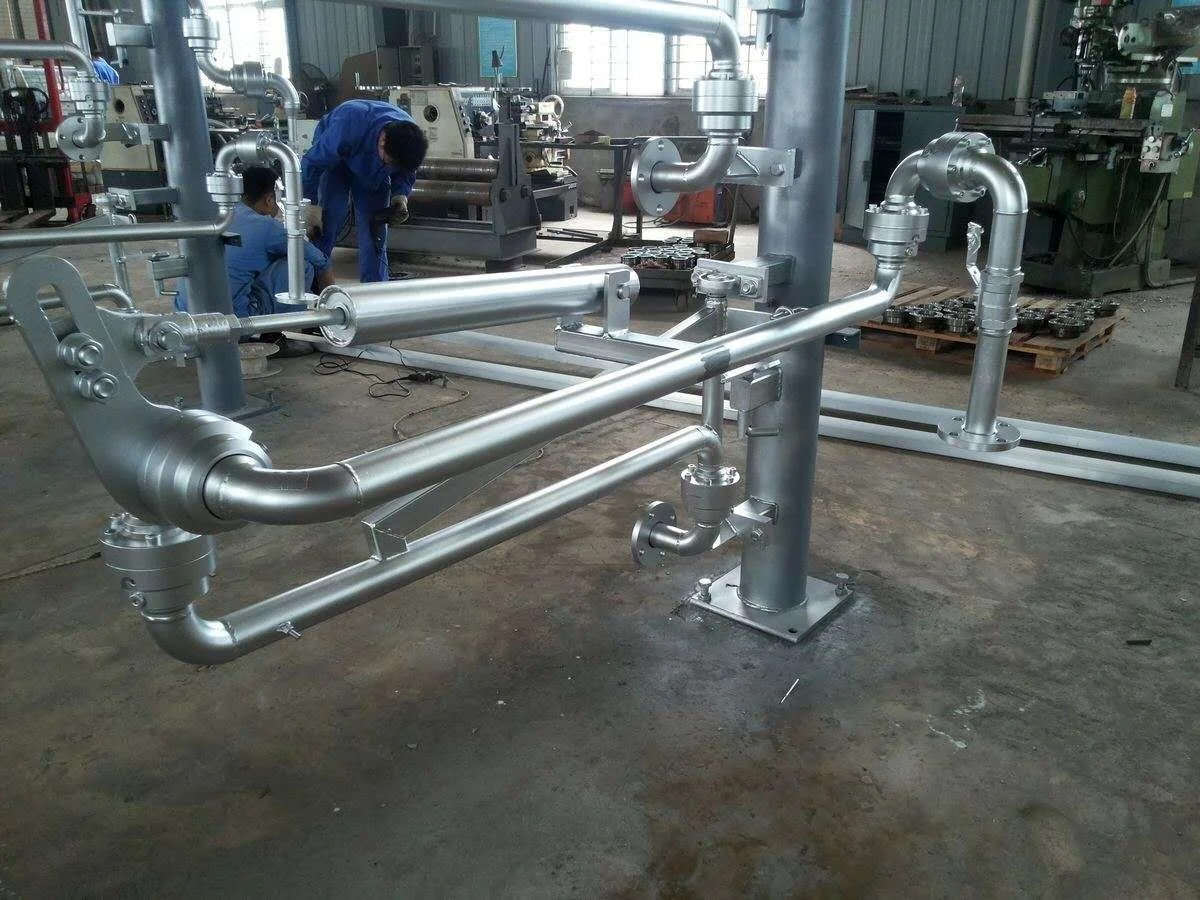

• Double base swivel joints are made of carbon steel, stainless steel ASTM304 or ASTM316.


• PTFE seal rings ensure no leakage.


• Balancing of the arm is made by a spring balance cylinder.


• Be able to move along with road tanker during loading within normal range.


• High quality surface treatment and coating make loading arms have excellent weather-resistance.


• Numerous accessories are available to make a loading arm more effective and safety.

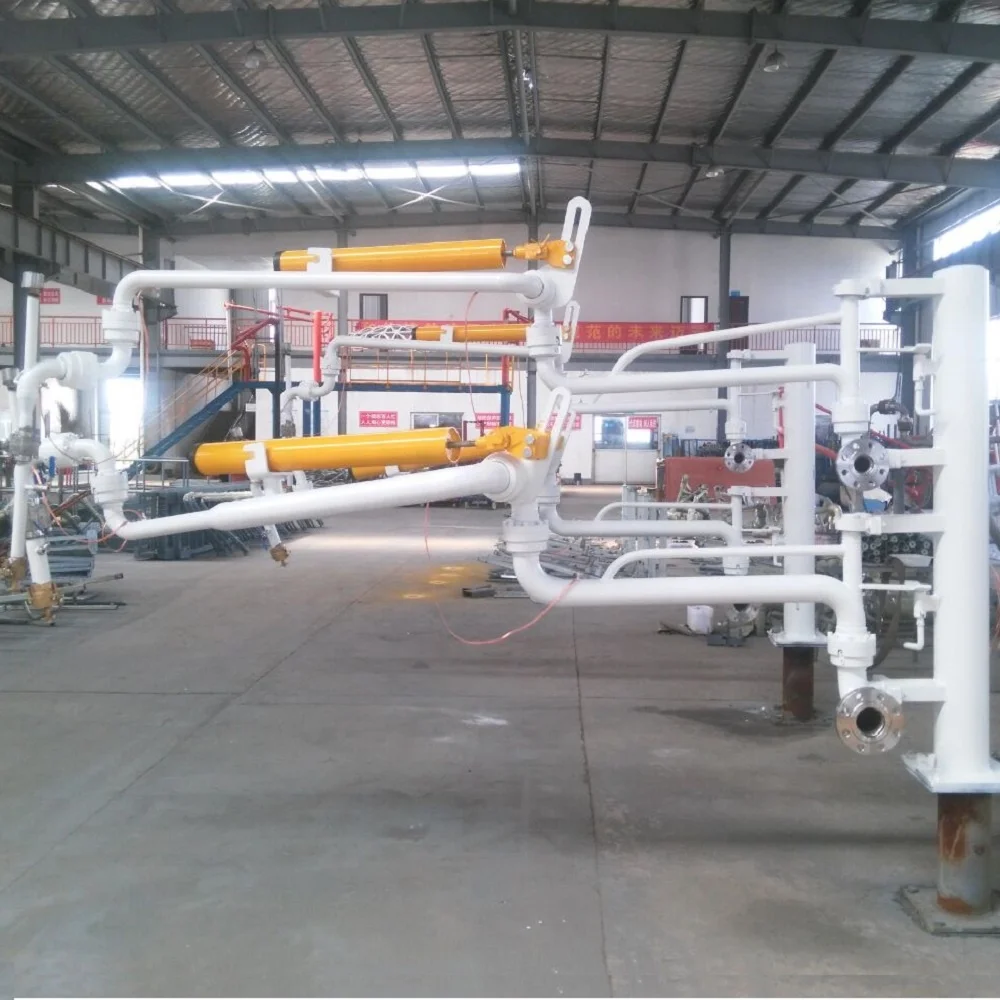

AL1512 top closed loading & unloading arm for truck and rail tank





Design Parameters



Nominal Diameter	Liquid pipe: DN50 (2") Vapor pipe: DN50 ( 2")
Design Pressure	-0.06MPa~5.0MPa
DesignTemperature	-50°C~+80 °C
Balancing Method	Spring balance cylinder
Pipeline Material	Carbon steel, Stainless steel, 16Mn, PTFE-lined.
Service Product	liquid chlorine,  low temp. propylene, LPG, etc







AL1512 Structure Drawing



Major Models:
