price for chilled water industrial water chiller 36000 btu
- Category: >>>
- Supplier: Shenzhen Widesky Machinery Co. Ltd. [Guangdong China]Shenzhen
Share on (60497260450):
Product Overview
Description
CHILLER MANUFACTURER
Product Description
Advantages:

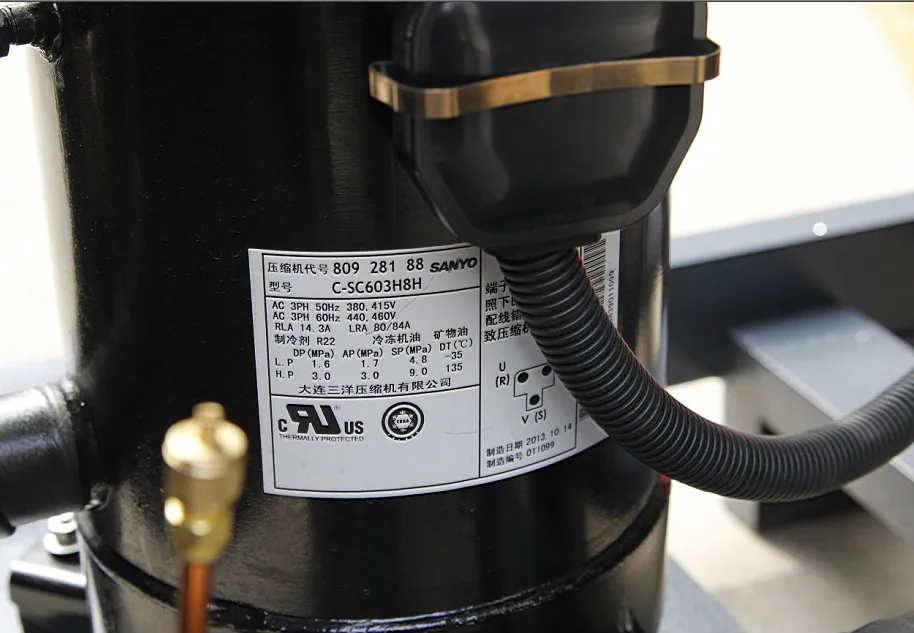

1. International advanced Scroll compressor.
2. A stainless steel water tank installed in the unit.

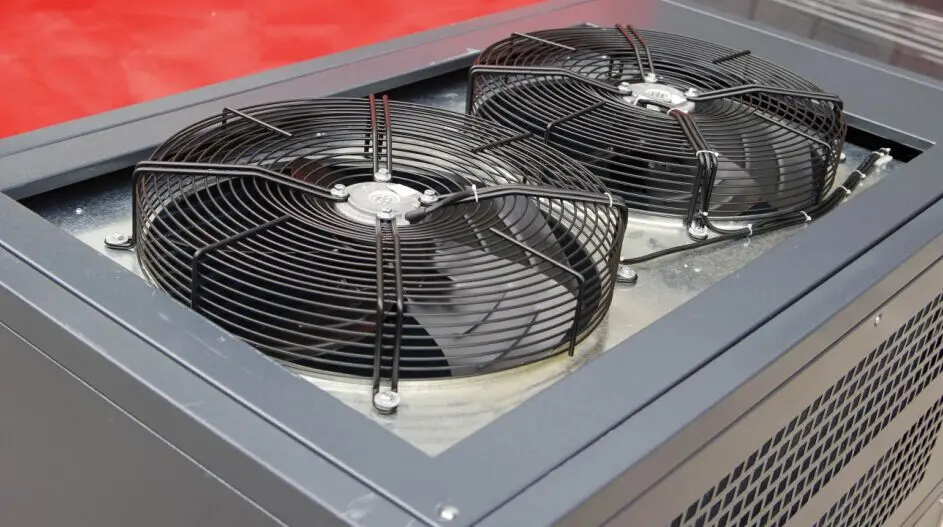

3. High efficiency air condenser and Large wind volume axial flow design.
4. Easy to install, dispense with cooling water pump.

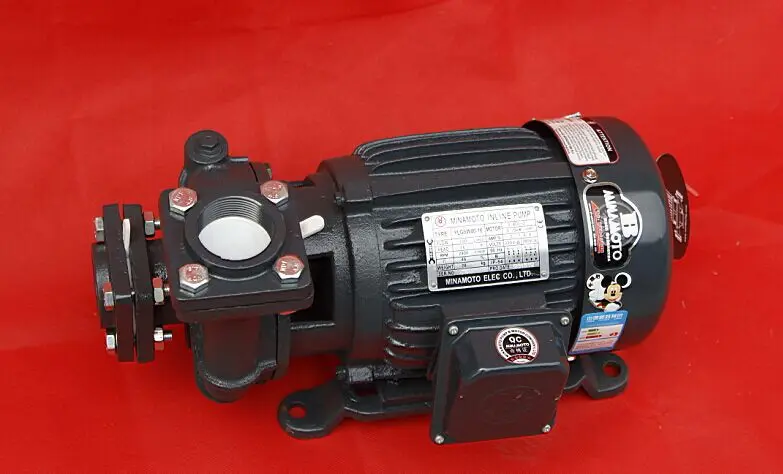

5. High efficiency, Low noise centrifugal water pump.
6. The unit has double refrigerating circuit.
7. Small chiller has caster on chassis for easy manoeuvrability.
8. MicroelectAdvantages:
Specifications:
| MODEL | UNIT | FSC-03A | FSC-05A | FSC-06A | FSC -08A | FSC-10A | FSC-15A | FSC-20A | FSC-25A | FSC-30A | FSC-40A | FSC-50A |
| Cooling Capacity | WATTS | 8250 | 11324 | 14650 | 20540 | 28400 | 43100 | 58600 | 69700 | 86200 | 117200 | 139400 |
| BTU/HR | 29000 | 38650 | 50000 | 77300 | 97000 | 147200 | 199850 | 237700 | 294400 | 399700 | 476000 | |
| KCAL/HR | 7308 | 9740 | 12600 | 19480 | 24444 | 37094 | 50362 | 59900 | 74189 | 100724 | 119952 | |
| Refrigerant Type | R22 | |||||||||||
| Compressor Motor | KW | 2.2 | 3.3 | 4.5 | 6 | 7.5 | 11.25 | 15 | 18.5 | 22.5 | 30 | 37.5 |
| HP | 3HP | 4.5 | 6 | 8 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
| Condenser Fan Flow Rate | M3/H | 2390 | 3900 | 4200 | 7800 | 9200 | 12600 | 18900 | 18900 | 23400 | 31200 | 39000 |
| Fan DiaΦ | MM | 300*2 | 400*2 | 400*2 | 450*2 | 500*2 | 500*3 | 550*3 | Φ600*3 | Φ630*3 | Φ500*6 | Φ500*8 |
| Fan Power | WATTS | 74W*2 | 145W*2 | 145*2 | 273W*2 | 273W*2 | 382W*3 | 614W*3 | 708W*3 | 795W*3 | 708W*6 | 708W*6 |
| Water Tank capacity | LITER | 65 | 65 | 65 | 140 | 220 | 380 | 500 | 500 | 520 | 630 | 800 |
| Water Pump | HP | 1/2 | 1/2 | 1/2 | 1 | 1 | 2 | 2 | 3 | 5 | 7.5 | 7.5 |
| KW | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 3.75 | 5.62 | 5.62 | |
| Flow Rate | L/MIN | 50-100 | 50-100 | 50-100 | 100-200 | 100-200 | 160-320 | 160-320 | 250-500 | 400-800 | 630-1200 | 630-1200 |
| Running Current | AMP | 6 | 9 | 9 | 13 | 15 | 27 | 38 | 45 | 58 | 75 | 95 |
| Insulation Material | POLY-FOAM TAPE RUBBERIZED TUBU INSULATION | |||||||||||
| Dimension L*W*H | MM | 1100*615*1080 | 1100*615*1080 | 1100*615*1080 | 1380*750*1450 | 1480*750*1450 | 1700*1100*1750 | 1800*1100*1750 | 1830*860*1900 | 1980*860*1950 | 2300*1800*1980 | 2550*1800*2100 |
| Net Weight | KG | 155 | 155 | 175 | 320 | 420 | 600 | 730 | 780 | 920 | 1050 | 1100 |

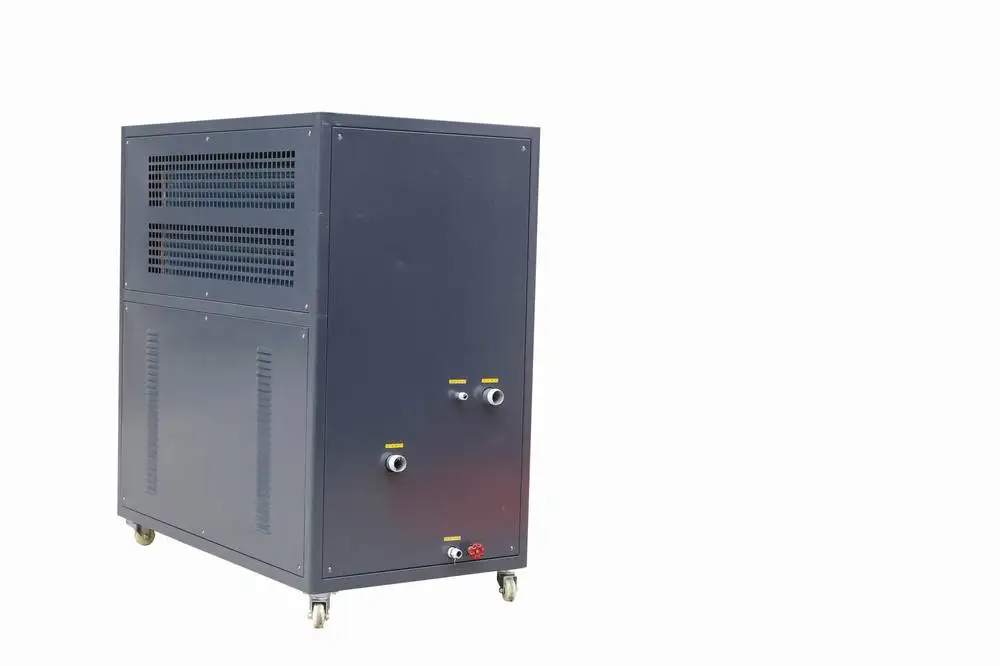

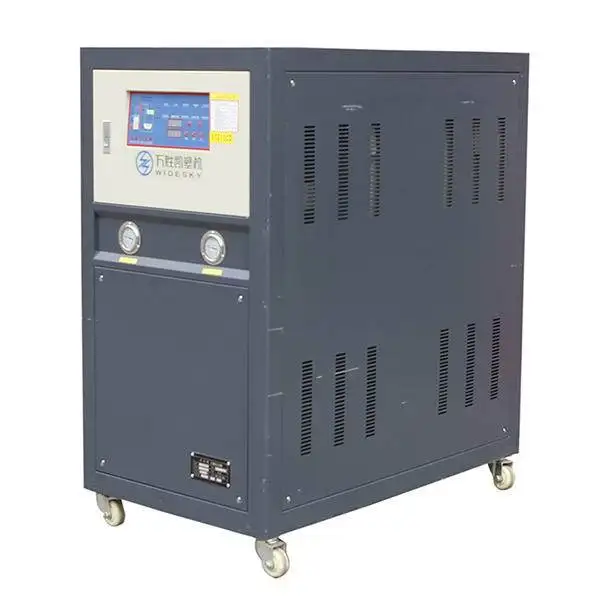

Product Show
Our Service
Guarantee period and after-sales services:
*15 months after shipping.
*During this guarantee period, WIDESKY will provide spare parts without any charge in case of quality discrepancy caused by us. Freight is paid by buyer. If the malfunctions are caused by your incorrect operations, WIDESKY will provide spare parts at cost price.
Long-term service:
We will charge the buyer cost price of spare parts beyond guarantee time and provide lifelong service.

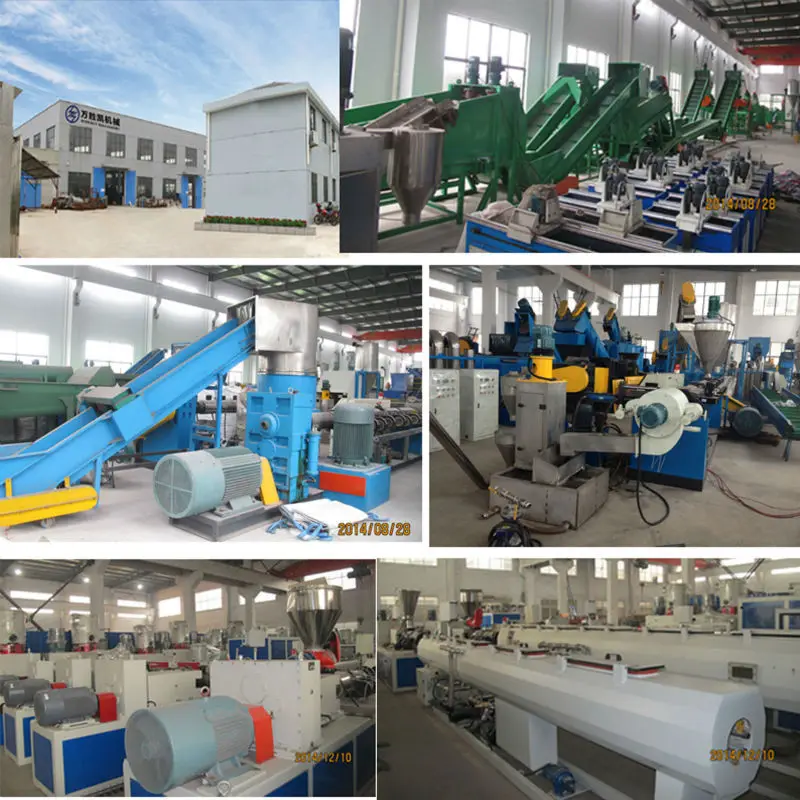

Our Company
Widesky Machinery
* Two factories
* Three offices, one is Dubai
* 20 years experience in plastic machinery
Packing & Delivery
Packaging Detail: Wooden package or container
Deliveray Detail: 15 days
Customer Photo
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How to choose a suitable crusher?
A: Your capacity
Your material and size
