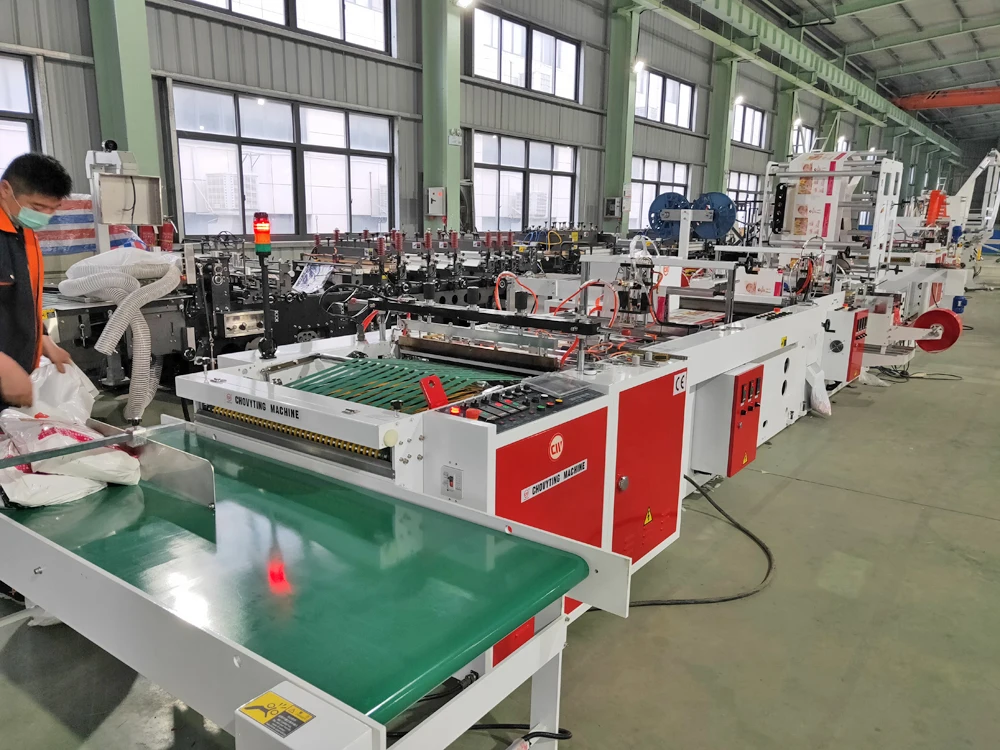

Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
Пластиковый полиэтиленовый LDPE материал и новое состояние полиэтиленовая петля ручка машина для изготовления мешков для покупок
- Category: Packaging Material Making Machine >>>
- Supplier: Zhejiang Chovyting Machinery Co. Ltd.
Share on (60497314467):
Product Overview
Description
Product Description
Brief Introduction
Newly design supper speed soft loop hand bag machine,speed of bag-making is 100pcs/min, with servo motor, inverter ,PLC and EPC auto control unwinding, re-position the market standard
Main Features
1) 3 pcs servo motor drive from soft loop handle device
2) Newly design bag stack and speed down system
3) Best quality sealing knife and top lift device
4) Top-folded sealing knife adopt continuously heating sealing
Optional
1.Single sheet film folding unit(hydraulic auto loading device)
2.Double sealing knife device
3.Bottom sealing knife device
Products Description
Technical Parameter
Model | CW-8D0ZD | CW-80DLP | CW-8DDSP | CW-B00CSD | CW-BDDSDP |
Length of bag-making（Height of bag） | 250-750mm | 250-750mm | 250-750mm | 250-700mm | 250-700mm |
Width of bag-making | 250-600mm | 250-B00mm | 250-BD0mm | 250-B00mm | 250-600mm |
Top-folding edge | 50-75mm | 5D-75mm | 5D-75mm | 5D-75mm | 5Q-75mm |
Bottom gusset | 2D-70mm | 20-70mm | 2Q-7Qmm | 20-60mm | 20-B0mm |
Speed of bag-making | |||||
Soft loop handle bag | 6Qpcs/min | BDpcs/min | 12Dpcs/min | IDQpcs/min | |
Patch handle bag | 60pcs/min | BOpcs/min | 100pcs/min | ||
Poly draw handle bag | 65pcs/min | ||||
Die cut handle bag | 8Dpcs/min | 8Dpcs/min | 80pcs/min | 14Qpcs/min | 12Dpcs/min |
Total power | 13KW | 1DKW | 1DKW | 1DKW | 18KW |
Machine weight | 35D0kg | 3200kg | 3200kg | 3000kg | 3600kg |
Machine dimension（LxWxH] | 8.2 x 3.1xl.87m | B.2x 3.1 x 1.87m | B x 3.1 x 1.87m | 7x 2.2 x 1.95m | 10.2 x2.2xl.95m |

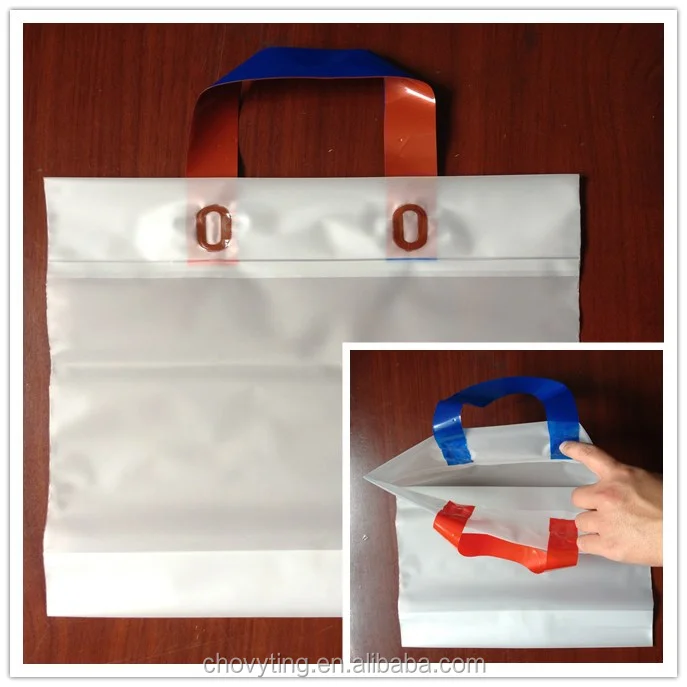

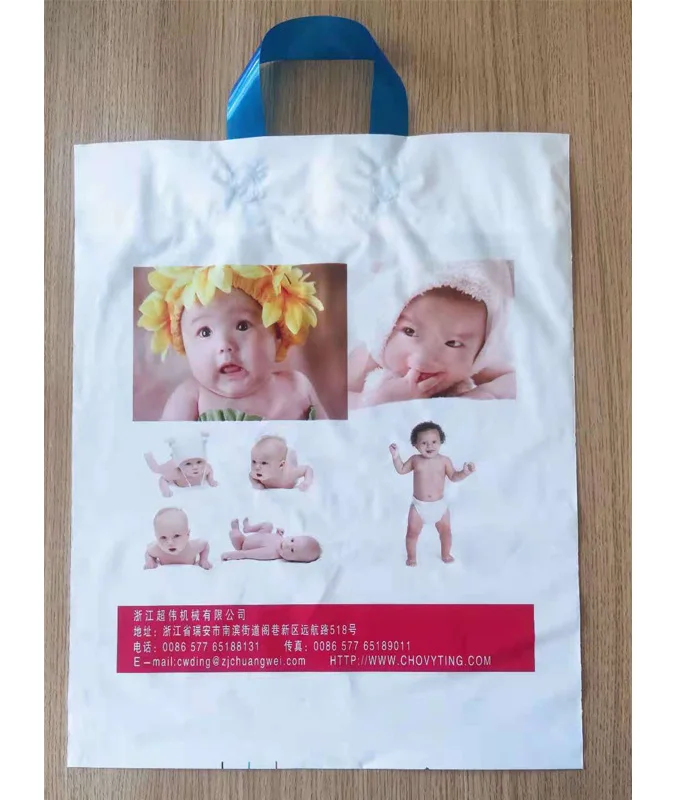

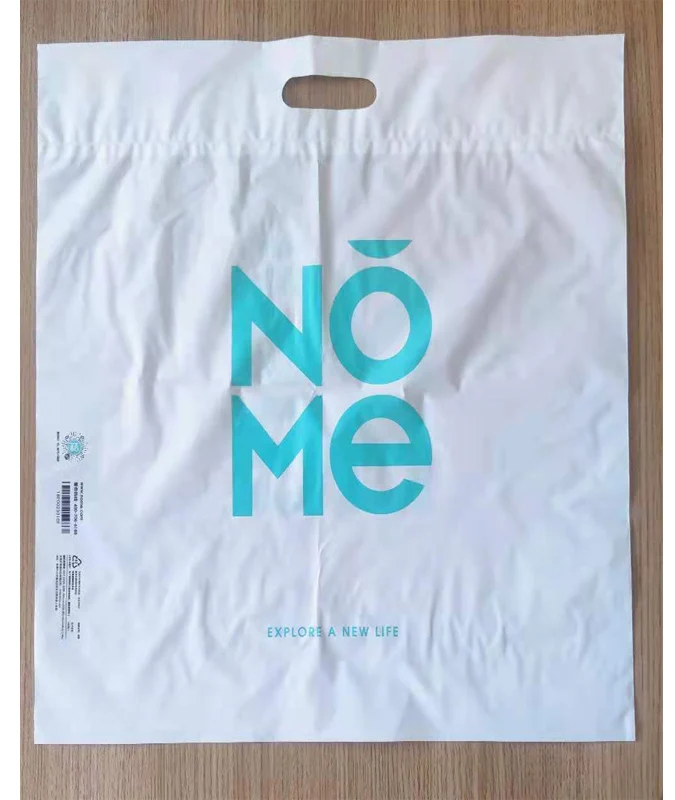

sample bag
Details Images

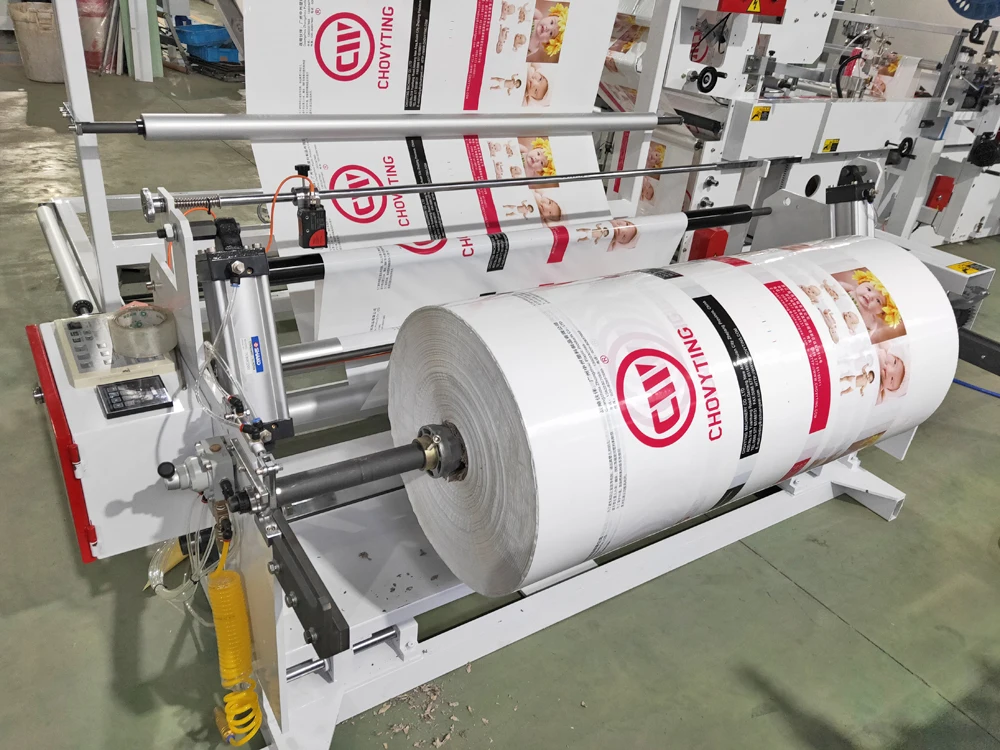

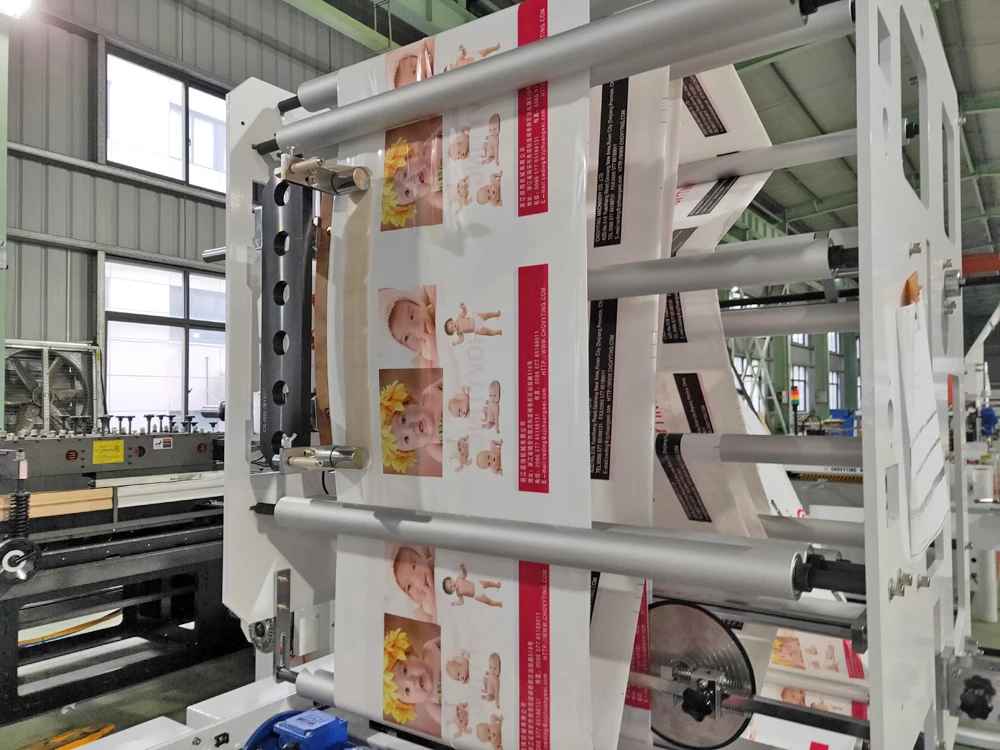

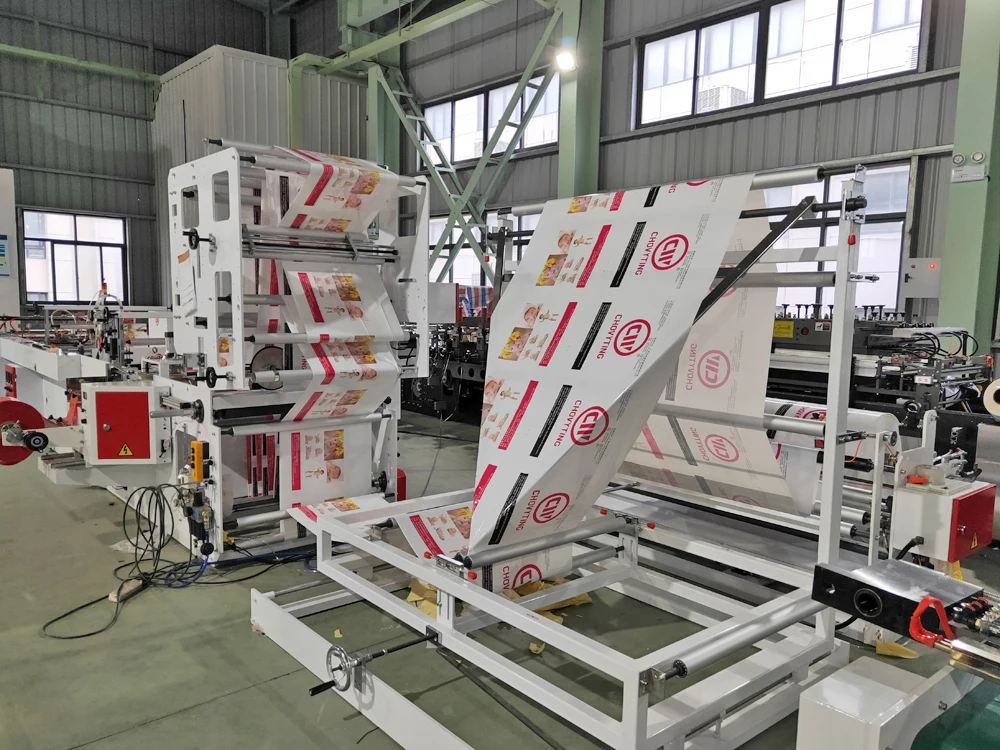

Common unwinding
1.Unwinding adopt common loading , max diameter of raw rolling material is φ600mm
2.Adopt auto tension control.
3.Unwinding with auto EPC
4.1600mm triangle folding device, which can adjustment
2.Adopt auto tension control.
3.Unwinding with auto EPC
4.1600mm triangle folding device, which can adjustment

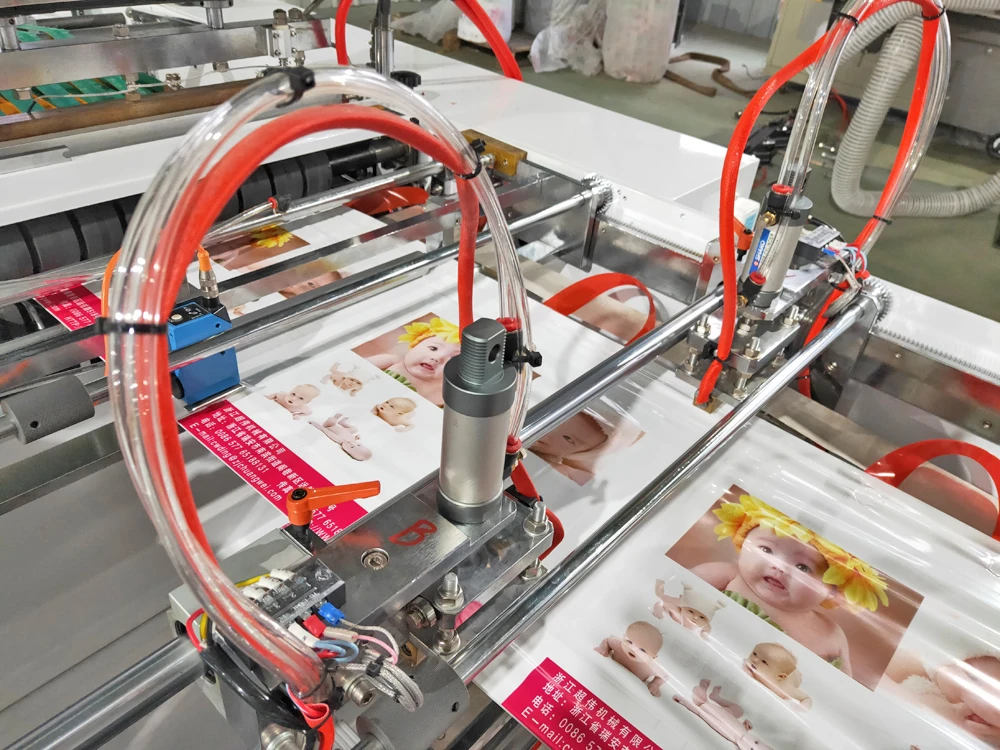

Top-folding continuously sealing device
1. Top-folding continuously sealing, the width size of bag not be limited,
2. Inside heating wire sealing, which is suitable for full colors of bag.
3. Adopt import heat wire, steady warming, hard sealing
2. Inside heating wire sealing, which is suitable for full colors of bag.
3. Adopt import heat wire, steady warming, hard sealing

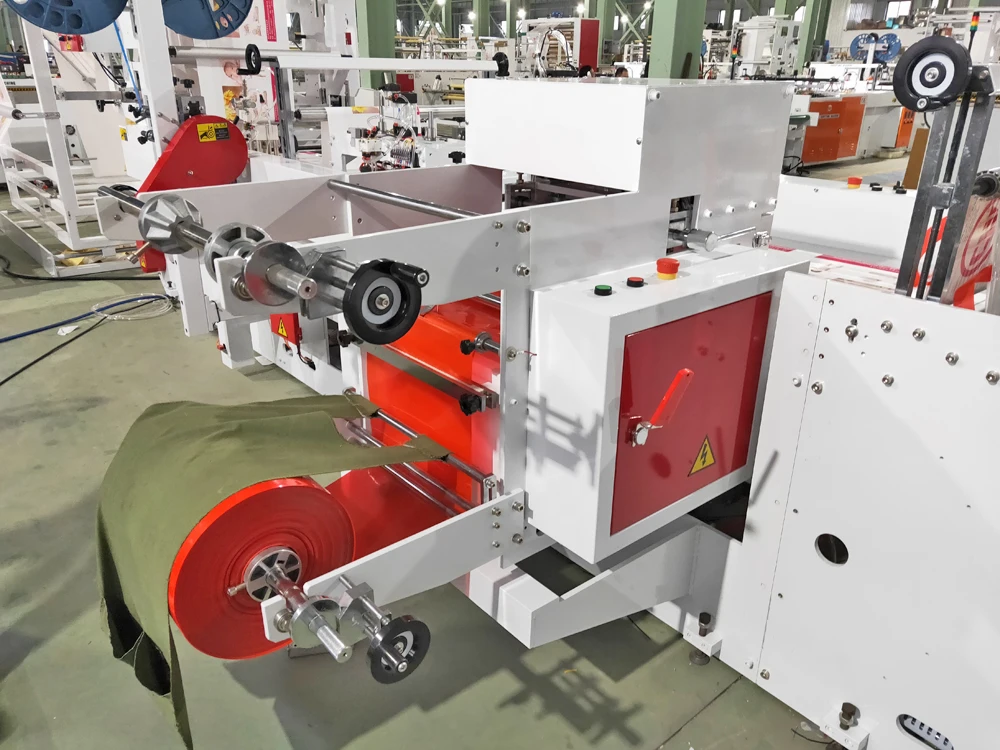

Soft loop handle bag device
1. Hydraulic skew angle feeding soft loop2. 90 degree turnabout gear rotary soft loop
3. Special oblique drag style rotary soft loop
4. Micro-motor driver soft loop handle go forward and back off
5. Centralize style air control system

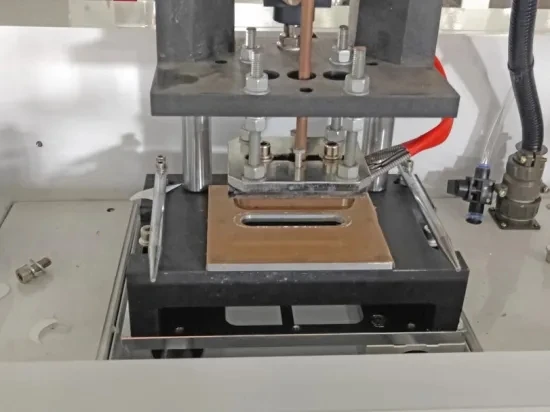

Heat sealing handle punch
1. High hardness gear steel smooth pillar2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate

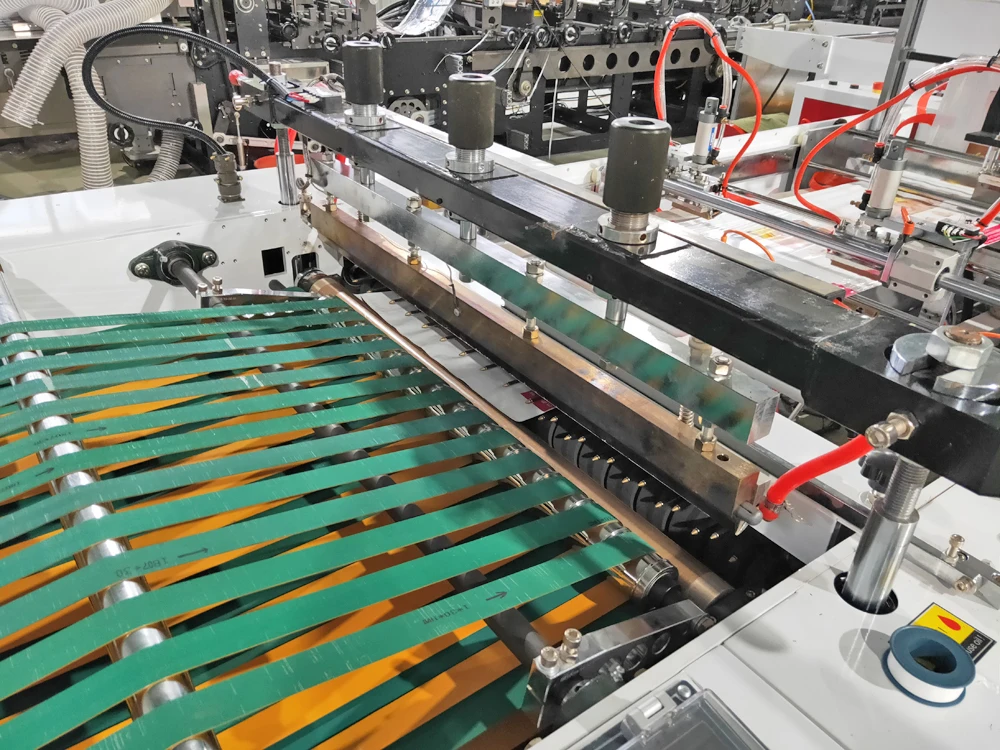

Side sealing parts
1.Side sealing knife principal axis transmission belt cylinder lifting and down.2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3.Side sealing knife with concealed style heating tube, temperature steady

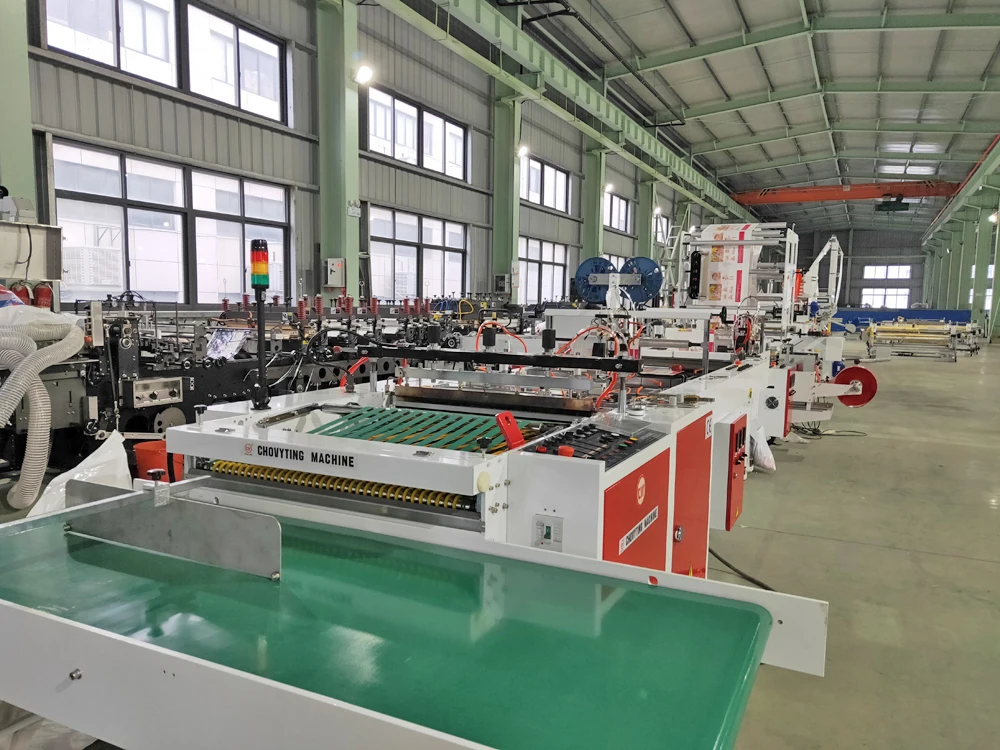

Convey collect device
1.Collect table adopt automatic collecting bag feeding (intermission model and continuum model)2.When the bag reach to a certainty quantity, collect table will move automatically, and continue producing.

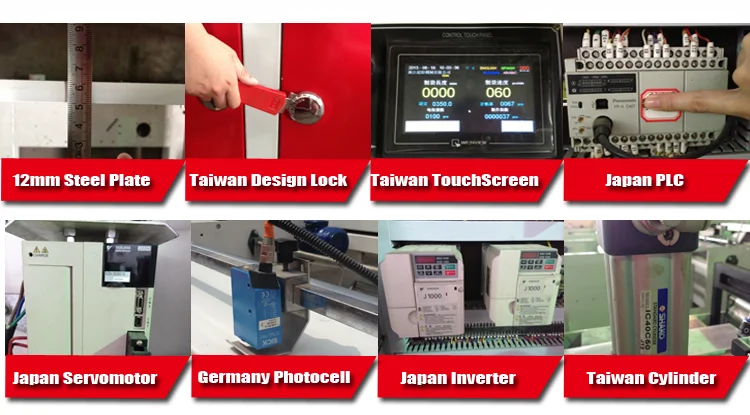

Main Part
Certificate
Packing

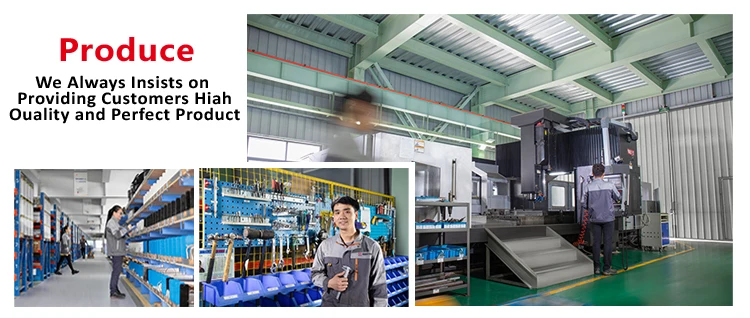

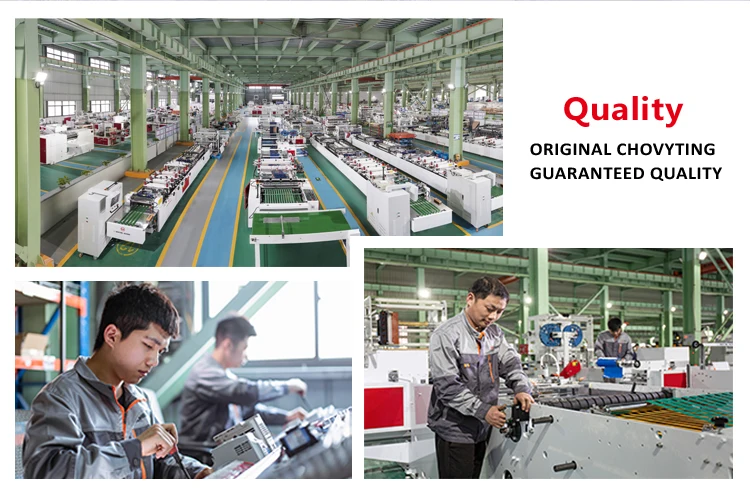

About Us
CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production operations, so that to receive a higher rating from customer after use.
CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.
CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
Exhibition
FAQ
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
10) How many workers of your company?
More than 150 workers.
