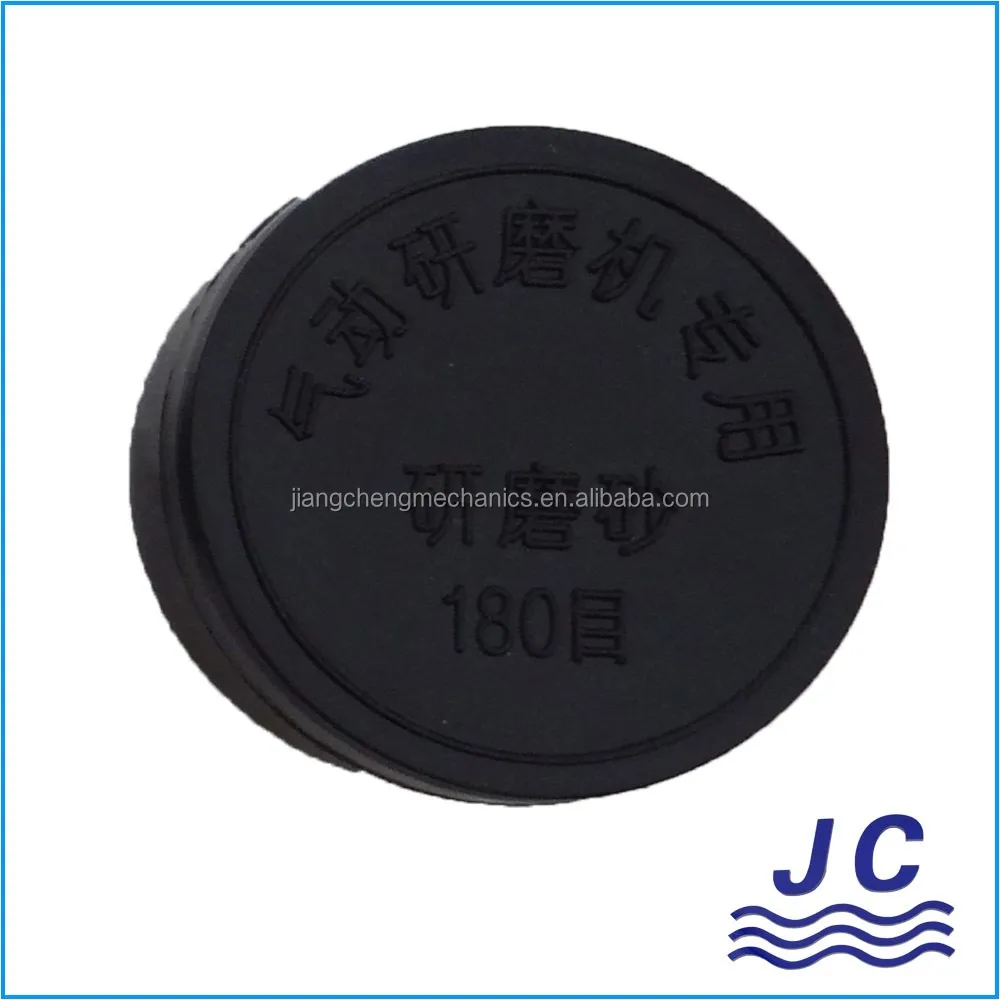

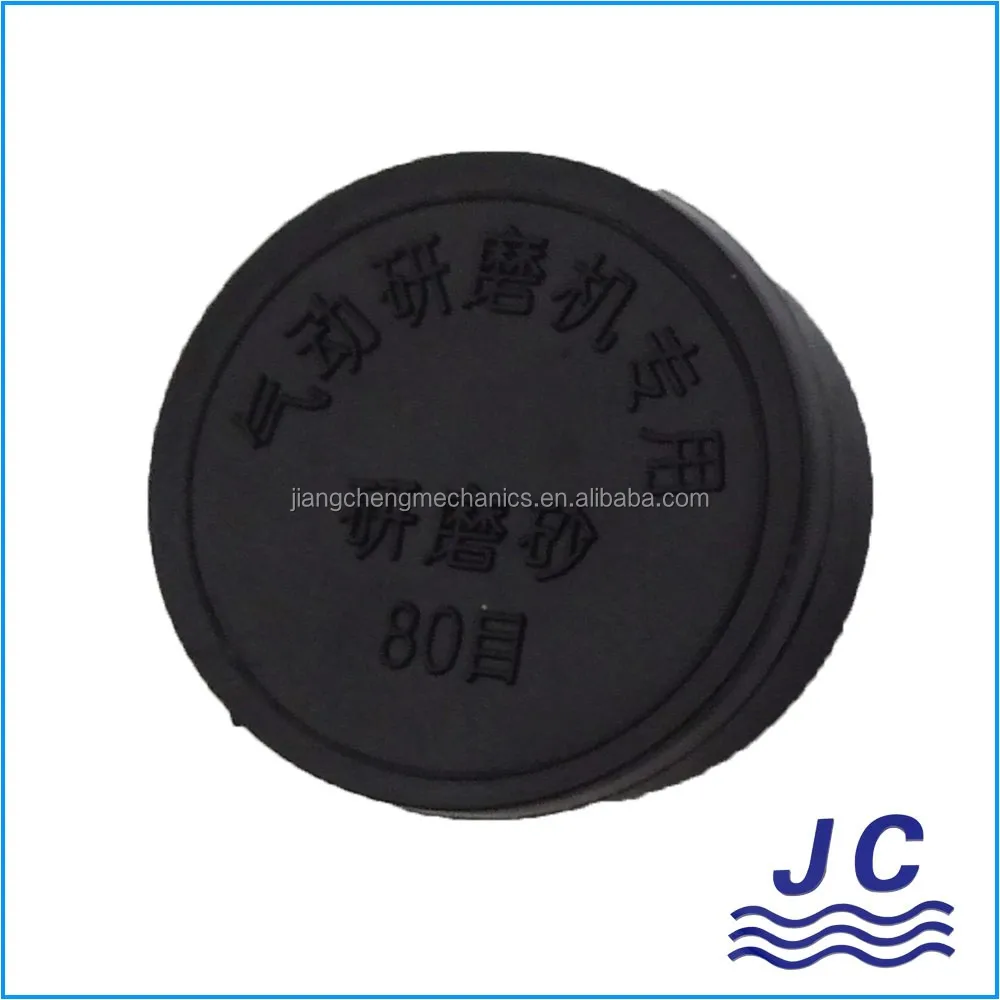

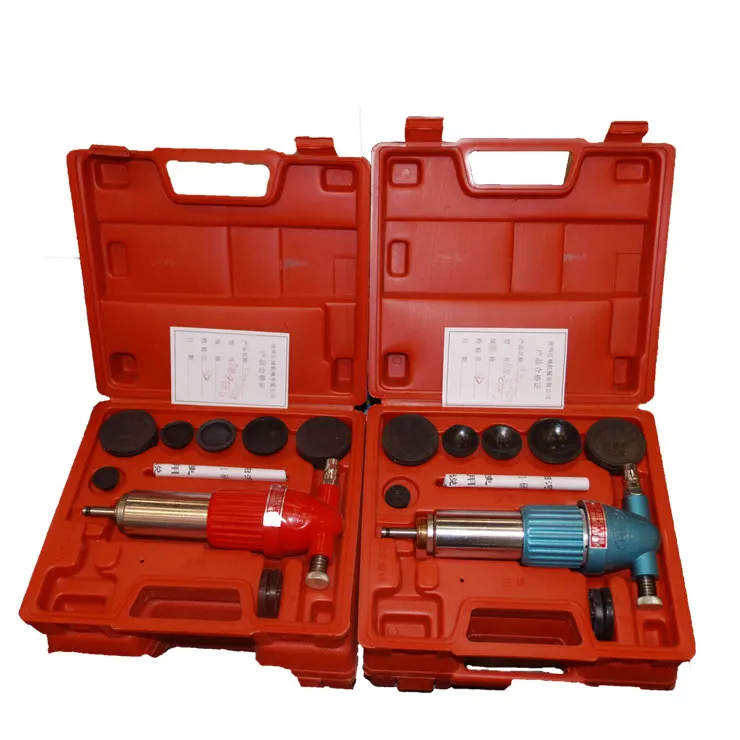

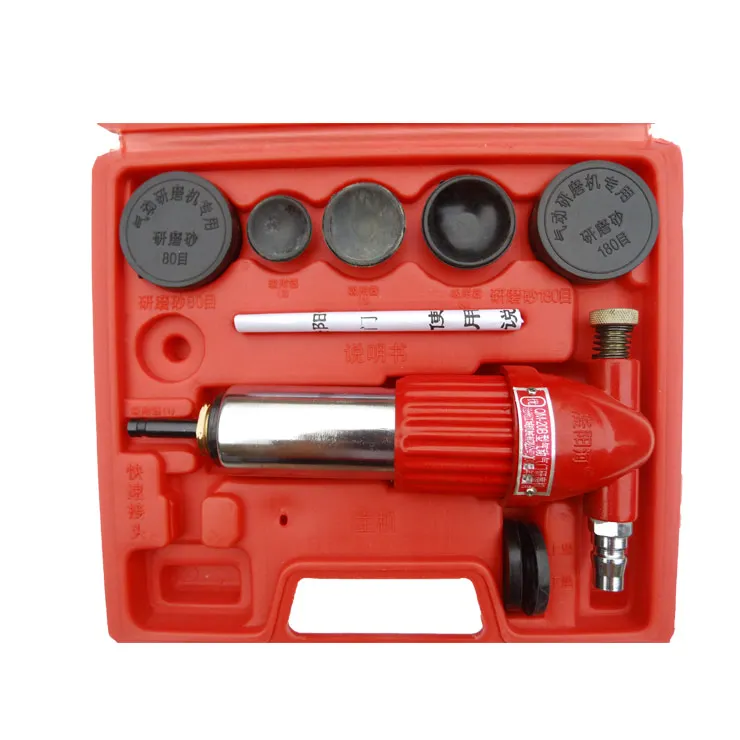

Pneumatic Air Operated Grinding Machine Engine Valve Grinder Caps Grinding Sand

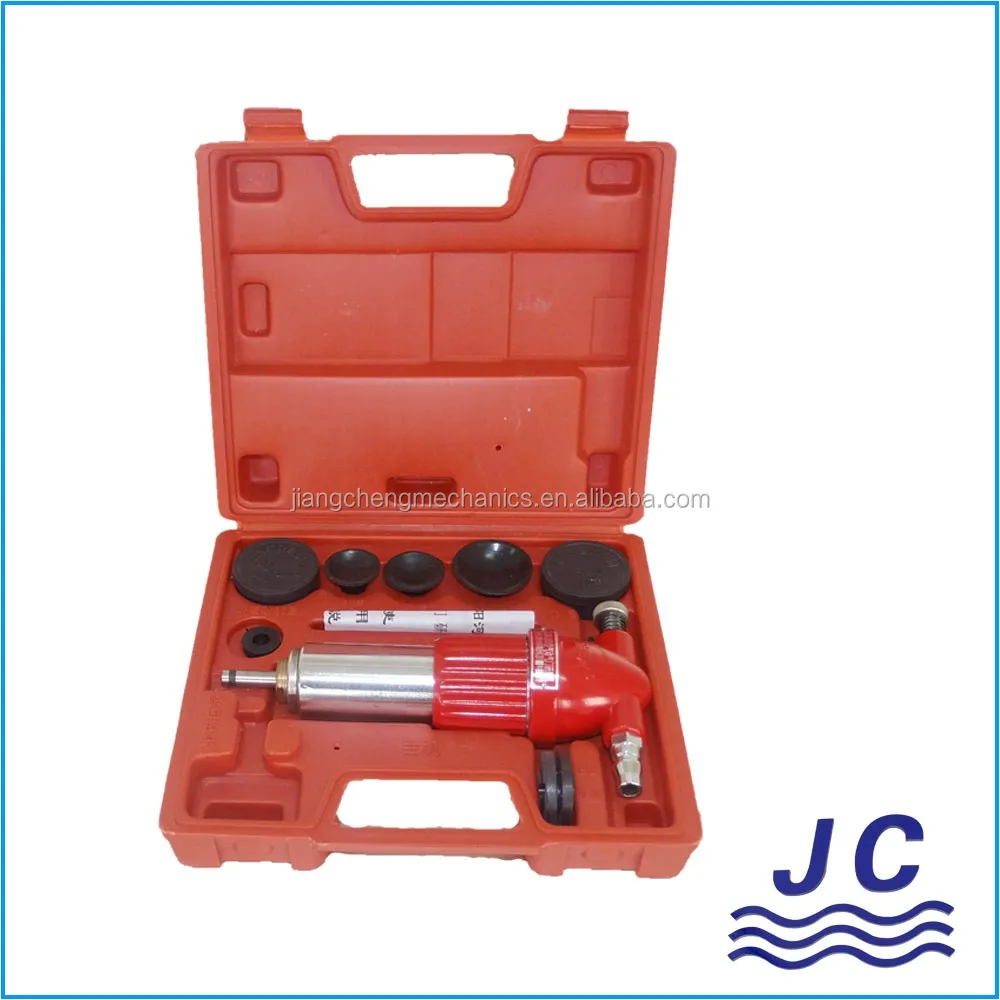

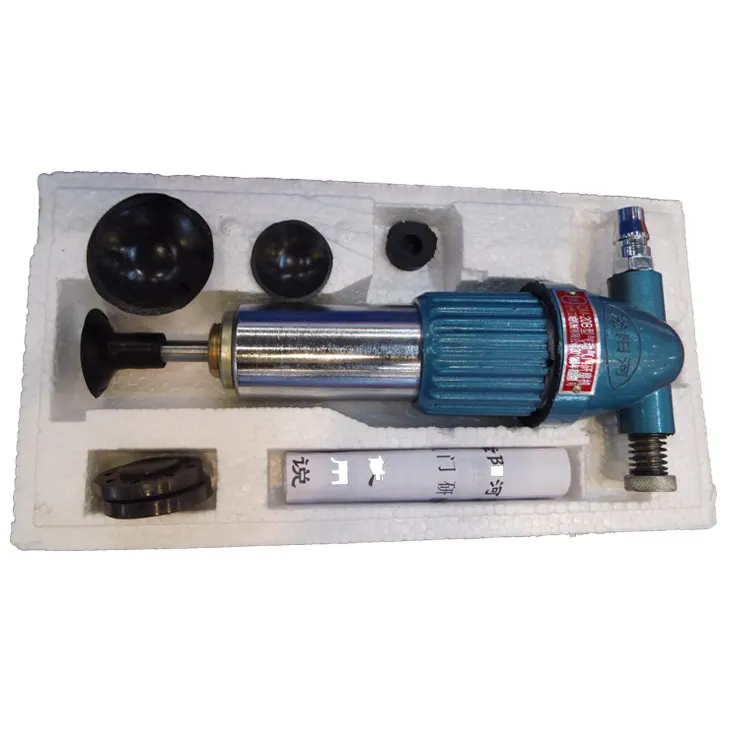

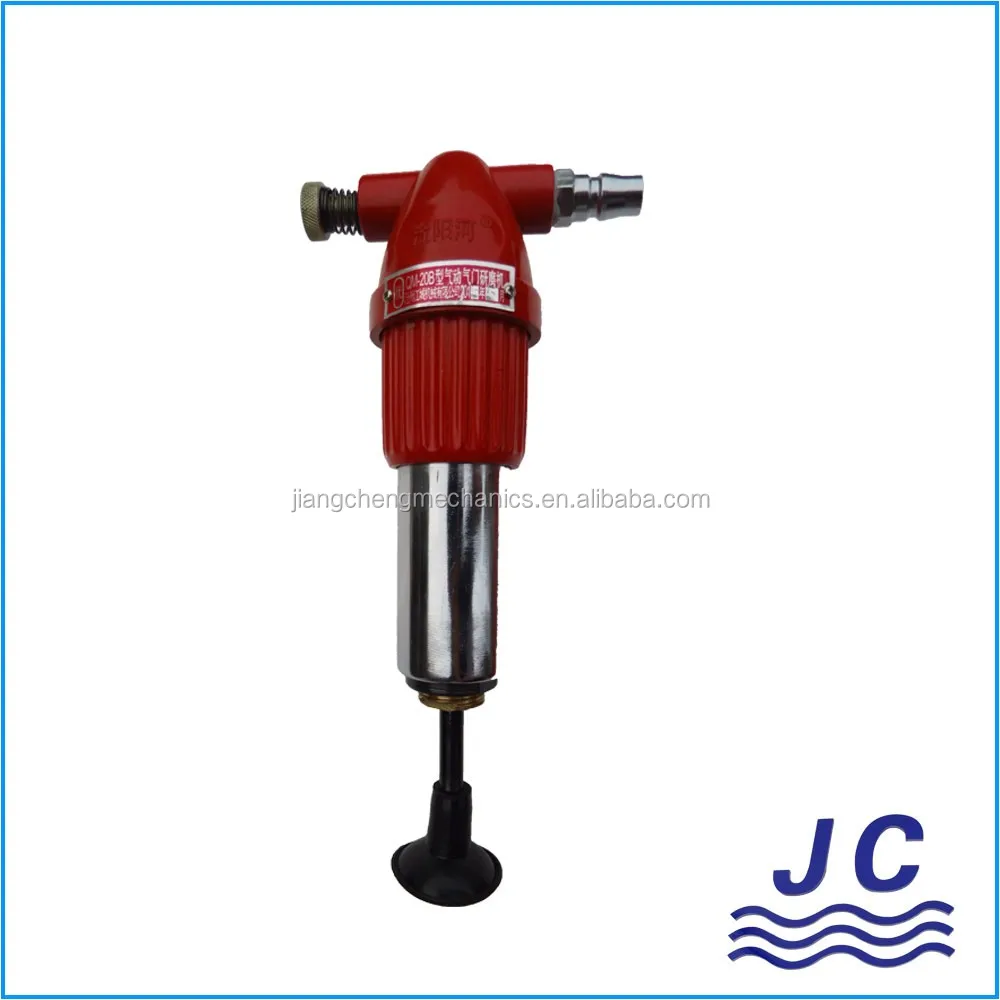

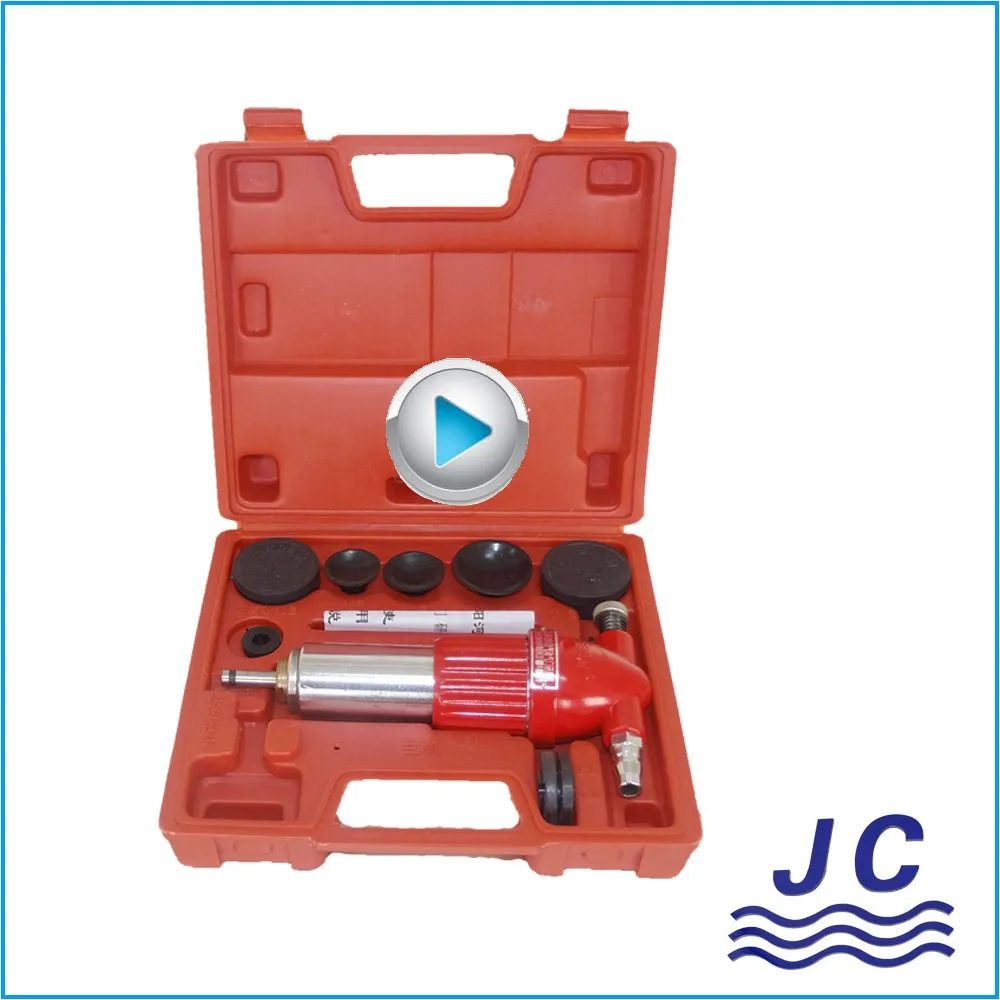

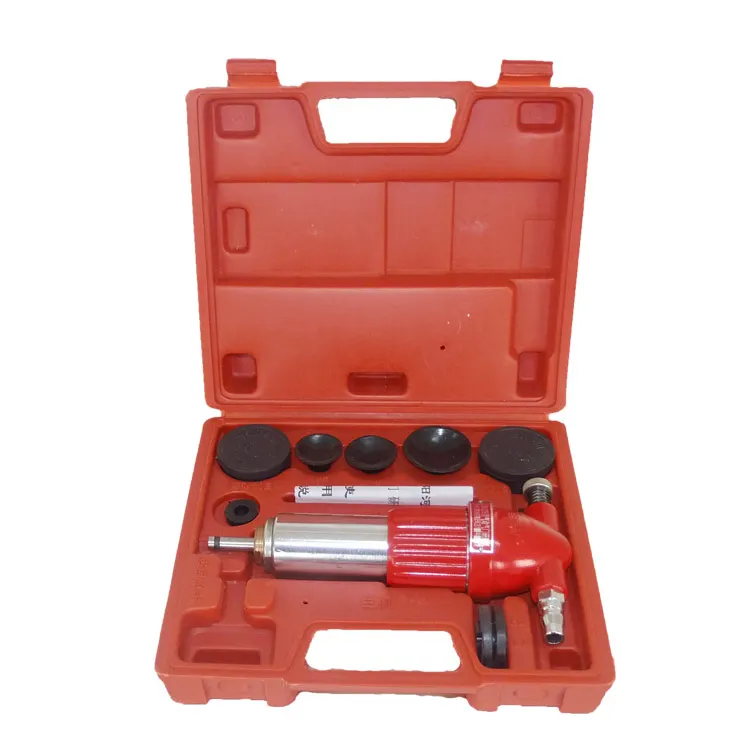

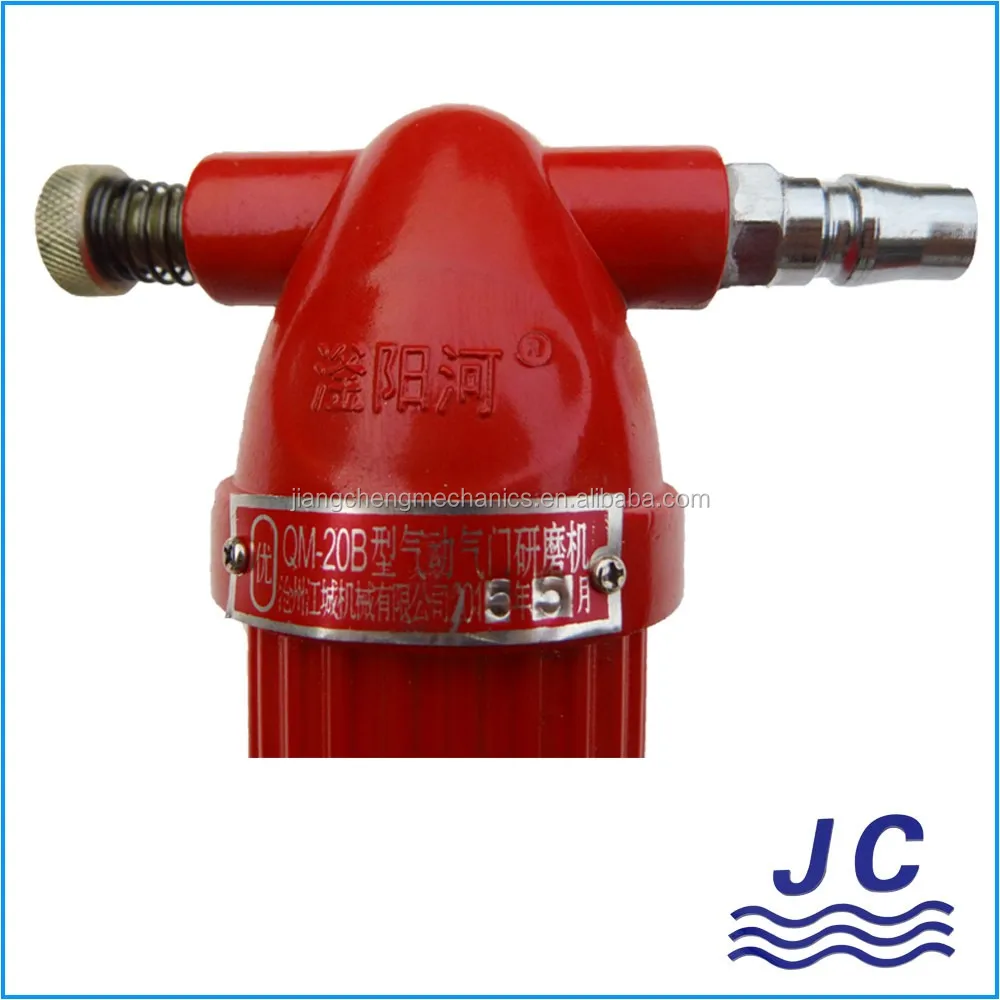

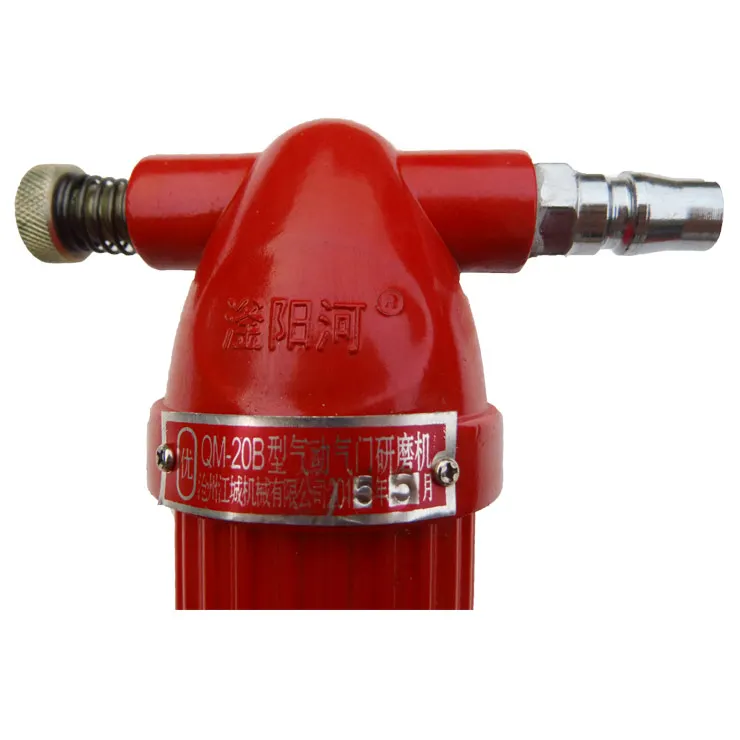

QM-20B valve grinding machine

1. Pneumatic valve grinding machine introduction:

First valve top screw tightening, the inlet joint and the air supply is switched on, then the suck of the adsorber is valve grinding, loosen the valve top wire grinding machine starts to work, suction valve height control in 7-12mm, fine slow as a criterion, master in low-speed optimal and observed at any time be made of surface grinder, grinding to prevent excessive

2. Pneumatic valve grinding machine specifications

Grinding valve max. weight:0.5kg

Working pressure: 3-6kg/cm³

Working stroke: 11-15mm

Effective frequency: 300-1100times/min

Working speed: 10-40Rev / min

Gas consumption: 0.28m³/min

N.W: 1.2KG

usage: automotive, motorcycle and engine valve grinding repairs
