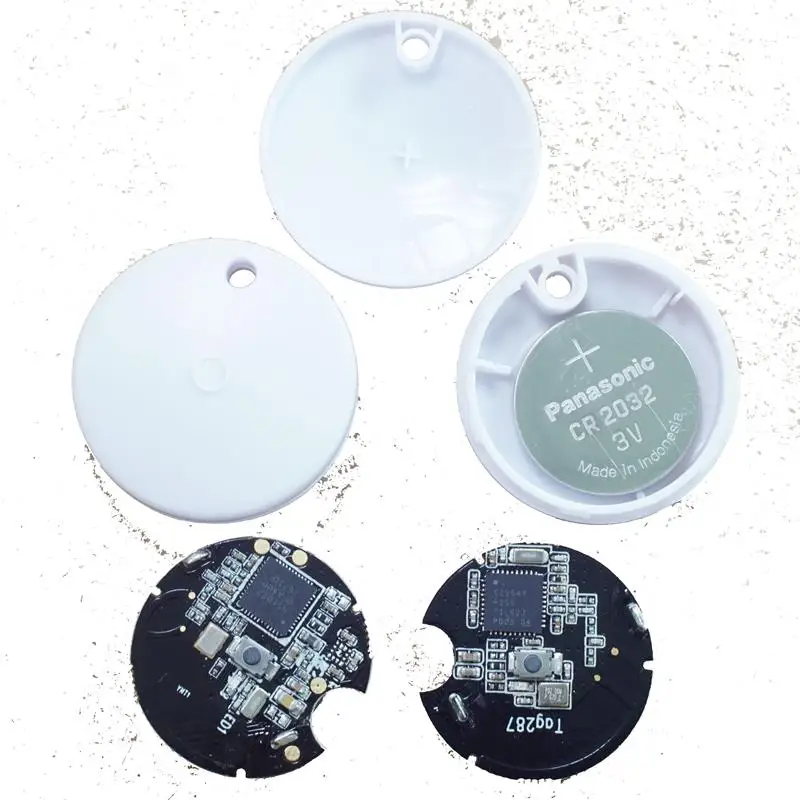

BLE low energy BLE tag cc2541 beacon with customized case

Product Overview

Description

bluetoo low energy BLE tag cc2541 beacon with customized case

MOLD	NRF51822	NRF52832	CC254X	CC2640	CC2640-X1
Chipest	Nordic	Nordic	Ti	Ti	Ti
BLE	4.0	5.0	4.0	5.0	5.0
Power Supply	2.0-3.3V	2.0-3.3V	2.0-3.3V	1.8-3.8V	2.0~3.0V
Output Power	4dBm	4dBm	0dBm	5dBm	5dBm
Broadcast interval	1S(adjustable)	1S(adjustable)	1S(adjustable)	1S(adjustable)	1S(adjustable)
TX Current	13mA	13mA	24mA	9.1mA	9.1mA
average current	50uA	50uA	80uA	40uA	40uA
Standby Current	3.1uA	3.1uA	3.1uA	1uA	1.5uA
Distance	>50m	>50m	>50m	>60m	>60m
Diameter thickness	2.4cm*4.5mm	2.4cm*4.5mm	2.4cm*4.5mm	2.4cm*4.5mm	75*26mm (with pedestal)
Battery	CR2032	CR2032	CR2032	CR2032	2*AA ALKALINE (industrial battery)
Life Time	6 month	6 month	4 month	8 month	Five Years
Waterpoof	No	No	No	No	Yes
Sensor Optional	Yes	Yes	Yes	Yes	No



Characteristics :

1. Easy and Rapidly to customize a casing in very low cost;
2. UUID, Major, Minor and other parameters can be changed by customer;
3. iBeacon with bar code and easy for recognize;

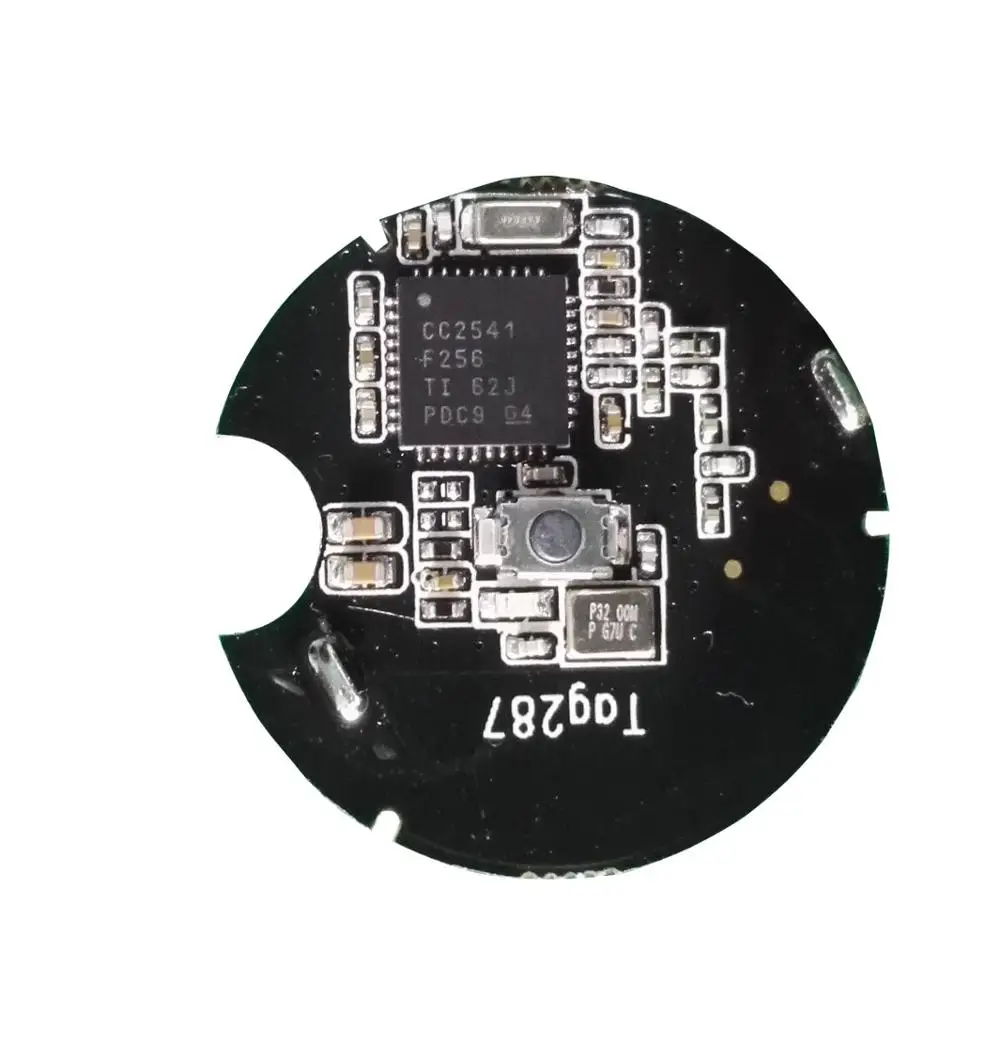

4. Based on TI's CC2541/CR2032 ,BLE low energy module;
5. Support for IOS7.0,Android 4.3 or above;
6. Effected range:30M;
7. low energy module for battery life 1 years;



Remarks:
1. The supply voltage of the module will affect the transmit power, the lower the
voltage, the smaller the transmit power in the operating voltage range.
2. When the operating temperature of the module changes, the center frequency
will change as long as it does not exceed the operating temperature range, does
not affect the application.
3. Antenna has a great impact on the communication distance, please install the
module correctly.
4. The installation of the module will affect the communication distance.
