Waterproof all steel cabinest automatic ice vending machine

Share on (60497538795):


Price:

Quantity:


Product Overview

Description


Waterproof all-steel cabinest automatic ice cream vending machine


Product Description



Functions and features of  machine



  • Capacity:140KG-900KG per day.
  • waterproof all-steel cabinest, the front door open dessign,safeety and health durable and easy installation.
  • The parts of connecting with ice and water ,used stainless steel 304,all adopt food grade.
  • Payment system:cion or IC card,change available(additional function).
  • GSM available
  • Automatic bagging, cut,packing, sealing.
  • No ice. not sell.
  • Add RO water treatment system, ice-cube can be eaten directly.



Main Technical Standards of ice vending machine:

Power SupplyAc 380V-50Hz/ Ac 220V-60Hz(3phase)
Consumption3.5KW
Capacity Of Ice  450KG/24H(ambient Temperature 20°C)
Size Of The Ice-Cube2.2cm*2.2cm*2.2cm

Capacity Of Ice Mold Space

540 Space
Spec Of CompressorSpec Of Compressor3P
RefrigerantRefrigerantR404a
Material Of Ice TankStainless Steel 304
Water SourceTap Water(Storage tank available)
Pressure Of Raw Water≥0.1mpa
Capacity Of Pure Wateroptional
Recovery30% To 50%
Sales MethodInduction IC Card/Coin
Dispensing IceBulk Ice/Bag Ice
Bag Size300mm*550mm
Bag Thickness0.05mm(Single Layer)
Range Of Bag Ice1KG To 4.5KG
Capacity Of Inside Storage BagAbout 250 Pcs
Size Of Bulk Ice TankW45cm×D35cm×50cm (Incubator Within The Size)
Machine SizeW120cm*D105cm*220cm

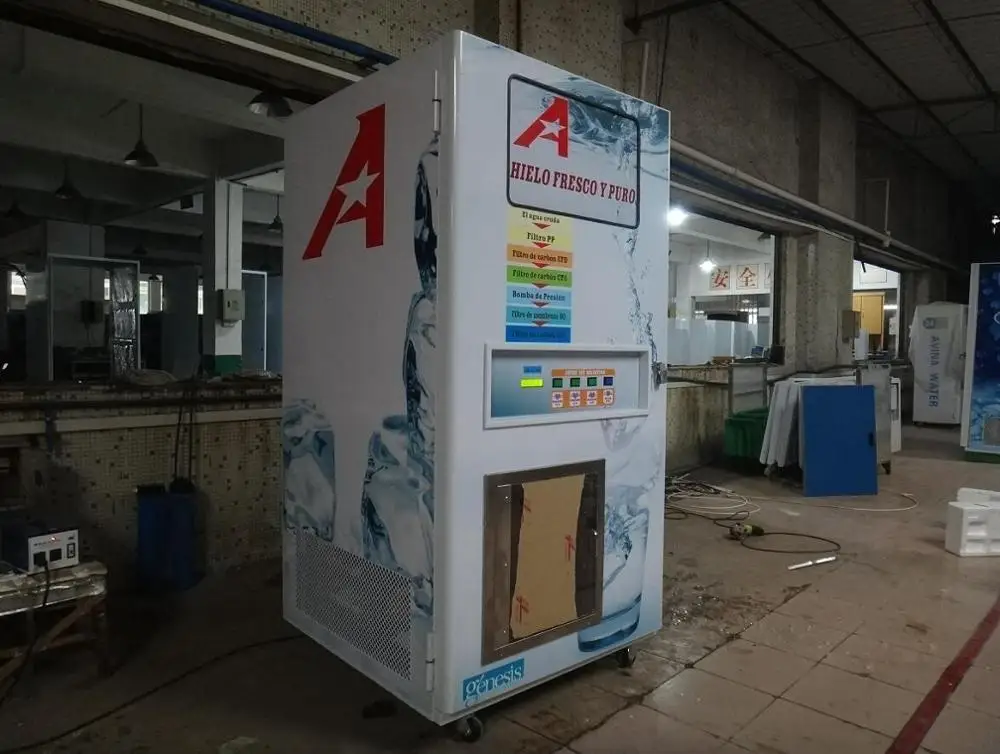

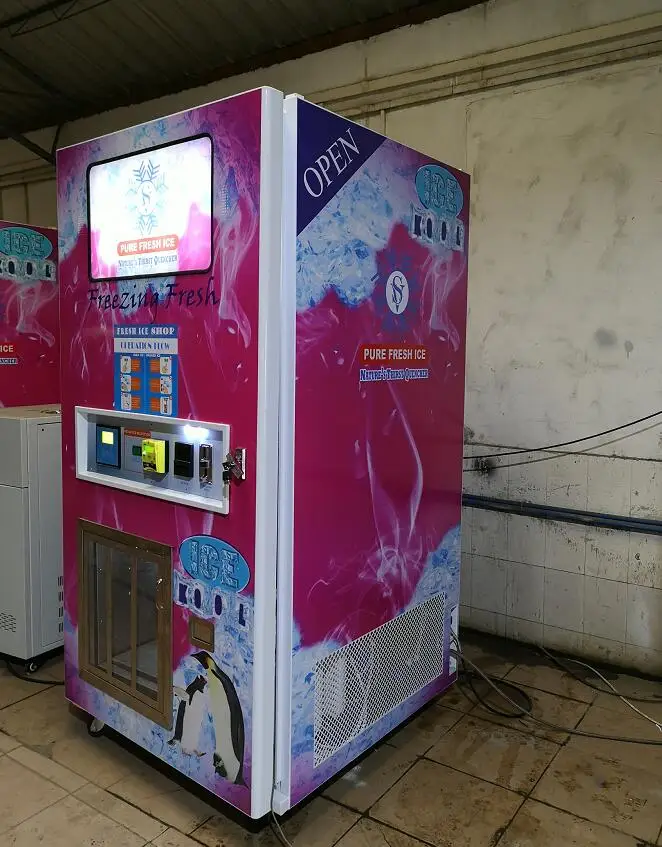

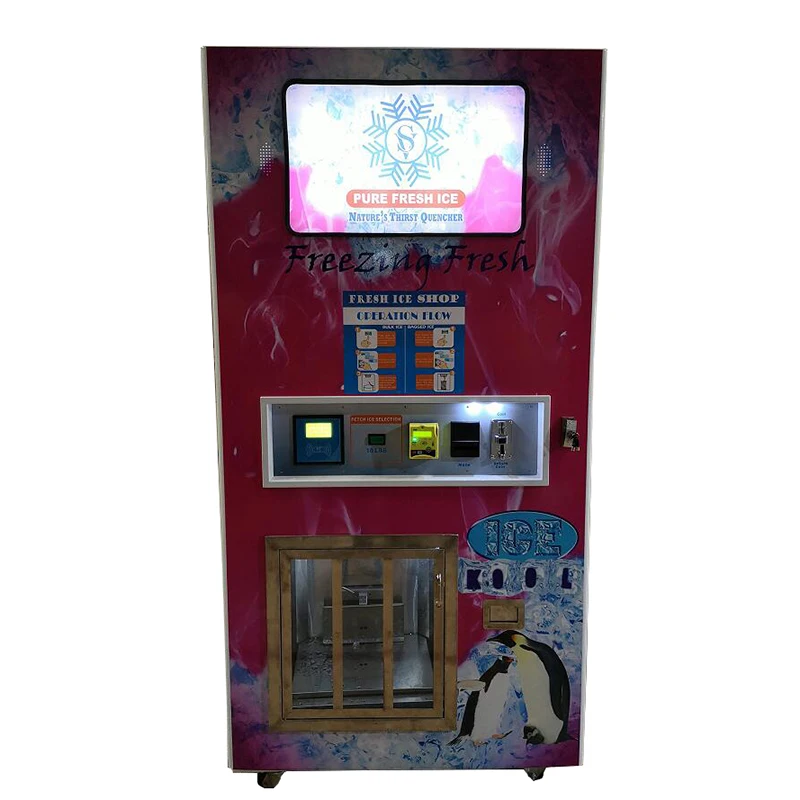

Details of ice vending machine:1CRO(NPO5)IF()Q2V`WOO$D.jpgice vendng machine.jpg









Company Information



ShenZhen J&D Drinking Water Equipment Co.,Ltd. , hereafter referred to as J&D, has had its presence in 2008, and since then, it has been focused upon the manufacturing of varied beverage and water production lines, including bottled drink production line, barrel water production line, bag water production line and cup drink production line.

J&D Water can supply the following equipment:

* water dispensers, water filtration systems and all associated equipment required for a bottling factory including bottle blowing, labeling and packaging equipment.

*3000-36000BPH mineral water & pure water processing and filling lines


Exhibition

 .jpg

Certifications

 CE222(1)

Packaging & Shipping

 photobank (36).jpg.jpg.jpg

Our Services



1, the guarantee of our machines is at least two years, also we will send 3% of sales value as spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.
2, we can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use.
3, we will offer you detail manual books for our machines, also we will make one Video CD to show you how to install and maintain the machines, the CD is the movie for the machines, it will be the great references for you to maintain the machines for the long time.
4,another way is that we can send our engineers to your factory to install the machines and train your engineers, we think it is the best way to help you operate and maintain the machines. We have been doing the install jobs for our overseas customers for many years. In this way you need to pay for the travel costs for our engineers, because our initial quotes don’t include the travel costs.
5, All of the electrical parts in our machines are CE or TUV approved. We can offer you UL or CUL/CSA approved parts if you need for the North American markets. The good electrical parts are the guarantee for the good quality for our machines.

.jpg



FAQ



FAQ

Which equipment do you need?

Bottled beverage filling machine, 5 gallon bottle water filling machine, 3L-10L bottle filling machine or cup filling machine

Requirements of filling container and capacity.

Bottle, barrel, cup.

Which label do you want to use?

The labeling machines include: hot melt glue labeling machine, cold glue labeling machine, self-adhesive sticker bottle labeling machine and automatic shrink sleeve labeling machine.

What packing method do you want to choose?

The packing machines include: film packing machine and carton packing machine.

Any more information please feel free to contact us and welcome to vist our factory!
