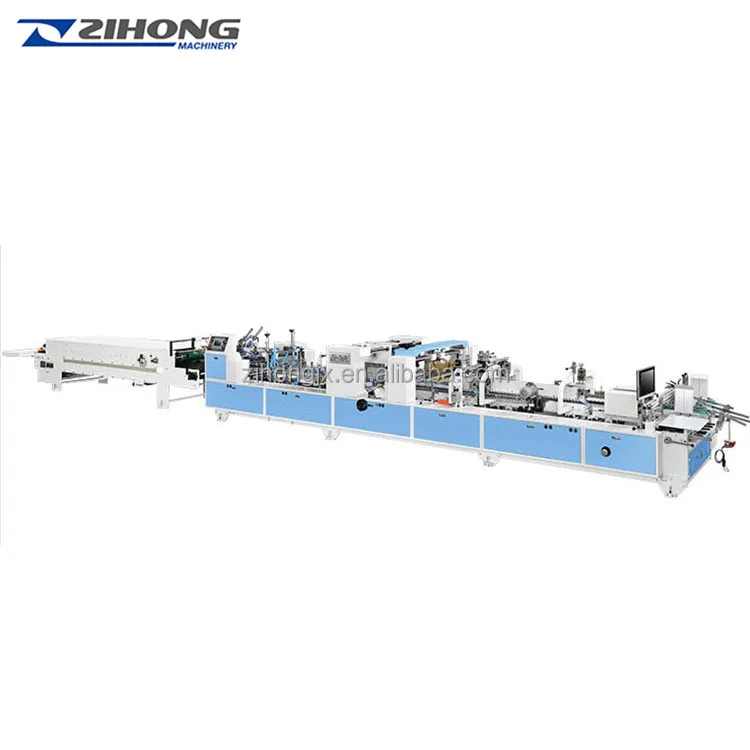

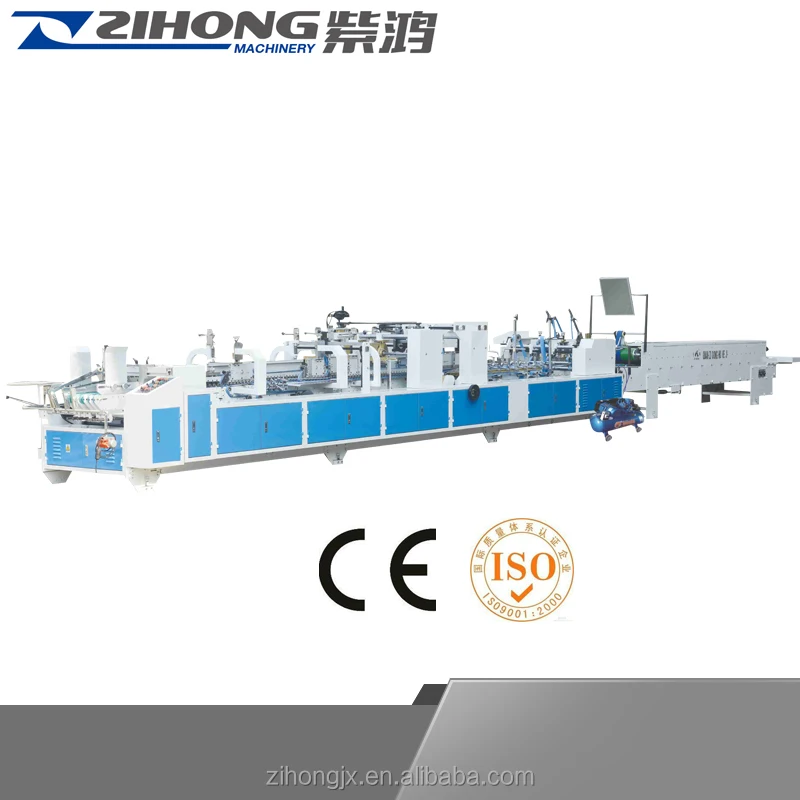

ZH 780 4 6 Corner Lock Bottom Straight Line With Pre fold Function Folding Gluing Machine

Product Overview

Description

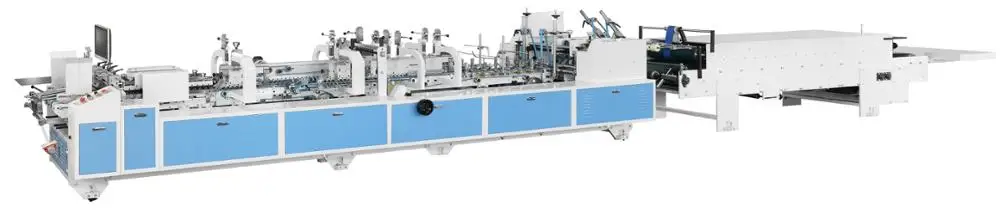

ZH-780 automatic spray glue machine for 4 6 corner box folder gluer machine



ZH-780 is a multi functiong model, suitable for card board, E\\B\\A flute corrugated board. This model has correction device and bottom lock device. Can make electrical adjusting. Has UV destroying device and dust remove device for better gluing effect. It is a new economical high speed with pre-fold and crash lock bottom machine. The forming beautiful shape, easy to fill boxes in kind, more practical open. Separate operation before and after the single transducer. Is more economical, more practical models. Professional for the wine box, gluing side keep stright no inclined, sticky boxes degree of intensity, will not be break and cracks, ect. can do 15,000 or more per hour like the wine box with crask lock bottom, also be used for various types of crash lock bottom boxes, medicine boxes, cosmetic boxes and do simple box.



Our product advantage:

Modular design allows different configurations, to meet customer's needs.

Wide range of accessories that allows to run thousands of designs.













Technical Parameters:

Product name	ZH-780 automatic spray glue machine for 4 6 corner box folder gluer machine
Model	ZH-780
Suitable material	Card board, E flute corrugated board
Feeding method	Automatic continuous feeding
Max mechanical speed(MAX)	350m/min
Overall dimension(L.W.H)	10500*1550*1450mm
Glue type	Solvent
Weight	5/T
Power consumption	11.8KW
Machine configuration:
Main motor	TECO Taiwan
Inverter	Siemens
Timing belt and pulley	Timing belt and pulley
Optibelt	German
Bearing	NSK
Main axis	Taiwan chrome plated steel bar
Wall thickness	20mm tempered
Feeding belt	Habasit Switcherland
Transfer belt	Habasit Switcherland
Low voltage apparatus	Omron / Fuji
Fasten bolts	Level 12.9 Taiwan
Optional configuration:
High frequency plasmaC
Yaskawa servo system (for 4/6 corner box)
HHS glue spray system (for 4/6 corner box)





ZH-780

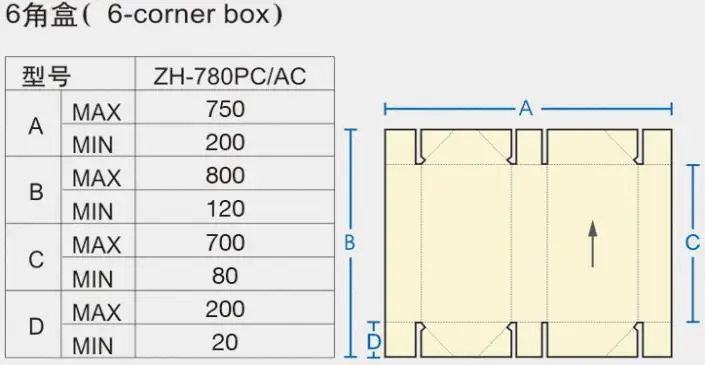

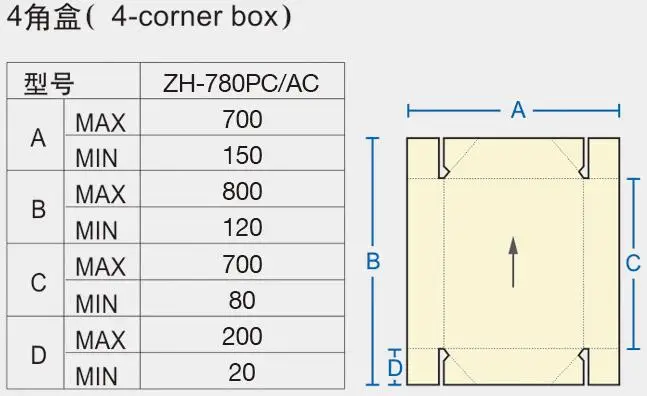

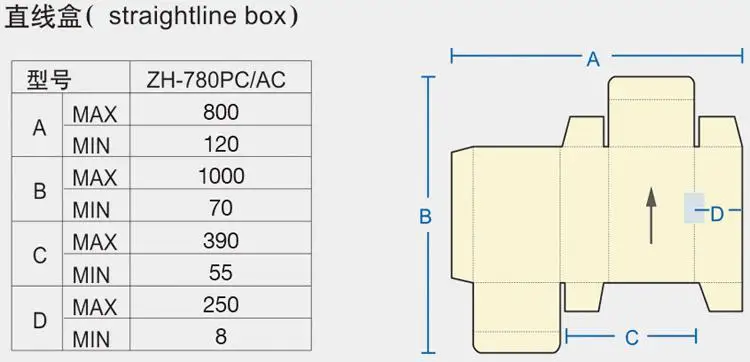

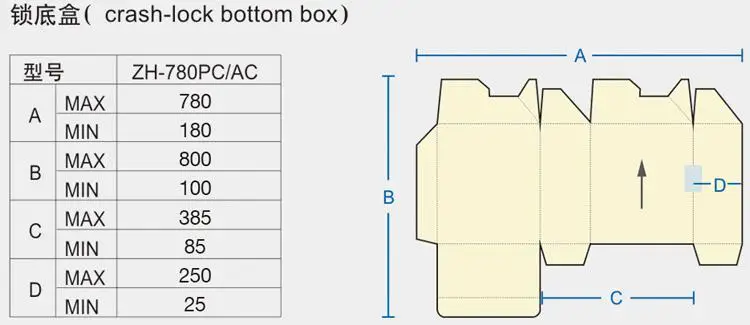

Box type		Straightline box	Crash-lock bottom box	4-corner box	6-corner box
A	MAX	800	780	700	750
	MIN	120	180	150	200
B	MAX	1000	800	800	800
	MIN	70	100	120	120
C	MAX	390	385	700	700
	MIN	55	85	80	80
D	MAX	250	250	200	200
	MIN	8	25	20	20











2.Optional:Plasma 2 guns 2600$

3.Delivery : 35 days after receive deposit

4.Packing : Film packing and loaded in 1*40GP and 1*20GP,if need add wooden packaging need add 1500%

Payment terms:  T/T.30% deposit in advance, and 70% balance before shipped.

5.Warranty period:12 months



Buyer need to pay travel expenses(ticket),hotel accommodation,food .

Supplier will send one engineer to customer’s factory for installation and training







1. Why your machine similar with other supplier?



  We design machines by ourselves with advanced technology. Apperance just a part machine, service and quality is more important than it.



2. What kind of machines can you supply to customer?



  We could offer various kinds of machines and whole production line





Our Advantages

1.We have professional technical team,have many patent technology.

We can provide customized packaging solution.show us requirement,it's ok.

2.We have professional after-sale team, can provide services to customers at any time.

After sales director:0086-13906879103

Group Director:0086-13955806881

3.We have export to many European and American countries,Germany,USA,Canada,Portugal...Argentina and so on.



Warranty Service:

Machines are new (or unused) and the gurantee period will be given thirteen months from shipment date. During this period, the seller will offer free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishading and consumable parts are not covered by any warranty.
