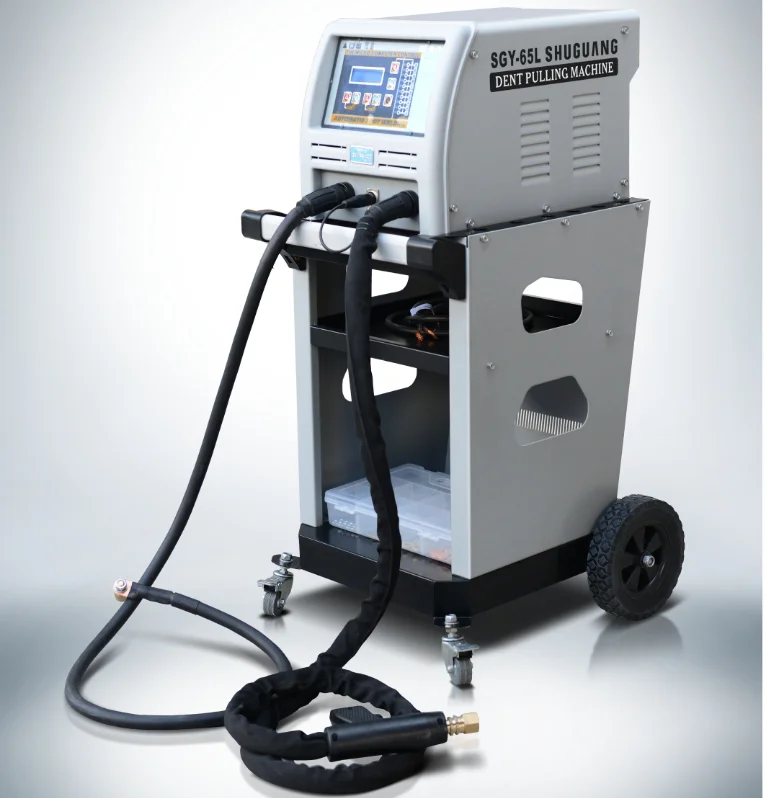

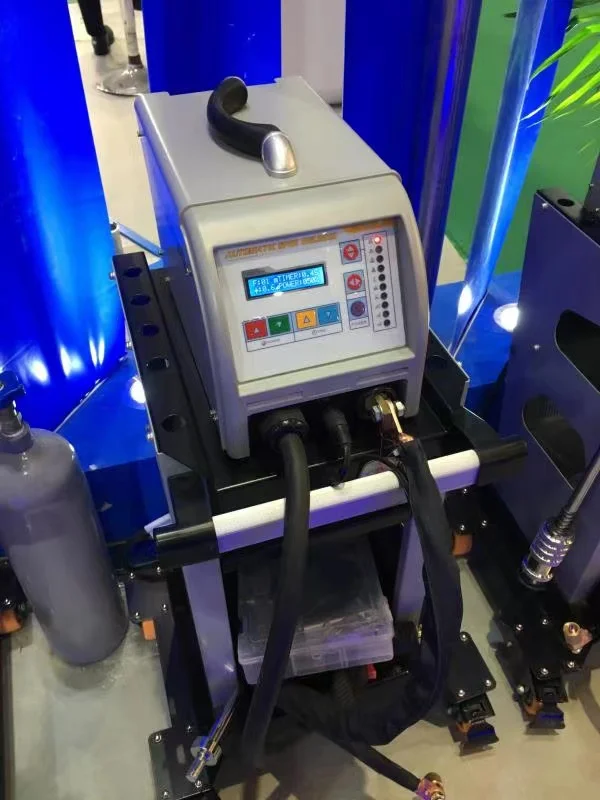

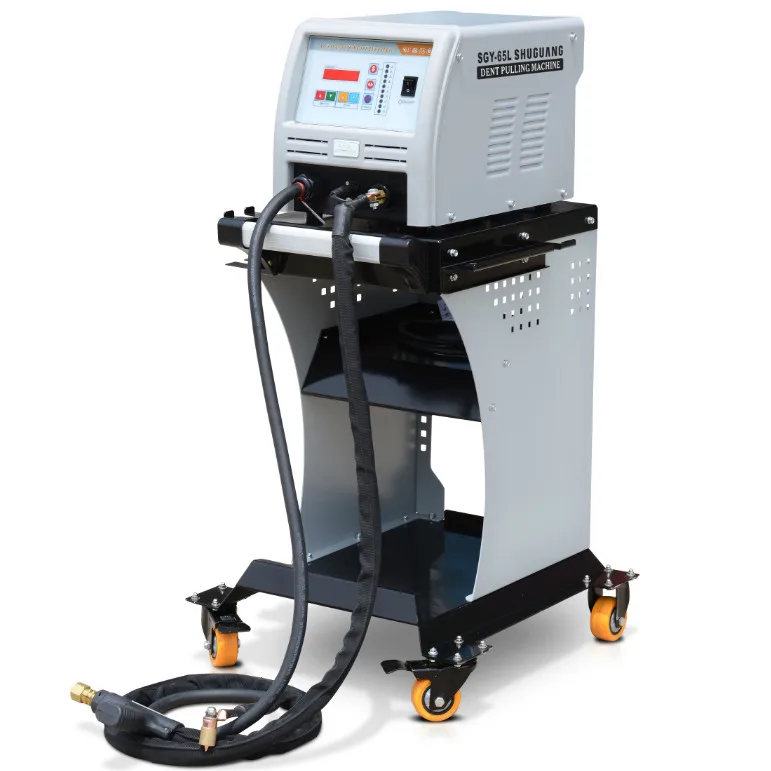

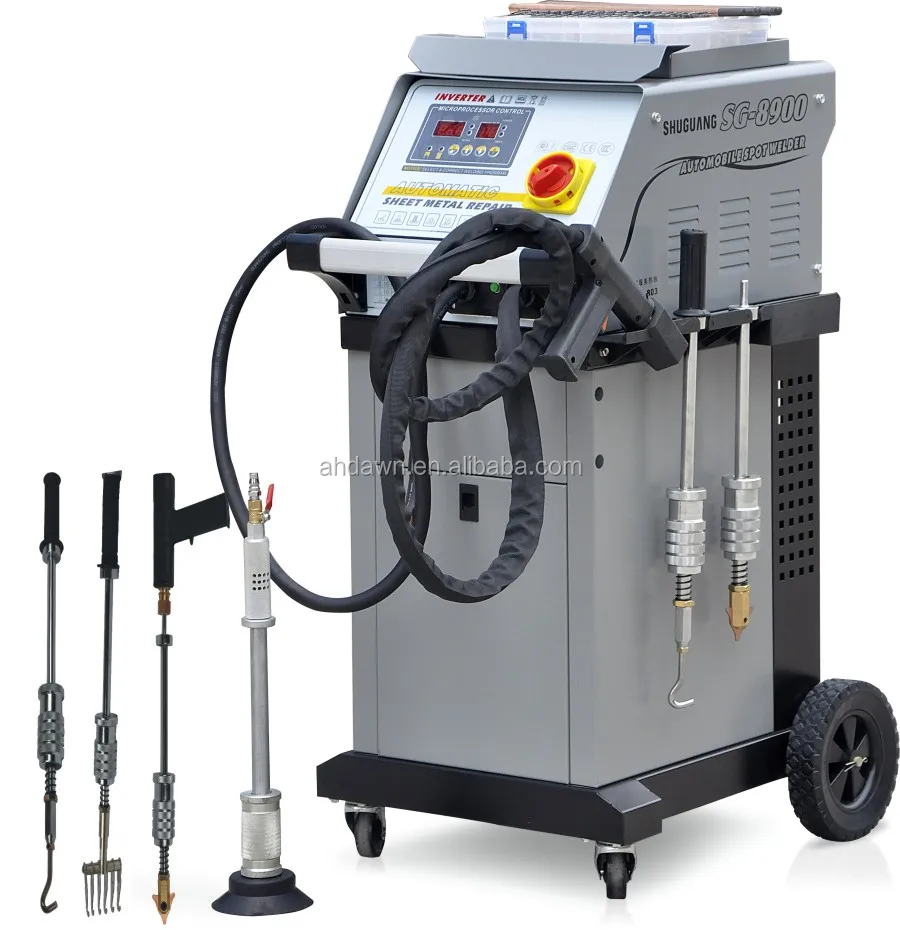

Automatic sheet metal repair Dent Puller Machine / sheet metal spot welder
- Category: >>>
- Supplier: Anhui Dawn Machinery & Electric Equipment Trading Co. Ltd
Share on (60497764060):
Product Overview
Description
Automatic sheet metal repair Dent Puller Machine / sheet metal spot welder
Features
- Microprocessor control system optimizes the welding parameters. Due to the adoption of advanced digital control technology and user friendly design, all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality.
- Automatic mains voltage monitoring.
- Digital control system offers greater stability of the output power.
- The welding gun testing function evaluates the usage status of welder more comprehensively.
- Overheat protection.
- High precision time and power adjustment system.
- Complete with triangle washers for dent pulling.
- Various welding procedures are available such as shrinking, washer welding, dent pulling spot welding, flattening, waveform wire welding, stud welding, OT washer welding, triangle washer welding etc.
- Large pulling hammer and waveform wire welding.
- Stepless current regulation
Technical Data
Input voltage: Input power: Input current: Max welding current: Automatic working time Max output power : Floating Voltage: Dimensions: Weight: | AC 220V or 380V 4KVA 57A 6900A 0.1-2.5s 18KVA 11.5V 420X500X1200mm 40kg |

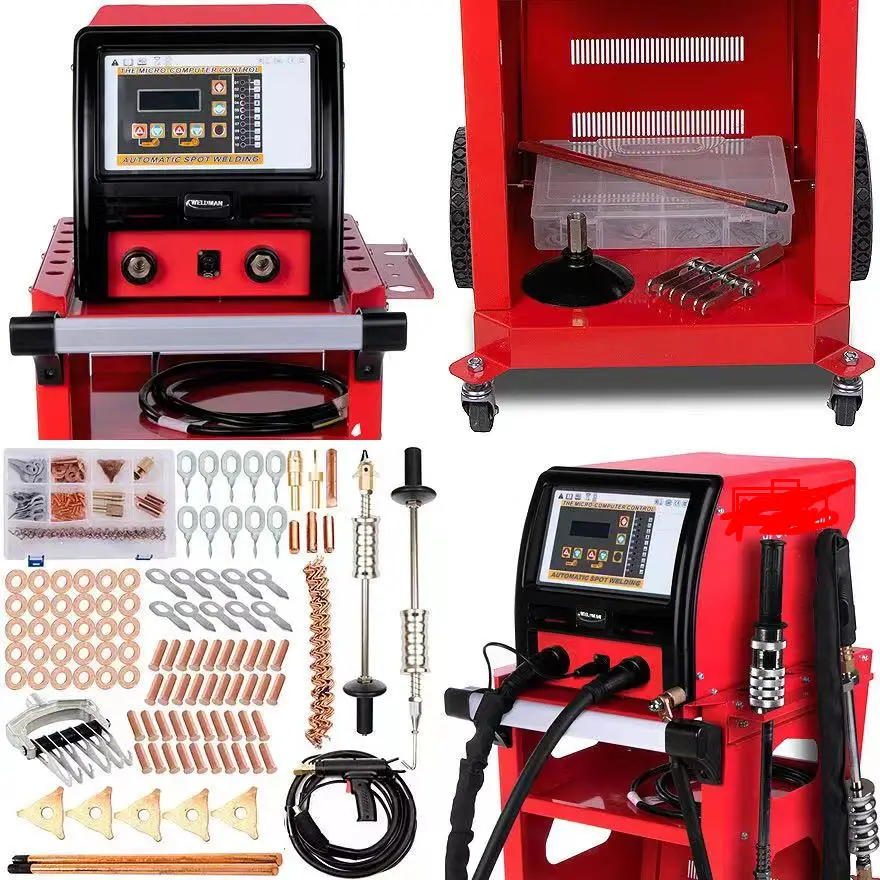

Standard Accessories
MULTIFUNCTION PULLER | 1 | PC |
| 1-SIDE WELDING HEAD | 1 | PC |
MULTI-CLAW PULLER | 1 | PC |
| ROUND WASHER | 10 | PC |
EARTH CLAMP | 1 | PC |
| TRIANGLE WASHER | 5 | PC |
TRIANGLE | 1 | PC |
| CARBON ROD | 1 | PC |
WASHER PULLER |
|
|
| HEAD |
|
|
CARBON ROD | 2 | PC |
| HOST | 1 | PC |
CASTOR | 4 | PC |
| INSTRUCTIONS | 1 | PC |
WAVEFORM SOLDER WIRE | 5 | PC |
| WARRANTY CARD | 1 | PC |
WASHER WELDING HEAD | 1 | PC | ||||
Equipped with hand made by aluminum die-casting molds:
Using the industrial mute wheel with high bearing capacity:
Using high standard mains lead and cable with international CE and Chinese CCC.:
Unique operarion panel, monitor and display voltage.Stepless current and time regulation.Buttons to choose automation or manual opertion.With touch button, Obviously display function choice:
Dedicated accessories case for welding head. washer, triangle washer, iron wire, carbon rod, ect:
