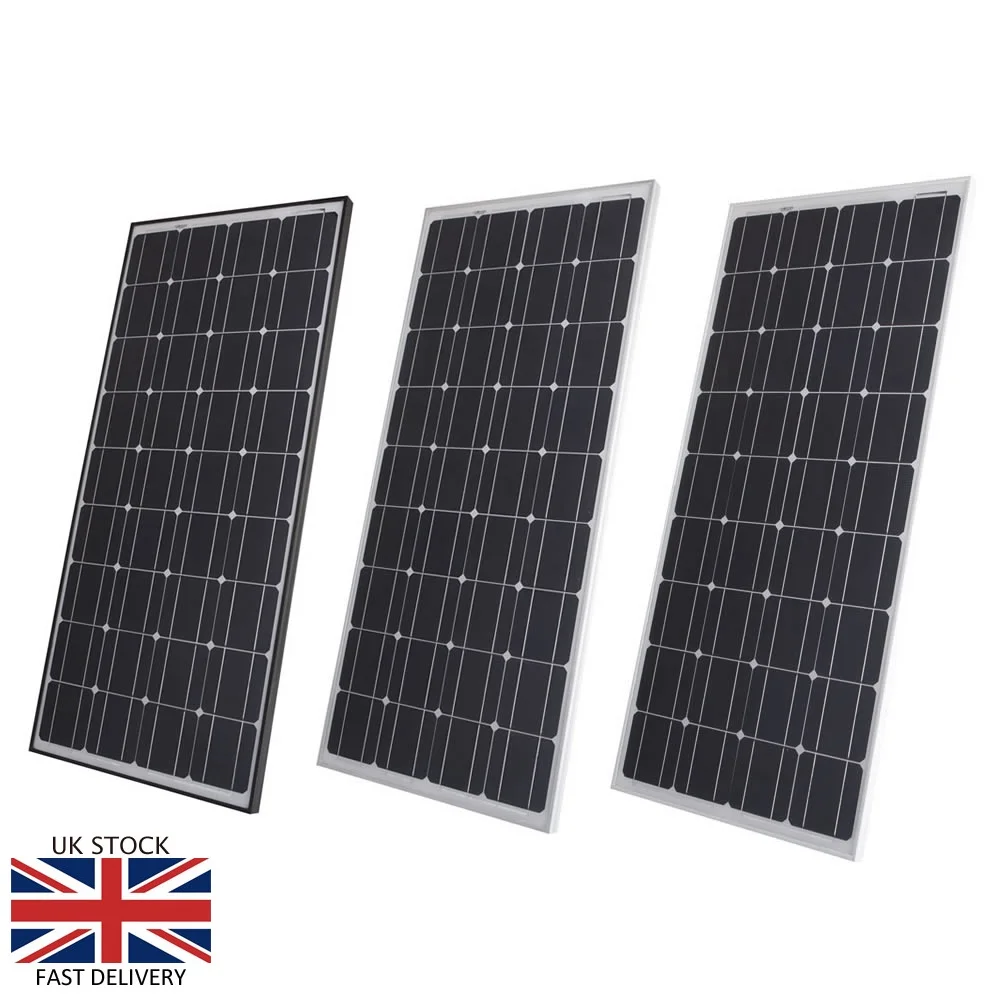

160W pv solar panel solar cell solar pv module
- Category: >>>
- Supplier: Yuyao Ollin Photovoltaic Technology Co. Ltd.
Share on (60497786887):
Product Overview
Description
| Module Type | OLPV150W | OLPV160W | OLPV170W | OLPV180W | OLPV190W |
| Size | 1480*680*35mm | ||||
| Maximum power | 150 W | 160 W | 170 W | 180 W | 190 W |
| Max power voltage | 17.90 V | 18.10 V | 17.40 V | 16.90 V | 16.90 V |
| Max power current | 8.38 A | 8.84 A | 9.44 A | 9.96 A | 11.16 A |
| Open circuit voltage | 21.90 V | 22.10 V | 22.10 V | 22.30 V | 22.30 V |
| Short circuit current | 9.01 A | 9.53 A | 10.13 A | 10.74 A | 11.84 A |
| Module Efficiency | 16.15% | 17.16% | 19.67% | 21.16% | 22.67% |
| Power Tolerance | -0~+5W | -0~+5W | -0~+5W | -0~+5W | -0~+5W |
| Standard Test Conditions (STC): Irradiance 1000W/m2, Module temperature 25℃? Air Mass (AM)=1.5 | |||||
| Nominal Operating Cell Temperatur | 45 ± 2℃ | ||||
| Temperature coefficients of Isc | +0.049% /℃ | ||||
| Temperature coefficients of Voc | -0.340% /℃ | ||||
| Temperature coefficients of Pmax | -0.430% /℃ | ||||
| Solar Cell | Poly solar cells 156x156 mm | ||||
| Front Cover | 3.2 mm thick, tempered glass | ||||
| Back Cover | TPT (Tedlar-PET-Tedlar) | ||||
| Encapsulant | EVA (ethylene vinyl acetate) | ||||
| Frame | Double-layer anodized aluminium alloy | ||||
| Junction Box | IP65 rated | ||||
| Maximum System Voltage | DC1000V (IEC) | ||||
| Maximum Series Fuse | 15 A | ||||
| Operating Temperature | -40℃~+85℃ | ||||
| Storage Temperature | -40℃~+85℃ | ||||
| Max. Wind Load / Max. Snow Load | 2400Pa / 5400Pa | ||||
| Application Class | Class A | ||||
| Packing configuration | Carton.Customers packing requirement is acceptable. | ||||
we have passed the certification: CE
Why the people choose our products?
1. Q: Are you a factory or trading company?
A : We are a factory.
2. Q: Where is your factory located? How can I visit there?
A :Our factory is located in Yuyao NO 12, Yuci North Road, Yuyao City, Zhejiang PR China. You are warmly welcomed to visit us!
3. Q: How can I get samples?
A :Please connect me for samples, my phone number: +86 13607046900.
4. Q: Can price be cheaper?
A :Of course, you will be offered a good discount for large quantities.
5. Q: Can print our company‘s logo on the pv panels?
A : Yes! And we accept the OEM orders.
6. Q:Is the glass tough?
A:Toughened glass is made of components can withstand 25 mm in diameter of hockey hit at a speed of 23 m/s.Toughed Glass: the thickness of 3.2mm ,the solar cell spectral response range of wavelengths, light transmittance over 91% , Ultraviolet light radiation , light transmittance is not falling .
7. Q: How about the EVA?
A:0. 5 mm thickness with high quality EVA film as sealant of solar cell and and the connection between the glass,and anti-aging ability. Solar cell encapsulation of EVA film after curing performance requirements:
Light transmittance is greater than 90% ; Crosslinking degree is more than 65-85% ; Peel strength (N/cm), glass/film is more than 30 ; Temperature resistance , high temperature 120° C , low temperature - 40° C .
8. Q: How about the back-sheet?
A:The back of the solar panel, ageing resistance , corrosion resistance , resistance to ultraviolet radiation, airtight, etc. Basic requirements.
9. Q: How about the frame?
A:Aluminum alloy frame with high intensit , mechanical shock resistance ability.Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.
