Polycrystalline Diamond PCD laser cutting blanks/tips for Woodworking Tools

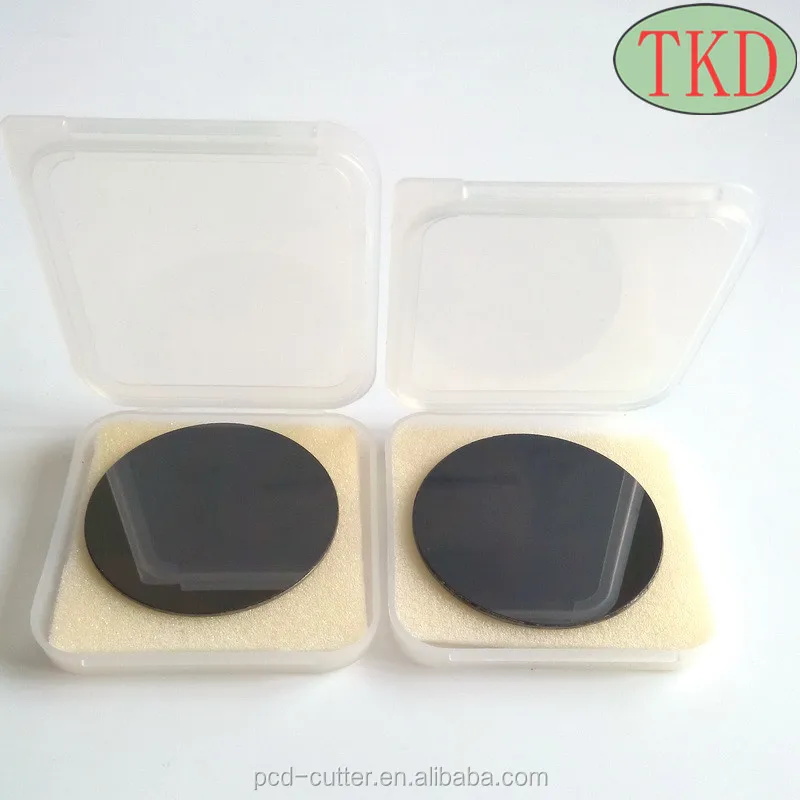

PCD Full-Round Blanks

D/mm

Size (AxD)

T/mm

t/mm

Grain size

58

360 R x55

1.6/2.0/3.2

0.5-0.8

2μ

50

360 R x50

5μ

45

360 R x45

10μ

Tolerances:

40

360 R x40

20μ

D = +/- 0.1mm

32

360 R x32

25μ

T = +/- 0.05mm

18

360 R x18

2+25μ

Surface condition: Polished with Mirror-like diamond surface

13

360 R x13

8

360 R x8

6

360 R x6

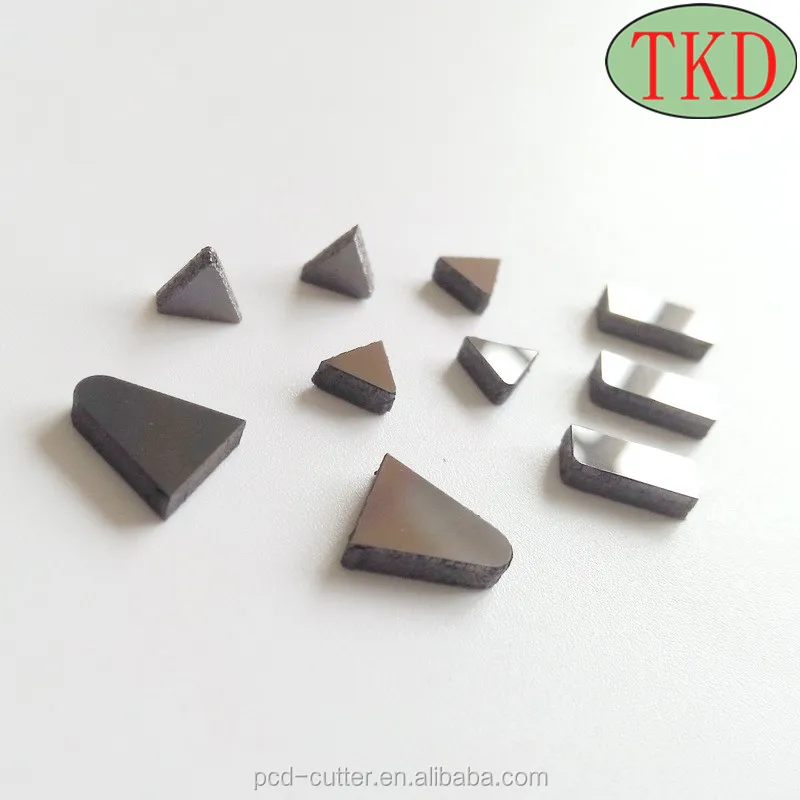

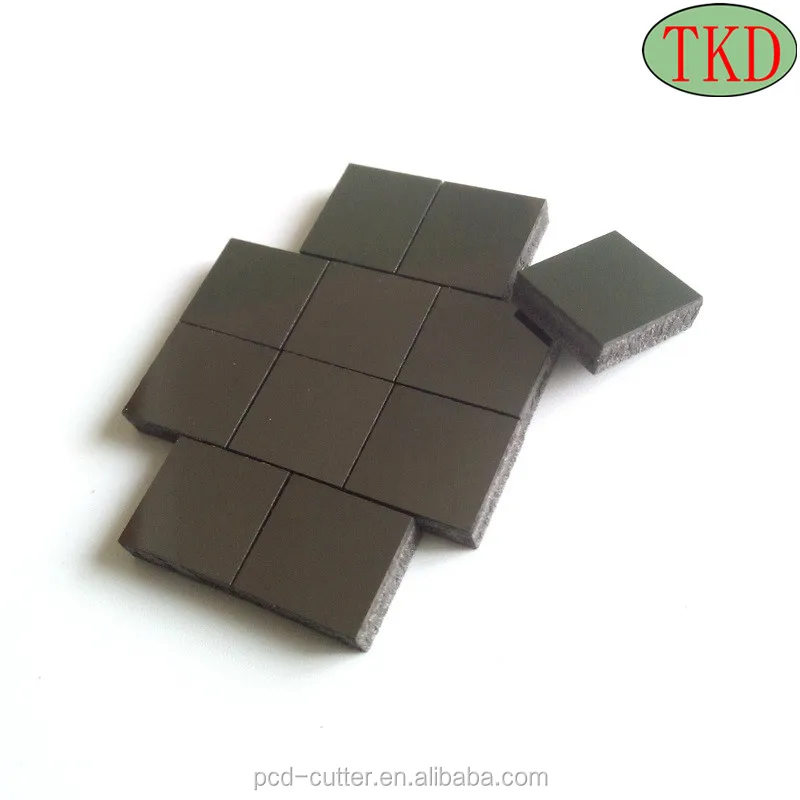

Different shape of PCD blanks / tips

We can make any shapes and sizes as per client's needs. Tolerance, surface condition,Grain sizes are offered as same as above.

PCD Cutting Tool Blanks Application Recommendation:

Grades

Characters

Applications

Advantages

W2-W5 fine grain

1.Average grain size:2-5μm

Aluminum, Brass/Copper, Precious metals, Wood composites, Plastic

Excellent surface finish

2.High diamond content over90%

3.Laser cutting/ wire EDM cutting

W10 medium grain

1.Average grain size:10μm

<14% Si/Al alloys, Copper alloys, Graphite and graphite composites, Green ceramics and carbides

Excellent resistance, good surface finish

2.High diamond content over90%

3.Laser cutting/ wire EDM cutting

W20-W25 coarse grain

1.Average grain size:20-25μm

>14% Si/Al alloys, metal matrix composites, Bi-metals(aluminum/cast iron),sintered ceramics and carbides

Long life, extremely high wear resistance

2.High diamond contentover90%

3.Laser cutting/ wire EDM cutting
