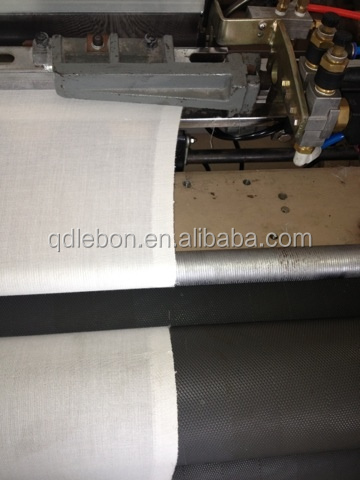

High quality air jet gauze weaving loom for medical use

Nominal  reed  space(cms)

150 / 170 / 190 / 210 / 230 / 260 / 280 / 340 / 360

Connected  electirc  power(kw)

3.5 KW TO 4.6 KW SELECTED ACCORDING TO MODEL

Inching

STOP CONTROL IN POSITION AND OPERATION BY STOP BUTTON

Frame  Structure

BOX TYPE

Weft  accumulation

TWO NOZZLE ELECTRONIC WEFT ACCUMULATOR (ROJ)

SIX COLOUR ELECTRONIC WEFT ACCUMULATOR (ROJ)

Water  pump

by order

Nozzle  &  needle

by order

Weft  packages  holder  stand

FLOOR MOUNTED HORIZONTAL STAND FOR FOUR AND SIX PACKAGES

Shedding

POSITIVE CAM 4-10 HEALD FRAMES

POSITIVE DOBBY SHEDDING 2-16 FRAMES

Let-off

ELECTRONIC LET OFF / MECHANICAL LET-OFF

Weft  density

6-60 PICKS/CMS

Beam  flanges  diameter(mm)

800 MM

Leno  device

PLANETARY GEAR TYPE WITH PROXIMITY SWITCH

Drying/Dehydration

Weft  yarn  cutting

MECHANICAL CUTTERS ON BOTH SIDES

Electric  power  source

380 V - 420 V

Electric  motors

3.6 kw TO 4.8 kw

Mechanical  speed/working  speed

1100 RPM / 900 RPM

Control  panel

LOGIC & PC TYPE

Indicator  signal  lamp

4 COLOUR LED TYPE

Weft  feeler

PHOTO ELECTRIC SENSOR

Weight

3 TONS
