Name: Electric chain hoist 1ton~32ton
SKU: 60498134611
Availability: InStock

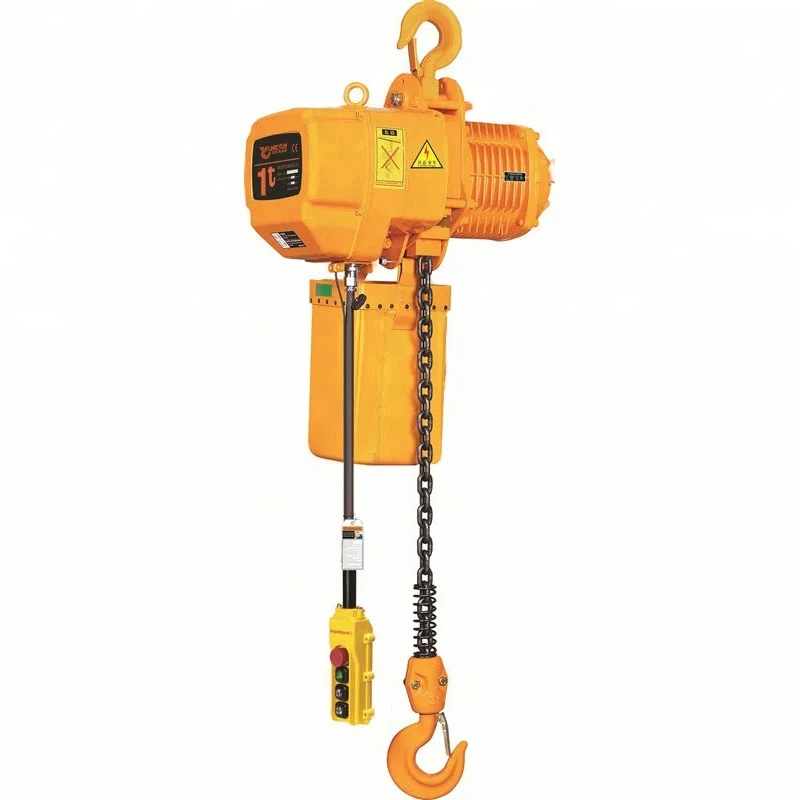

Electric chain hoist 1ton~32ton

electric chain hoist

Product Overviews

Production Description of electric chain hoist

Full automatic micro-computer controlling hoist trial system;

Ultrasonic non-damage test;

Multi-function 100t hoist trial platform;

X-ray non-damage test;

Physics and chemistry laboratory;

HW-2000 infrared carbon and sulfur analysis equipment.

Model	DHT	DHT	DHT	DHT	DHT	DHT	DHT
lift capacity(T)	1	1.5	2	3	5	10	20
Testing loading(T)	1.5Gn	1.5Gn	1.5Gn	1.5Gn	1.25Gn	1.25Gn	1.25Gn
Motor power(kw)	0.3	0.3	0.3	0.3	0.75	0.75	0.75
Switch	The rain proof type straight control switch
Power voltage	380V 50HZ
Lift speed(m/min)	0.46	0.46	0.46	0.46	0.46	0.46	0.46
Min. Distance between hooks H(mm)	270	350	380	470	600	700	1000
Lift chain quantity	1	1	2	2	2	4	8
Lift height(m)	2.5	2.5	2.5	3	3	3	3
Lift chain diameter(mm)	6	8	6	8	10	10	10
Net weight(kg)	26	32	30	37	54	88	195
Gross weight(kg)	28	34	32	42	66	102	235
Packing size(cm)	33×34×34	33×34×34	33×34×34	33×34×34	43×36×43	50×50×43	72×72×85
lift 1 more meter increase weight(kg)	0.835	1.46	1.67	2.92	4.52	9.04	18.08

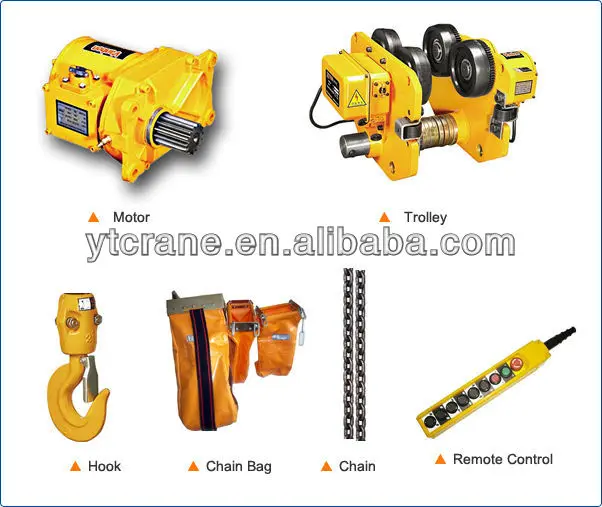

Details show of electric chain hoist

Electric chain hoist Description:

shell:Light aluminum alloy shell shall be adopted,which is light but hard and fit for the
use in terrible work environment with a high heat dissipation rate and all tightness
design.

Inverse phase sequence protecting device:It is the special electrical installation
which controls the circuit not to work in case of wiring error in the power supply.

Limit switch:The limit switch device is installed where the weight is lifted on and off
to make the motor to stop automatically so as to prohibit the chains from exceeding
for safety.

24v/36v device:It is used to prohibit the emergencies from occurring in case of the
leakage in the switch.

Side magnetic braking device:The device shall realize the instant brake in case
of the power dump.

Chain bag:It shall be light,handsome and durable.

Chain:The chain shalll adopt the imported FEC G80 ultra heat-treatable aluminum
alloy chain.

.jpg

Chain_Hoist_detail

Application of electric chain hoist

Now our products are widely used in military, aerospace, railway, metallurgy, petrochemical, mineral and many other industries, has won praise from all customers at home and abroad.

Shipping of electric chain hoist

SEA TRANSPORTATION(PORT):QINGDAO/TIANJIN/SHANGHAI/CUSTOMIZE

LAND TRANSPORTATION

RAILWAY TRANSPORTATION

AIR TRANSPORTATION

Payment of electric hoist machine

Telegraphic Transfer(TT);

Letter of Credit(LC);

Others

Certification

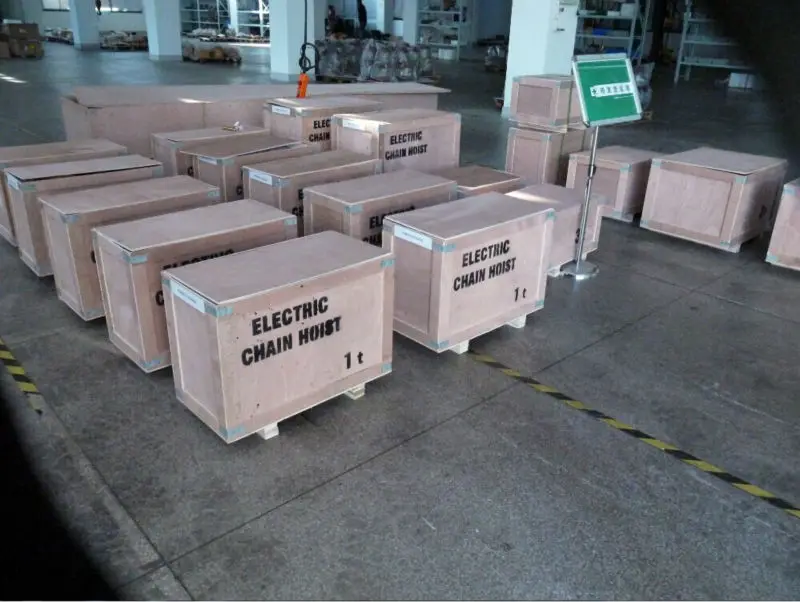

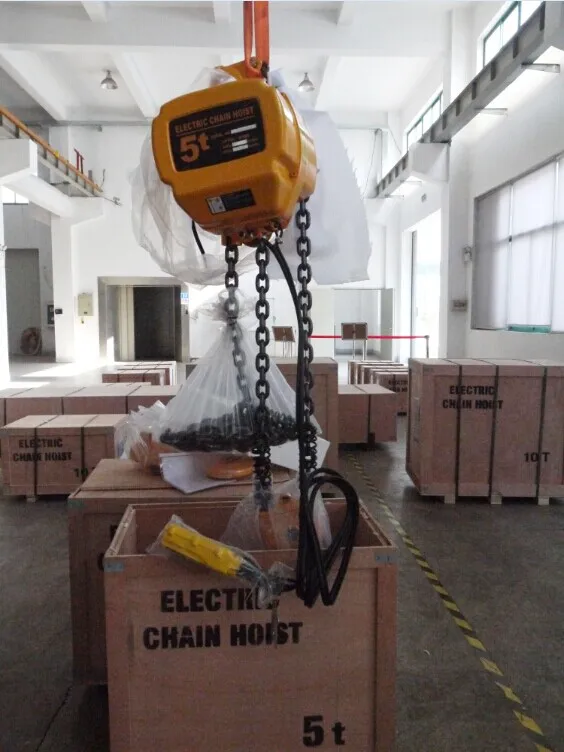

Packing of electric hoist machine

.jpg

Crane beam:Packaged by woven plastic woven cloth.electricals and parts packaged by plywood crate

Services

Company information

Yuantai Crane Machinery is professional logistics handling products exporter, with long history trading time having rich technical experience. We are located in Changyuan--- the crane's hometown, have passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification. our products are recommend by WTO. Yuantai always adhere to customers first,holding positive attitude to satisfy the customers' the demand.

Our partners

FAQ

1.Is your products cuztomized?

Thanks for your question, yes.because the working condition is different, all our products are cuztomized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.

2.What the information should i provide when i am inquiry?

Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much apprciated.

3.How many operation methods for my selction?

Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.

4.The space of my workshop is limited, can the crane ok for me?

Thanks for your question. For low headroom workshop, we have special products. The details demension our engineer will be design for you.

5.Do your side can provide lifting tools?

Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electricmagnetic, grab...

NOTICE:

As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us supply the rails? How long is it?

5. Power supply: Voltage.

6. Working condition: which material to lift? temprature?

7. Would be better if you have drawings of your plant.

Come to us! The best installation team is ready for you!
