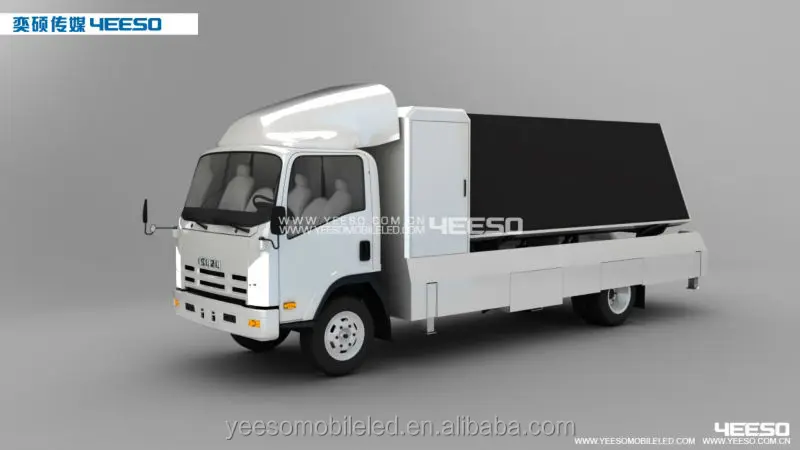

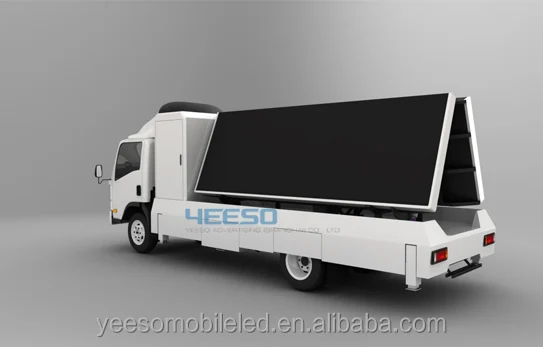

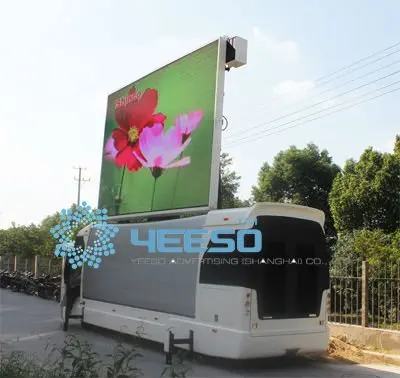

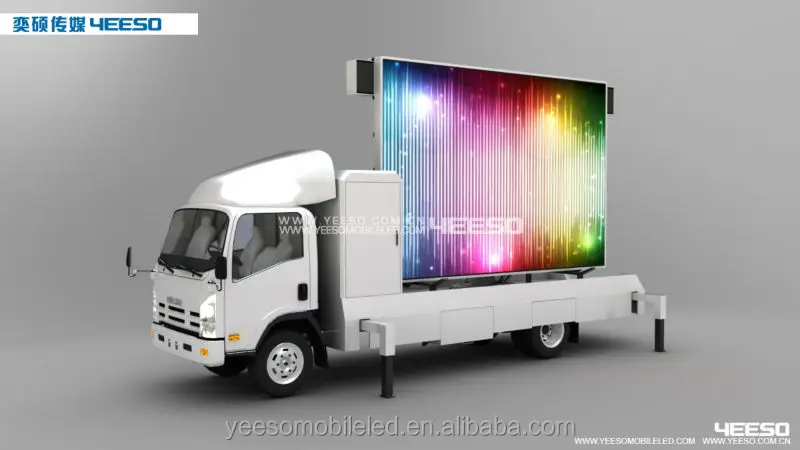

YEESO LED Media Truck YES V16 with large led display for large events, political campaign

YEESO LED Media Truck YES V16 with large led display for large events, political campaign

Name: YEESO LED Media Truck YES V16 with large led display for large events, political campaign
SKU: 60498205423
Availability: InStock

Price:

Quantity:

Leading Manufacturer & Solution Provider of MobileLED Advertising Vehicles

Product Description

YEESO LED Media Truck YES-V16 with large led display for large events, political campaign:

1. Large size outdoor full color led display screen , high refresh rate, high resolution P10;can play video and any digital files

2. ISUZU truck Chassis, good driving performance & worldwide customer serive

3. Built-in extreme super silent generaor to provide continuous power supply with exremely low noise

4.Hydraulic lifting system, lifting height 2200mm, 360 rotating system

5. Integrated cabinet to combine the industrial pc, software, power amplifier, control buttons into one united piece, clean and easy to operate

6. Four 200W stage speakers make great experience for audiences

7. the led display can be folded in the middle, all the led display can be hided in the box to protect the display from damages

V16-3 YES-V16 e

Technical Details

YEESO LED Media Truck YES-V16 with large led display for large events, political campaign:

Model	YES-V16
Chassis
Brand	ISUZU	External dimension		7900mm×2300mm×3900mm
Power type	ISUZU	Curb weight		3700KG
Emission standard	EuroⅢ	Gross mass		9950KG
Seat	single row A1955	Wheel base		4475mm
Hydraulic lifting & supporting system
Hydraulic system(LED)	Electric putt (Germany technology) Lifting height: 1500mm,afford 3T,
Hydraulic supporting system	Imported hydraulic cylinder Lifting height: 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up
Extreme super silent generator set
External Dimension	1510mm×900mm×1060mm	Power				16KW
Air displacement	1.995L	Bore*stoke				84mm x 90mm
Main LED screen
Screen size	4800mm×3200mm	Module size				160mm(W) ×160mm(H)
Chip	R,G,B:Epistar	Pixel pitch				10 mm
Brightness	≥6500cd/ SQM	Max power consumption				1200 W/SQM
Power consumption	Average :600W/ SQM	Life span				100,000hour
Power supply
Input voltage	three-phase five-wire 380V		Output voltage			220V
Electrical current	50A		Power consumption			average:0.5wh/SQM
Multi-media control system
Industrial PC	Processor:Dual Core CPU, display card:512,hard disk:320G,CD-ROM:DVD, internal storage:2G
Monitor	15-inch LCD display	Power amplifier			unilateral output power :200W
Speakers	Max power consumption:200W	Control system of LED screen			Linsn/ZHOGNQING(technology of point by point correction)
Outer frame and inner decoration
Cold rolled metal plate	1.5mm	Surface car baking varnish			pure white
Inner decoration	Fire Retardant Board	Waterproof processing			Vehicle plastic irrigation processing

Product Overview

YEESO LED Media Truck YES-V16 with large led display for large events, political campaign:
