Product Overview

Description

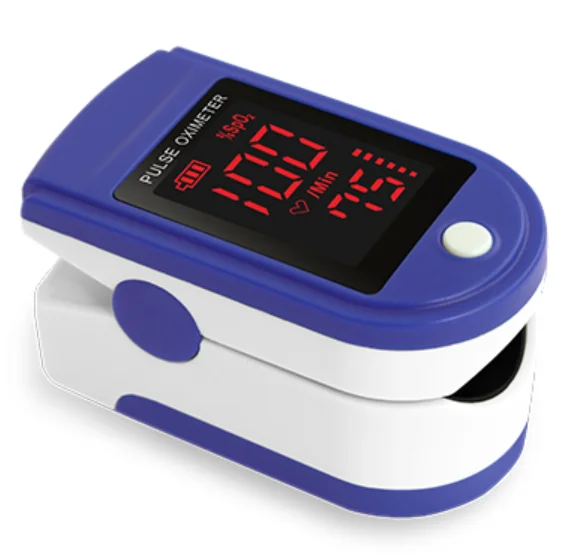

Pulse Oximeter Sensor (CE-approved LED Oximeter)

Features :

Display: HD LED Screen
Measurement Accuracy:

SpO2: 70%~100%,±2%
               Pulse Rate: 30~99bpm,±2bpm; 100~250bpm,±2bpm
Battery: AAAx2
Dimensions: 58.0x32.0x33.2mm
Weight(without batteries): 28.7g
Parameters: Pulse Rate & Spo2
Indication: Low battery remind, Value limit remind
Application Range: Adults, Adolescents & Children

Technical Specifications:

1.Dimensions: 62.0 mm (Width) × 37.0 mm (Depth) × 32.0 mm (Height)

Weight: 42.5 g (including the height of the two AAA dry batteries)

2.Peak wavelength range of the light emitted from the probe: red light 660 nm ±3; infrared light 905 nm ± 5.

3.Maximum optical output power of the probe: 1.2 mW for infrared light (905nm).

4.Normal working condition

Working Temperature	5 C to 40 C (41°F to 104°F)
Relative Humidity	15% to 80%, non-condensing
Atmospheric Pressure	70 kPa to 106 kPa
Rated Voltage	DC 3.0 V
