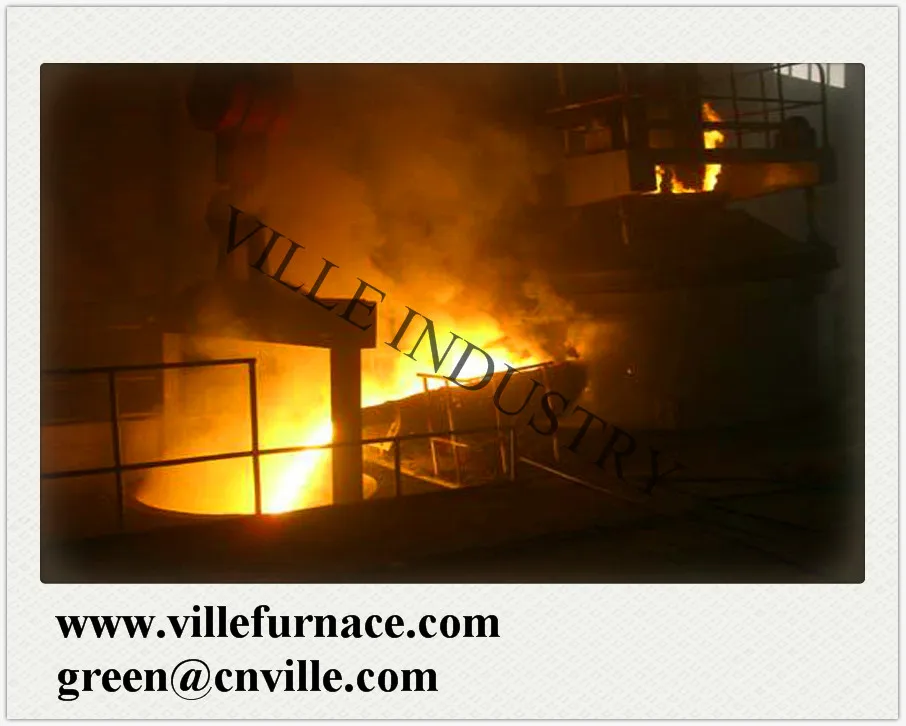

2 Ton DC Electric Arc Furnace

Product Overview

Description

1. Main technical parameter

1.1 Transformer capacity                                    2000KVA

1.2 Primary voltage                                             10KV

                     DC voltage                                       165V

DC current                                        12120A

1.3 Electrode diameter                                        300mm(HP graphite)

 1.4 Electrode traveling stroke                             1200mm

1.5 Max. Electrode traveling speed                    2m/min

1.6 Cooling water flow rate                                  50t/h

2. Supply scope

   Note: 1. Furnace transformer is Buyer’s existing transformer;

2. Installation materials, medium, refractory material, electrode are Buyer’s scope;
