Made in China Low Noise Air Duct Fan 1.Typical Feature and Application
1)Consist of forward ternary wrenched wide blade
Low noise, large air volume, high efficiency and stable air pressure
2)Adopted advanced streamlined process to conduct the spray coat-ing in the appearance of housing, blade with soft and bright color, enduring colorful
3)Suitable for ventilation in industrial and mining enterprise, civil buildings
2. Performance Range
Fan Type

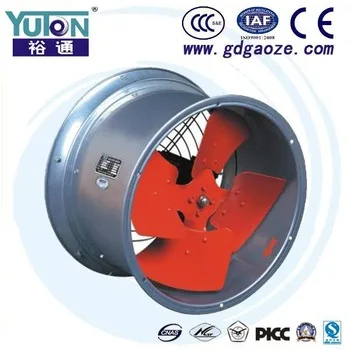

SF-G Series Low Noise Axial Duct Fan
Certificate
CE,CCC
Electricity Current Type
AC(Alternating Current)
Voltage
220/380V
Frequency
50HZ
Power
0.18KW-5.5KW
Speed
960-2900 RPM
Air Volume
1880m³/h up to 32000 m³/h
Static Pressure
80 Pa up to 350 Pa
Motor
Standard Motor
3.Composition
Fan Housing
fan housing, fan casing, Double flanged casing manufactured with mild steel or galvanized sheet steel. Casing covers the overall length of motor and impeller. It is welded with mild steel plate with connecting flanges at both ends. Casing can also provided with foot mounting arrangement to install fan on the ground.
Impeller
the punch forming blades are made of aluminum or galvanized steel. The impellers also has manually adjustable pitch blades.
Inlet and Outlet Ducts
Connect with flanges
Motor
Standard Motor, cast Iron with pure copper
4.Fan Operation
Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts.
When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c
If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away.
5.Fan Certificate and Quality Control
By our efforts,our company Gaoze was selected as the member of China General Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institute China"; Furthermore, a number of products are applied patents, which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification, most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System.
6.Fan Maintain
Periodically clean the inner dust, dirt and other impurities
Periodlically check the fan to avoid rusting
Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation.
