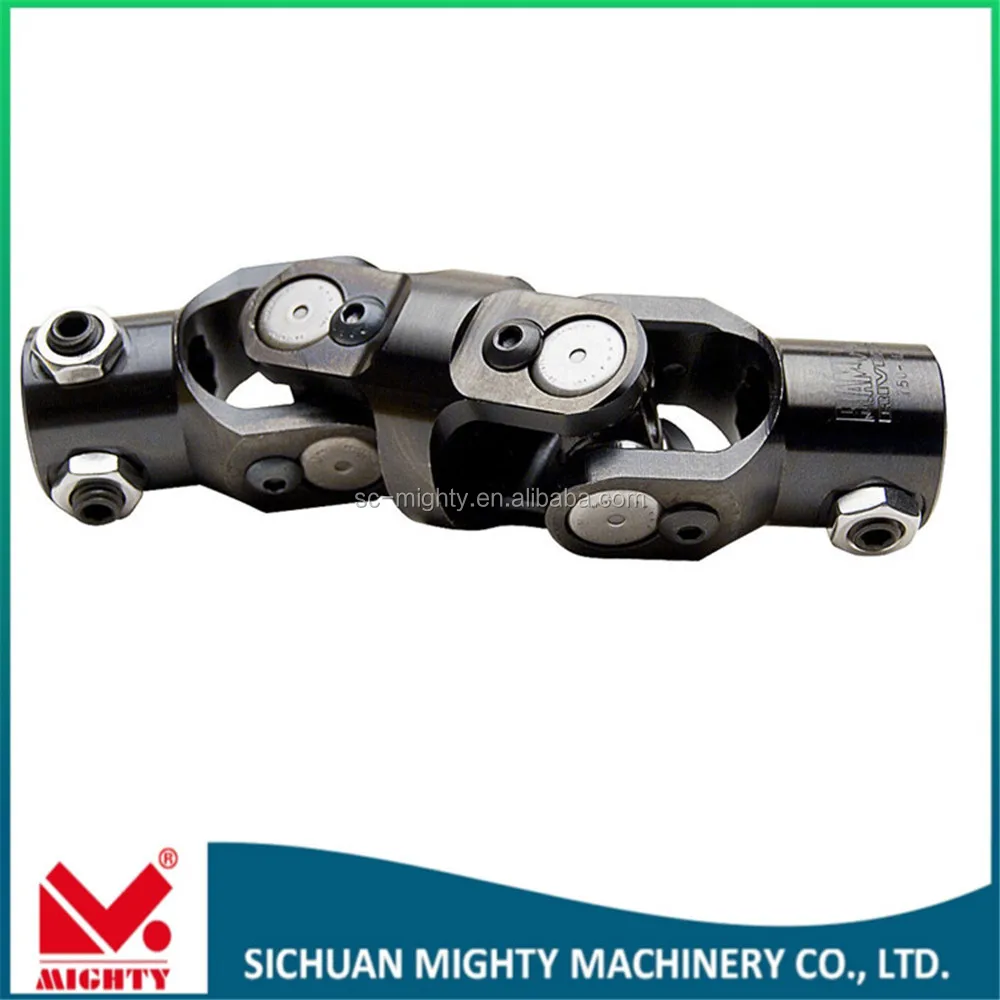

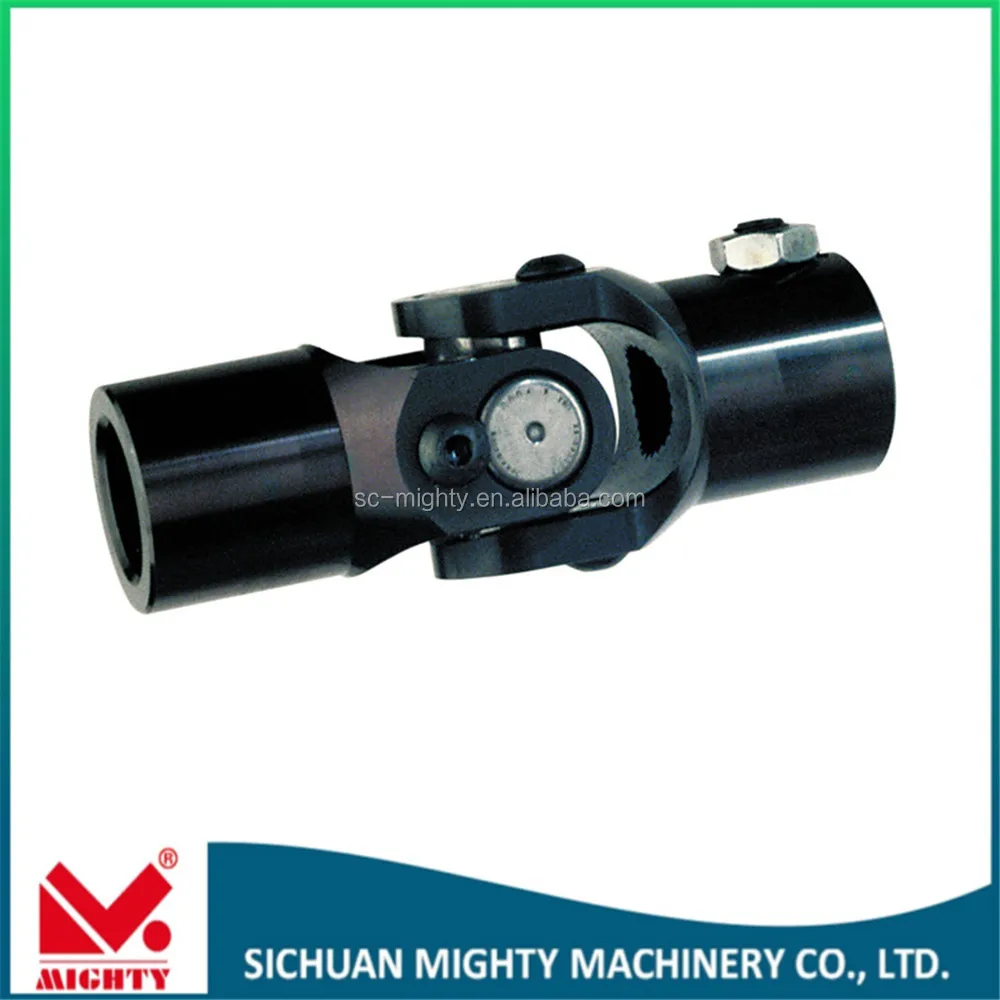

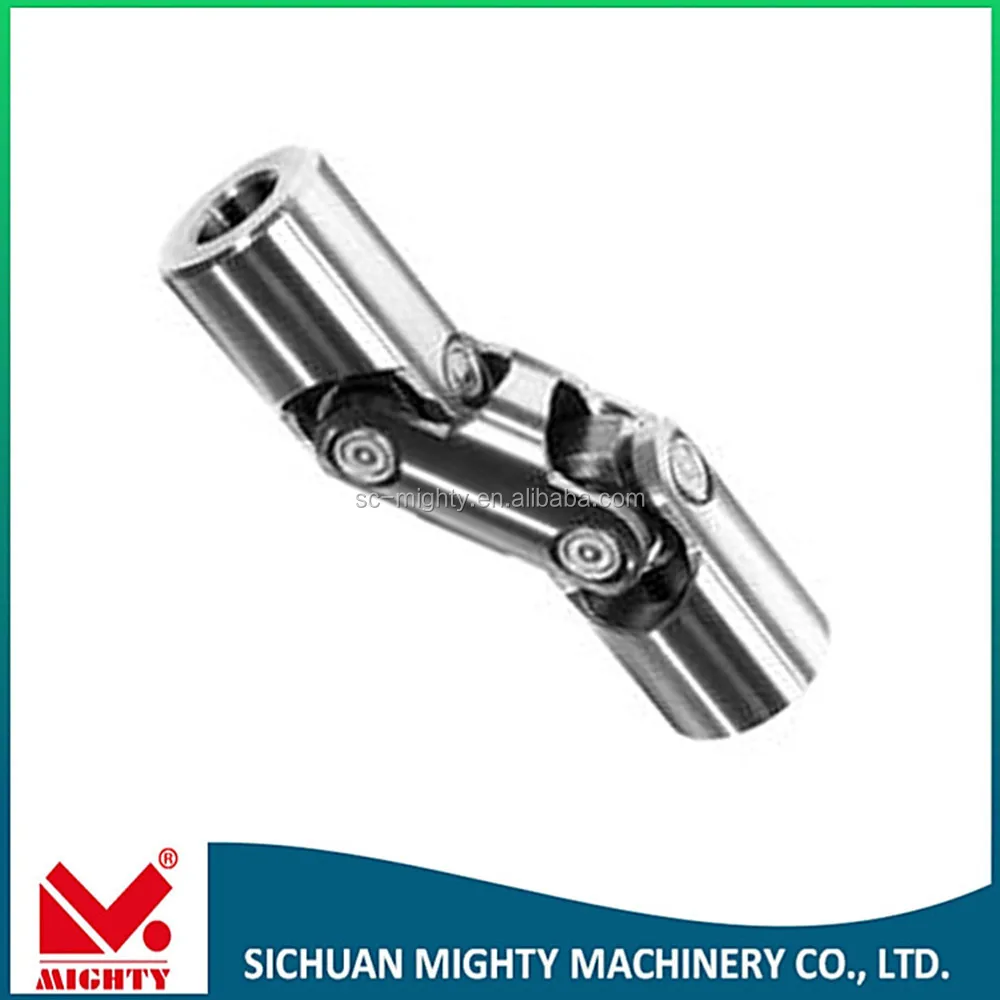

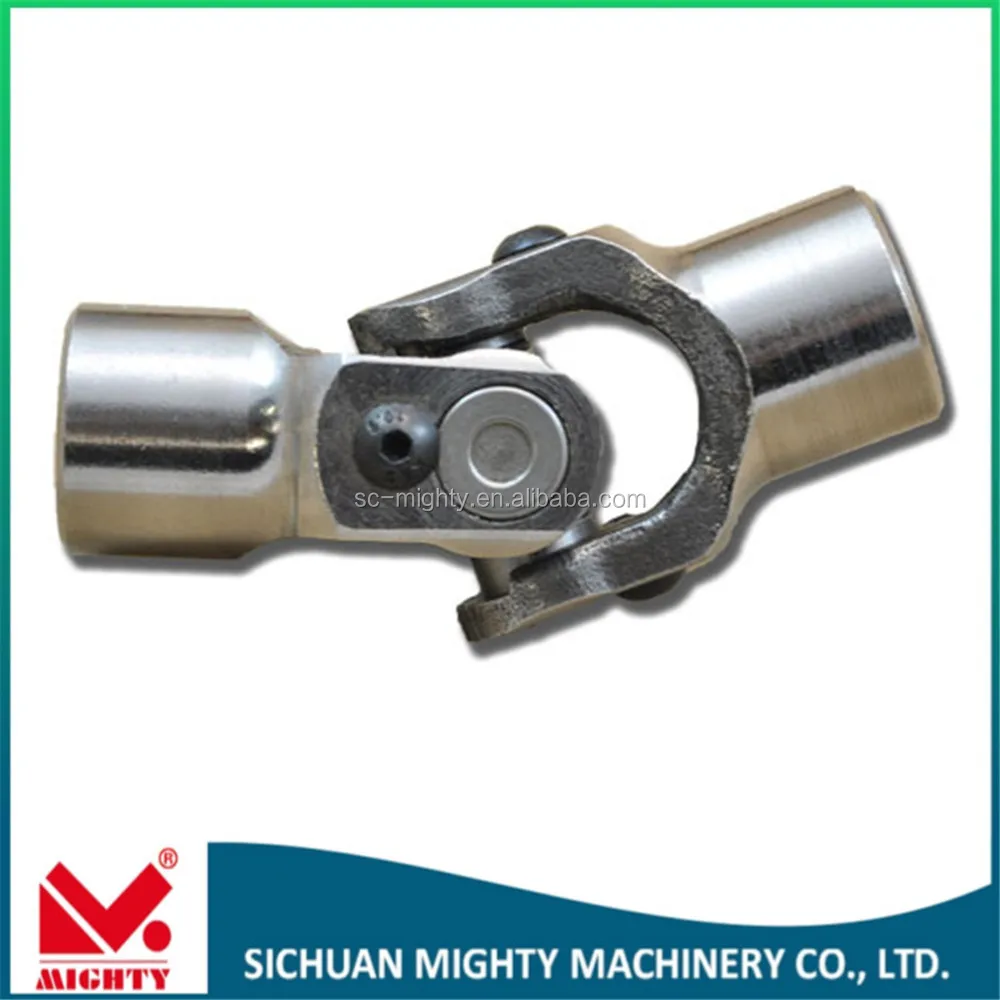

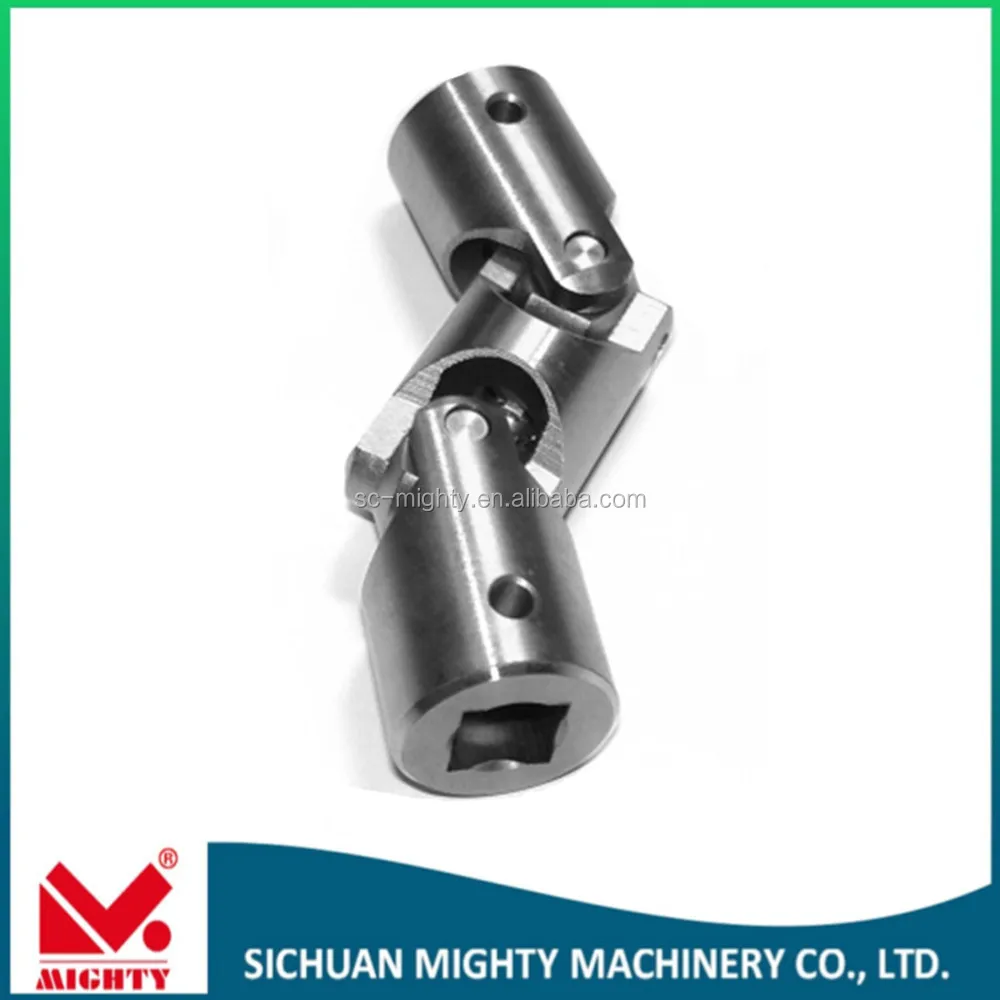

Adjustable ball joint 30 04 35 universal ball joint single or double universal joint

Product Overview

Description

Adjustable ball joint 30 04 35 universal

ball joint single or double universal joint



Feartures of single universal joint:

Surface: as your requirement.

Material: steel / aluminum / brass / iron / zinc / alloy

Any other material and dimension depends on customers' demand.

Usage: machinery / furniture / toy / wood board / wall

Manufacturing process: casting parts

Equipment: casting machine

Testing equipment: projector

Tolerance: +/-0.05mm



Lowest price based on large scale production



High and stable quality leve



Rich experience working with big companies in this field.











1. universal joint is made by powerful NdFeB magnet.

2. universal joint's body is made by brass with tapped hold to mount on any surface.

3. can hold anything within stipulated load at any angle.

4. Usage upper temperature limited 200



we are willing to provide with sample for quality and function testing.





	D (H7)	E	L	A	1/2L	K (JS9)	T	S (H8)	SW (H8)
PB-S13	6	13	40	13	20	/	/	/	/
PB-S16	8	16	40	11	20	2	9	8	8
PB-S20	10	20	45	11.5	22.5	3	11.4	10	10
PB-S22	12	22	50	14	25	4	13.8	12	12
PB-S25	14	25	56	15	28	5	16.3	14	14
PB-S29	16	29	65	18	32.5	5	18.3	16	16
PB-S32	18	32	72	19	36	6	20.8	18	18
PB-S35	20	35	78	21.5	39	6	22.8	20	20
PB-S37	20	37	82	21	41	6	22.8	20	20
PB-S40	22	40	95	25.5	47.5	6	24.8	22	22
PB-S45	25	45	108	31	54	8	28.3	25	25
PB-S50	30	50	122	35	61	8	33.3	30	30





    Our universal joint widely used in umltiaxle drilling machine, construction machine,  packaging machine, automobile. Parking facility and paper machine, medical machine, farm machine stainless steel telescopic universal joint, extension joint, textile machine/ woodwork machine's universal joint specialty hardware manufacture!























MAIN PRODUCTS:



1) Timing Belt Pulley (Synchronous Pulley), Timing Bar, Clamping Plate;

2) Forging, Casting, Stampling Part;

3) V Belt Pulley and Taper Lock Bush; Sprocket, Idler and Plate Wheel;Spur Gear, Bevel Gear, Rack;

4) Shaft Locking Device: could be alternative for Ringfeder, Sati, Chiaravalli, Tollok, etc.;

5) Shaft Coupling:including Miniature couplings, Curved tooth coupling, Chain coupling, HRC coupling,        Normex coupling, Type coupling, GE Coupling, torque limiter, Universal Joint;

6) Shaft Collars: including Setscrew Type, Single Split and Double Splits;

7) Timing Belt: including Rubber and PU timing belts for industrial;

8) Other customized Machining Parts according to drawings (OEM).







More advantages:



1,More competitive prices,
2,Shorter delivery date: 35 days.

3,We are the professional manufacturer in the field of Power Trans. Parts,specially for Timing Pulleys.

4,Produce standard and non-standard
5,Strict QC Management:ISO9001:2008,our engineer,Mr.Wang has specialized in the prodcution for over

   20 years.





Packiaging:



All the products can be packed in cartons,or,you can choose the pallet packing.

MADE IN CHINA can be pressed on wooden cases.Land,air,sea transportation are available.UPS,DHL,TNT,

FedEx and EMS are all supported.



 If  any question or inquiry, please contact us without hesitate,we will do our best to help you.
