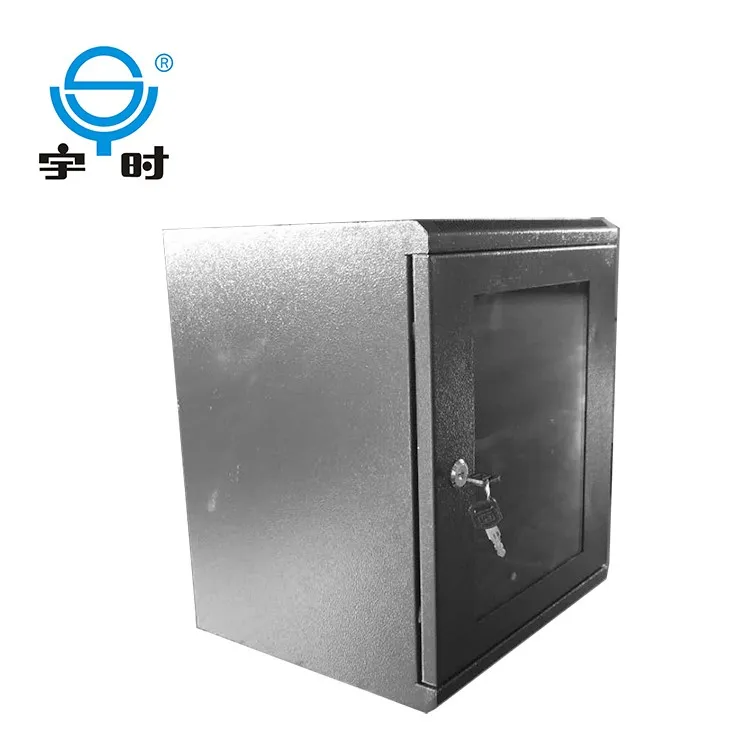

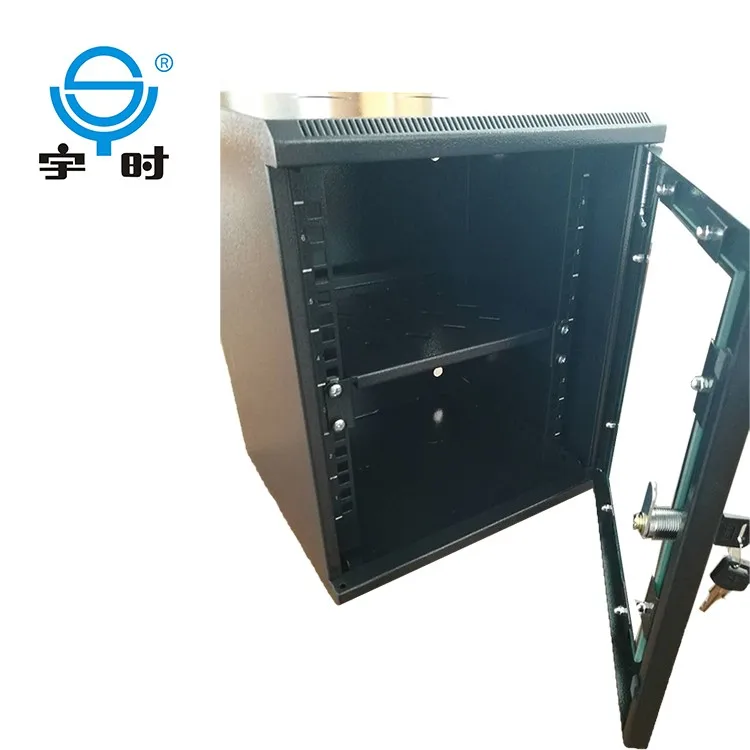

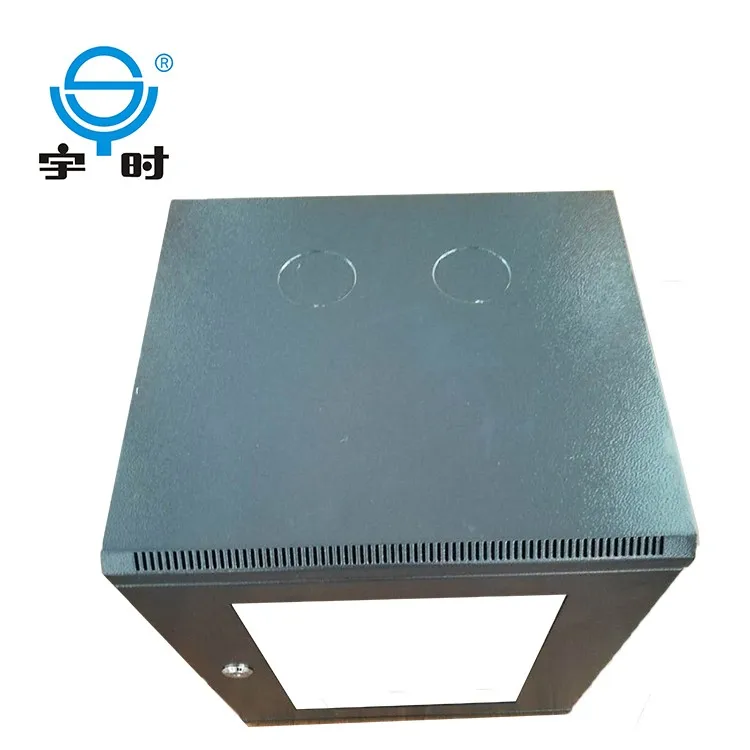

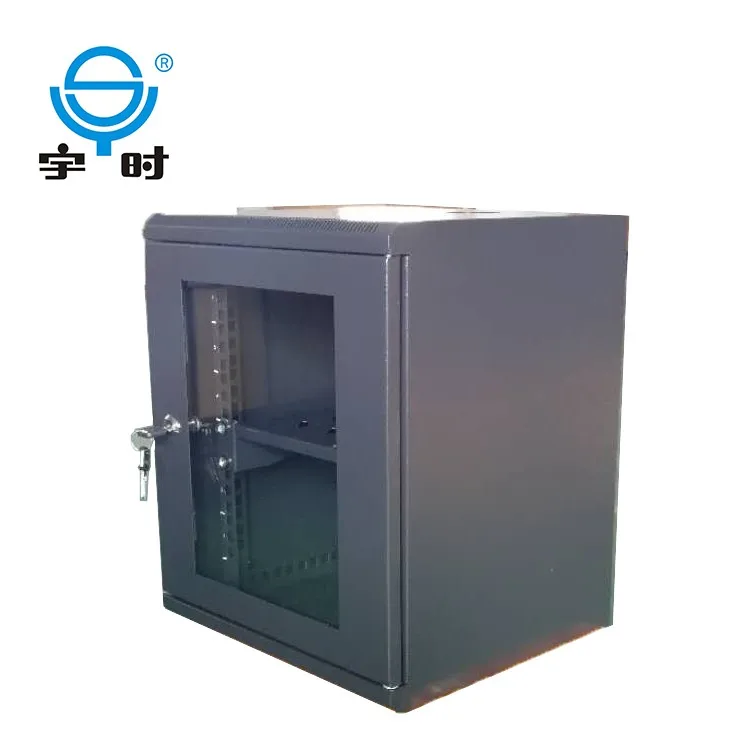

10inch wall mount cabinet

1. Material: cold rolled steel

2. Wall mounting installation

3. Weld frame, firm and reliable, welding structure

4. With toughened glass front door

5. Support 10inch patch panel installation

6. Degrease, aicd picking, rust prevention and parkering, pure water cleaning, static electiricity plastic for the surface

7. Color: Light Grey or Black

Product details

\t Model No.	\t Capacity	\t Specification (W x Dmm)
\t YS119SW - 3104	\t 4U	\t 310mm X 140 mm
\t YS119SW - 3204	\t 4U	\t 310mm x 280mm
\t YS119SW - 3106	\t 6U	\t 310mm X 140 mm
\t YS119SW - 3206	\t 6U	\t 310mm x 280mm
\t YS119SW - 3109	\t 9U	\t 310mm X 140 mm
\t YS119SW - 3209	\t 9U	\t 310mm x 280mm
\t YS119SW - 3112	\t 12U	\t 310mm X 140 mm
\t YS119SW - 3212	\t 12U	\t 310mm x 280mm

\t Product part	\t Material thickness	\t finish surface
\t Top Cover	\t SPCC Cold rolled steel 1.0	\t Powder coated
\t Bottom panel	\t SPCC Cold rolled steel 1.0	\t Powder coated
\t Mounting Profile	\t SPCC Cold rolled steel 1.5	\t Powder coated
\t Mounting angle	\t SPCC Cold rolled steel 1.2	\t Powder coated
\t Toughened glass front door	\t SPCC 1.5/Toughened glass5.0	\t Powder coated
\t Side panel	\t SPCC Cold rolled steel 1.0	\t Powder coated
\t rear panel	\t SPCC Cold rolled steel 1.0	\t Powder coated
\t Small round lock	\t /	\t Nickel coated
