Taidacent 20Hz 20KHz IRS2092S IRS2092 Amplifier Module Mono Channel HIFI AMP Board Class D 500W Digital Amplifiers
- Category: >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60498835705):
Product Overview
Description

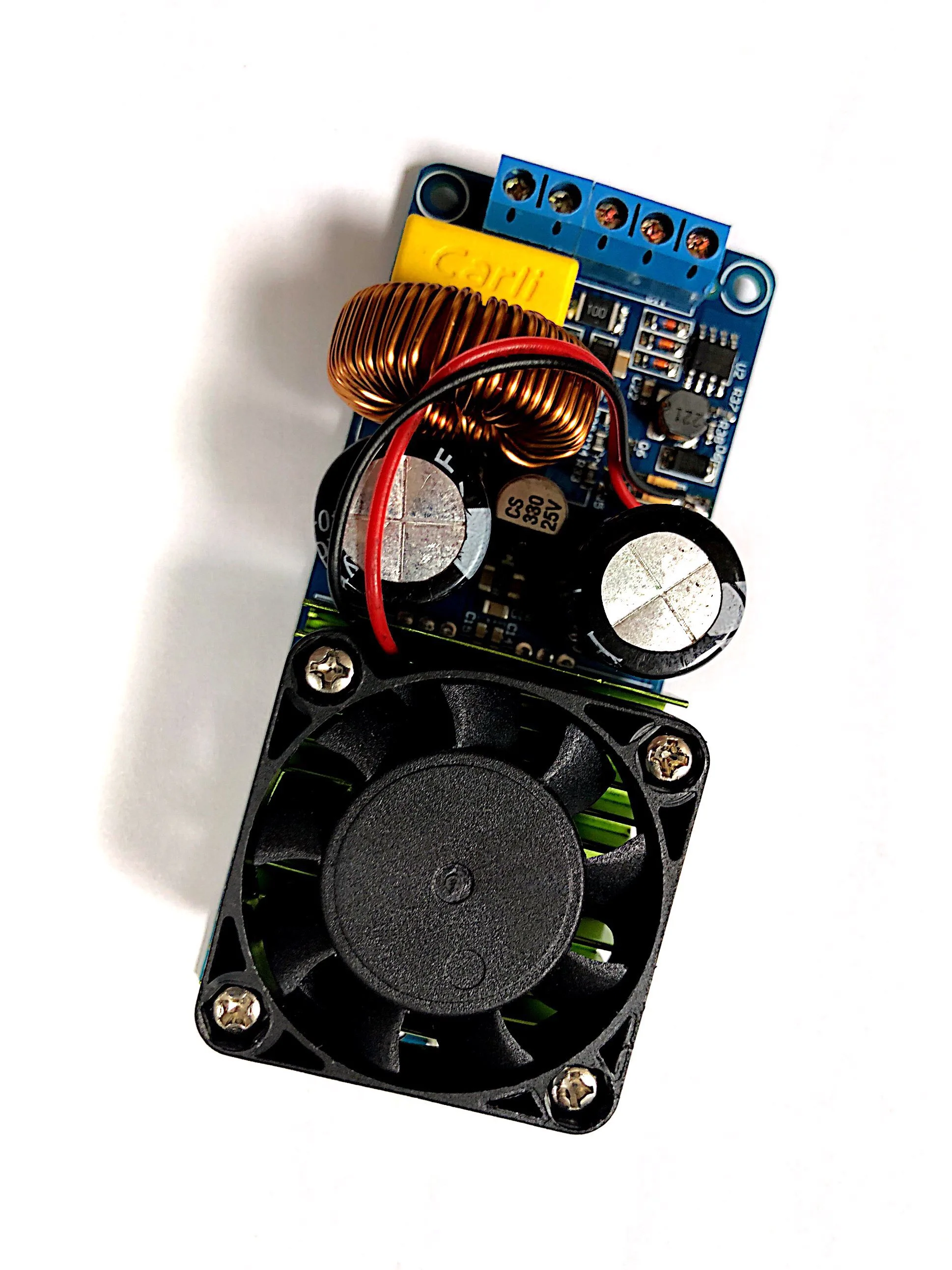

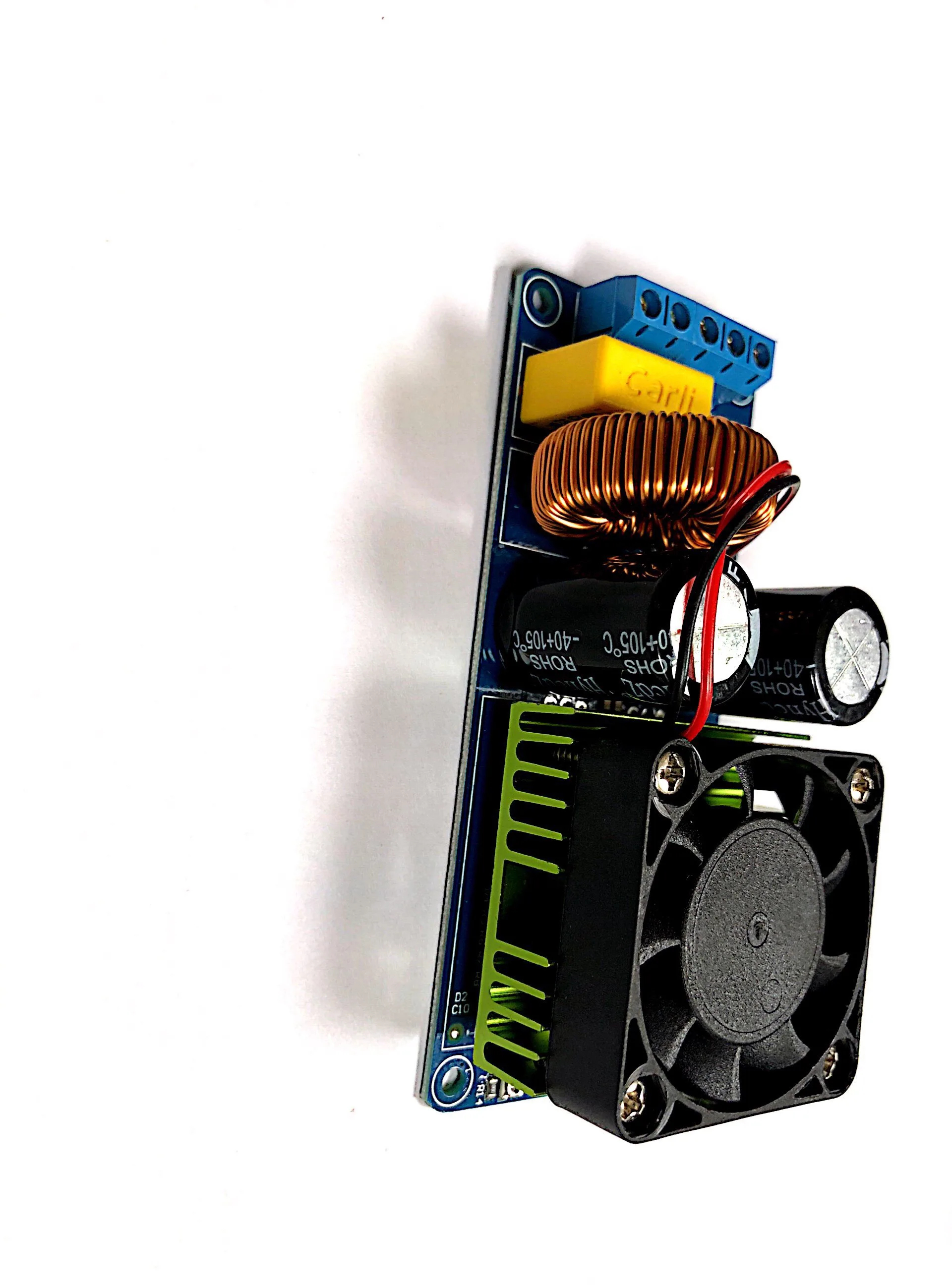

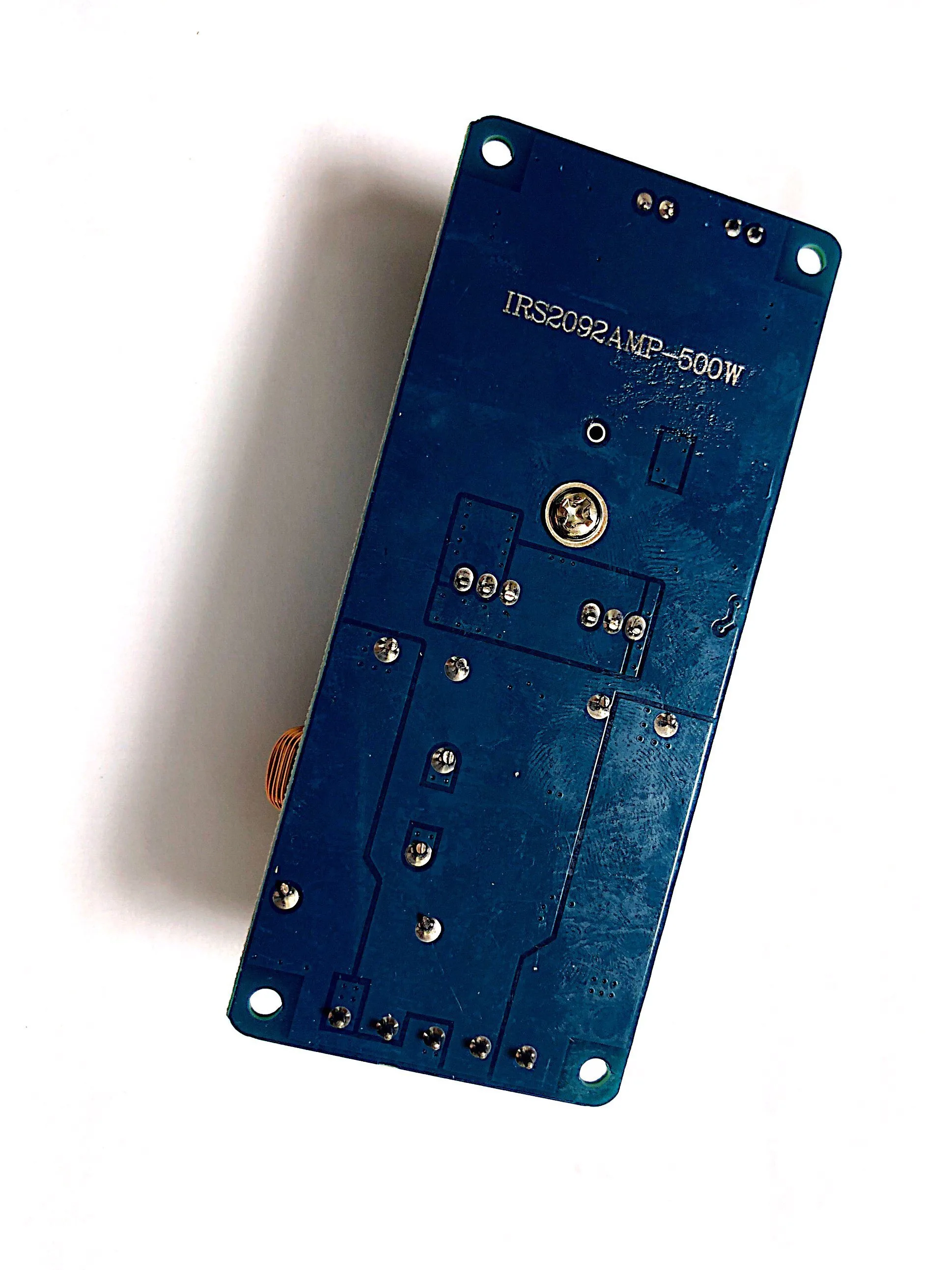

Taidacent 20Hz-20KHz IRS2092S IRS2092 Amplifier Module Mono Channel HIFI AMP Board Class D 500W Digital Amplifiers
1. Power supply voltage: dual DC power supply ±58---±70V
2. Rated output power: 500W (±65V power supply 4 ohm load, distortion 10%)
3. Efficiency: >=90%
4. Signal to noise ratio: 90dB
5. Total harmonic distortion: 380W (±65 power supply 4 ohm speakers, distortion <0.1%)
280W (±65 power supply 8 ohm speakers, distortion <0.1%)
6. Frequency response range: 20Hz-20KHz
7. Speaker: 4-8Ω
8. Voltage amplification: 36 times
9. Input sensitivity 1.5V (RMS)
10. Output short circuit protection: Yes
11. Output DC bias protection is speaker protection: Yes
12. Over-temperature protection: Yes, the temperature of the radiator FET is higher than 100 °C, and the output is turned off!
13. Power amplifier board size: length x width x height = 98x43x30mm
14. Weight: 95 grams
2. Rated output power: 500W (±65V power supply 4 ohm load, distortion 10%)
3. Efficiency: >=90%
4. Signal to noise ratio: 90dB
5. Total harmonic distortion: 380W (±65 power supply 4 ohm speakers, distortion <0.1%)
280W (±65 power supply 8 ohm speakers, distortion <0.1%)
6. Frequency response range: 20Hz-20KHz
7. Speaker: 4-8Ω
8. Voltage amplification: 36 times
9. Input sensitivity 1.5V (RMS)
10. Output short circuit protection: Yes
11. Output DC bias protection is speaker protection: Yes
12. Over-temperature protection: Yes, the temperature of the radiator FET is higher than 100 °C, and the output is turned off!
13. Power amplifier board size: length x width x height = 98x43x30mm
14. Weight: 95 grams
Main feature
Integrated analog input Class D audio amplifier driver in a small 16 pin package
Floating inputs enable easy half bridge implementation
Programmable bidirectional over-current protection with self-reset function
Programmable preset deadtime for improved THD performances
Start and stop click noise reduction
High noise immunity
100 V ratings deliver up to 500 W in output power
Operates up to 800 kHz
RoHS compliant
Floating inputs enable easy half bridge implementation
Programmable bidirectional over-current protection with self-reset function
Programmable preset deadtime for improved THD performances
Start and stop click noise reduction
High noise immunity
100 V ratings deliver up to 500 W in output power
Operates up to 800 kHz
RoHS compliant
Product Description
Specification
item | value |
Brand Name | Taidacent |
Model Number | IRS2092S |
Place of Origin | China |
Guangdong | |
power | 500W |
