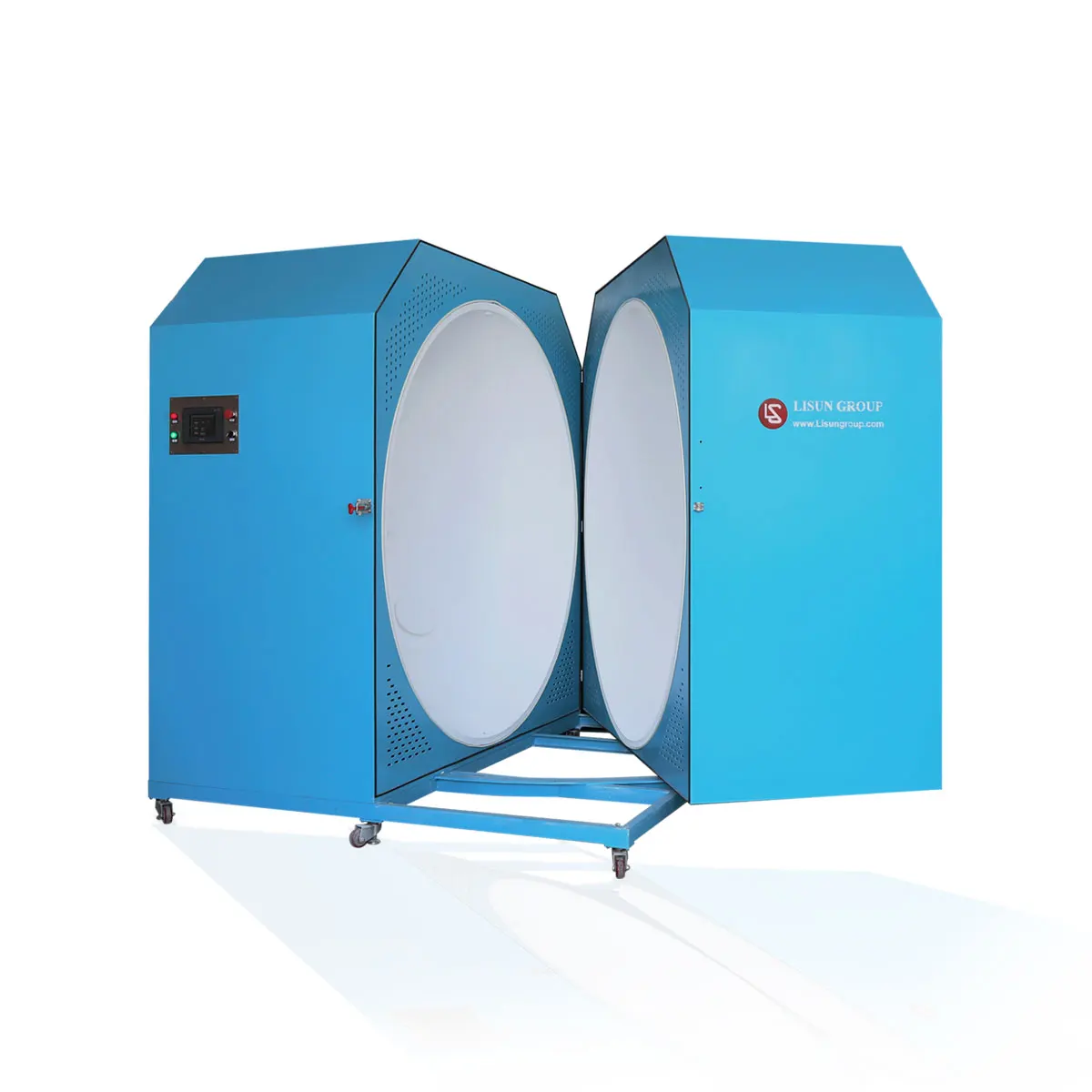

IS *M 0.3m 3m Integrating Sphere with auto gauge holder to do photometry and colorimetry test

 Please contact us first before you place order.

The IS-*M is the tradiontal integrating spheres, LISUN already stop producing it but instead with A molding technology integrating sphere IS-*MA

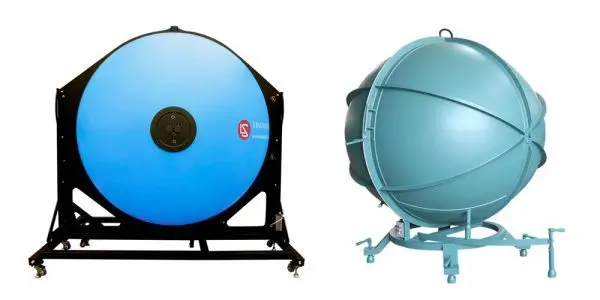

A Molding Integrating Sphere VS The Traditional Integrating Sphere

Specifications:
• Painting material of integrating spheres is according to CIE Pub.No.84 (1989)
• The painting material is BaSO4 coating: ρ (λ) ≥0.96 (450nm~800nm) and ρ (λ) ≥0.92 (380nm~450nm)
• Fine diffuse reflection: Reflectance ρ≈0.8 and accuracy of ρ (λ) <1.5%

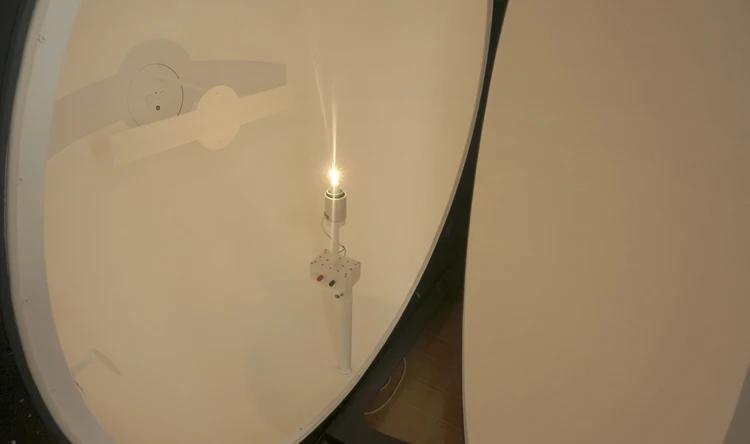

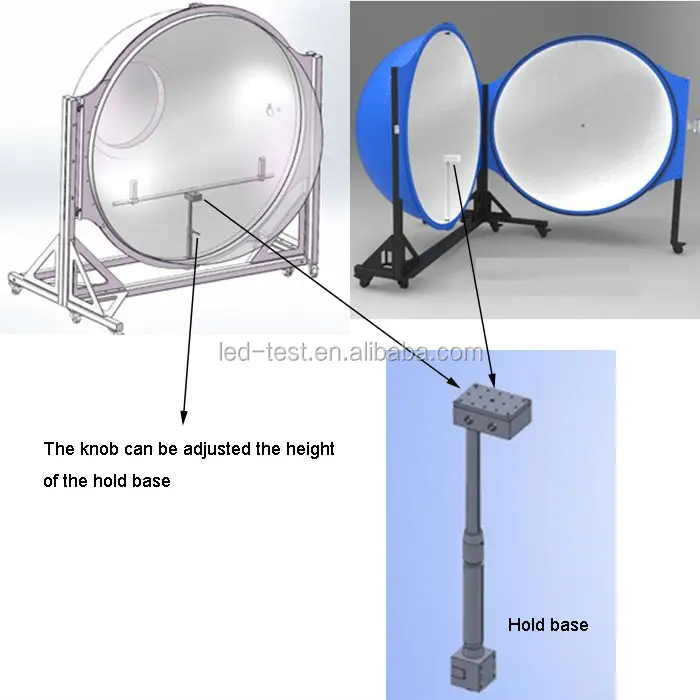

• Build-in all functional lamp testing jigs: for E40/E27, T5/T8/T12 tubes and the testing holder base for LED and other luminaires. All samples under test can be installed both up and down directions in the sphere.
• Power cable, power terminal and auxiliary lamp position are built-in (Auxiliary lamp is optional)
• Power cable and socket has been build-in. It is convenient to power on the lamp under test
• Two photo detector ports, one optical fiber port and temperature sensor hole are built-in

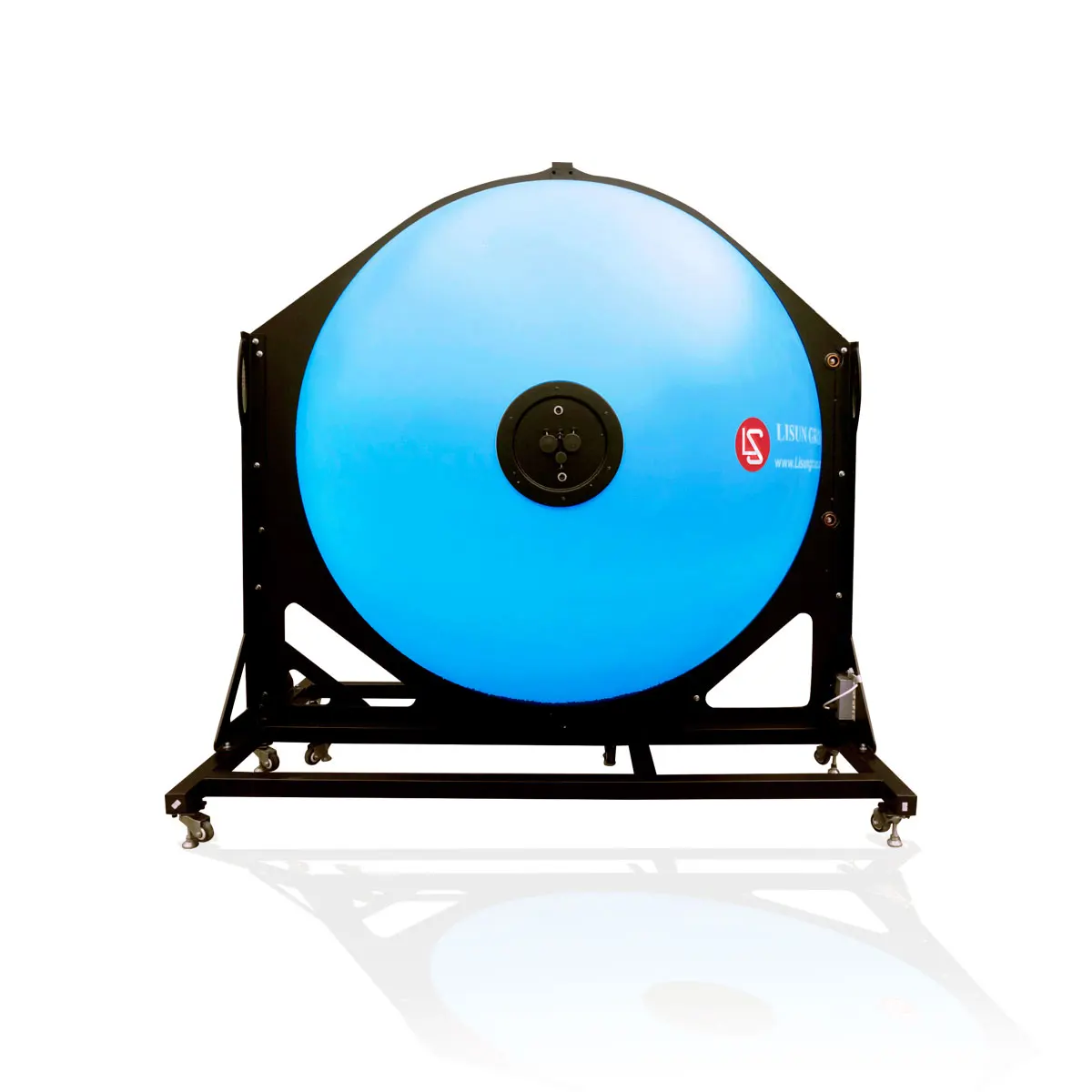

• The traditional integrating sphere is made up of several pieces. LISUN developed A Molding Technology to produce the integrating sphere. A molding integrating sphere is more round and the test result is with more accuracy.

Applications:
The integrating sphere works with a Spectroradiometer to do the photometry, colorimetry and radiometry parameters measurement.
• IS-0.3M/IS-0.5M is for LEDs, LED modules, mini LED bulbs & other small lamps. The flux testing range is 0.001 to 1,999 lm
• IS-1.0MA is for CFL or LED bulbs. The flux testing range is 0.1 to 199,990 lm
• IS-1.5MA/IS-1.75MA is for CFL, LED bulb and tube, fluorescent lamp, CCFL. The flux testing range is 0.1 to 1,999,900 lm
• IS-2.0MA is for HID lamps or high power lamps. The flux testing range is 0.1 to 1,999,900lm
