Product Overview

Description

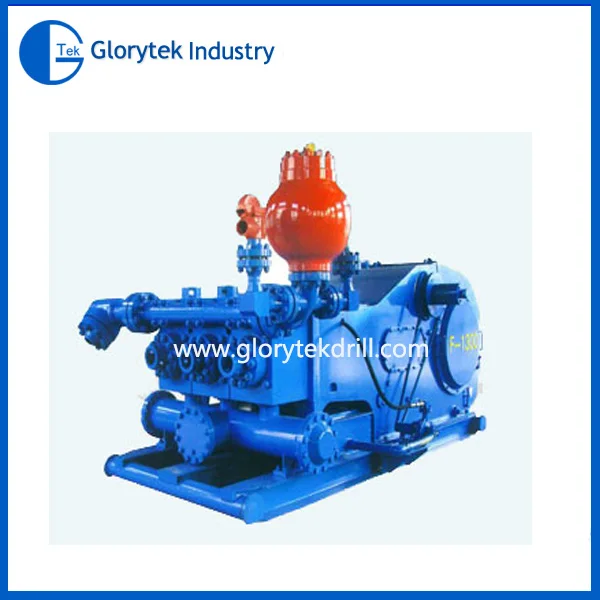

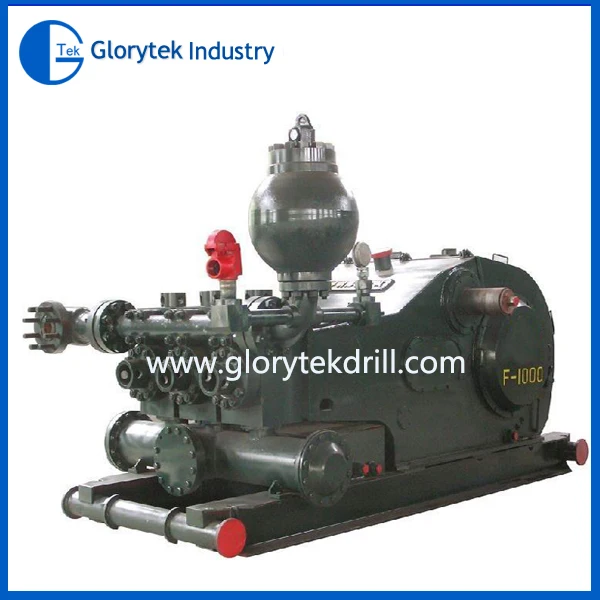

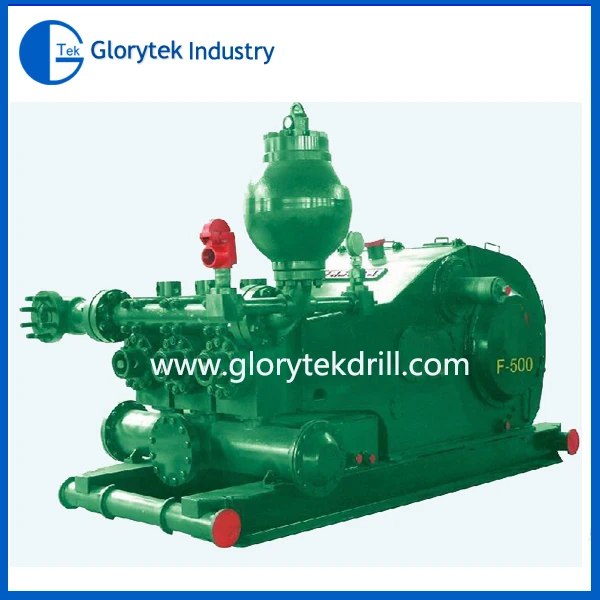

Triplex single action piston mud pump for oil drilling








Description








 F series mud pump is applicable to the requirement of high pump pressure in oil field and high displacement technology of well drilling with its solid and compact structure, small volume and outstanding operation performance.





 F series mud pump has long stroke maintaining operation at lower frequency resulting in enhancing the performance of giving water effectively and prolonging the lifetime of the consumable hydrokinetic parts, the air-suction kit is advanced in structure and reliable at operation to reach the optimized absorbing target of air suction into line pipe.





 F series pump powering side adopts the combined lubrication id forced and flashing lubrication featured with reliable lubrication and adding the operation lifetime of powering part.





 This series pump is widely used in oil fields and other lines of industrial and mining enterprises, operation ofdrilling well and well repairing in oil field and other lines of industrial and mining enterprises, operation of drilling well and well repairing etc








Picture for F-1600 Mud Pump





mud pump(F-1600).jpg





Techincal Parameter










































































































































Type



Horizontal 3-cylinder single acting piston pump



Gear type



Herringbone gear



Rated input power(kw/hp)



1193/1600



Gear Ratio



4.206:1



Rated stroke (stroke/min)



120



Lubrication



Forced and flashing



Stroke length(mm/min)



305/ 12"



Valve cavity



API-7#



Connection dimension of suction side



12" ( 305mm)



Connection dimension of discharge side



5" Flange 5000psi



The weight of main machine
(kg/pound)



27020/26030



Profile dimensions(LxWxH)



   4615x3276x2688mm


  181.69"x128.98"x105.83"



Stroke/min



Liner Size (mm/inch),



180



170



160



150



140



130



Pressure Rating (Mpa psi)



23,6(3345)



25,9(3750)



29,2(4235)



33,2(4820)



35,1(5000)



34,5(5000)



KW



HP



Displacement: L/S



130



1293



1733



50.42(799)



44.97(713)



39.83(631)



35.01(555)



30.50(483)



26.20(417)



120



1193



1600



46.54(737)



41.51(658)



36.77(583)



32.32(512)



28.15(446)



24.27(385)



110



1094



1467



42.66(676)



38.05(603)



33.71(534)



29.62(469)



25.81(409)



22.25(352)



100



994



1333



38.78(614)



34.59(548)



30.64(485)



26.93(427)



23.46(372)



20.23(320)



90



895



1200



34.90(533)



31.13(493)



27.58(437)



24.42(381)



21.11(334)



19.21(288)



1











0.3878(6.147)



0.3459(5.483)



0.3064 (4.857)



0.2693(4.269)



0.2346(3.719)



0.2023 (3.206)
