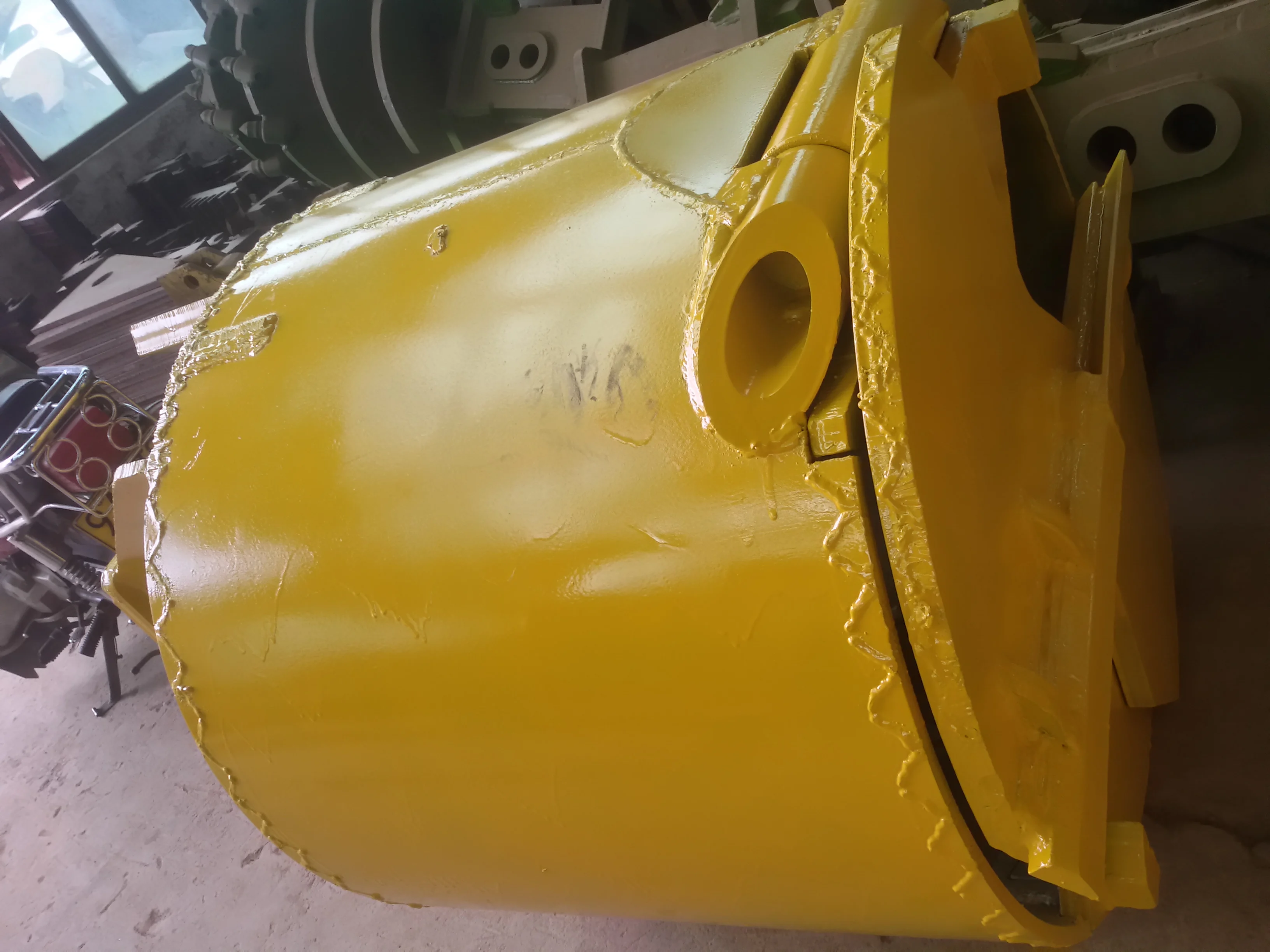

Drilling bucket/cleaning bucket 500mm 2500mm

Drilling Bucket

1. Brief introduction

Drilling buckets are mainly used for drilling water-bearing sandy soil, sludge, clay, muddy sub clay, sandy gravel, cobble, and weathered soft formation. The bucket can be designed into cylindrical type and conical type according to bucket diameter, type of drilling rig and soil conditions. The opening and closing device can be operated manually, mechanically or mixed manner. The welding angle of bucket teeth can be designed according to formation conditions.
The bottom cover is made of high-strength Mn plate, and the cutting edge includes single-layer type and double-layer type; The soil inlet also includes single-bottom type and double-bottom type.

2. Main Applications:
These drillling buckets are suitable for drilling in clay, silt and loose to medium dense sand and gravel.
1- Single cut drilling buckets are recommended up to coarse gravel.
2- Double cut drilling buckets are mainly used for bigger diameter uncased boreholes.
3- Single bottom drilling buckets are used for clay layer and sticky formation.
* Other sizes can be manufactured as per customer demand

3. Structure

1. Kelly box  2. Top plate  3. Shell  4. Inner inclined plate  5. Outer inclined plate  6. Hinge

7. Locking system  8. Inner base plate  9. Outer base plate  10. Pilot  11. Round shank chisel

4. Parameter

Rock bucket
