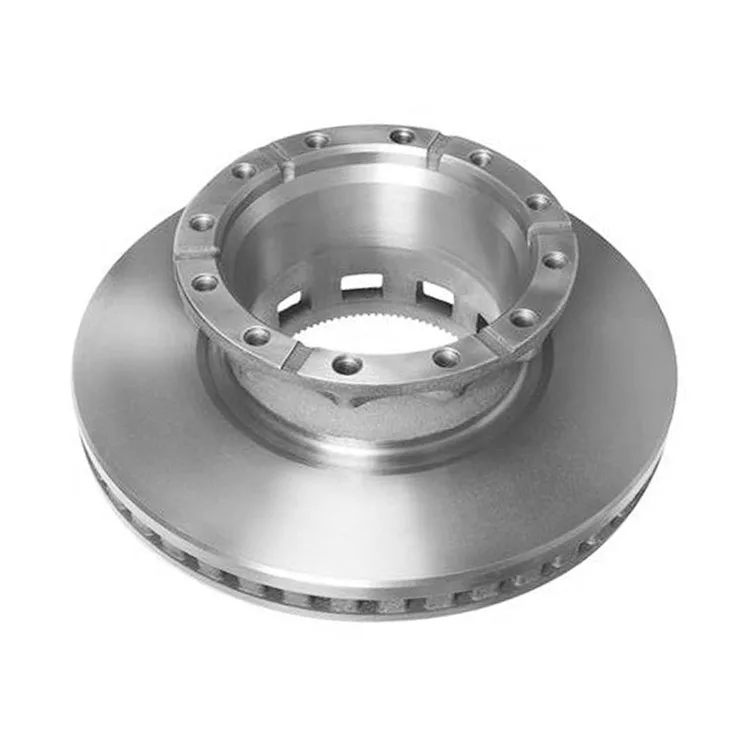

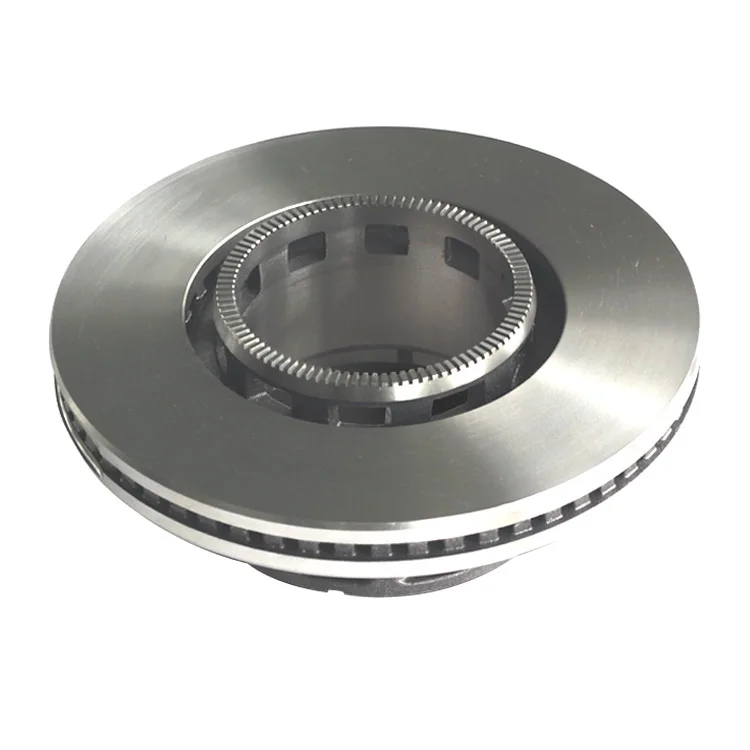

High Performance 2995812 2996328 7189476 truck Brake Disc applicable to EuroCargo & Stralis

Product Overview

Description

Yantai - The Biggest Brake Disc Production Base in China

1) Full range - 500+ numbers for Commercial Vehicles & 2600+ numbers for Passenger Cars

2) TS16949 Quality System Certification & ECE R90 Certified

3) Competitive Factory Price

4) Leading supplier in Europe, South America & North America





High Performance 2995812 2996328 7189476 truck Brake Disc

applicable to EuroCargo & Stralis









Product Details

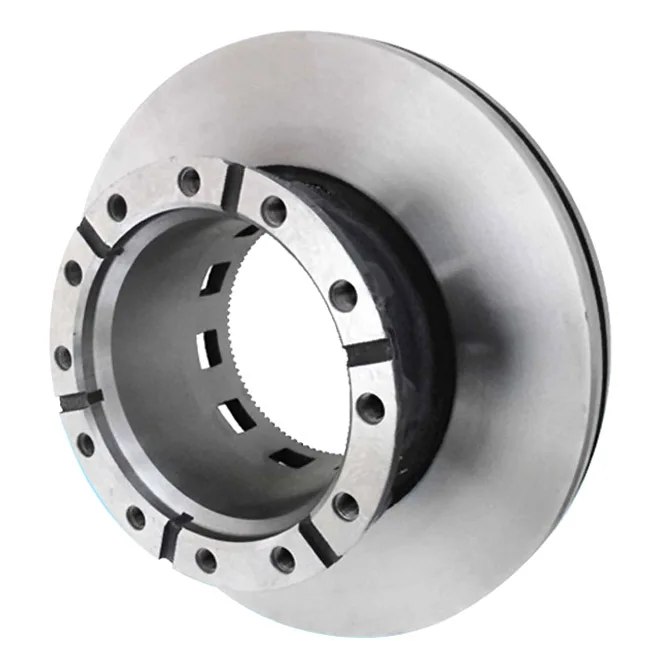

OE No.	2995812	to fit IVECO EuroCargo
Additional OE No.	2996328	to fit IVECO EuroCargo
	7189476	to fit IVECO EuroCargo

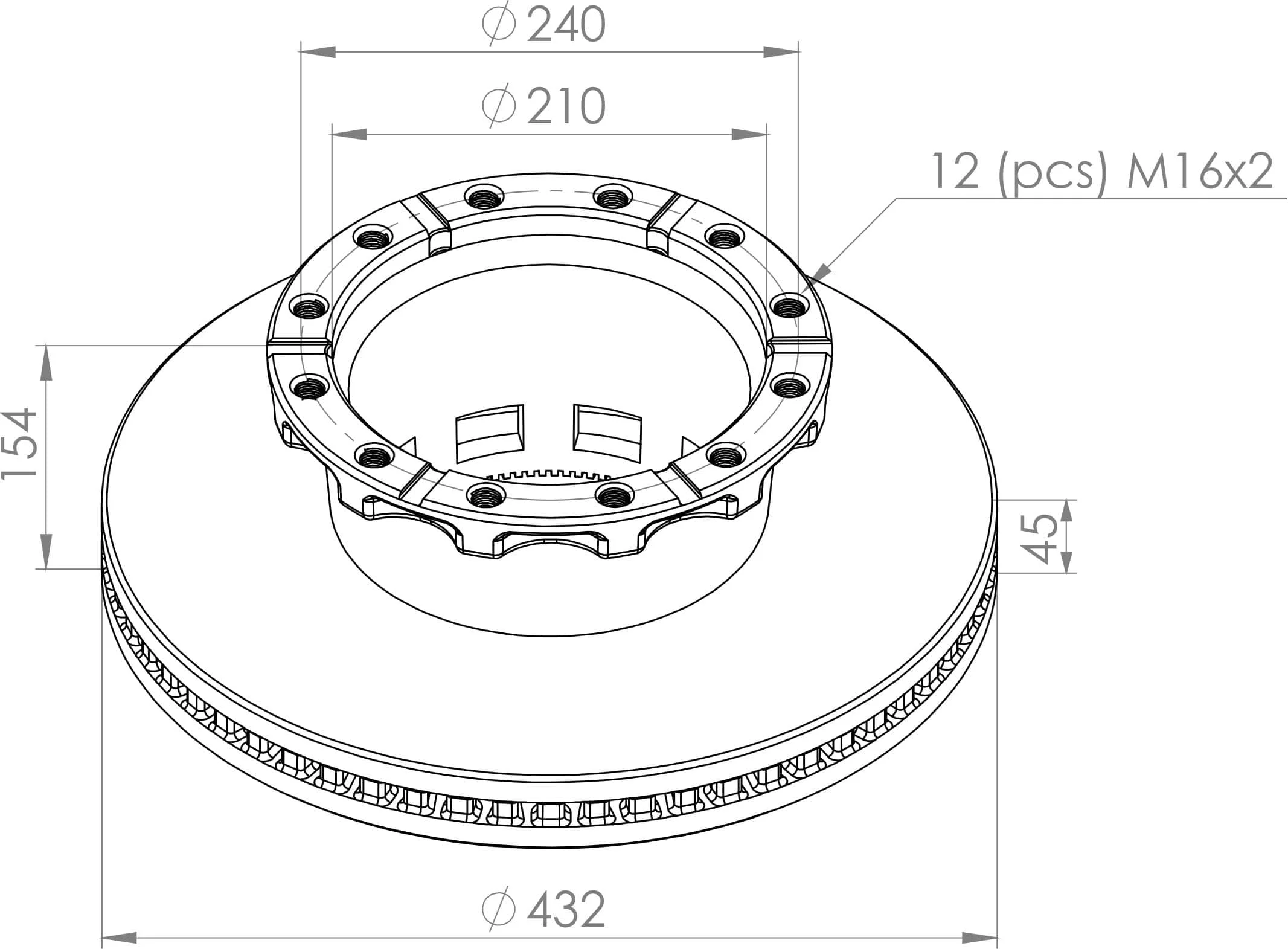

Specifications	Outer Diameter [mm]	432
	Thickness [mm]	45
	Minimum Thickness [mm]	37
	Height [mm]	154,5
	Hub Bore [mm]	210
	Pitch Circle [mm]	240
	Number of Holes	12
	Thread Size	M16



Chemical Composition

 Material              C                    Si                    Mn                   S                      P                    Cr

 HT250/G3000   3.10-3.55%   1.90-2.40%    0.50-0.90%    0.15% max.    0.15% max.   0.25% max.



Microstructure

 Graphite Structure: Predominately Type A, Size 3-5

 Pearlite:  95% min.  Ferrite: 5% max.



Mechanical Property

 Hardness: 187 - 241 HB                 Tensile Strength:  220 Mpa  (min.)



Machining Requirement

 Runout: 0.05mm (max.)                   DTV:  0.127mm (max.)

 Roughness: Ra 1.6μm (max.)         Dynamic Balance:100% Balanced

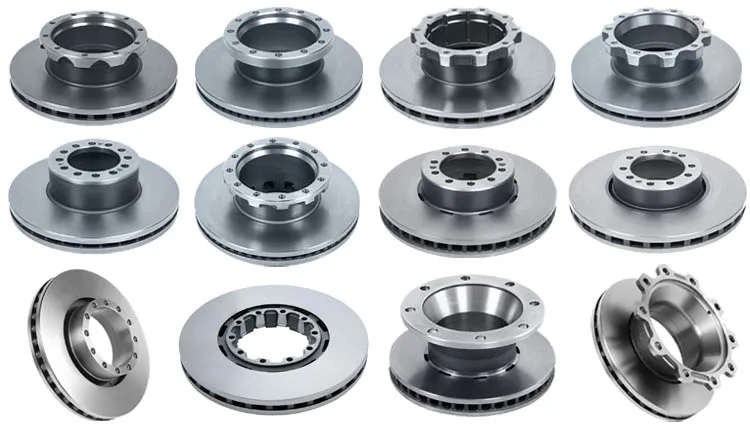

Commercial Vehicle Brake Discs
- Over 500 part numbers
- Basic material, as well as in high carbon
- Automatic production lines are used

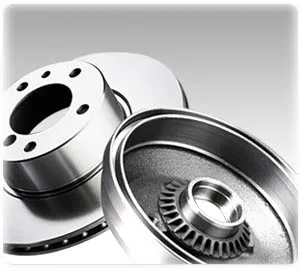

Standard Brake Discs/Drums
- Over 2600 part numbers
- Fast launch of new items to market
- Precise tolerance
- 100% balancing and edge marking
- Screw KITs available

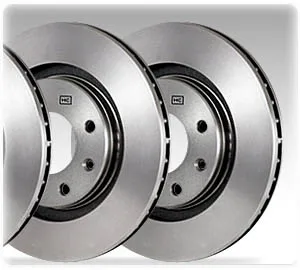

High Carbon Brake Discs
- Increased noise damping capability
- Improved heat dissipation
- Better resistance to thermal cracking
and distortion

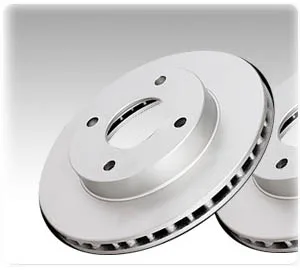

Coated Brake Discs
- Environmentally friendly hexavalent
chromiumfree anti-corrosion coating
- Install the disc right out of box, no cleaning
needed
- Provides a long lasting clean appearance

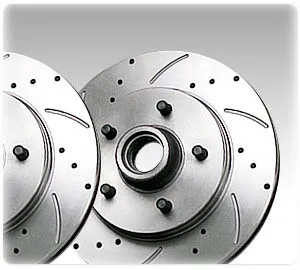

Drilled and Slotted Brake Discs
- Enhanced braking power
- Continuous cleaning of the brake pad surface
- Cooler operating temperatures
- Slots also serve as a wear indicator

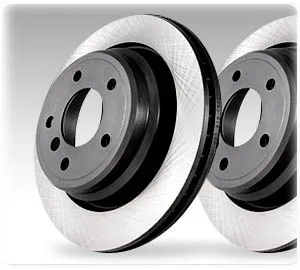

Black Hat Brake Discs
- Black coating on the hat
- Enhanced rust prevention and clear appearance
- For passenger cars, light / medium duty trucks



Casting finish
- Smooth
- Even
- Free of blow holes
Machined Area
- Sharp cutting tool
Vent configuration
- Correct design used
as OE design or better
Material Specification
- Correct ingredients used
- Cast iron properties correct
- Cooled correctly at a constant
controlled temperature to give
correct hardness

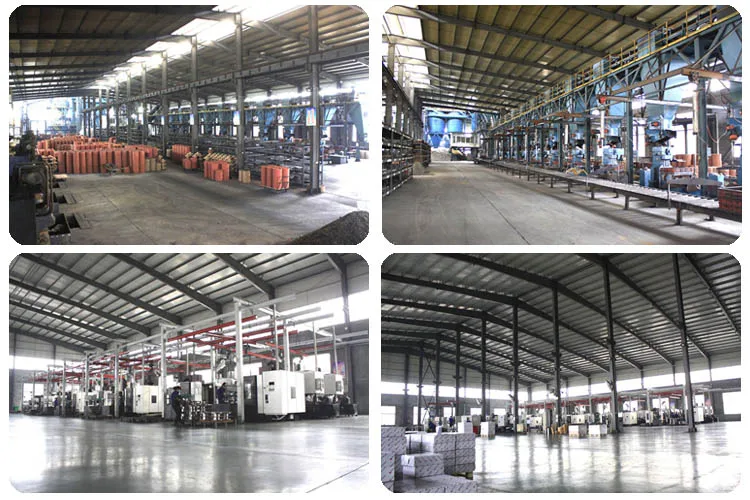

 Located in Yantai, the biggest brake disc production base in China, Longton can supply a full range of TS16949 & ECE R90 Certified brake discs for Commercial Vehicles & Passenger Cars. Passionate and proactive teams will provide a quick and professional response to your inquiry & questions. Longton will also provide reliable lead-time due to our growing manufacturing capacity, and excellent logistics handling.



 Longton has been supplying to USA, Germany, Italy, UK, France, Poland, Spain, Finland, Sweden, Chile, Austria, Australia, Canada, Mexico, Brazil, Peru, Austria, Slovenia, South Africa, UAE, Jordan, Saudi Arabia, and Russia.
