Laboratory and electronic cleanroom, Class 100 clean room from Shanghai Marya

 Laboratory and electronic cleanroom, Class 100 softwall clean room from Shanghai Marya

Marya Modular CleanRoom Fabrication (Architecture) Project, including: clean room partition wall system; clean room suspended ceiling system.

 Resistant to chemical, attack abrasion and scratches

 Panel come with steel frame four sides to avoid contamination

 High quality insulation core materials

 Pre-embedded reinforcement for the opening of light fixture and air filters.

Pre-embedded conduit for wiring.

 Advanced design makes all connection smooth, flush and cleanable

 Easy and fast installation system

 Finishing Surface can be flush connection as required.

Strong walkable ceiling/ false ceiling

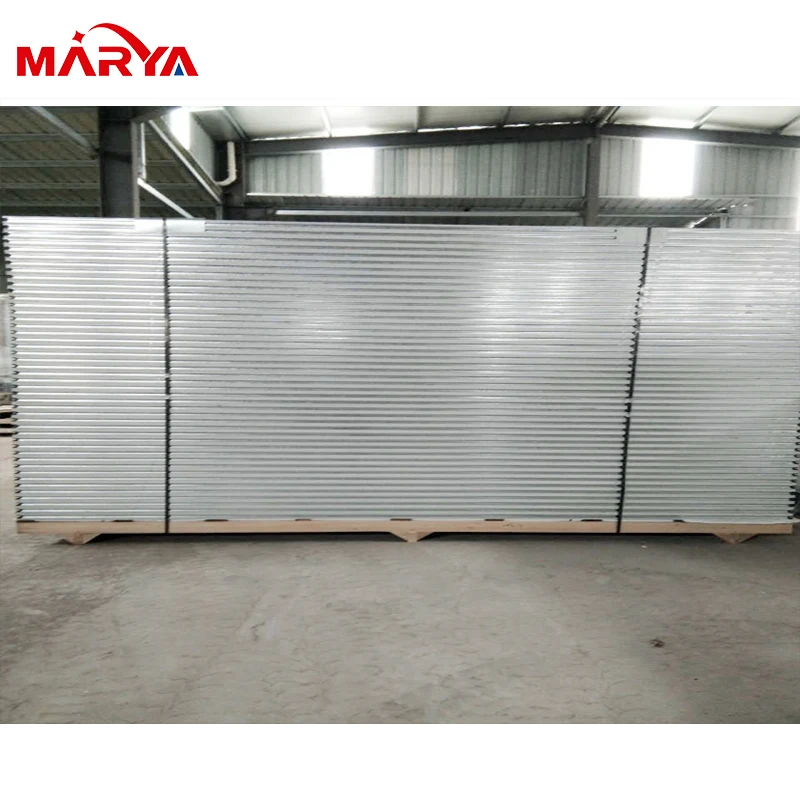

Modular wall and ceiling sandwich panel

>Made:

-Machine –made economical sandwich panel

-Hand-made modular sandwich panel

> Skin:

- Pre-painted galvanized steel (PPGI) skin

-HPL(Melamine high pressure laminate) skin

> Core insulation material:

-EPS(Expanded polystyrene)

-PUF (Polyurethane foam)

-Rock wool (mineral wool)

-Paper or aluminum honeycomb

-With magnesium gypsum board

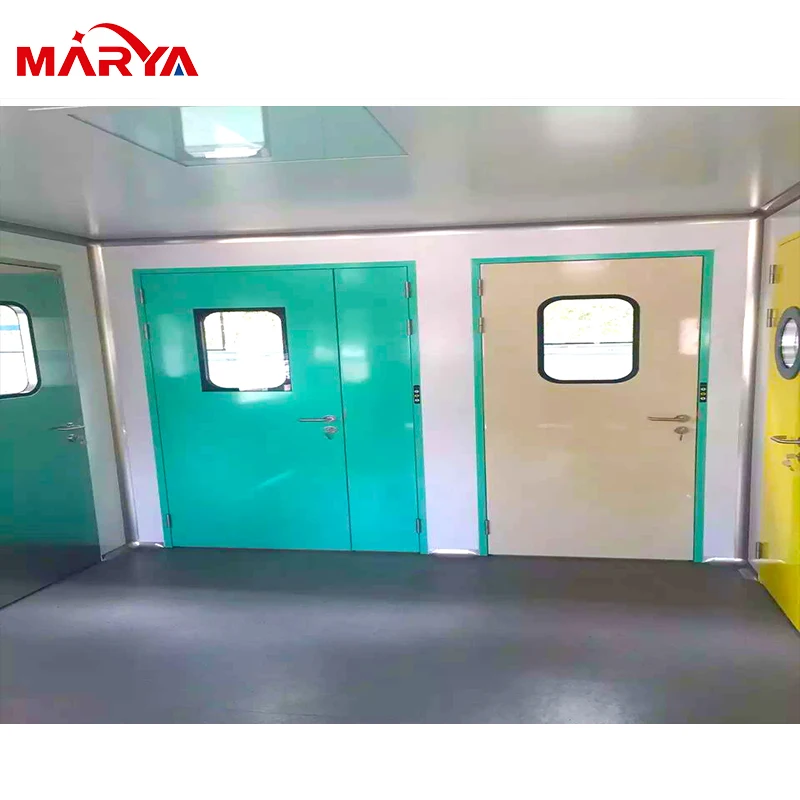

Clean room doors:

-Alu frame panel doors

-Flush type steel skin doors

-HPL skin doors

-Stainless steel doors

-Auto sliding door

-Emergency door

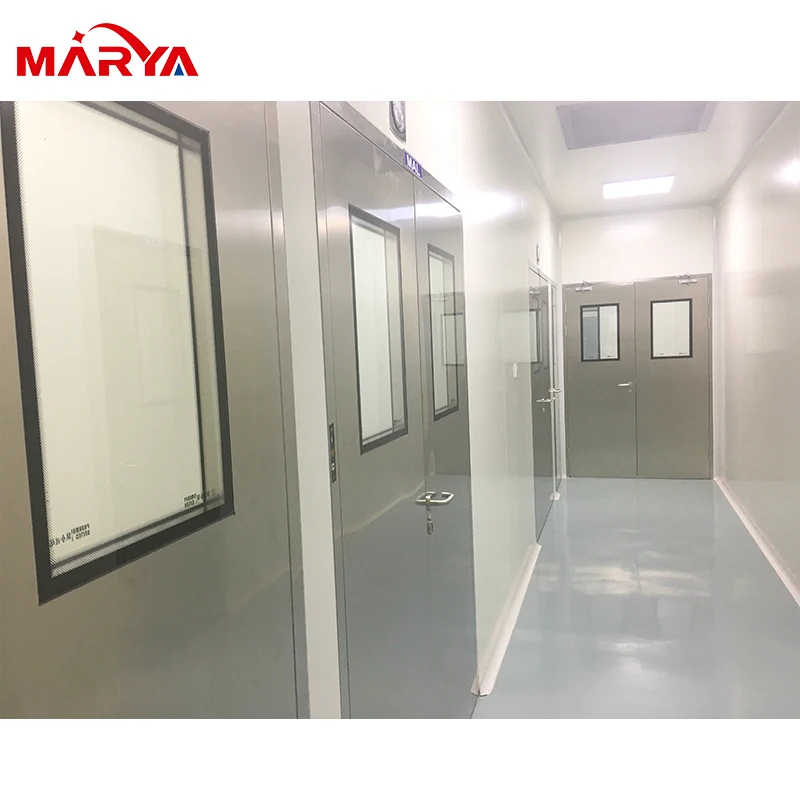

Clean room windows:

-Flush type double termpered  glass window

-Alu frame double termpered glass window

-Single glass window

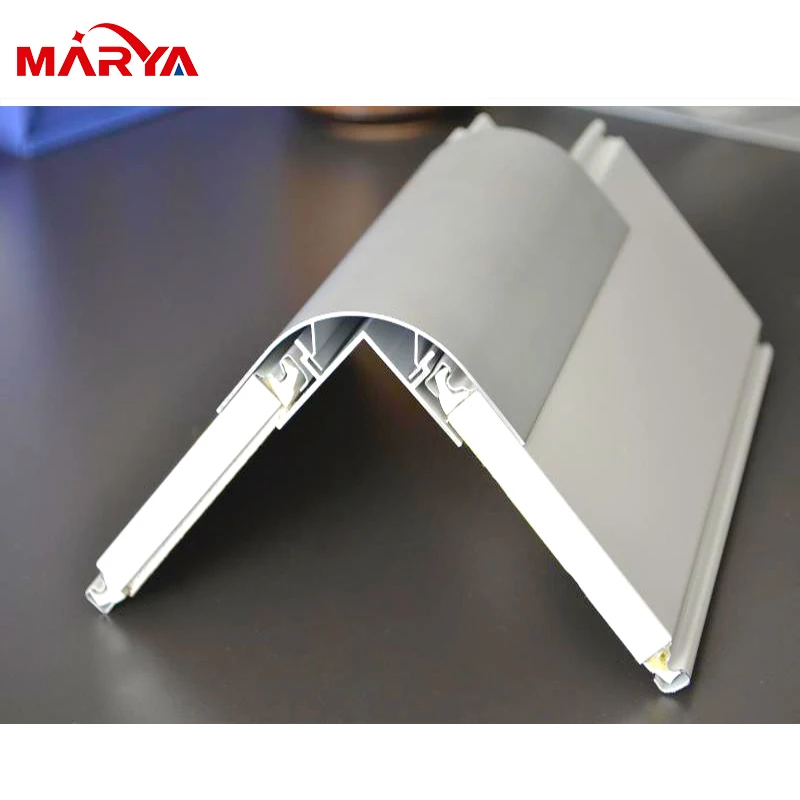

Alu profile coving, corner, hangling and connection system

HVAC System:

HVAC design and room data: according to ISO14644-1 and CFR209E cleanliness class

Chiller system:

- Air cooling chiller

-Water cooling chiller

Air handling unit (AHU)

Humidifier or dehumidifier

Air supply ducts

HEPA filter box

Air return and air exhaust ducts

Diffuser, grills , valves, damper and louver, fan etc

Flooring System:

Epoxy self-leveling flooring:

-Solvent-free type,

-Solvent type

PVC floor:

Antistatic type

Different color is available for different classification if required.

Lighting and Electricity System:

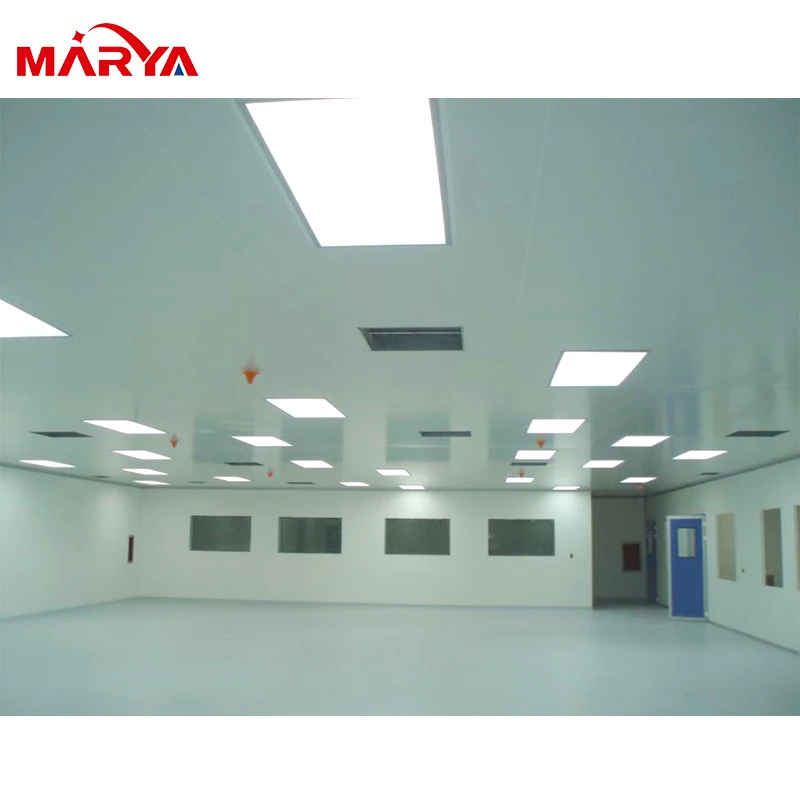

Clean room lighting:

Flush type light fixture

Extrude light fixture

White-enamelled steel

Stainless steel light

Clean room telephone

Clean Room Accessory Equipments:

Static pass through box

Dynamic pass through box

Air shower

Sampling and weighing booth

Laminar air flow/FFU

Gowning lockers and benches

Wash sink

Hand disinfector and dryer

 Isolaters

autoclave
