fan water spray,nozzle sprayer v nozzle 11005
US $1.40-$1.54

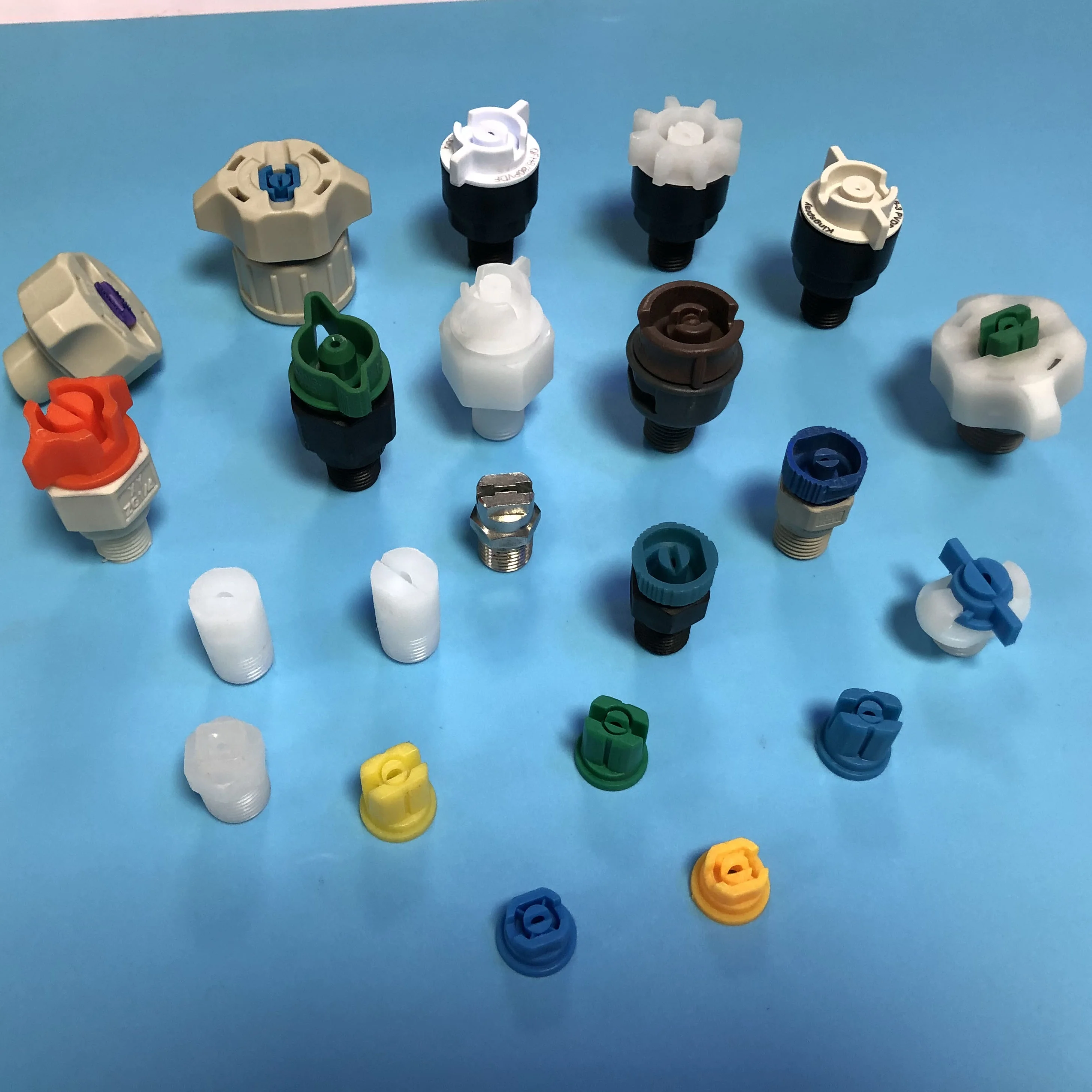

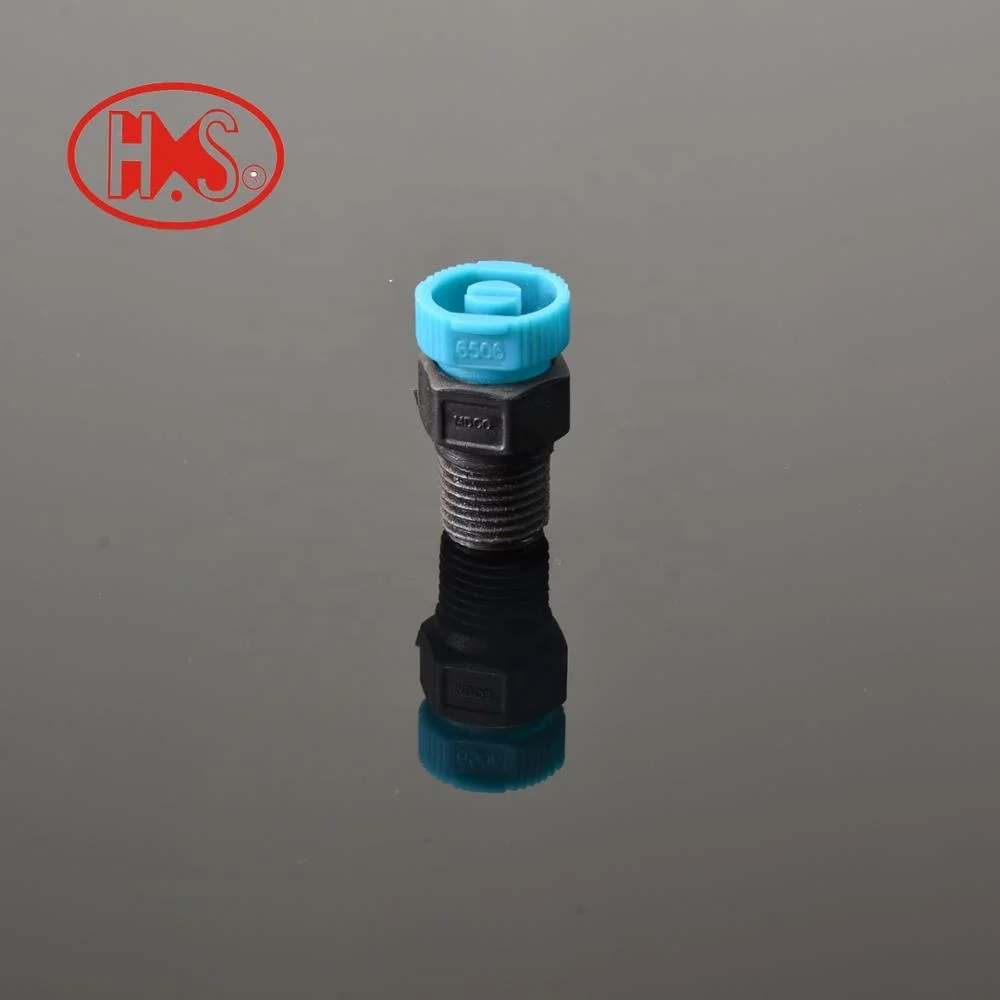

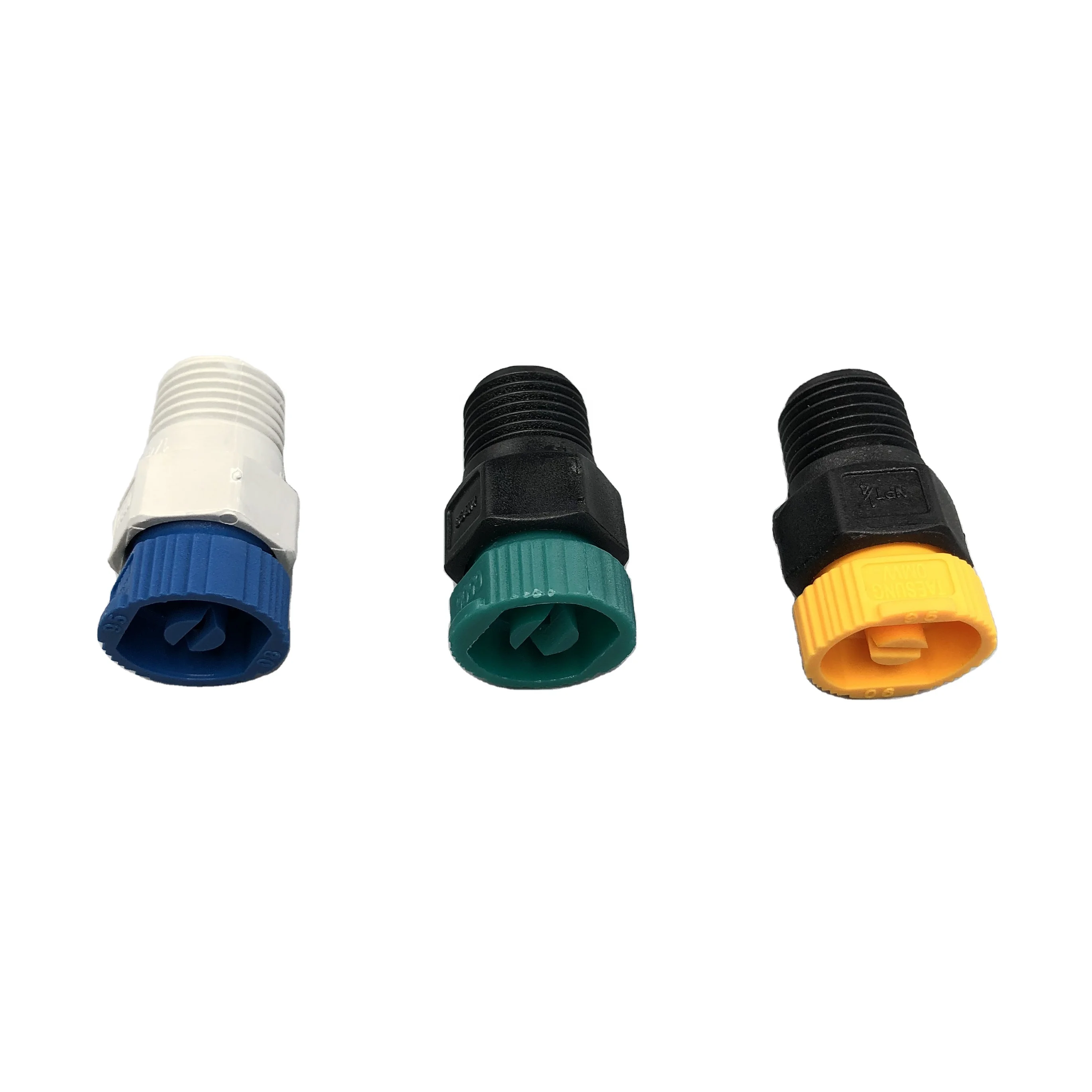

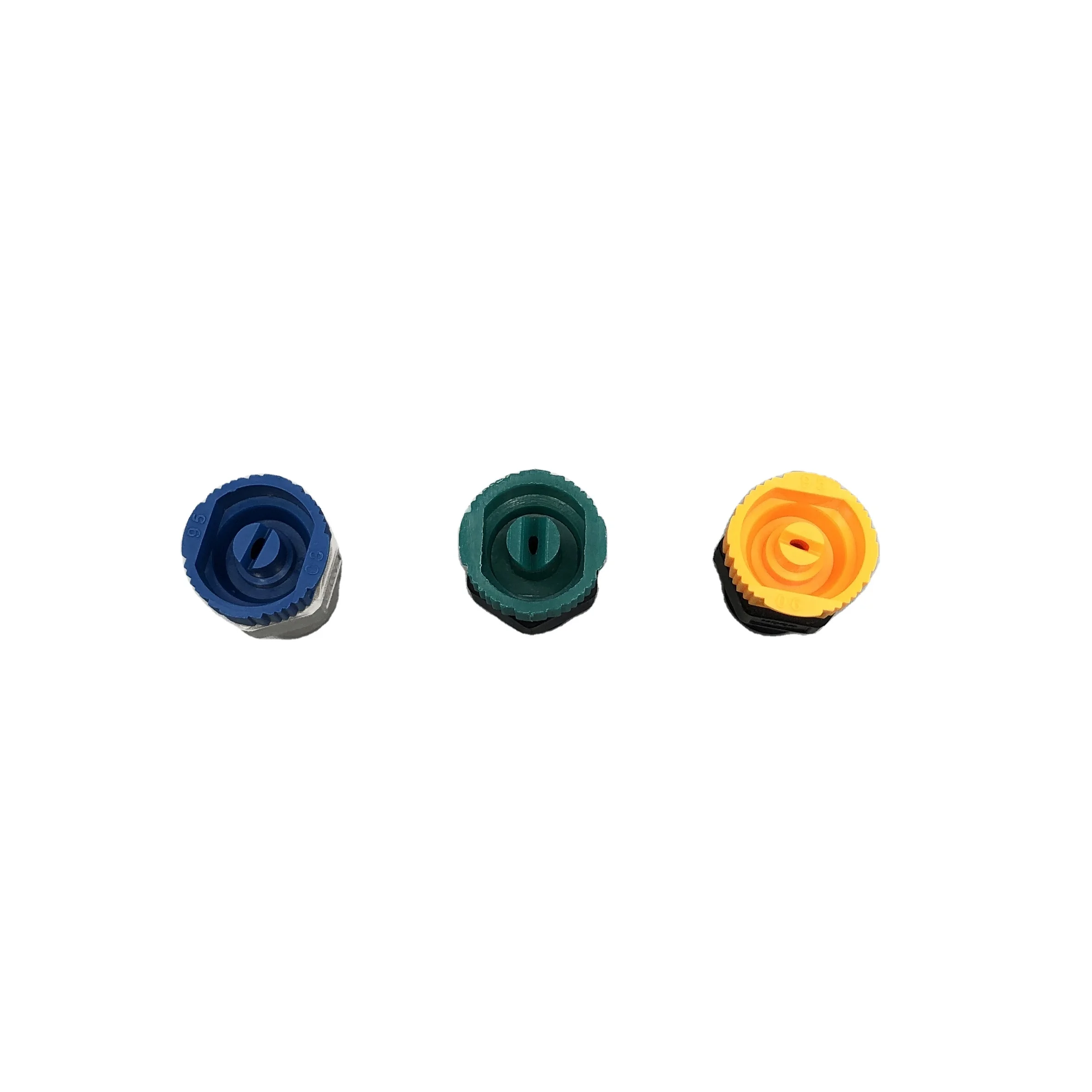

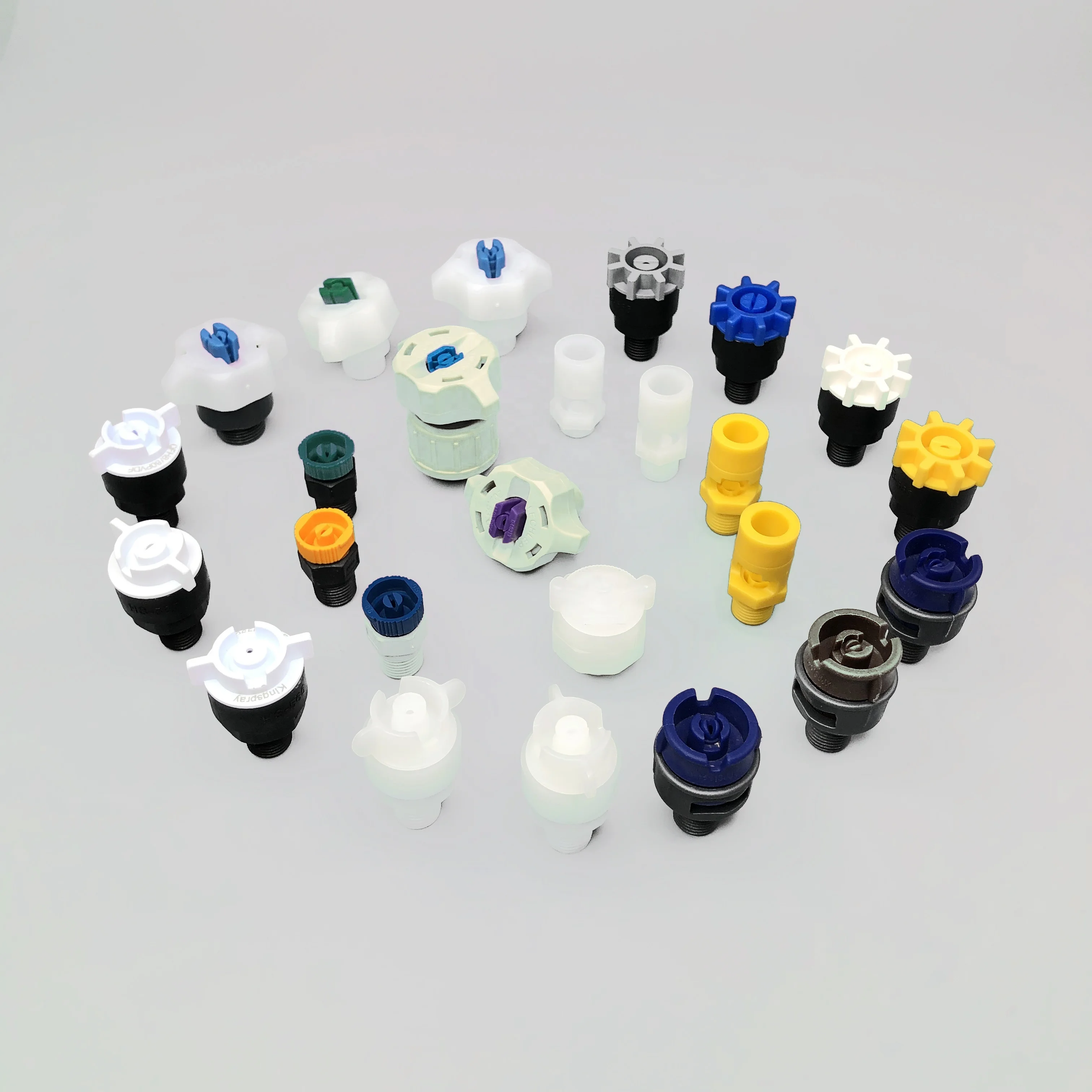

plastic injection molding flat fan spray nozzle 6508 9503 for korea PCB equipment
- Category: >>>
- Supplier: Shenzhen Xinhansheng Technology Co. Ltd.
Share on (60500010249):
Product Overview
Description

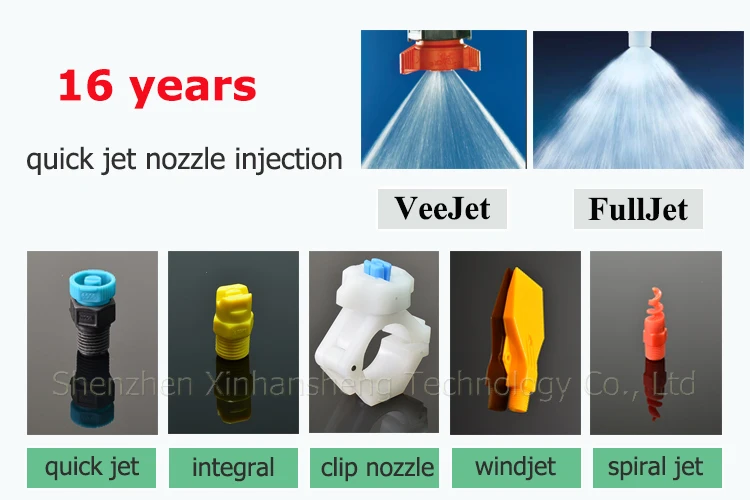

product show
Features
- chemical corrosion resistant material
- no need for tools to install and remove nozzle tip
- more selection for nozzle and joint size
- more choice of flow range and degree
- Recommended working pressure: 2.0kg/cm²
- Flowrate tolerance:± 5%
- Angle tolerance:± 5%
Apply For
- PCB wet processing (cleaning, etching, stripping)
- Display Panel Wet Processing
- water treatment, electroplating, semiconductor, pollution control, and Coating
Specifications
| VeeJet nozzle moudle | 1.0-10KG flow rate (L/min) | |||||||||||
| 50° | 65° | 80° | 95° | 100° | 1.0KG | 2.0KG | 3.0KG | 4.0KG | 5.0KG | 6.0KG | 7.0KG | 10KG |
| 5002C | 6502C | 8002C | 9502C | 11002C | 0.46 | 0.64 | 0.79 | 0.91 | 1.0 | 1.1 | 1.2 | 1.4 |
| 5004C | 6504C | 8004C | 9504C | 11004C | 0.91 | 1.3 | 1.68 | 1.8 | 2.0 | 2.2 | 2.4 | 2.9 |
| 5006C | 6506C | 8006C | 9506C | 11006C | 1.4 | 1.9 | 2.4 | 2.7 | 3.1 | 3.3 | 3.6 | 4.3 |
| 5008C | 6508C | 8008C | 9508C | 11008C | 1.8 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 |
| 5010C | 6510C | 8010C | 9510C | 11010C | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6 | 7.2 |
| 5015C | 6515C | 8015C | 9515C | 11015C | 3.4 | 4.8 | 5.9 | 6.8 | 7.6 | 8.4 | 9 | 10.8 |
| 5020C | 6520C | 8020C | 9520C | 11020C | 4.6 | 6.5 | 7.9 | 9.1 | 10.2 | 11.2 | 12.1 | 14.4 |
| 5030C | 6530C | 8030C | 9530C | 11030C | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.0 | 22.0 |
Ordering information
557 → 1/4 → VeeJet → 6508 → PVDF
name → joint size → spray shape → flow code → material
Company Information

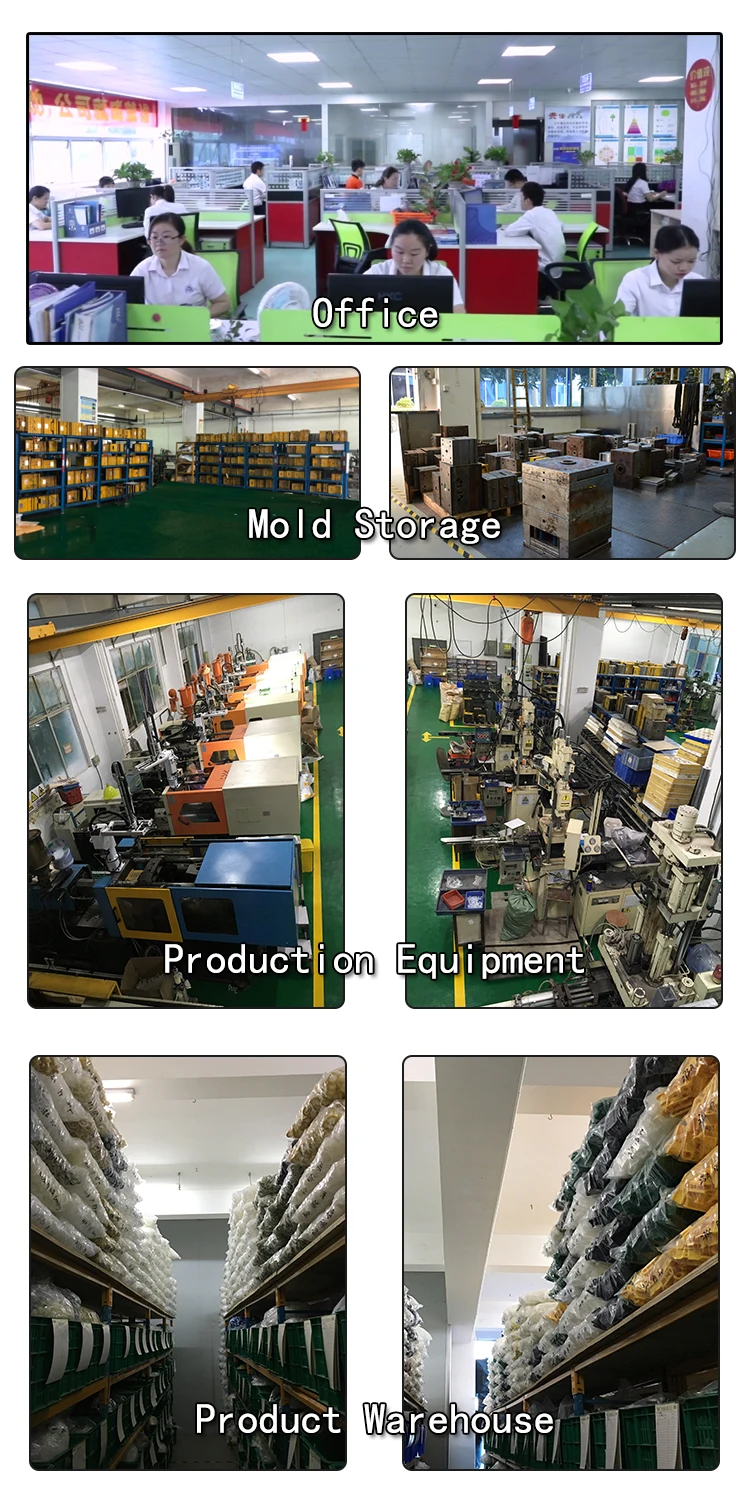

Shenzhen xinhansheng Technology Co., Ltd., established in 2001, is a professional enterprise integrating product mold design, production, production, plastic molding, sales and machine maintenance
We are committed to providing customers with satisfactory PCB, LCD, solar PV and other wet process equipment parts and services. The products include plastic products, machining products, injection molding products, roller sets, metal products and machines.
Since 2001, we have developed and produced different kinds of engineering plastic products for many customers both at home and abroad, such as: Southeast Asian countries, Africa,USA,Taiwan and so on. Now we have three separate overseas offices in Thailand, South Korea and India. We have received good reputations from our customers.
Exhibition Show
Certificate
Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:We accept the payment via T/T (bank transfer) or pay through Alibaba platform. Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.Please inquire us about the details in advance.
Q: How to order ?
A: Normally you can order our products by using Alibaba platform or contacting representatives by Email. After we receive your messages, we will help you to choose the right specifications and other inquiries. Then we will send an proforma invoice to you via mail, it includes details of your order and our bank information. After we received your payment by TT, we will ship your goods and we will send the invoice, packing list, and the express tracking number via mail.
Q: What is our term of trade ?
A: Usually we use EX WORKS. If you need other term of trade, please let us know.
Q: How are you going to deliver our goods ?
A: We can ship your goods either by air express (FedEx, DHL, UPS, TNT etc) or by sea. Please let us know your choice.
