Product Overview
Description
Here is the specific informations about Container Crane :

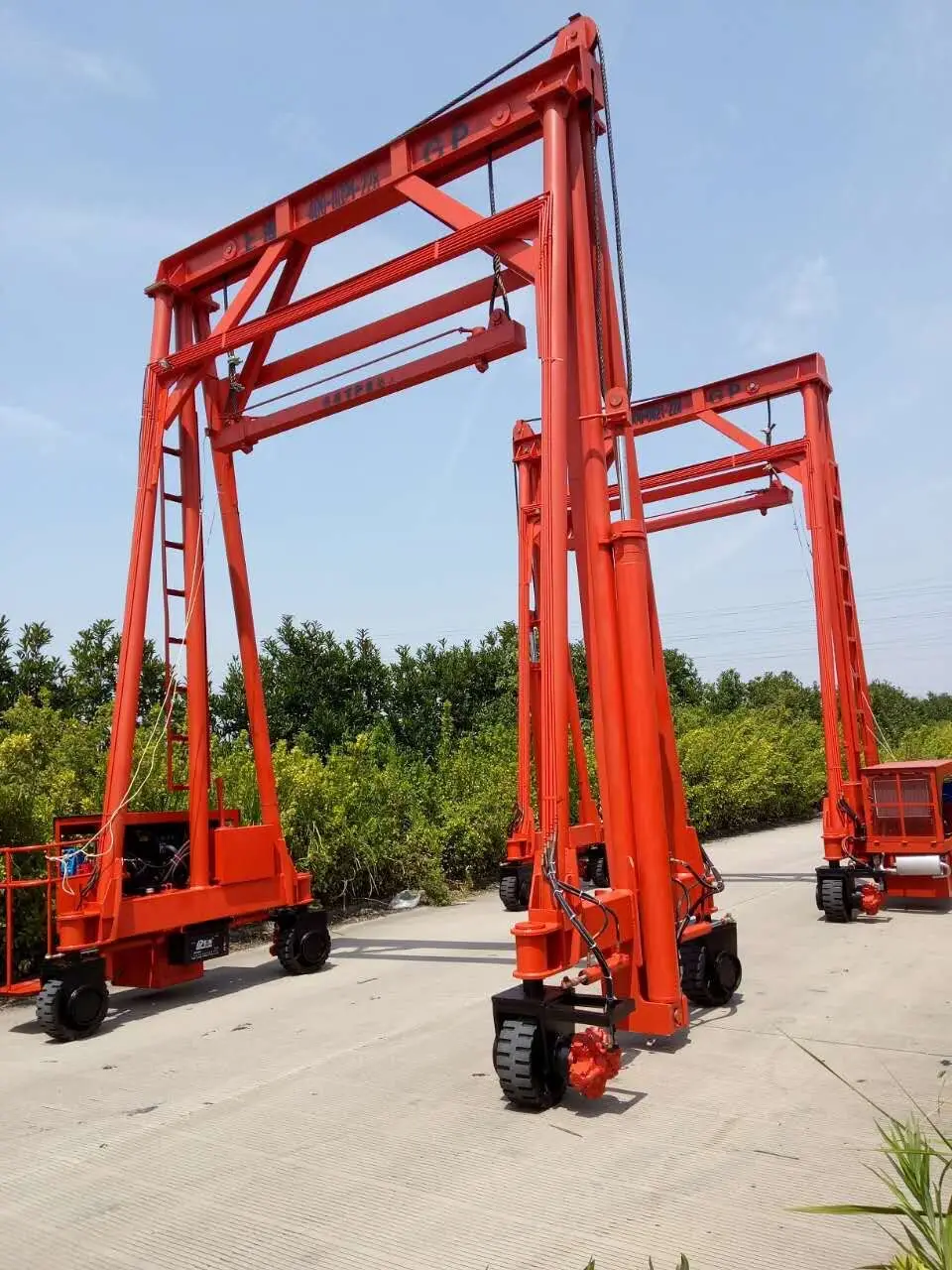

BSJD300-400Container Crane

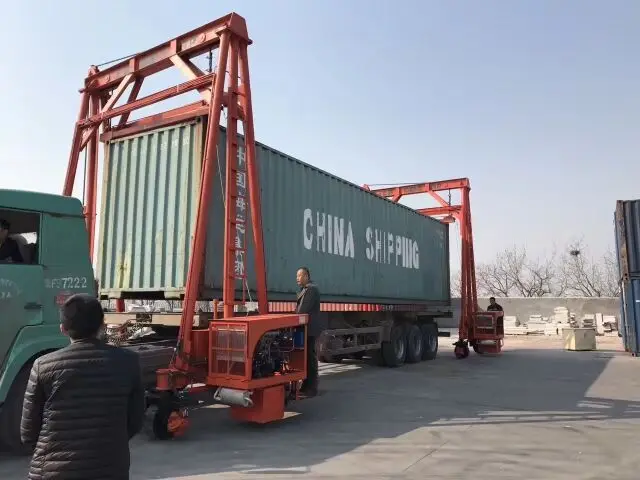

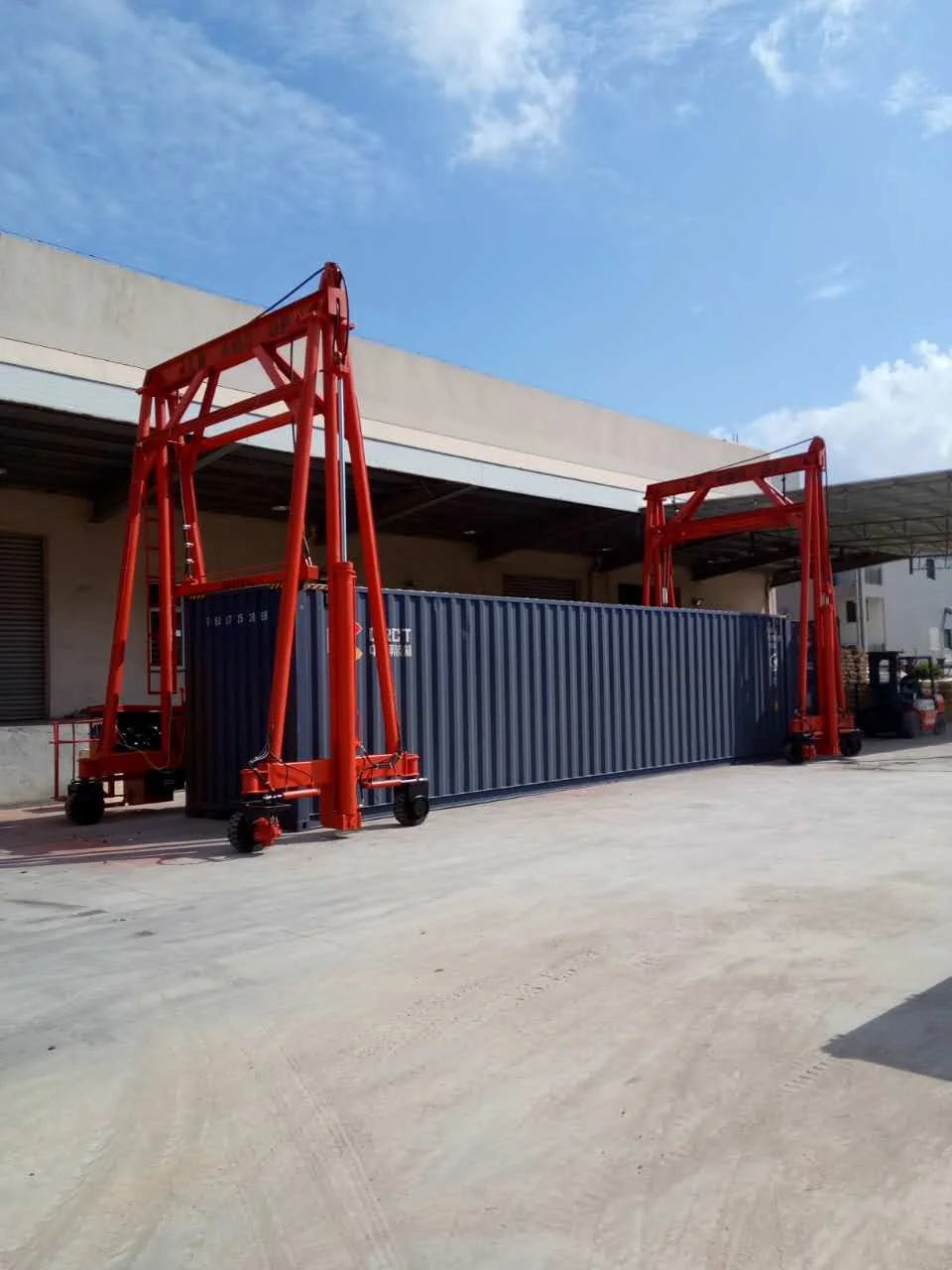

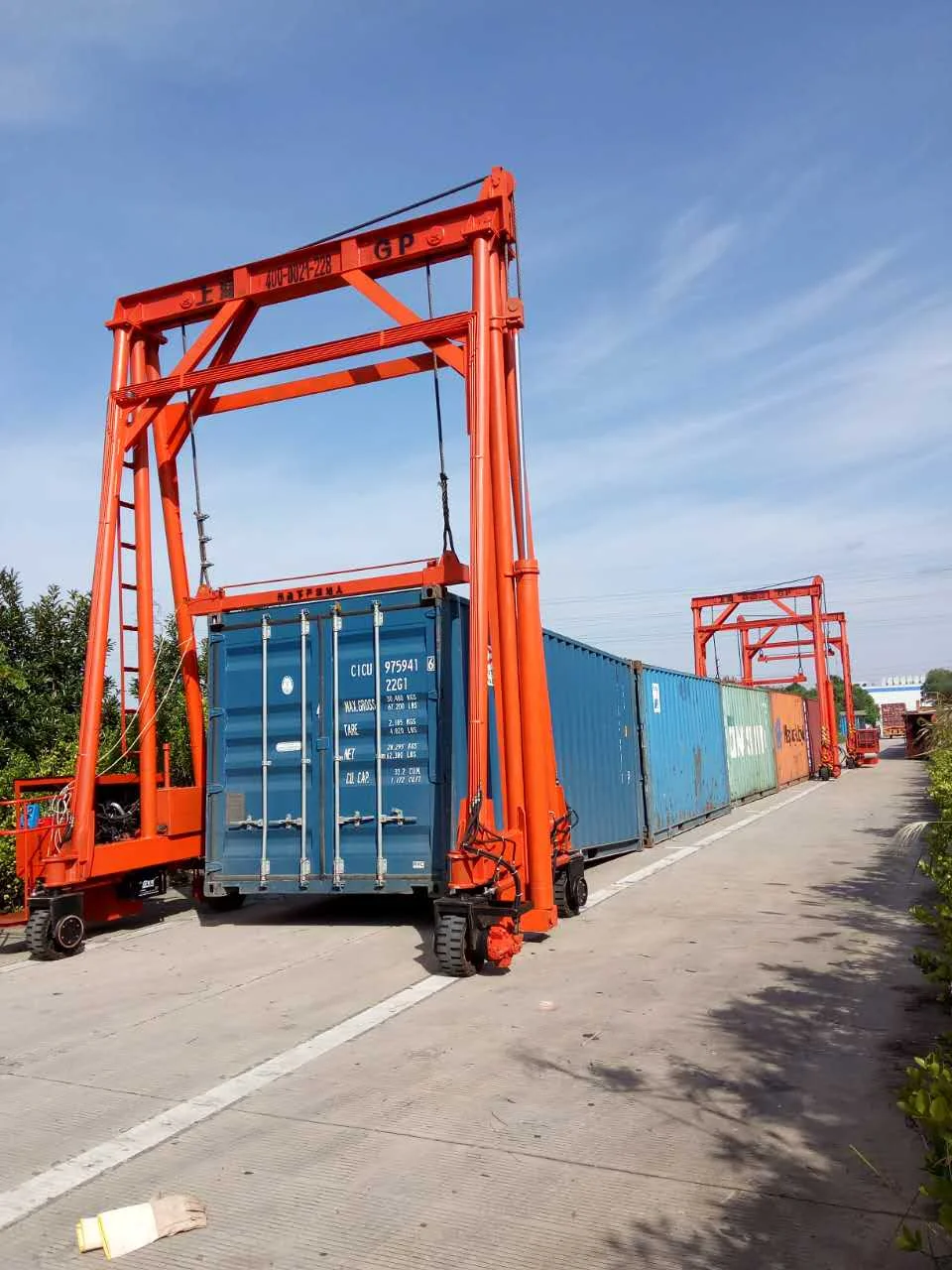

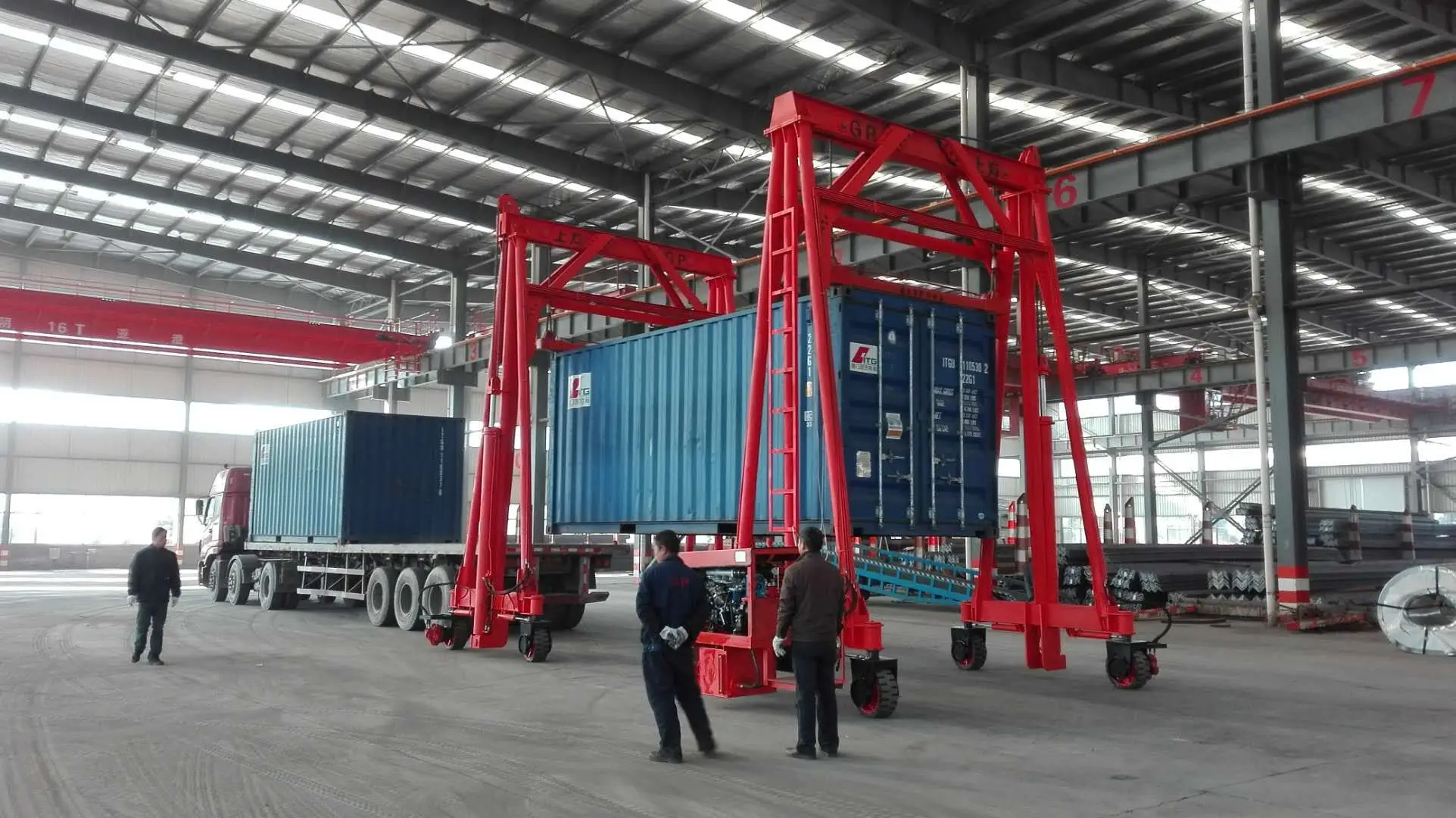

BSJD360-400 mobile container crane is designed for small and medium sized container yard, SMEs containerized production, the lowest operating costs of one Container crane (Container crane earth). The main functions are: the container and the container is unloaded at lifting containers onto flatbed implemented on the work site from the container flatbed truck, the operator can be loaded to the continuity of the container. At the same time, do transshipment containers, greatly reducing the waiting container trucks loading time, you can improve the efficiency of container trucks use 12 to 15 times.
The car with 490BPG diesel-powered, low noise, low vibration characteristics of the vehicle. Body by a steel frame, steel, hydraulic drive system of hydraulic motors, gear pumps, steering cylinder, lifting cylinder, double-acting balancing valve, walking solid tires and other components. Lifting with a diameter of 180 mm cylinder, lifting capacity, low pressure systems, hoisting fall stable, safe, efficient loading and unloading. Use two-wheel drive, four-wheel steering, the maximum angle of 110 degrees, to achieve any angle of the steering and panning, small turning radius. Control system consists of a complete set of body composition and the operating lever, flexible operation, simple and convenient. The car requires a flat, after the hardening, no potholes use of the site. Suitable for handling logistics companies, warehouses, docks, container yard, container yard and other places, it is a cheap, convenient and practical container lifting equipment.
specifications | ||||||
1 | model number |
| BSJD300 | BSJD360 | BSJD400 | |
2 | total weight | T | 7 | 7.5 | 8 | |
3 | rated capacity | Kg | 30000 | 36000 | 40000 | |
4 | max. steering speed(without load) | Km/h | 3.5 | 3.5 | 3.5 | |
5 | min. passageway width | mm | 3200 | 3200 | 3200 | |
6 | rated torque of hydraulic motor | Nm | 1010 | 1010 | 1010 | |
7 | max.lifting speed | without load | mm/s | 35 | 35 | 35 |
8 | max.falling speed | mm/s | 25 | 25 | 25 | |
9 | max.lifting speed | with load | mm/s | 25 | 25 | 25 |
10 | max.falling speed | mm/s | 30 | 30 | 30 | |
11 | engine power | Kw | 37 | 37 | 37 | |
12 | system pressure | Mpa | 14 | 15 | 16 | |
13 | rotation angle of turning wheel | ° | 110 | 110 | 110 | |
specifications of structure | ||||||
14 | L*W*H | mm | 5055×2655×6320 | |||
15 | max. height of lifting beam | mm | 4660 | 4660 | 4660 | |
16 | lowest height of lifting beam | mm | 2270 | 2270 | 2270 | |
17 | The minimum ground clearance | mm | 110 | 110 | 110 | |
18 | Longitudinal track | mm | 2205 | 2205 | 2205 | |
19 | crosswise tread | mm | 3725 | 3725 | 3725 | |
20 | inside width of crosswise | mm | 3275/3380 | 3275/3380 | 3275/3380 | |
21 | Wire rope diameter | mm | 28 | 28 | 28 | |
22 | Tire size | mm | 450×180 | 450×180 | 450×180 | |
