Desiccant pellets High adsorption lithium zeolite molecular sieve lithium molecular sieve
- Category: >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (60500363534):
Product Overview
Description
Desiccant pellets High adsorption zeolite 3A molecular sieve
Formula:0.4K2O 0.6Na2O Al2O3 2. OSiO2 4.5H2O
REGENERATION
NANXIANG molecular sieve Type 3A can be regenerated by either heating in the case of thermal swing processes; Or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 3A molecular sieve, a temperature of 200-230º C is required. A properly regenerated molecular sieve can give moisture dew points below -100º C.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.
SIZE

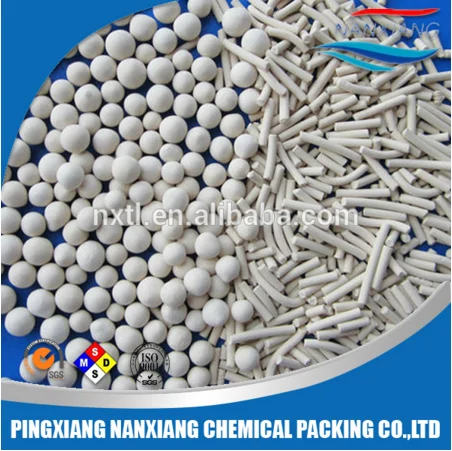

3A - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh), 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6mm, 3.2mm.
ATTENTION
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
Molecular sieve technical data sheet
| Model | 3A | |||
| Color | Light gray | |||
| Nominal pore diameter | 3 angstroms | |||
| Shape | Sphere | Pellet | ||
| Diameter (mm) | 1.7-2.5 | 3.0-5.0 | 1.6 | 3.2 |
| Size ratio up to grade (%) | ≥98 | ≥98 | ≥96 | ≥96 |
| Bulk density (g/ml) | ≥0.72 | ≥0.70 | ≥0.66 | ≥0.66 |
| Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.2 | ≤0.2 |
| Crushing strength (N) | ≥55/piece | ≥100/piece | ≥40/piece | ≥50/piece |
| Static H2O adsorption (%) | ≥21 | ≥21 | ≥21 | ≥21 |
| Ethylene adsorption (‰) | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
| Water content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Typical Chemical Formula | 0.4K2O.0.6Na2O . Al2O3 . 2SiO2 . 4.5 H2O | |||
| SiO2 : Al2O3≈2 | ||||
| Typical Application | a) Drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadien) | |||
| b) Cracked Gas Drying | ||||
| c) Drying of natural gas, if COS minimization is essential, or a minimum co-adsorption of hydrocarbons is required. | ||||
| d) Drying of highly polar compounds, such as methanol and ethanol | ||||
| e) Drying of liquid alcohol | ||||
| f) Static, (non-regenerative) dehydration of insulating glass units, whether air filled or gas-filled. | ||||
| g) Drying of CNG. | ||||
| Package : | Carton box; Carton drum; Steel drum | |||
| MOQ: | 1 Metric Ton | |||
| Payment Terms: | T/T; L/C; PayPal; West Union | |||
| Warranty: | a) By National Standard GBT 10504-2008 | |||
| b) Offer lifetime consultation on problems occurred | ||||
| Container | 20GP | 40GP | Sample order | |
| Quantity | 12MT | 24MT | < 5kg | |
| Delivery Time | 3 days | 5 days | Stock available | |
