Машина для вакуумной загрузки гранул из пластикового материала VL300D
- Category: Plastic Loader >>>
- Supplier: Zhangjiagang Wolter Machinery Co. Ltd.
Share on (60500418675):
Product Overview
Description
Product Description

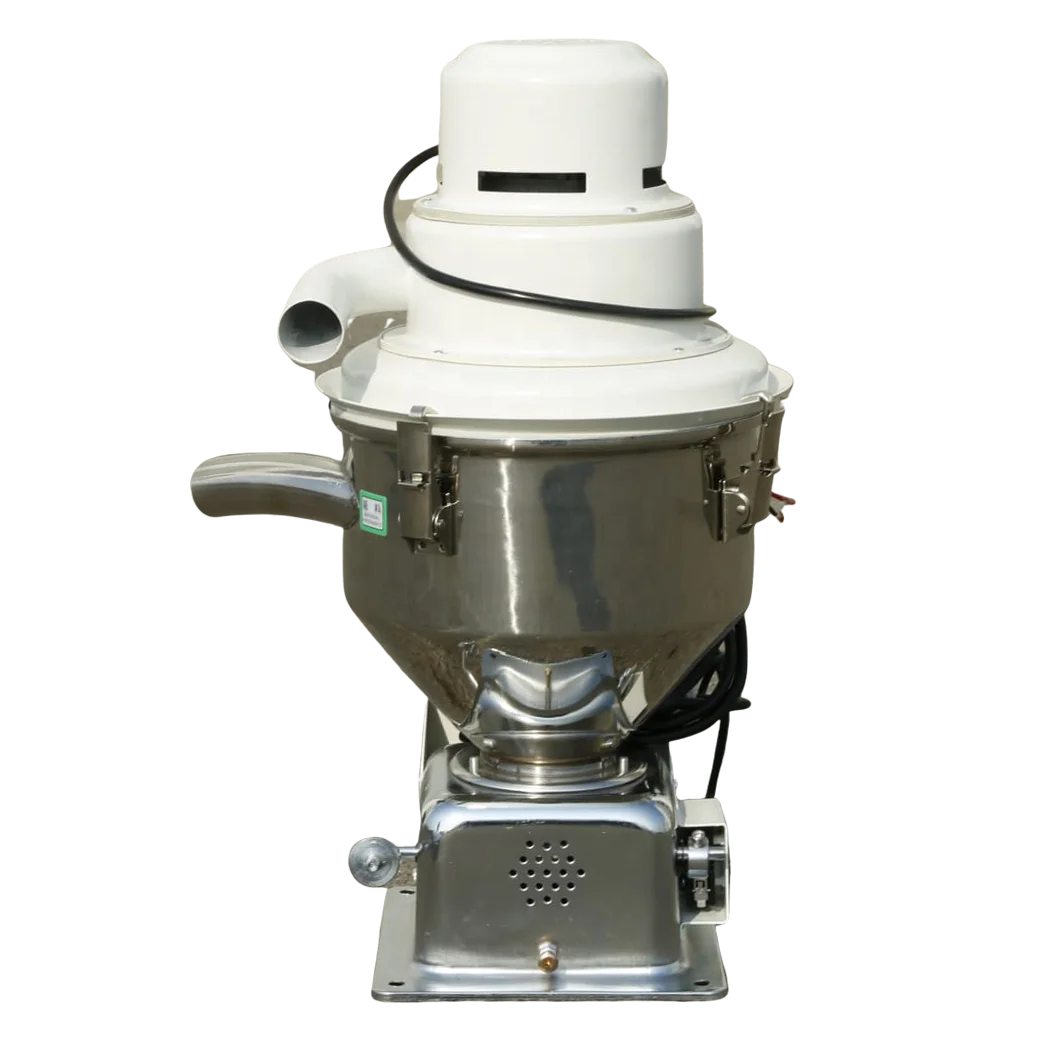

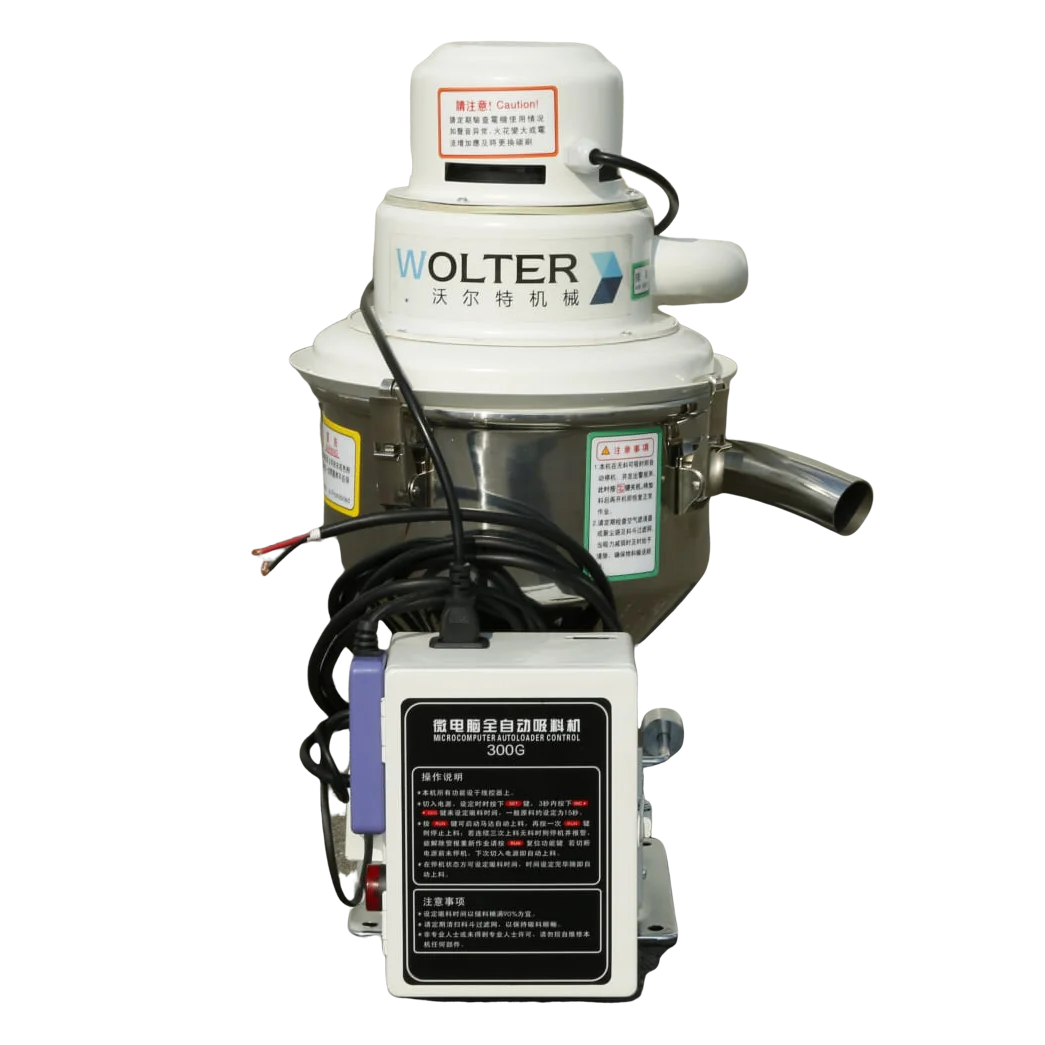

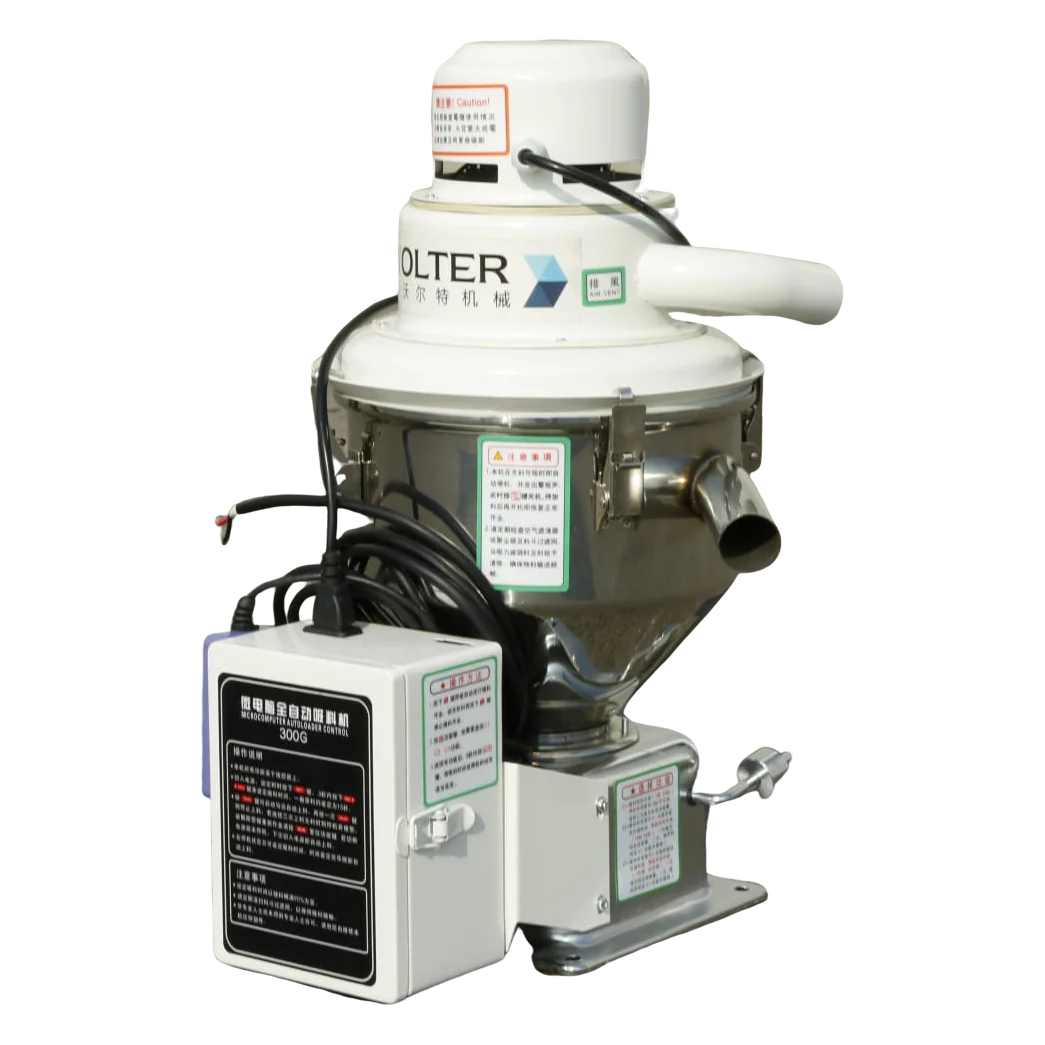

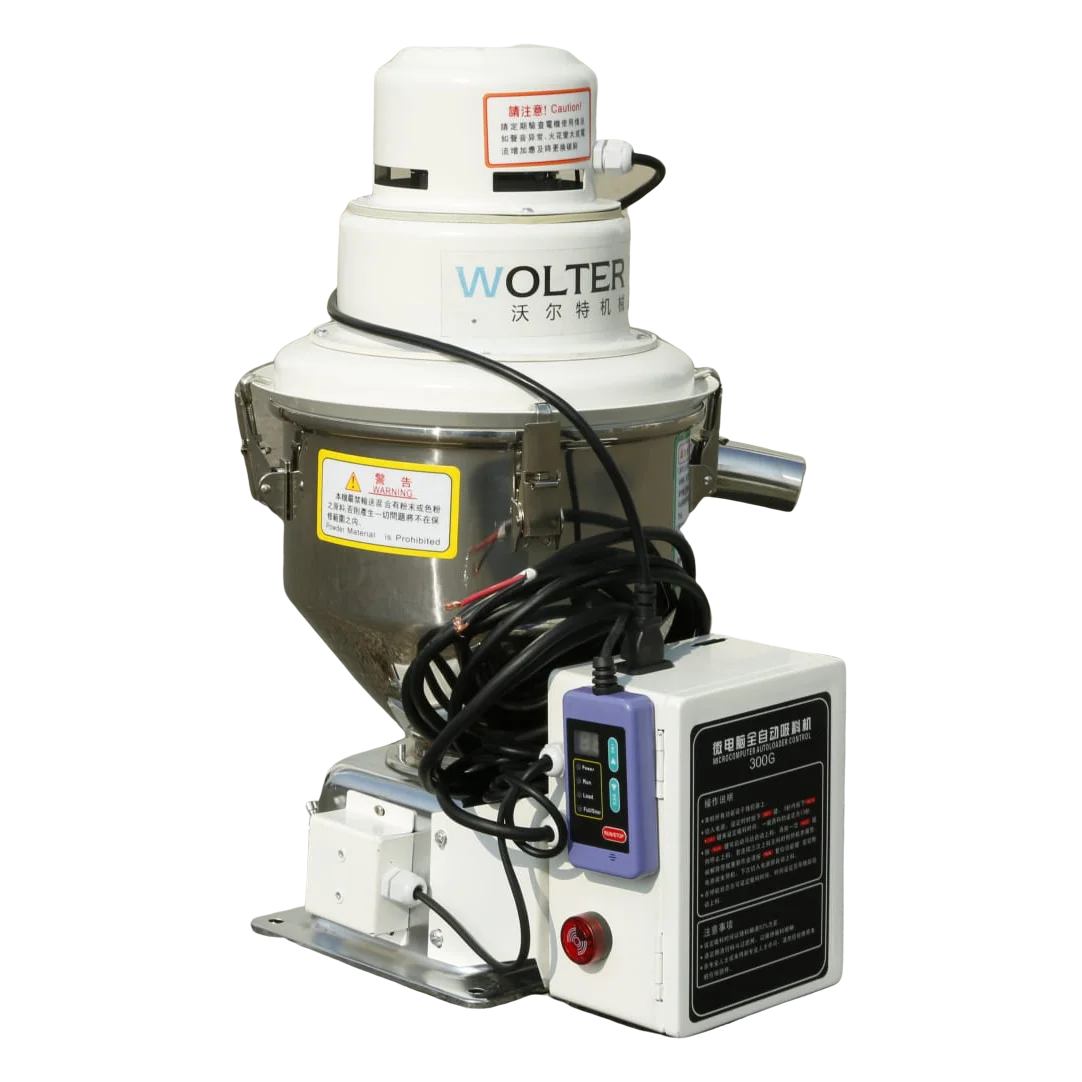

WOLTER VL-300G Plastic Pellets Loading Machine Plastic Material Automatic Loader & Feeding Machine for Plastic Pellets
Widely used for plastic molding industry,
such as: injection molding, extrusion, blow molding industry, etc.
Can be divided into:
such as: injection molding, extrusion, blow molding industry, etc.
Can be divided into:
Independent type suction machine,
European suction machine,
Suction machine,
Suction machine,
Split type high-power suction machine
A machine bucket suction machine
A machine bucket suction machine
Small footprint & low weight, to be placed directly on other machine for auto loading. Microcomputer controlled.
Alarm for overload and lack of material.
VL-300G equipped with high-speed rectifier motor with delicate size and strong suction force, suitable for new material.

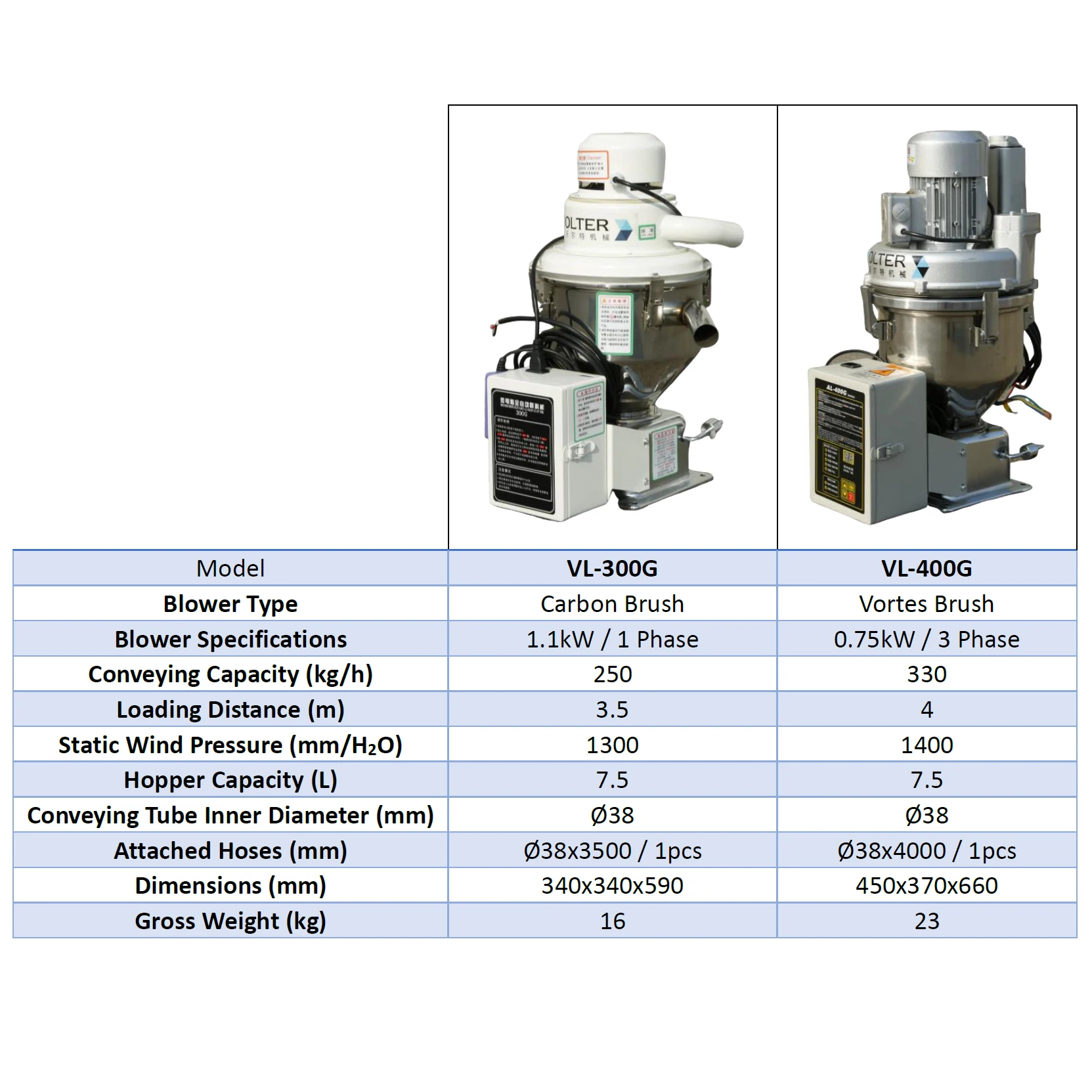

Model | VL-300G |
Blower Type | Carbon Brush |
Blower Specifications | 1.1kW / 1 Phase |
Conveying Capacity (kg/h) | 250 |
Loading Distance (m) | 3.5 |
Static Wind Pressure (mm/H2O) | 1300 |
Hopper Capacity (L) | 7.5 |
Conveying Tube Inner Diameter (mm) | Ø38 |
Attached Hoses (mm) | Ø38x3500 / 1pcs |
Dimensions (mm) | 340x340x590 |
Gross Weight (kg) | 16 |

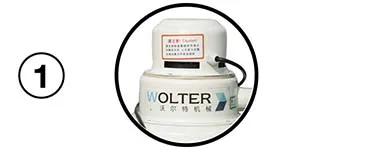

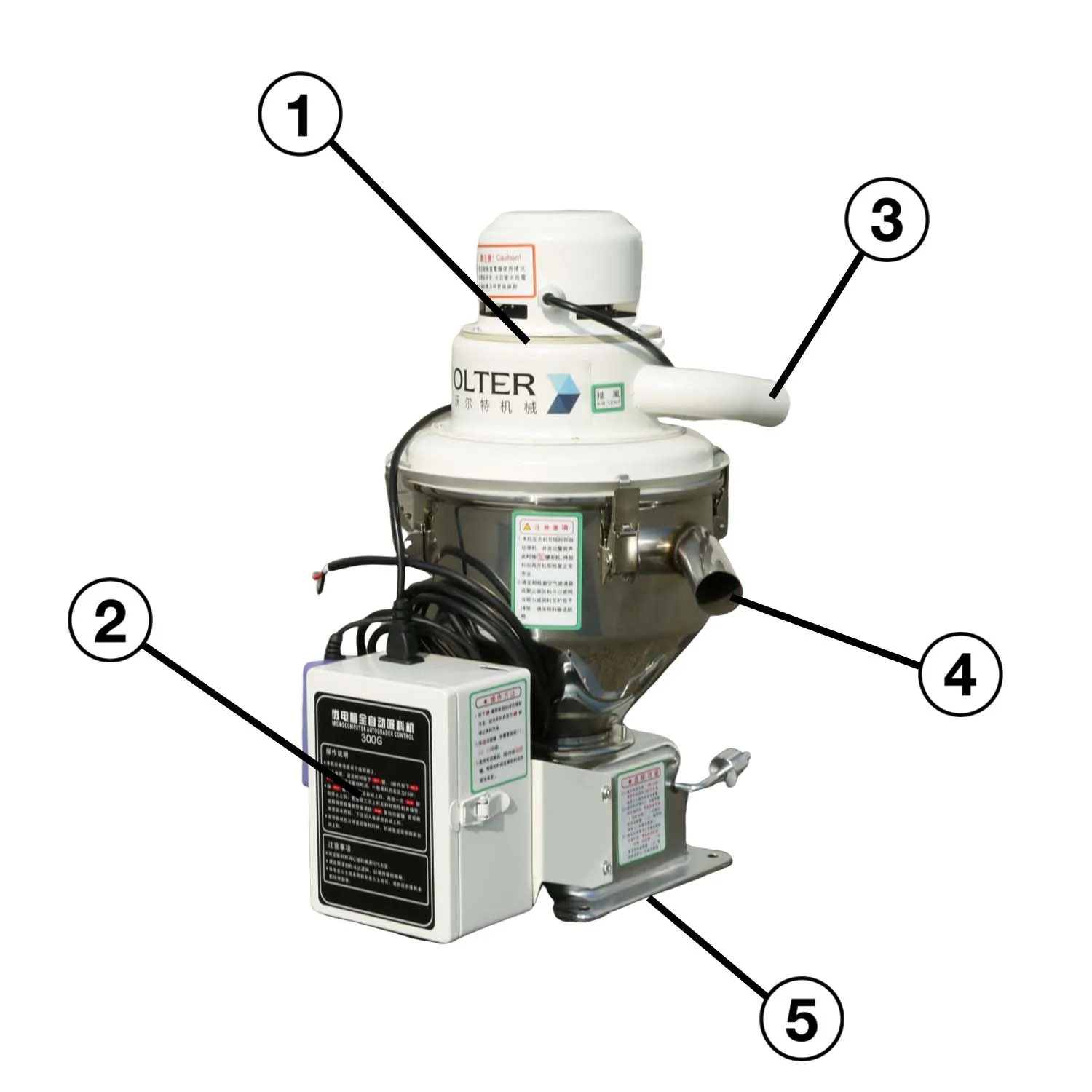

1.Carbon Brush Motor
VL-300G adopts high speed rectifying motor, small volume, low noise, strong suction, suitable for conveying new materials

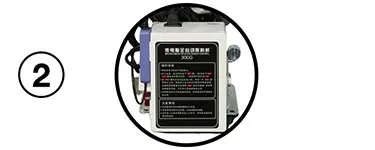

2.Microcomputer Control Panel
Full series microcomputer operation control program, equipped with overload, lack of material alarm function

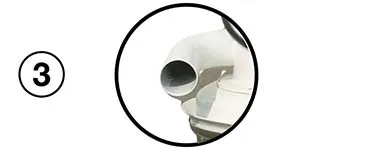

3.Connection
Air connection is Ø 38 mm
Raw material connection is also Ø 38 mm

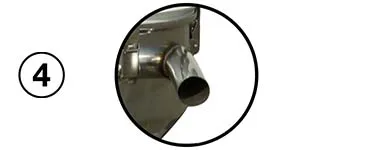

4.Stainless Steel Hopper
1.The upper part of the hopper is divided into 201 stainless steel and the lower part into 304 stainless steel

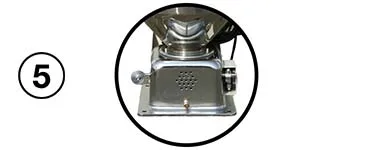

5.Loader
Hopper and base can be adjusted in any direction, easy to install
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
Q2: How long is your delivery time?
A: 5 - 20 days after order confirmed. Based on the item and quantity.
Q3: What's the MOQ?
A: 1 set.
Q4: What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show
you the photos of the products and package.
Q5: Where's your general loading port?
A: Shanghai port and Zhangjiagang Port
Q6: Can you do OEM?
A: Yes, we can do OEM.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in
one warranty year.
Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be
guaranteed.
Q9: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
A: We are factory which has over 15 years' manufacturing experience and 80% engineer work have more than 10 years.
Q2: How long is your delivery time?
A: 5 - 20 days after order confirmed. Based on the item and quantity.
Q3: What's the MOQ?
A: 1 set.
Q4: What is your terms of payment?
A: If amount ≤ 1000 USD, 100% in advance, if amount ≥ 1000 USD, T/T 30% as deposit, and 70% balance before shipping. We'll show
you the photos of the products and package.
Q5: Where's your general loading port?
A: Shanghai port and Zhangjiagang Port
Q6: Can you do OEM?
A: Yes, we can do OEM.
Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in
one warranty year.
Secondly, our technician will periodically follow up customer to help to do maintenance and ensure equipment operation 7/24 be
guaranteed.
Q9: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check with Freight Forwarder for your reference.
Q10: What Brand of plastic machine can use your plastic auxiliary machinery ?

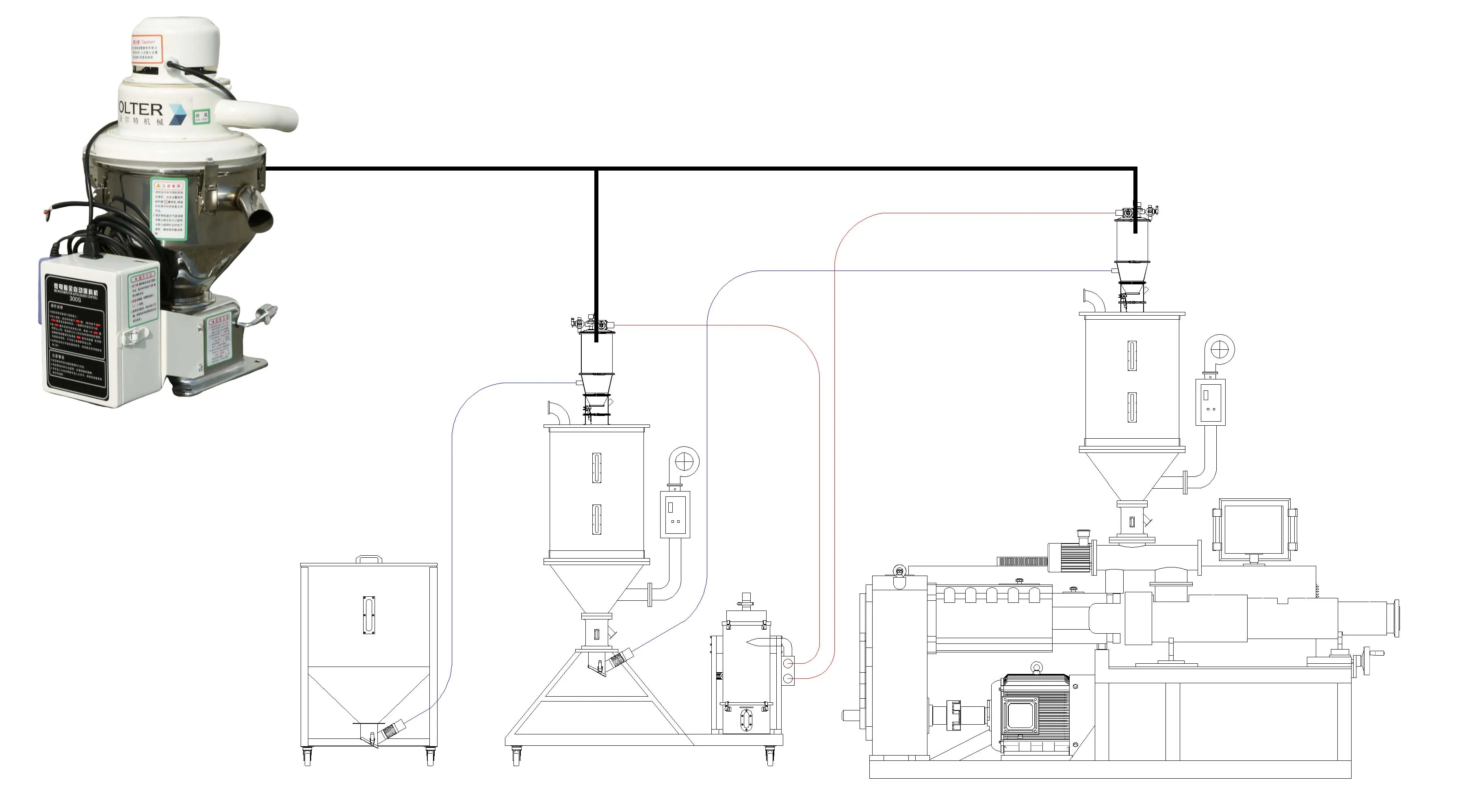

A: Our machine can work with most of plastic machine manufacture machine , as this photo shows , you also can send your machine photo to us, then we will send solution to you.
A: Our machine can work with most of plastic machine manufacture machine , as this photo shows , you also can send your machine photo to us, then we will send solution to you.
