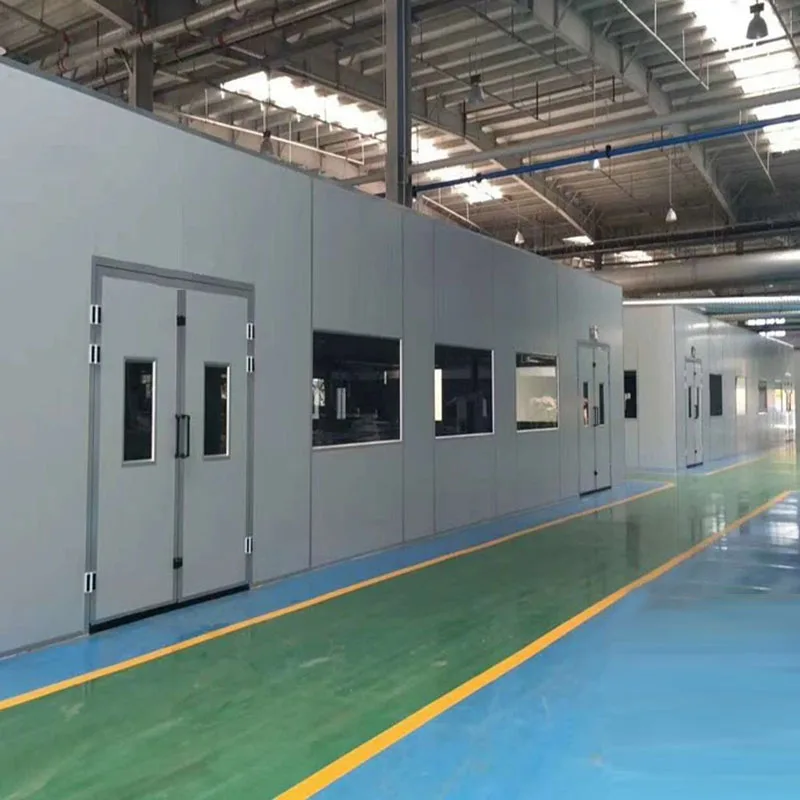

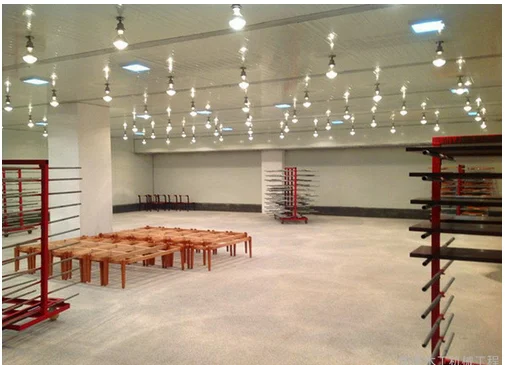

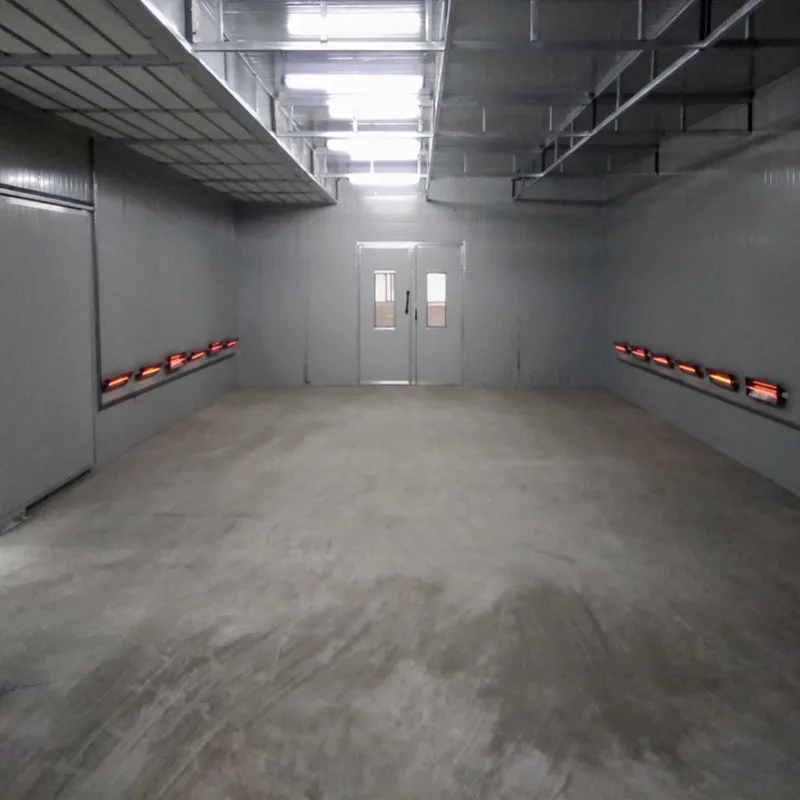

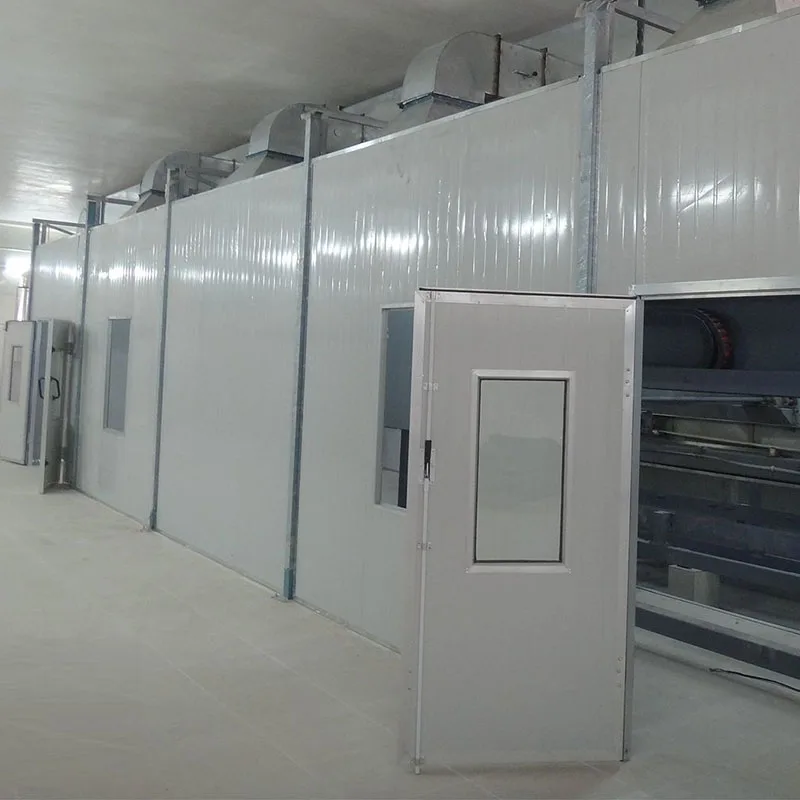

JD B series of environmentally friendly furniture paint room/spray booths

Product Overview

Description



JD-B series of environmentally friendly furniture paint room/spray booths

Model and parameters
Room height(mm)	H3000
Room Inner height(mm)	H2600
Room body area(m2)	User requirements
Spray Taiwan area(m2)	User requirements
Working gate size(mm)	W2300*H2200
Air filtration efficiency	≥85%
Spray room light(Lux)	≥800
Noise	≤80
Inlet air volume	m3*x/min*h
Total pressure Pa	Actual calculation
static pressure Pa	Actual calculation
Exhaust air volume	≥0.3*m/h
Inlet air filtration	First effective, efficient two layer
lighting	Actual calculation
With water curtain(mm)	L*H1800(double-deck)
Pump power(Kw)	According to actual displacement



     As furniture clean room of the lacquer that bake in life, the application of some dear friends reflect the room dust is more, the construction of the effect not beautiful, even sometimes it is better to the effect of the outdoors. In fact, as long as you can choose furniture clean room of the lacquer that bake, according to the following conditions will be able to avoid the occurrence of these problems:

1, brightness. In general, furniture clean bright brightness inside the room of the lacquer that bake needs to reach 800 ~ looO lux, and need to use close to D65 light lights, at the same time inside the wall should be matte white;

2, air flow rate. Furniture clean room of the lacquer that bake the top-down uniform air flow, the velocity of 0.2 ~ 0.3 m/s;

3, filtering effect. Depending on the model of furniture clean the roof of the lacquer that bake cotton, can be used in the furniture in the room when clean room of the lacquer that bake, sun lamp irradiation usually tiny dust should be less than 5 per square metre;

4, wall sealing effect. Furniture dust-free painting room must be sealed, and should not have paint on the joint in the accumulation of dust;

5, ensure positive pressure. Furniture of the clean room of the lacquer that bake into should be slightly bigger than the air volume, make furniture clean room of the lacquer that bake in a positive pressure condition;

6, the sealing effect of heating system. Around the burner and pipe should be sealed well, do not appear after burning putty;

7, the heating speed. Furniture clean room of the lacquer that bake from 2 o ℃ to 6 ℃ o time is about lO ~ l5min, at the same time we should pay attention to some of the lacquer that bake room thermometer, when measuring temperature dust-free painting the room with furniture metal body temperature.

With the development of science and technology, furniture clean room of the lacquer that bake occupies a very important role in our life, if you choose the furniture of the clean room of the lacquer that bake to comply with the above conditions, it is a ideal paint room, quick to choose according to the above conditions.

Keep the car furniture paint room clean, for painting work have important help, can improve the production efficiency, but also can prolong the service life of furniture of car paint, let's look at the cars furniture paint under the ash removal way what are:

1, gas soot cleaning: gas soot is by means of high pressure gas or external air blow car furniture paint room of filter bag, in order to clear the dust on the filter bag. Gas soot cleaning including pulse blowing dust, blowing dust and the suction dust.

2, artificial knock: automobile furniture paint is to use artificial slapping each filter bag, in order to clear the dust on the filter bag.

3, mechanical vibrating dust: points at the top of the vibrating dust and central vibrating dust, car furniture paint is by means of mechanical vibrating device periodically take turns shaking each row of filter bag, in order to clear the dust on the filter bag.

As consumer the requirement of increasing the quality of furniture and state of furniture factory environmental requirements higher and higher, furniture factory of furniture production in the furniture surface grinding link is more and more attention, so clean car furniture paint is very necessary, in order to ensure the quality of the lacquer that bake, fast car furniture paint room to clean it.
