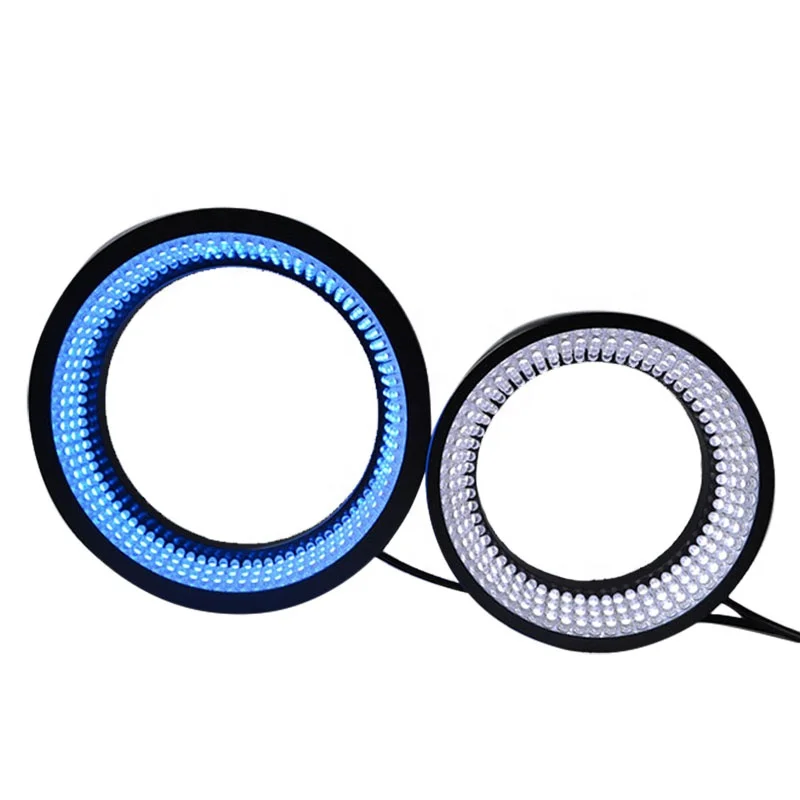

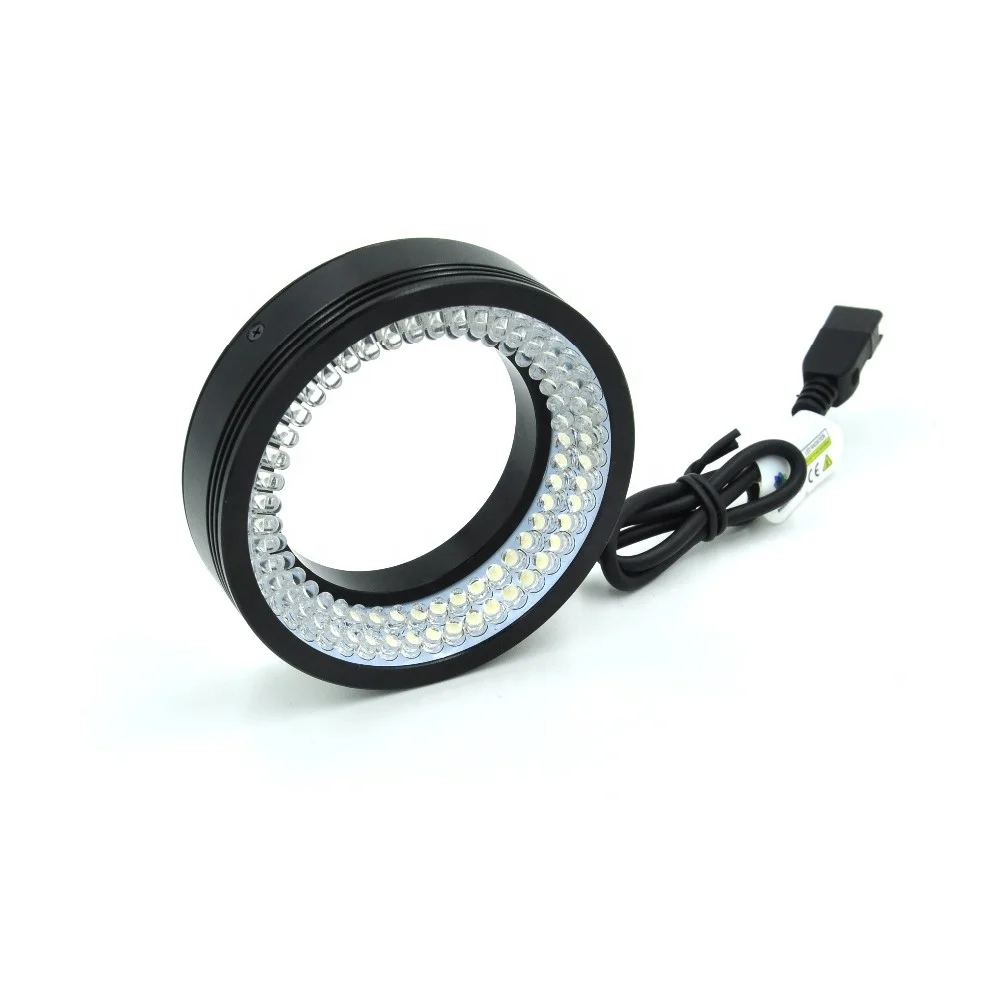

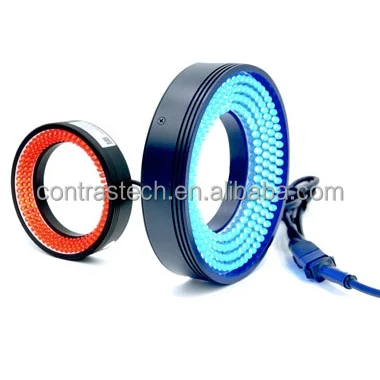

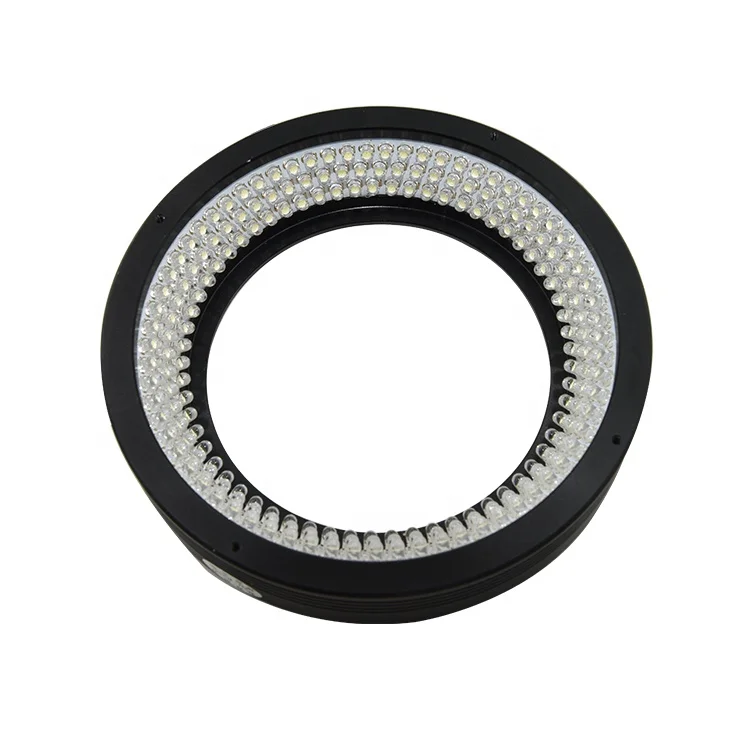

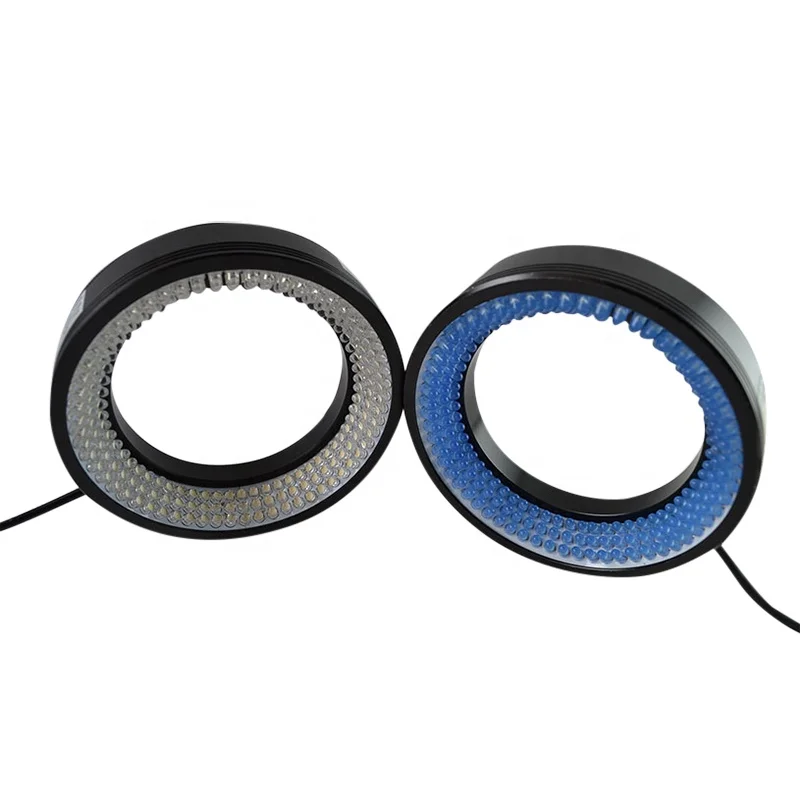

LT2 LR5024W Wholesale Price 30 Degree Low Angle Ring Lights For Machine Vision
LT2-LR5024W Wholesale Price 30 Degree Low Angle Ring Lights For Machine Vision
LT2-LR5024W Wholesale Price 30 Degree Low Angle Ring Lights For Machine Vision
LT2-LR5024W Wholesale Price 30 Degree Low Angle Ring Lights For Machine Vision
LT2-LR5024W Wholesale Price 30 Degree Low Angle Ring Lights For Machine Vision
LT2-LR5024W Wholesale Price 30 Degree Low Angle Ring Lights For Machine Vision
LT2-LR5024W Wholesale Price 30 Degree Low Angle Ring Lights For Machine Vision

LT2 LR5024W Wholesale Price 30 Degree Low Angle Ring Lights For Machine Vision

Share on (60500548408):


Price:$49.00 - $137.00

Quantity:


Product Overview

Description



Product Specifications


Could be customized IP65 to IP68


Model Specification
Model Name
HR5024-30(W/B/G/R)
Emission Angle
30°
Supply Voltage
24V
Lighting Color
White,Bule,Green,Red,
UV365/385/405,IR850/940
Outer Dia.
50mm
Inner Dia.
24mm
Height
16mm


Common Specifications

Available Light Colors
Red:620-630nm      Green: 520-530nm
Blue: 460-475nm
White color temperature: 6000-7500K
Operating Environment (Indoor)
Temperature: 0~40℃
Humidity:20% to 85% RH (with no condensation)

Lifetime
White:30,000hrs, Red: 60,000hrs
(Depends on the operating environment,
   not a gurantee)
Warranty
12 months warranty, Free technical support.

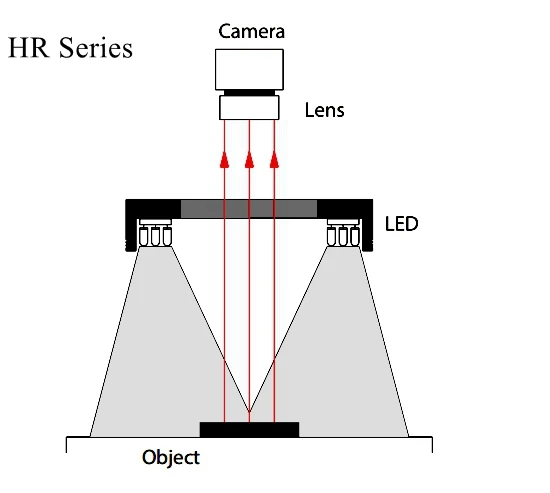

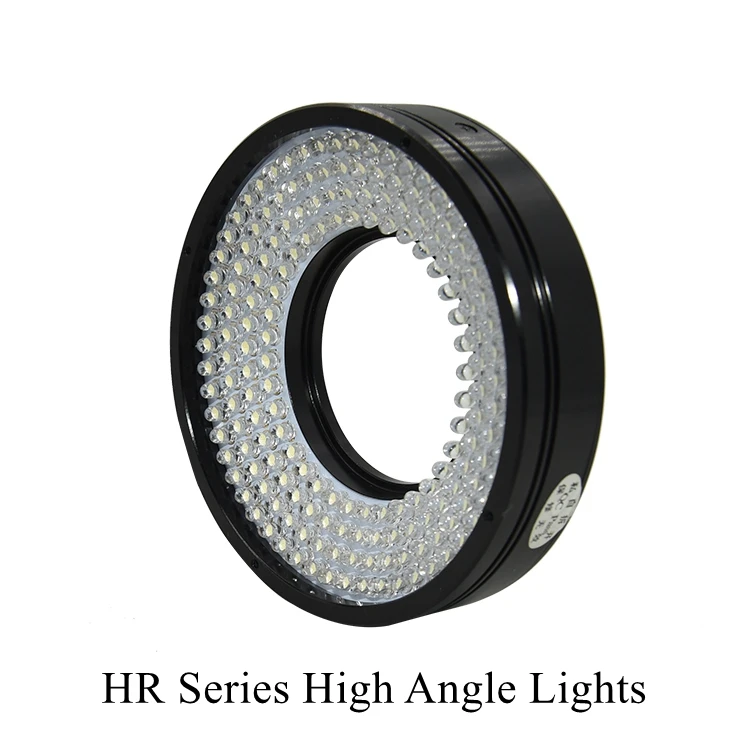

HR Lights Major Applications
*Multi angles available for right light
to get vivid image.
*High density LED arrays for its intensity .
*The diffuser is available to increase the
uniformity of lighting.
*Breakthrough wave-soldering technology
to improve production quality & efficiency.

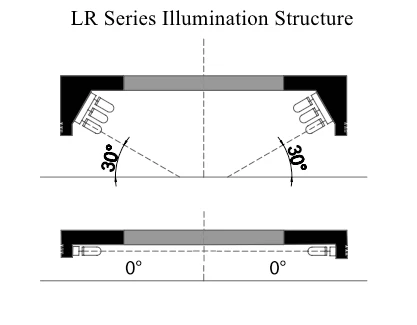

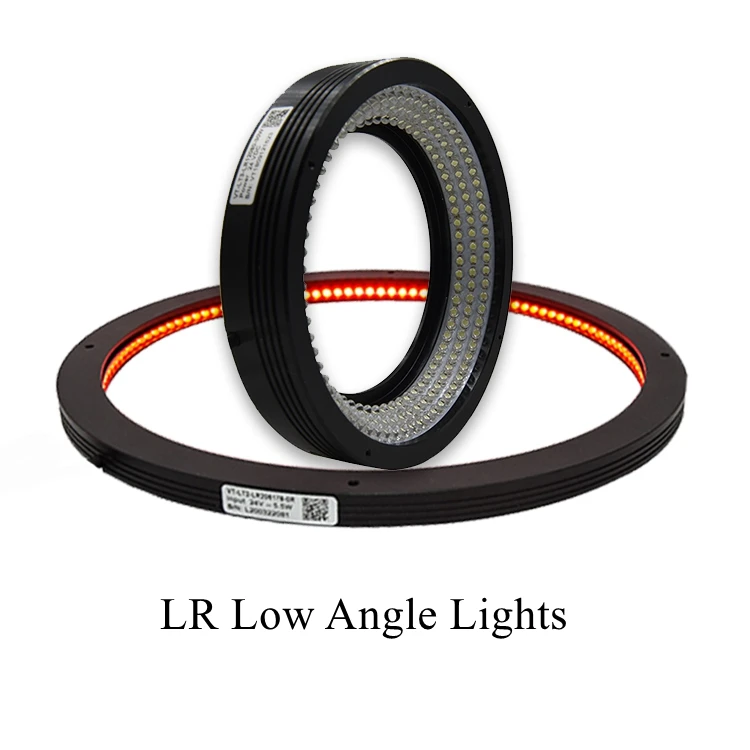

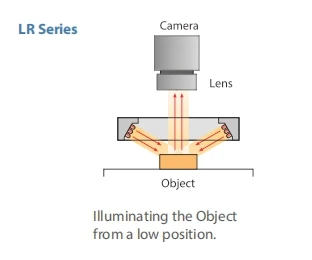

LR Lights Major Applications
*Lights form dark field of view, suitable for
detection of edge & scratches of surface.
*High brightness LEDs are mounted on a
flexible circuit board in a steep angle.
*Breakthrough wave-soldering technology.
to enhance production quality & efficiency.




Some Models of HR & LR Series Lights
Warm Tip: 1.The light color of Red, Green, Blue,NIR, UV accept customization.
                  3.Please click the specific model name for more information.
Model Name
Emission Angle
(°)
Outer Dia.(mm)
Inner Dia.
(mm)
Some Models of HR Series
HR3210-70 (W/B/G/R)
70
32
10
HR3418-90(W/B/G/R)
90
34
18
HR3514-90 (W/B/G/R)
90
35
14
HR4218-65 (W/B/G/R)
65
42
18
HR5020-45 (W/B/G/R)
45
50
20
HR5025-90 (W/B/G/R)
90
50
25
HR5028-75 (W/B/G/R)
75
50
28
HR5228-60 (W/B/G/R)
60
52
28
HR6630-60 (W/B/G/R)
60
66
30
HR7035-90 (W/B/G/R)
90
70
35
HR7640-75 (W/B/G/R)
75
76
40
HR9050-70 (W/B/G/R)
70
90
50
HR10040-90 (W/B/G/R)
90
100
40
HR10055-75 (W/B/G/R)
75
100
55
HR11060-60 (W/B/G/R)
60
110
60
HR11430-80 (W/B/G/R)
80
114
30
HR12060-60 (W/B/G/R)
60
120
60
HR12065-75 (W/B/G/R)
75
120
65
HR15090-60(W/B/G/R)
60
150
90
HR140100-70(W/B/G/R)
70
140
100
HR180126-60(W/B/G/R)
60
180
126
HR210145-60(W/B/G/R)
60
210
145
Some Models of LR Series
LR4822-30 (W/B/G/R)
30
48
22
LR5024-30 (W/B/G/R)
30
50
24
LR6630-30 (W/B/G/R)
30
66
30
LR7448-30 (W/B/G/R)
30
74
48
LR9060-15 (W/B/G/R)
15
90
60
LR10070-30 (W/B/G/R)
30
100
70
LR12088-30 (W/B/G/R)
30
120
88
LR13296-15 (W/B/G/R)
15
132
96
LR150120-30 (W/B/G/R)
30
150
120
LR170134-20 (W/B/G/R)
20
170
134
LR180132-30 (W/B/G/R)
30
180
132
LR208172-25 (W/B/G/R)
25
208
172

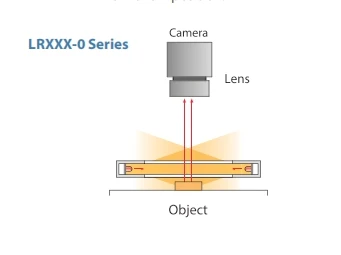

LR7547-0 (W/B/G/R)
0
75
47
LR9668-0 (W/B/G/R)
0
96
68
LR146118-0 (W/B/G/R)
0
146
118
LR176148-0 (W/B/G/R)
0
176
148
LR206178-0 (W/B/G/R)
0
206
178
