3/16' pressure relief valve 316L spring check valve 0 35 kpa one way valves

Excellent quality and reasonable price
Fast delivery
Free samples

Features

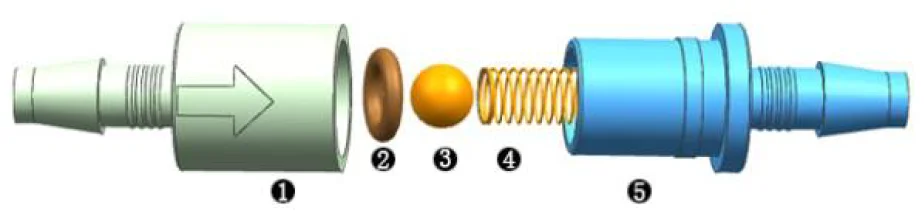

1). Simple, compact, three-piece design that is lightweight
2). Ultrasonic welding to make housing more firmly connected

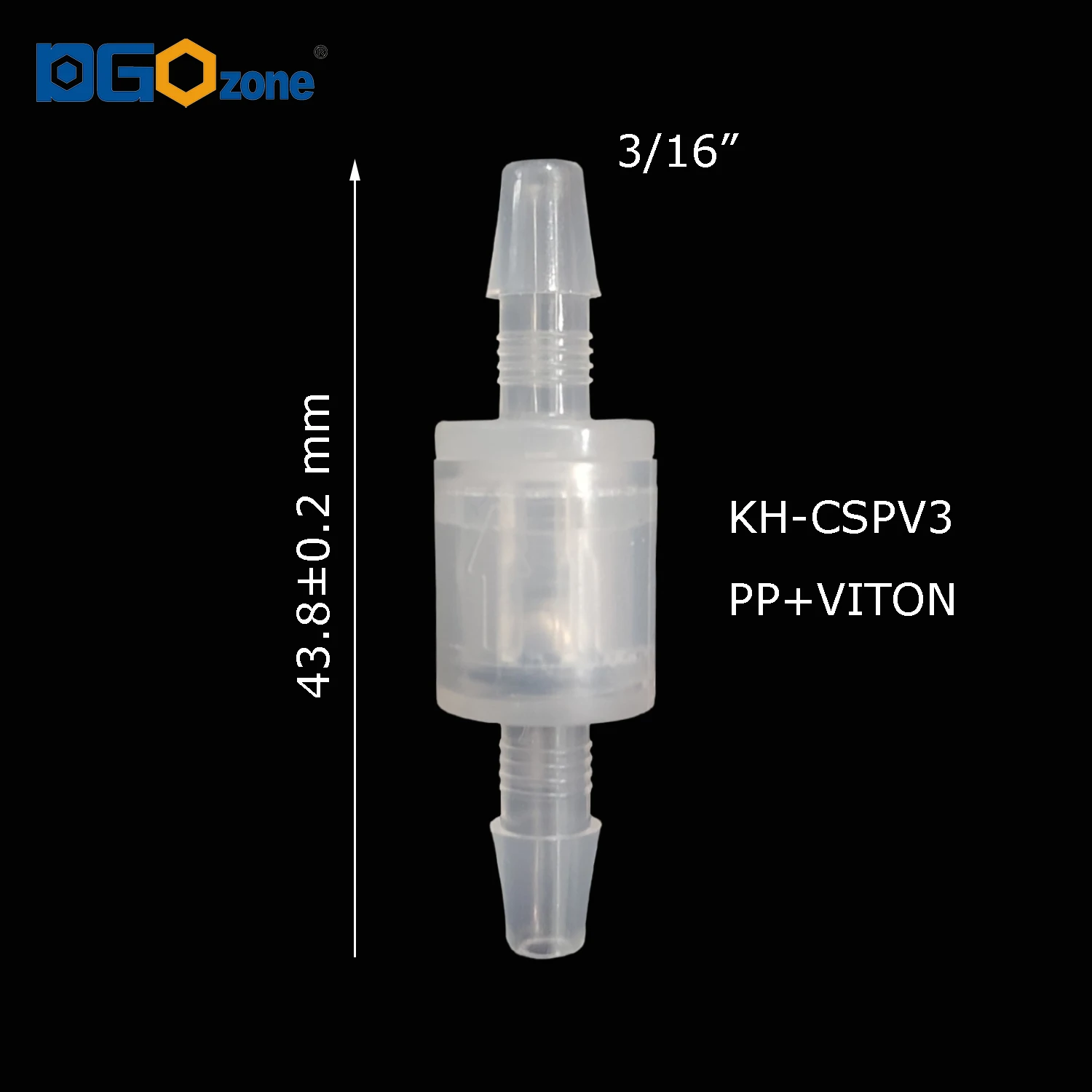

Model: KH-CSPV3
Size: 3/16" hose barb
PP body /316L Spring

KH-CSPV2

KH-CSPV3

KH-CSPV4

We have Six port sizes to choose: 1/16'', 1/8", 3/16", 1/4", 5/16" and 3/8".
Four housing materials: PVDF / PP /ABS / PA66
Three diaphragm materials: Silicone / V it on / EPDM

Different material check valve can been used in different application
If you need ozone resistant, we recommend PVDF material check valve
If you need high temperature resistant, we recommend PVDF material and PA66 material check valve
If you need low temperature resistant, we recommend ABS material
If you need corrosion resistant, we recommend PVDF and PP material.
If you need oil, diesel fuel, gasoline resistant, we recommend PA66 material.

If you are not sure which kind check valve to choose, pls check some points and we will give you our advices:
1. What's the size of the check valve port that you need? Or the inner diameter of the hose that the check valve connected to.
2. Where does the check valve you use in?
3. What medium can the check valve come into contact with? Such as Air, Ozone, Water, Oil ( Gasolines, Lubricant Or Edible Oil )
4. What is the using temperature about your check valve?
5. What is the Cracking pressure of the valve you require?
