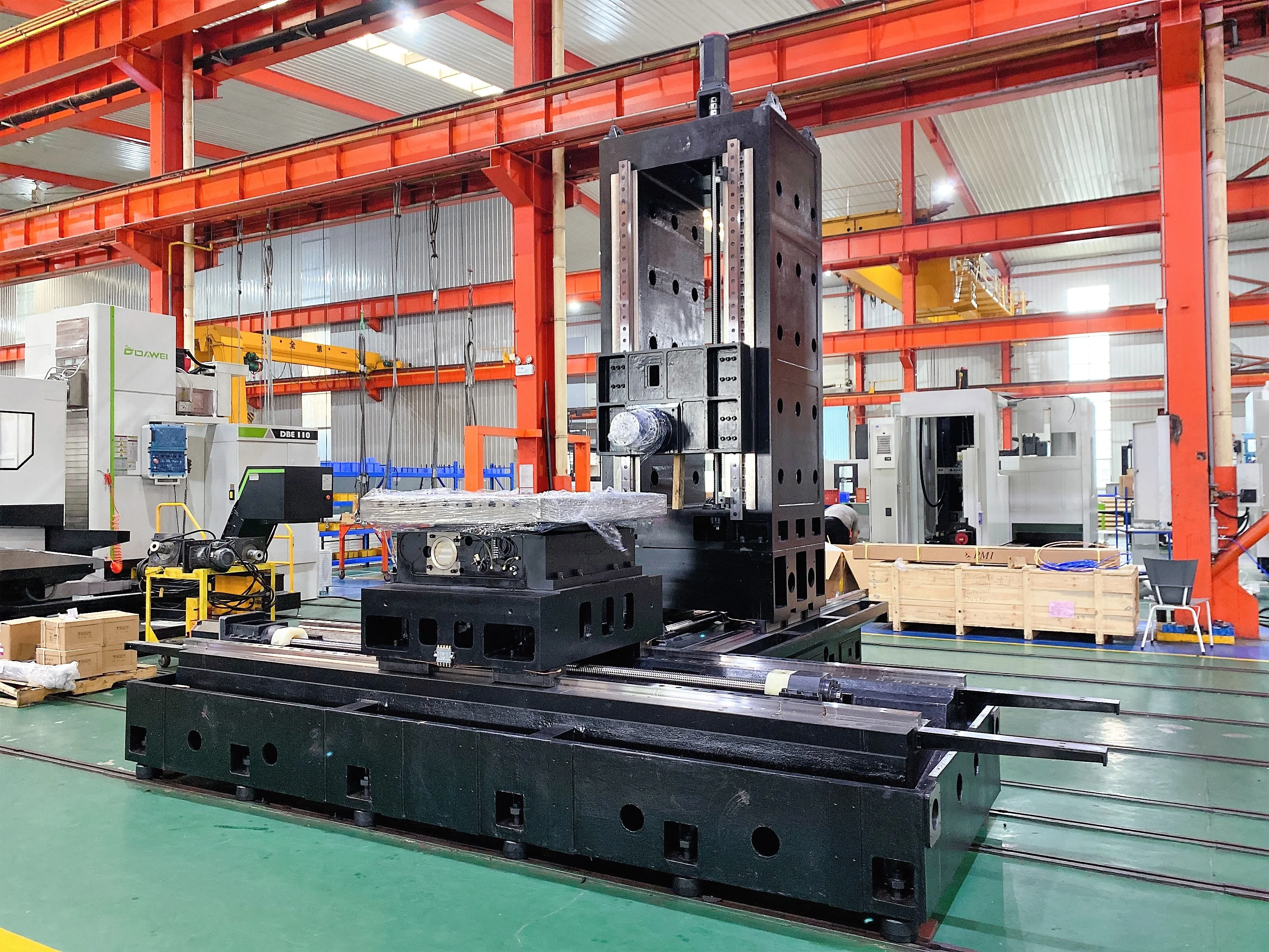

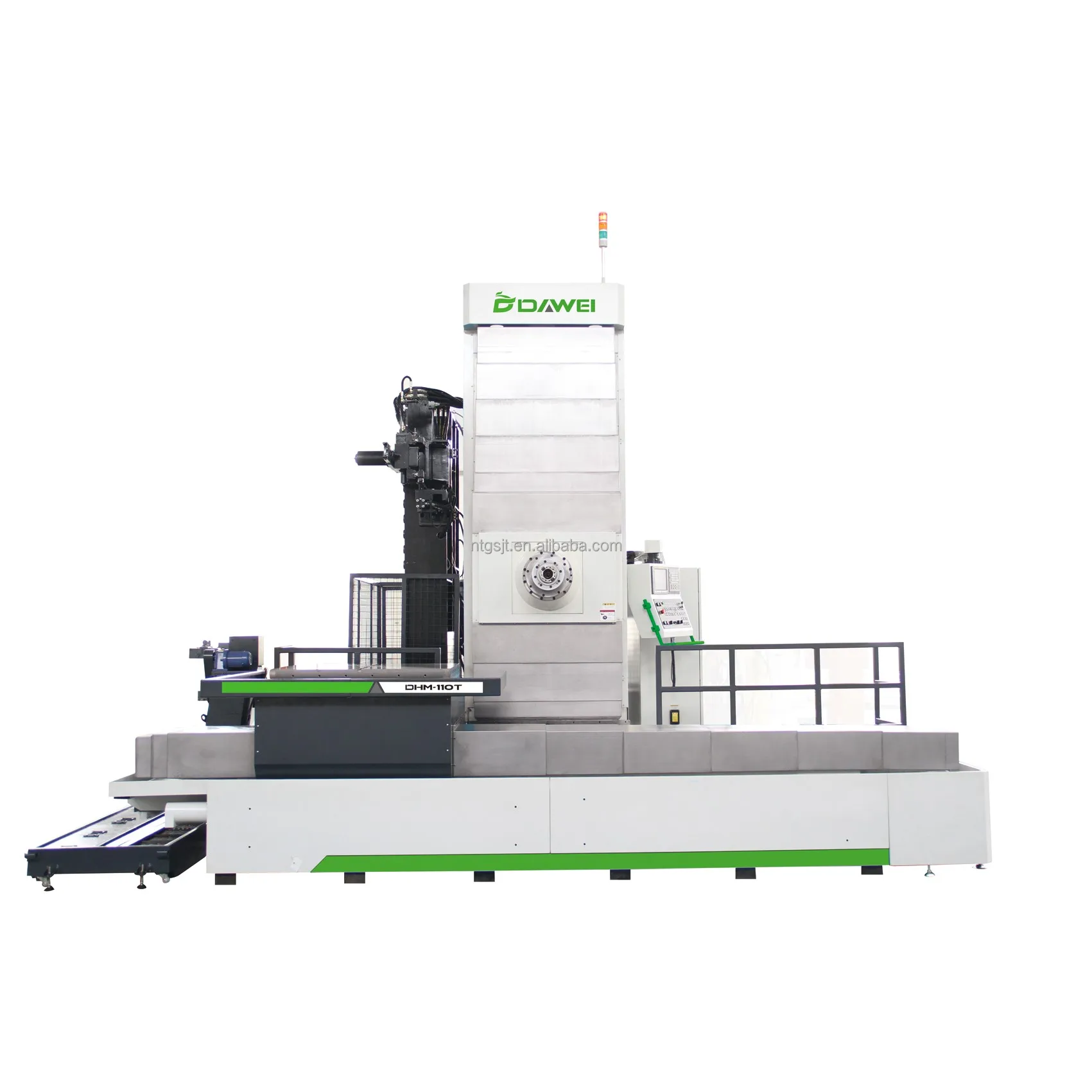

DHM110T High cutting 4 axis horizontal cnc milling machine machining center
- Category: CNC Milling Machines >>>
- Supplier: Nantong Guosheng Intelligence Technology Group Co. Ltd.
Share on (60500588073):
Product Overview
Description
Product Description
Details Images

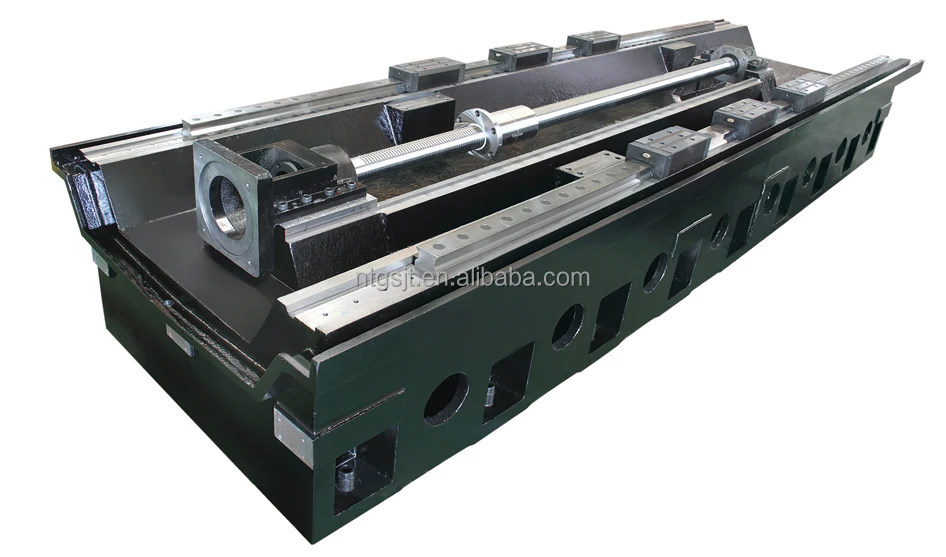

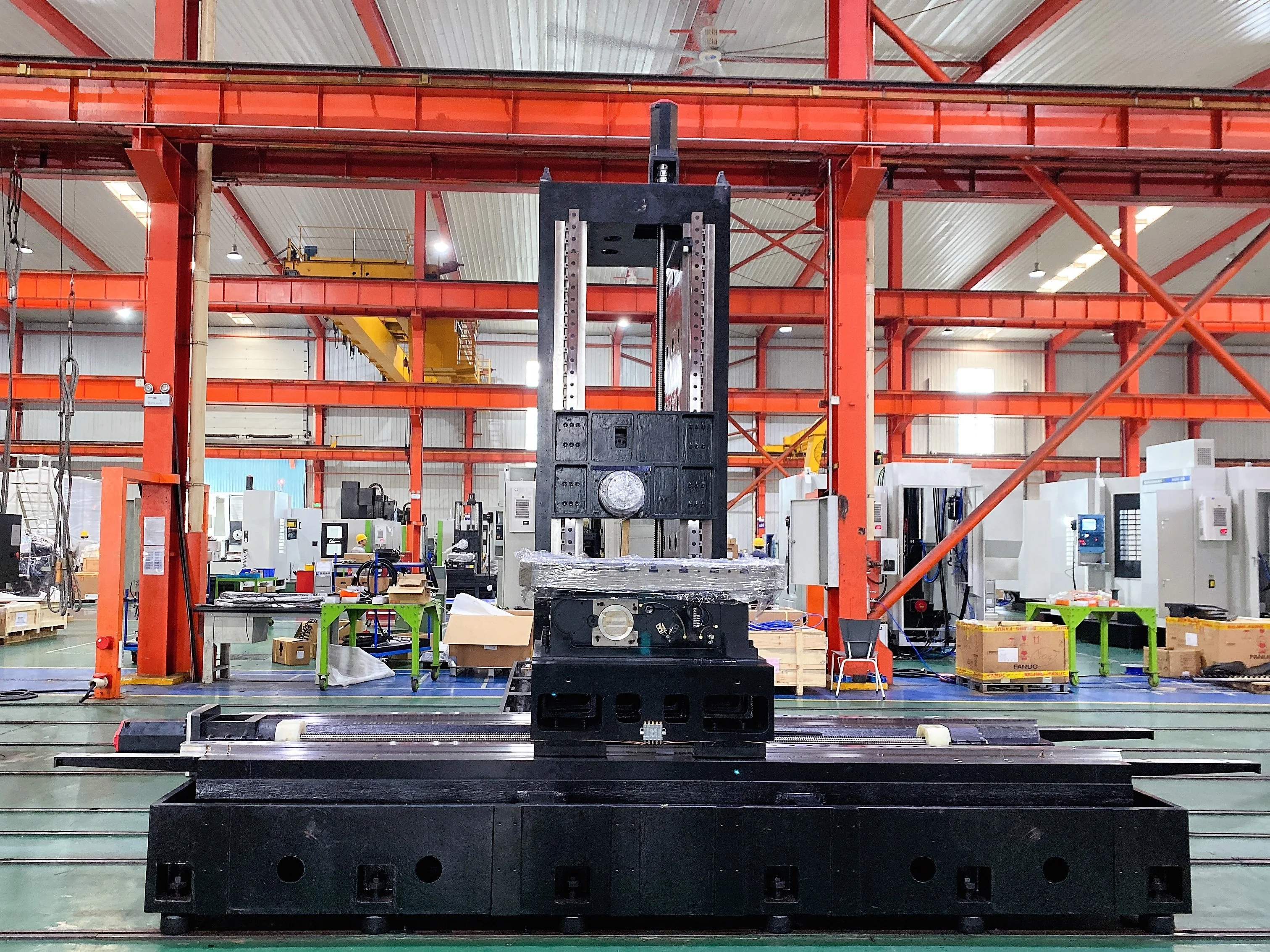

1. Mihana casting, one - piece casting molding, high earthquake resistance.

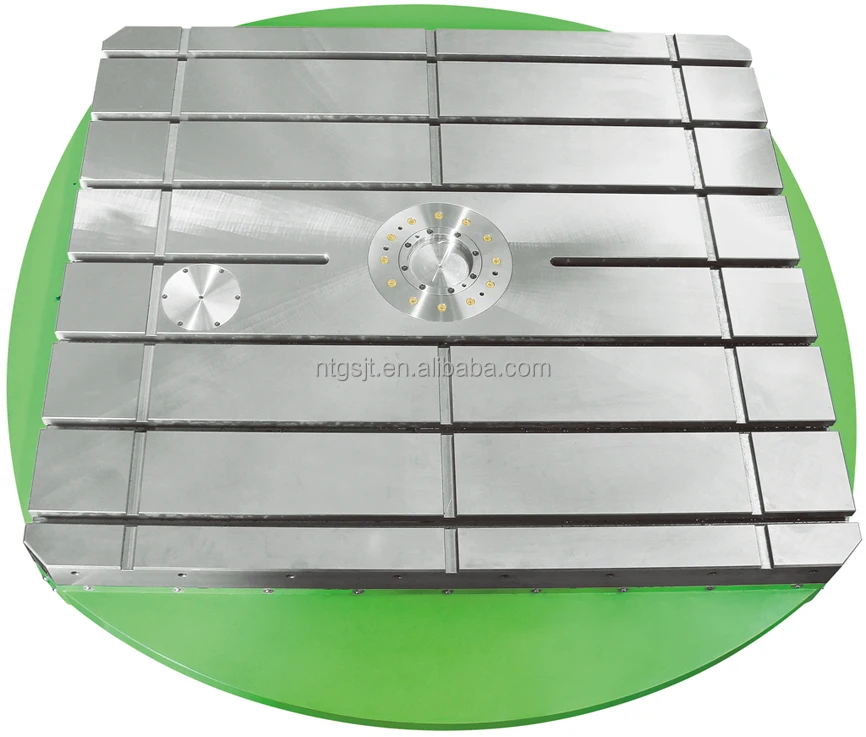

2. The rotary table is driven by worm gearu,imported hydraulic cylinder disc type locking, strong clamping mechanism can meet the cutting conditions of strong.

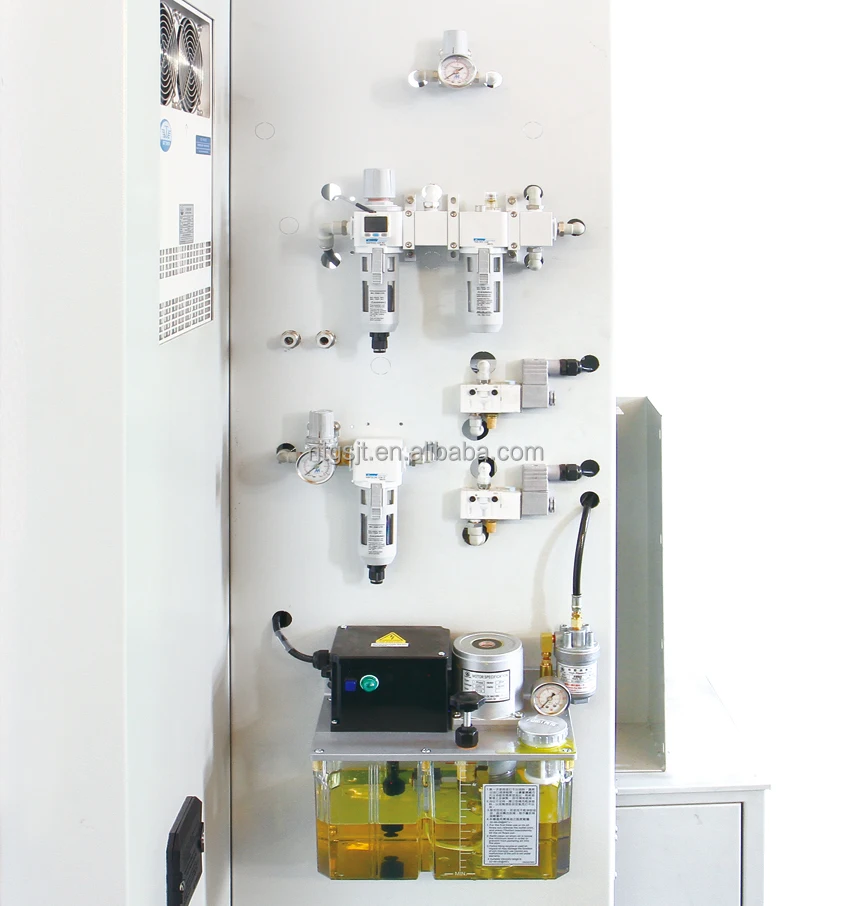

3. Lubrication control unit and air pressure unit are centrally installed on the operating side of the machine to facilitate inspection during routine maintenance.

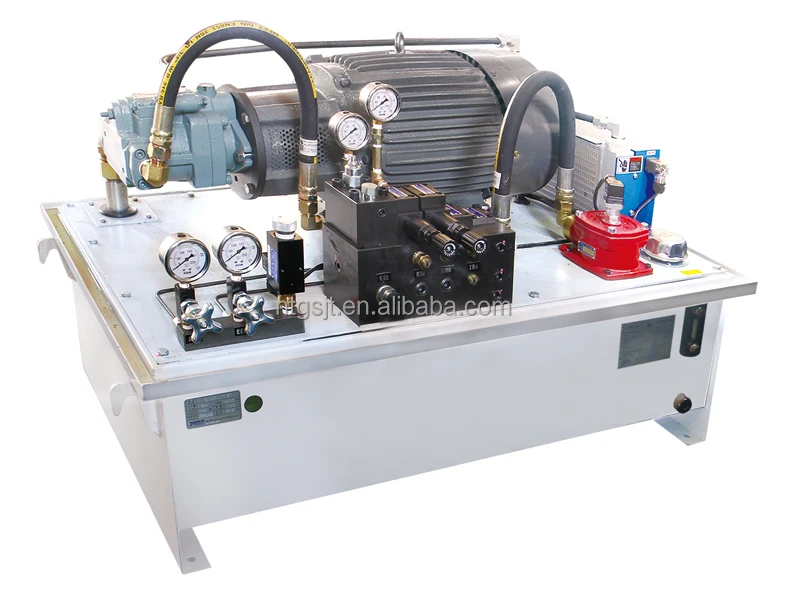

4. Hydraulic station adopts high quality hydraulic components, reliable action, high stability.
Specification
Model | Unit | DHM110T | ||
Travel | ||||
X-axis | mm | 2500 | ||
Y-axis | mm | 1200 | ||
Z-axis | mm | 1300 | ||
Spindle | ||||
Spindle center to worktable surface | mm | 50-1250 | ||
Spindle nose to worktable center | mm | 350-1650 | ||
Spindle taper | BT50 | |||
Rotating spindle speed | rpm/min | 6000 | ||
Spindle motor | kw | 22/26 | ||
Worktable | ||||
Table size | mm | 1100*1100 | ||
Division angle | deg | 1° | ||
Max. load on worktable | kg | 3500 | ||
Number of worktable | pcs | 1 | ||
Precision | ||||
Positioning accuracy of rotary table | arc-sec | 15″ | ||
Repeated Positioning accuracy of rotary table | arc-sec | 8″ | ||
Positioning accuracy | mm | 0.015 | ||
Repeated Positioning accuracy | mm | 0.01 | ||
Drive feed | ||||
Fast feed speed（X/Y/Z） | m/min | 12/12/12 | ||
Fast feed speed（B） | r/min | 12 | ||

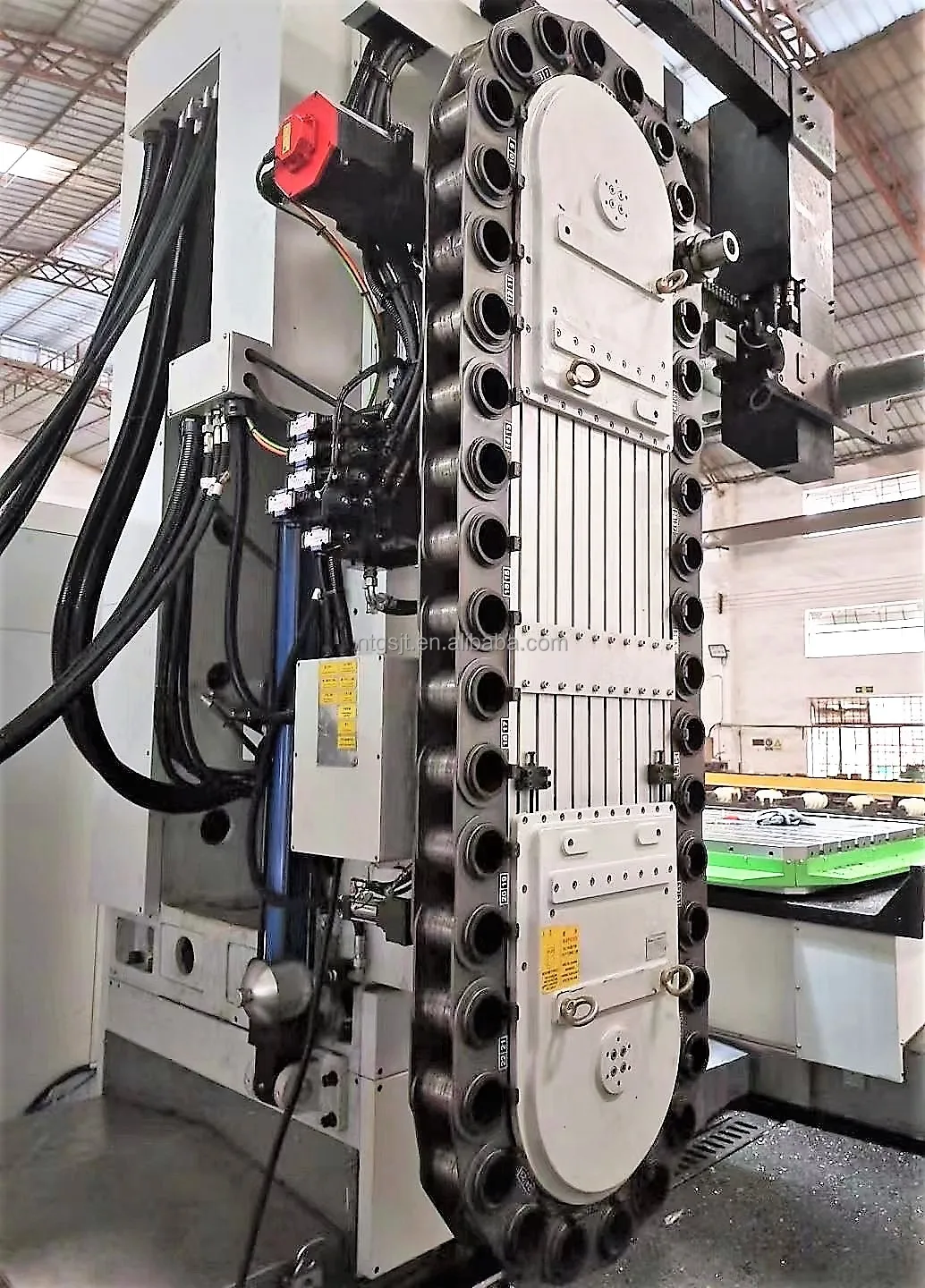

Tool magazine | ||||
Capacity of tool magazine | T | 40 | ||
Max. tool diameter | mm | Φ125 | ||
Max. tool length | mm | 600 | ||
Max. tool weight | kg | 25 | ||
Tool change time | sec | 14 | ||
Air pressure | ||||
Air supply pressure | bar | 6-8 | ||
Air pressure flux | L/min | 280 | ||
Others | ||||
Voltage | kva | 65 | ||
Floor area (length*width*height) | mm | 5715*5480*4065 | ||
Weight | kg | 27500 | ||

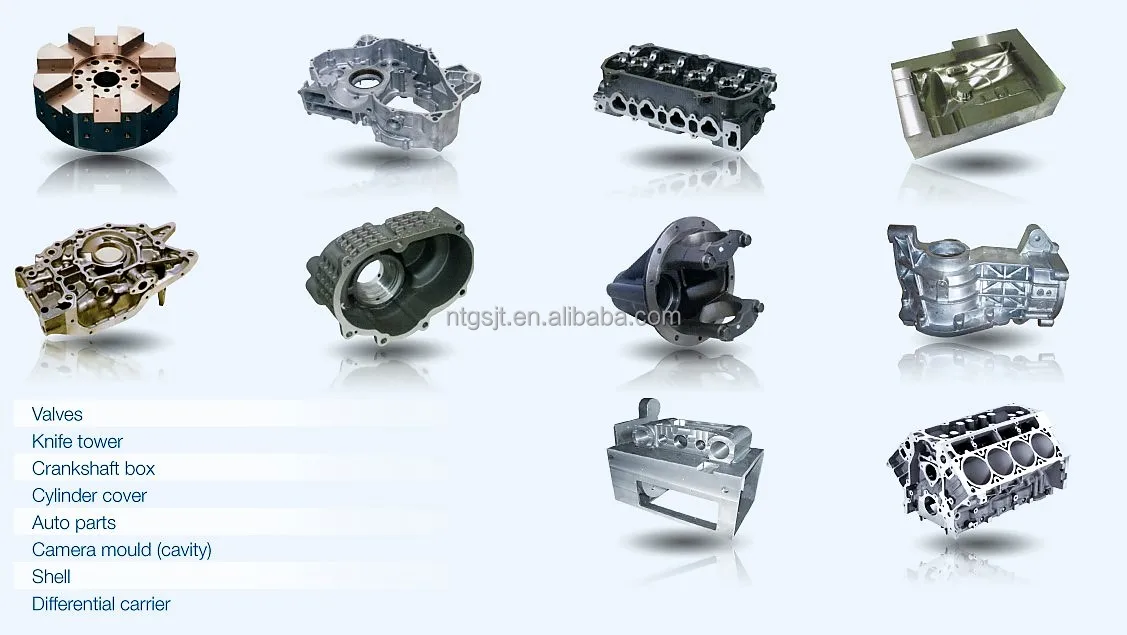

Process instance
Packing & Delivery
To be packed in fumigation wooden case(s) ,or in carton(s),suitable for long distance ocean/overland/air freight transportation,well protected against moisture and shocks,pressure wetness.

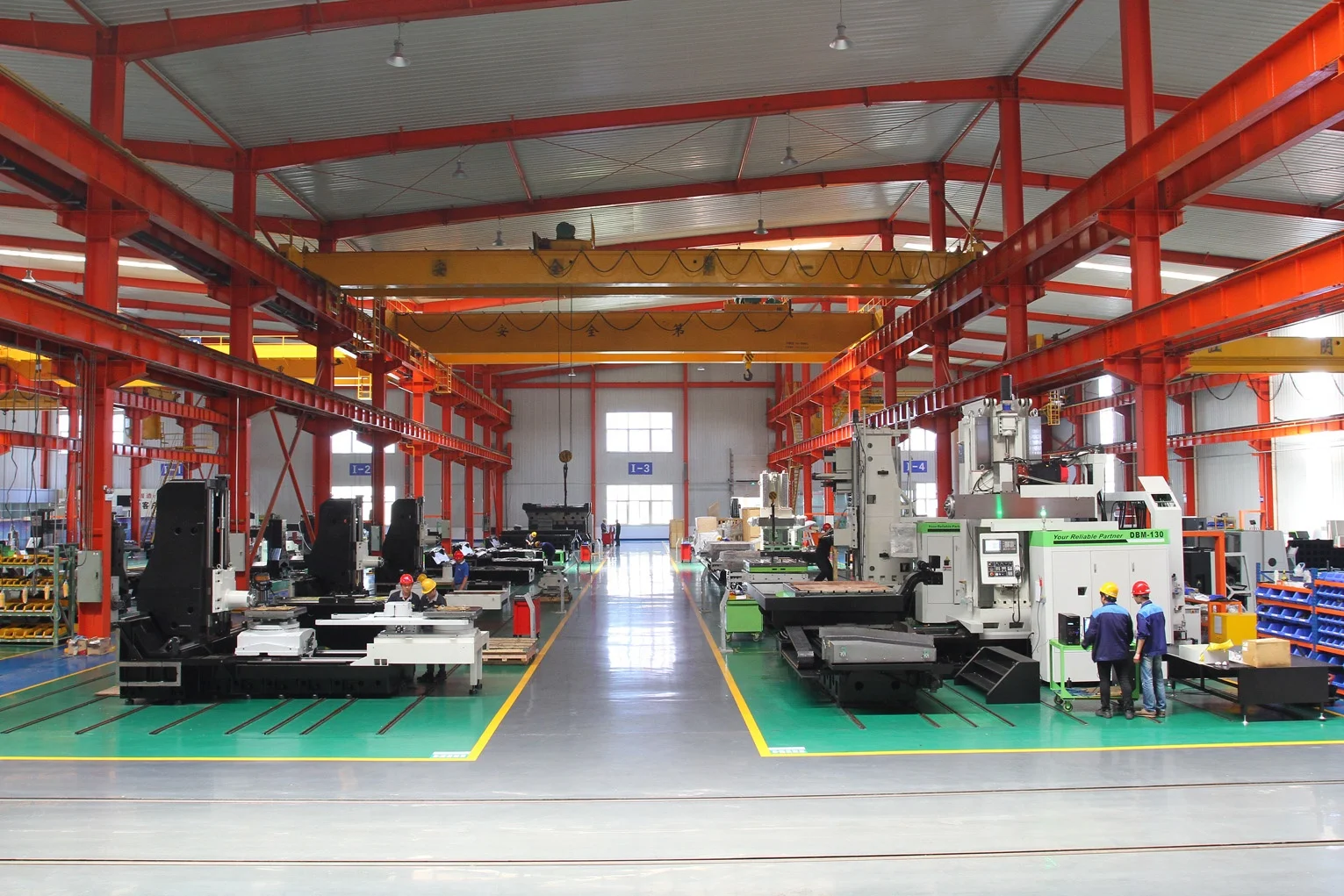

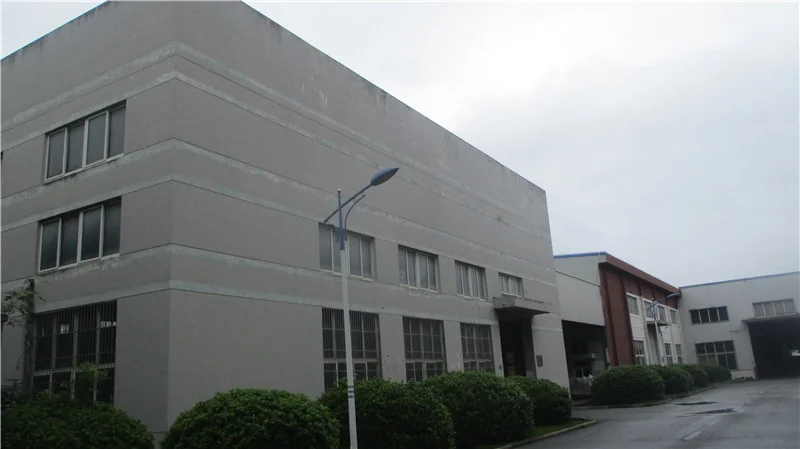

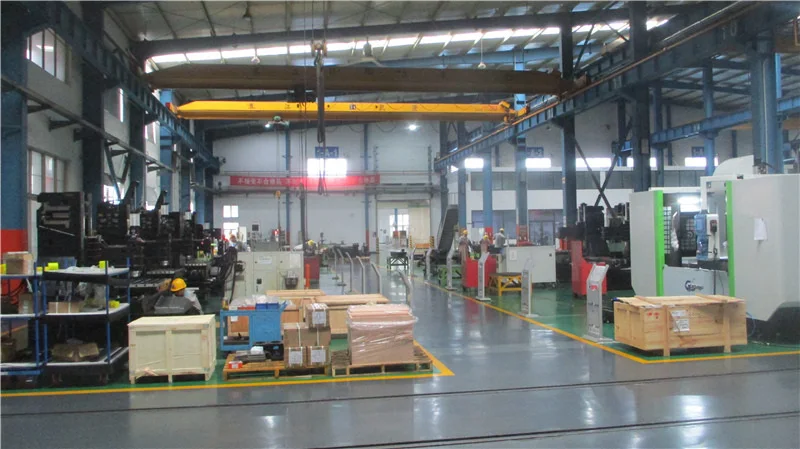

Company Profile

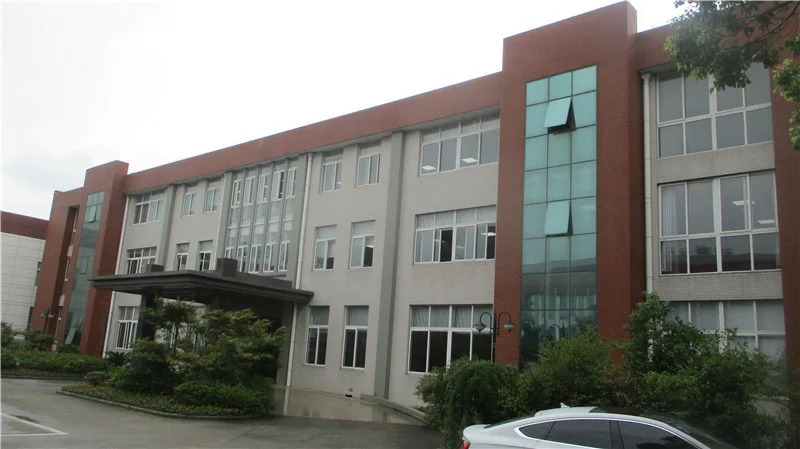

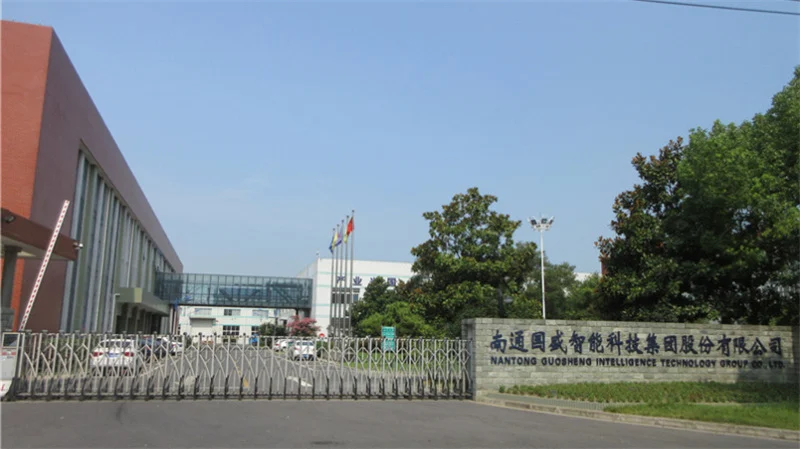

Nantong Guosheng Machinery & Power-Generating Group Co. Ltd. is specialized in producing the advanced CNC Horizontal
