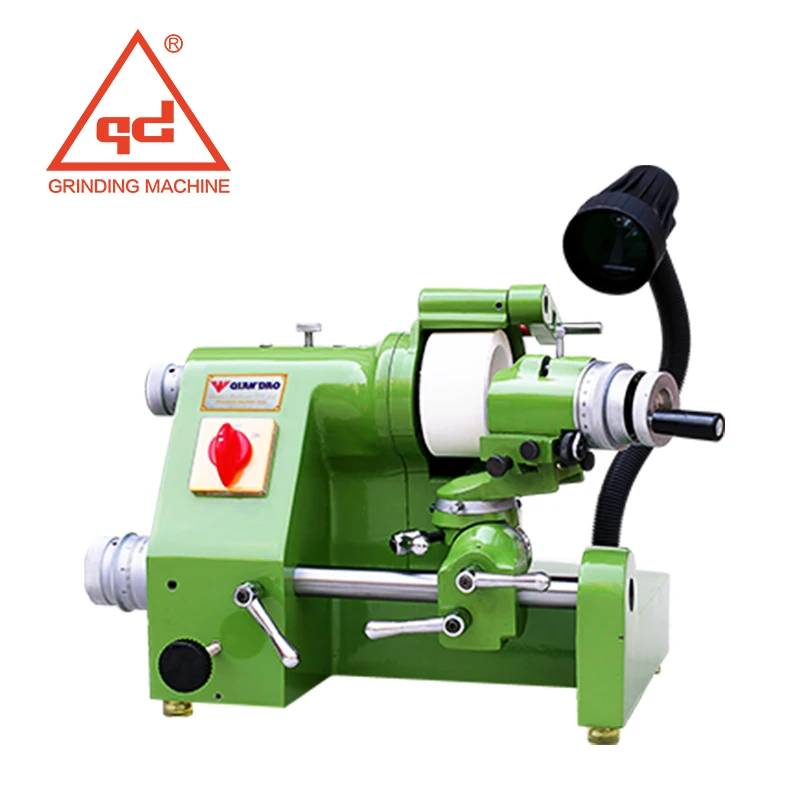

U2 Universal Tool Cutter Grinder Machine GD U2 Negative Angle 0~25

Specifications

Wheel

Diameter

Φ100mm

Thickness

Hole diameter

Φ20mm

Spindle speed

5200rpm

Max.clamping diameter

Φ3~16mm

Longitudinal traver of index head carrier

140mm

Longitudinal adjustment travel of index head carrler

180mm

Spindle and wheel longltudinal adjustment travel

600mm

Taper angle range

0~180°

Negative taper angle range

0~52°

Relief angle range

0~44°

Moter

Power

0.55kw

Speed

5200rpm

Voltage Three-Phase

380V

Voltage Single-Phase

220V

Frequency

50Hz/60Hz

Gross weight

55Kg

Packing dimensions

500*395*395mm

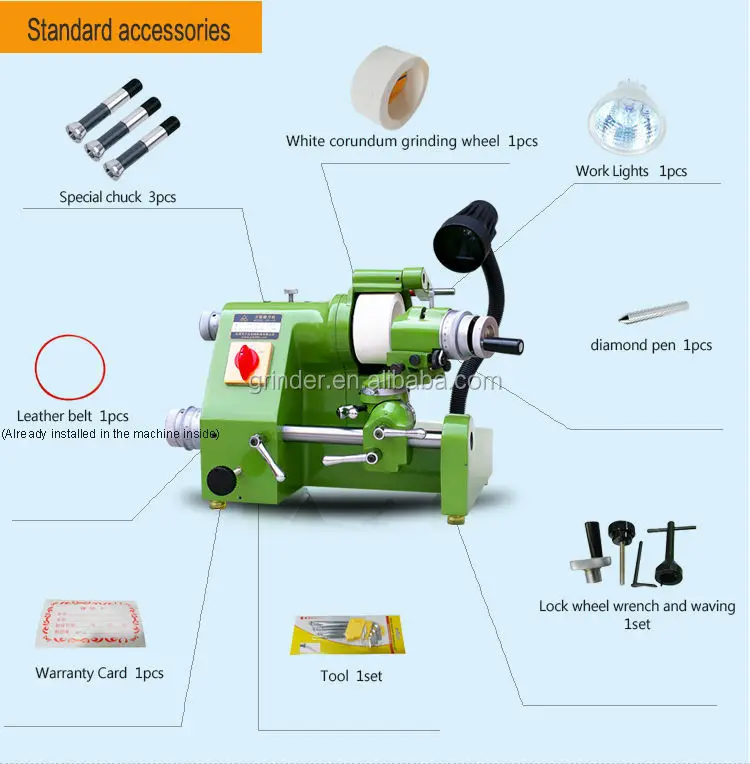

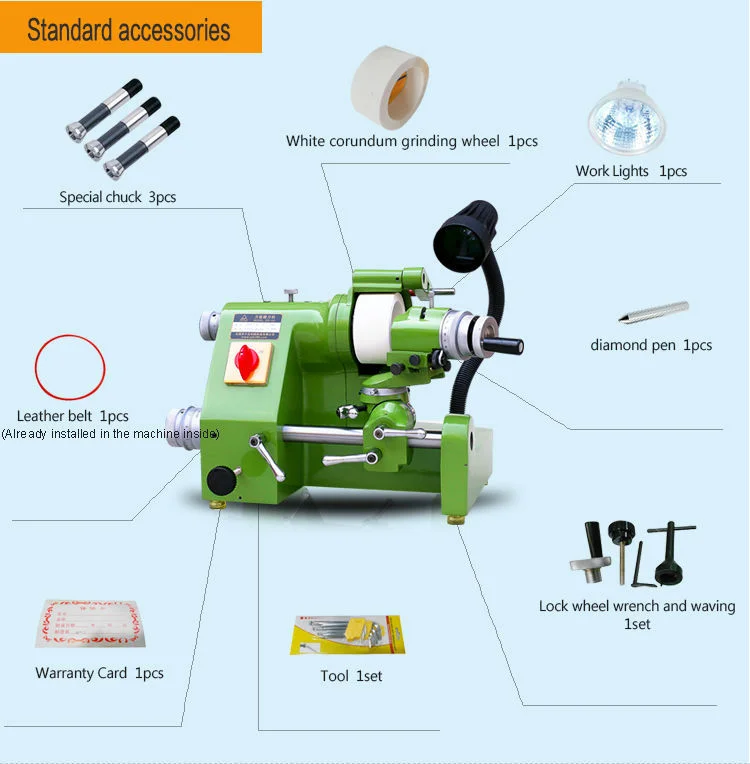

Standard Accessories

Belt

1 pcs

Tools

1 set

White corundum wheel

1 pcs

Diamond Pen

1 pcs

Collect 4.6.8mm

3 pcs

Lamp

1 set

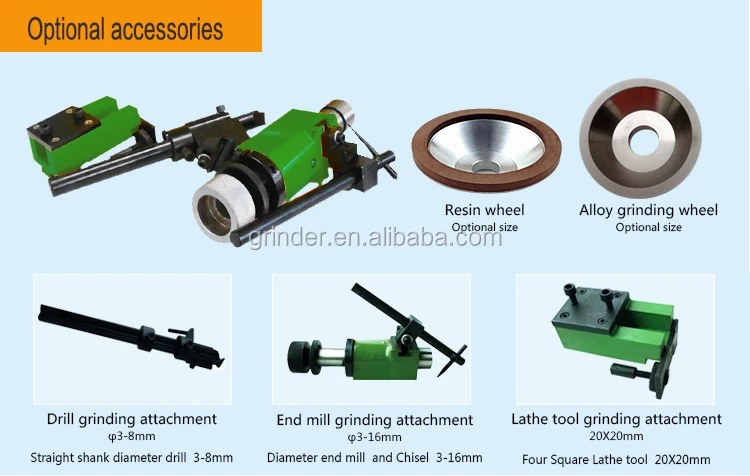

Extra Accessessories

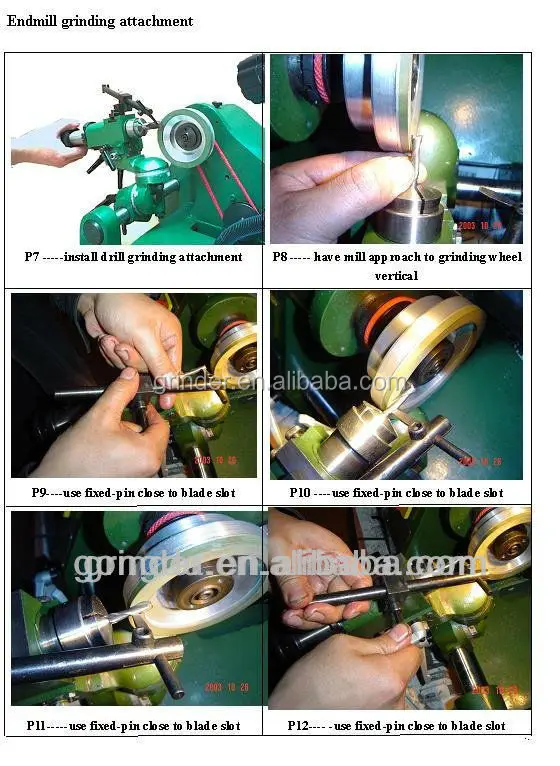

φ3-16mm End mill grinding attachment               1 set

φ20*20mm Lathe tool grinding attachment          1 set

φ3-8mmTwist drill grinding attachment                1 set

Optional color:yellow & green
