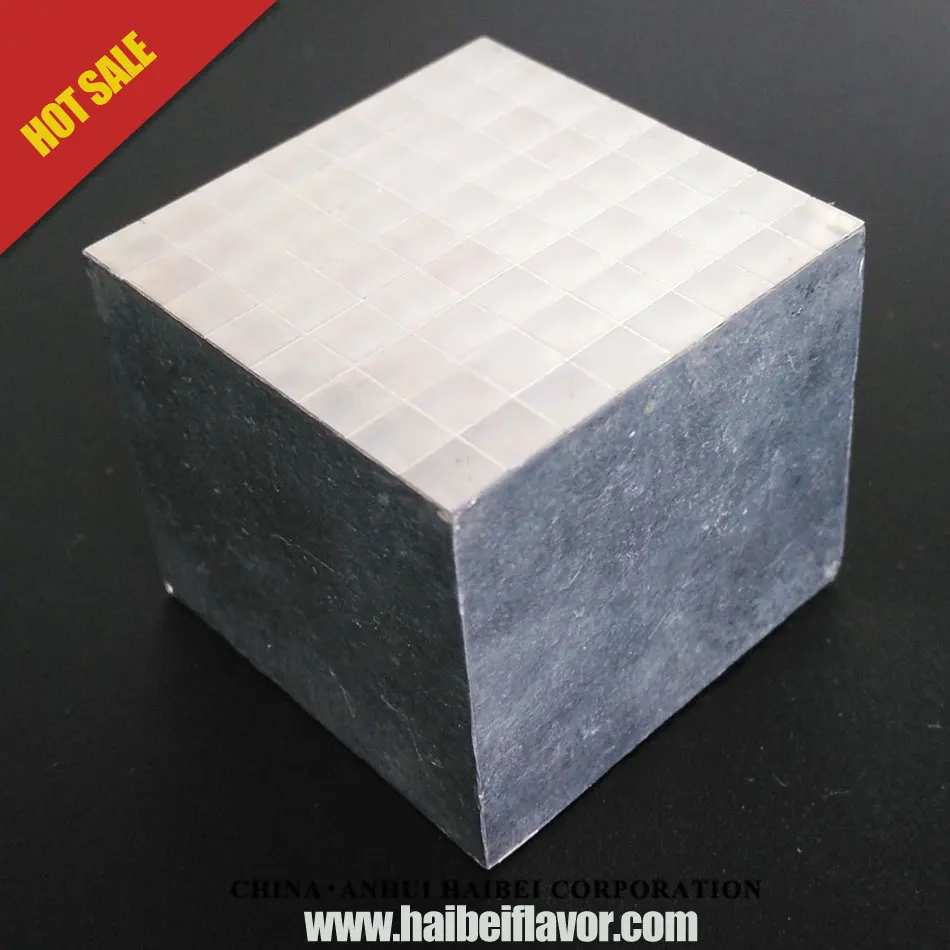

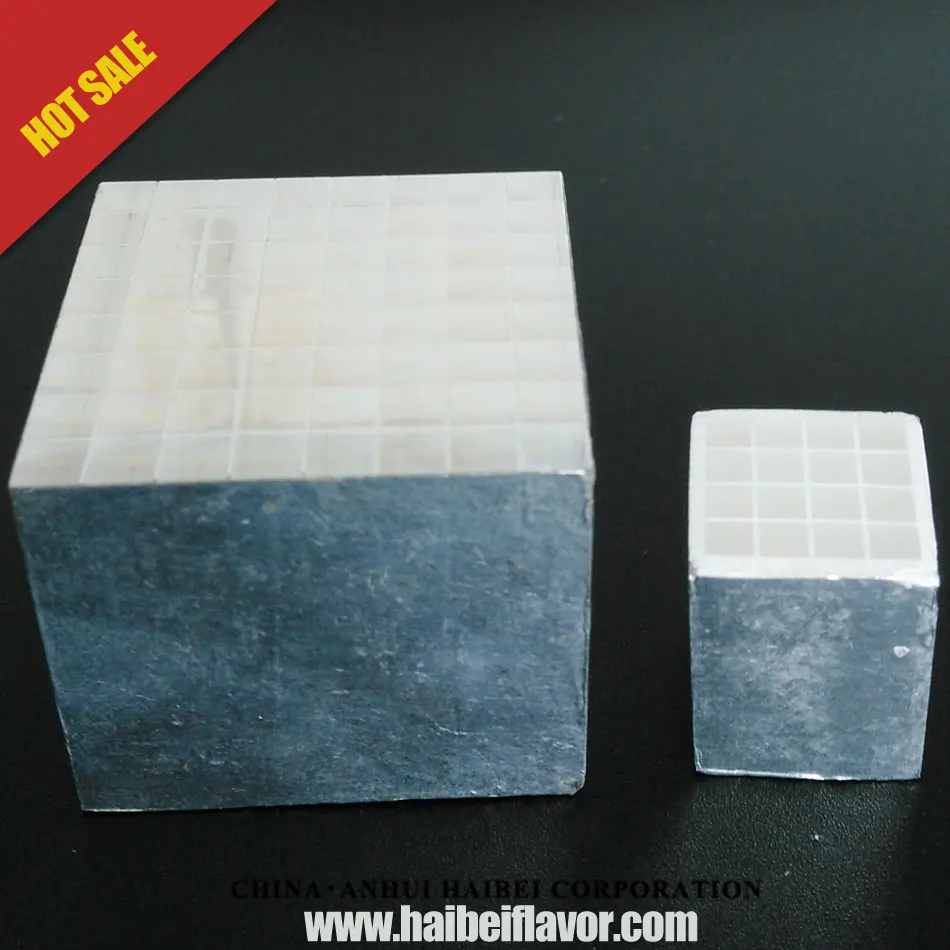

BGO, LYSO Crystal Scintillators Scintillation Crystal Array

Product Overview

Description



Can assemble all kinds of specifications and sizes of PET with crystal array and module. Can be assembled BGO crystal, LYSO, YSO, CsI (Tl)...



BGO Crystal

Bismuth Germanate (Bi4Ge3O12) commonly abbreviated as BGO, is a crystal scintillator material that can emit green fluorescent light with a peak wavelength of 480 nm, colorless, transparent and insoluble in water.
Growth method: Bridgman
Formula: Bi4Ge3O12
Dimension(Maximum): 76 mm x 300 mm(Cylinder), 40 mm x 80 mm x 200 mm(Rectangular)
Available items: Monolithic and Pixelated BGO.



LYSO Scintillation Crystal

LYSO ce is a new type of scintillator crystal, it has the excellent scintillation properties, like high light output, short decay time, high density and anti-radiation hardness, and with stable chemical and physical properties .
Growth method: Czochralski
Formula: Lu1.9Y0.1SiO5(Ce:0.5 mol%)
Dimensions(maximum): diameter 80-90 mm x 200 mm length
Available items: Monolithic and Pixelated LYSO.



YSO Scintillation Crystal



Cerium doped Silicate Yttrium, YSO ce scintillator belongs to monoclinic rare earth orthosilicate crystal, it is similar with the LYSO ce, while generally used as a semiconductor and in photo optic applications.
Growth method: Czochralski
Dimension(maximum): diameter 60 mm x 150 mm length
Available items: Monolithic



CsI Scintillation Crystal

Single element size: customized
Linear array: 8, 16, 32, 64…elements
2-Dimensional array: 6×10, 12×18, 24×36…elements
Light output: 50,000-55,000 Photons/Mev
Afterglow: 0.6%(max) after 100ms
Reflector: polymer with TiO2(excellent reflectivity to ensure minimized cross talk)
CsI tl arrays have been widely used in X-ray security inspection systems, we design and develop the pixelated CsI tl crystal in reflection coating, the TiO2 was used as separator between each single element, the configuration can be linear or 2-dimensional array, with high resolution and highly sensitive properties to achieve excellent image quality, please contact us for your customized request.
