Dual Band 900/1800 GSM/DCS Mobile Signal Booster/Repeater/Extender/Amplifier
- Category: >>>
- Supplier: Shenzhen Xinlun Communication Technology Co. Limited
Share on (60500697084):
Product Overview
Description
Product Description
900/1800 GSM/DCS Mobile Signal Booster/Repeater/Amplifier
A mobile phone signal repeater provides the ultimate solution in any area where celluar commnuications cannot work well due to leak of signals.The repeater device features easy installation and operation,build-in door antennaand no interference.it could also improve indoor electromagnetism enviroments,protract cellular battery life and reduce radiation of cellphones.A mobile phone repeater is ideal use for house,home,office use
Specifications:
Parameter data | Uplink | Downlink | |
Frequency Range | GSM+DCS | 890~915/1710~1785 MHz | 935 ~ 960 /1805 ~ 1880 MHz |
Output Power | 23 ±2dBm | 23±2dBm | |
Gain | 65 ±2 dB | 70±2dB | |
Bandwidth | 25M/75M | ||
Ripple in Band | GSM≤5dB,DCS≤5dB | ||
Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
1GHz~12.75GHz | ≤ -30 dBm | ||
Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
1GHz~12.75GHz | ≤ -30 dBm | ||
VSWR | ≤3 | ||
MTBF | >50000 hours | ||
Power Supply | AC:100~240V, 50/ 60Hz;DC:12V 3A | ||
Power Comsumption | < 36W | ||
Impedance | 50 ohm | ||
Mechanical Specification | |||
RF Connector | N-Female | ||
Dimensions (D*W*H ) | 195*180*20(mm) | ||
Cooling | Heatsink Convection cooling | ||
Net weight | 1.4Kg | ||
Installation Type | Wall Installation | ||
Environment Conditions | IP40 | ||
Humidity | < 90% | ||
Operating Temperature | -10°C ~ 55°C | ||

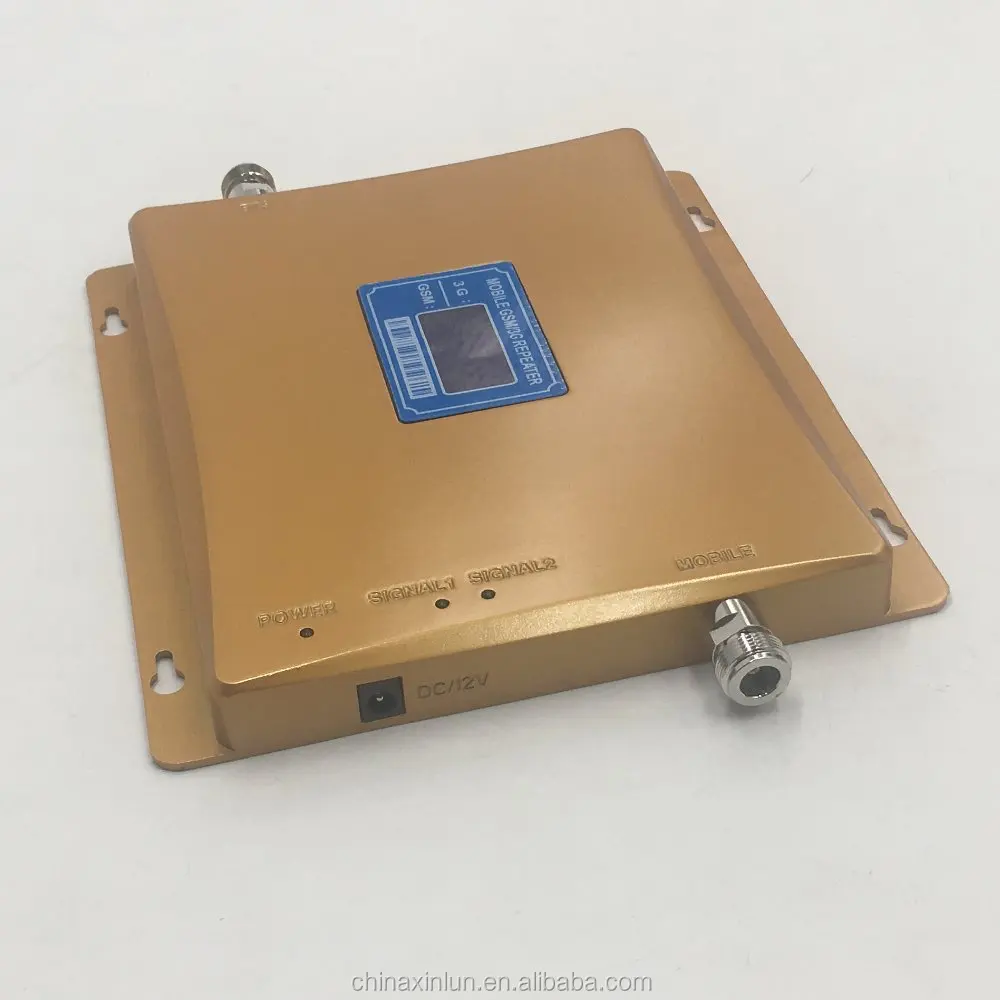

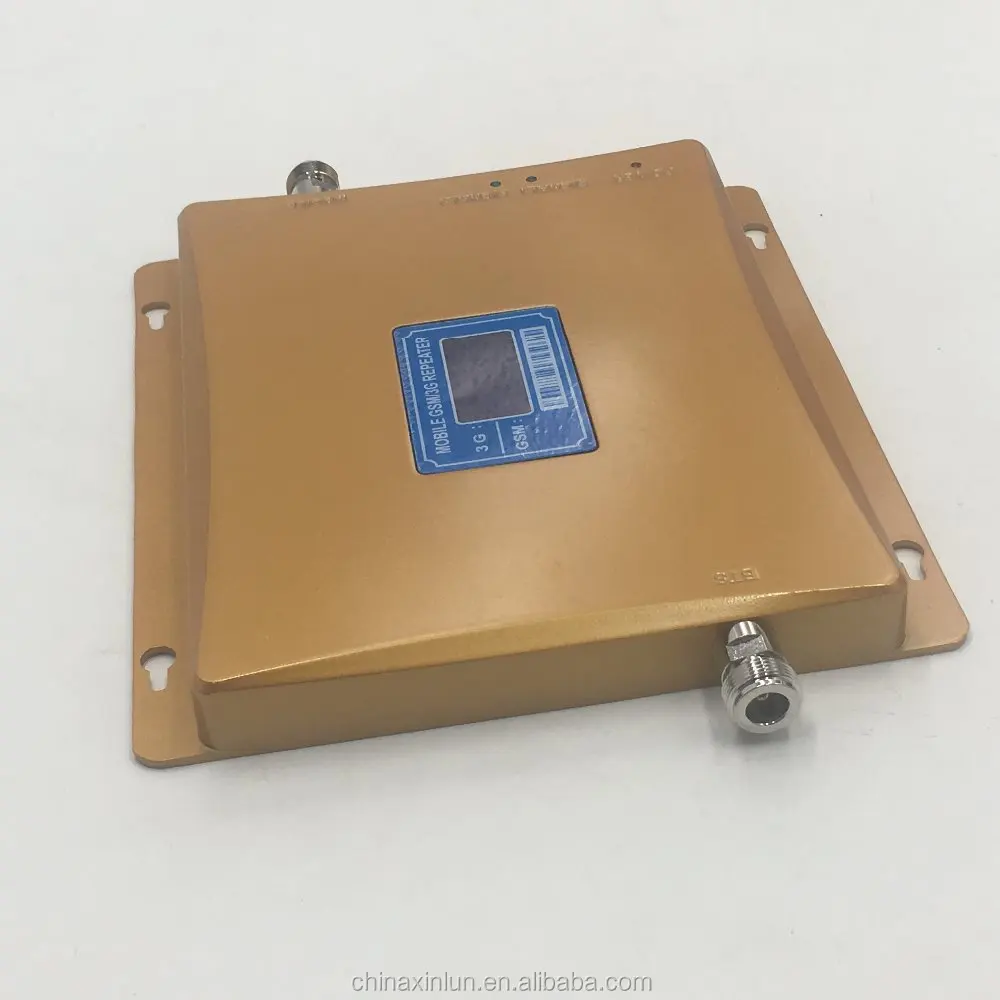

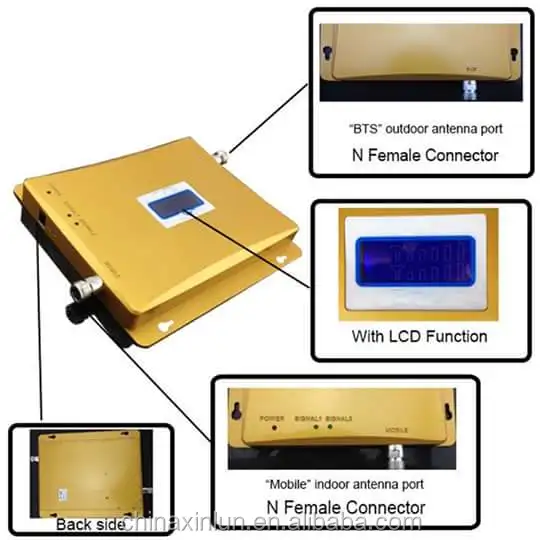

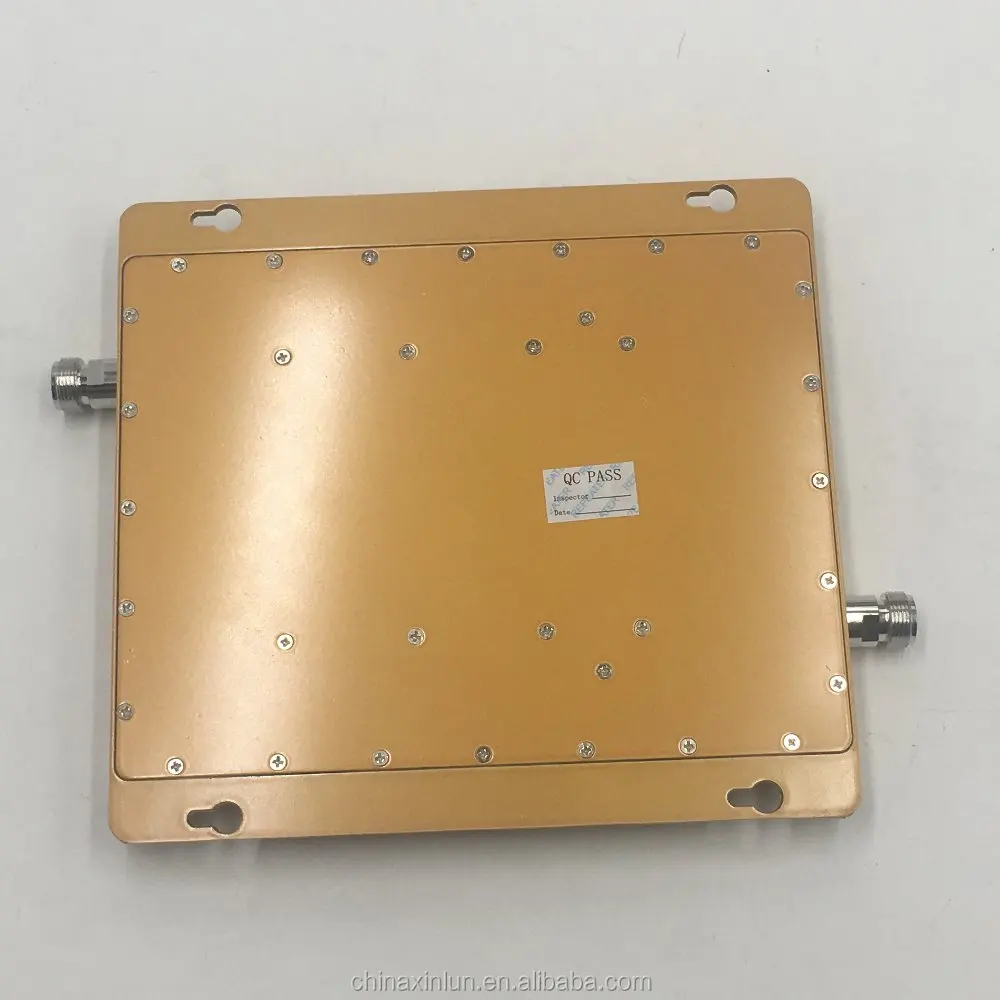

Detailed Images

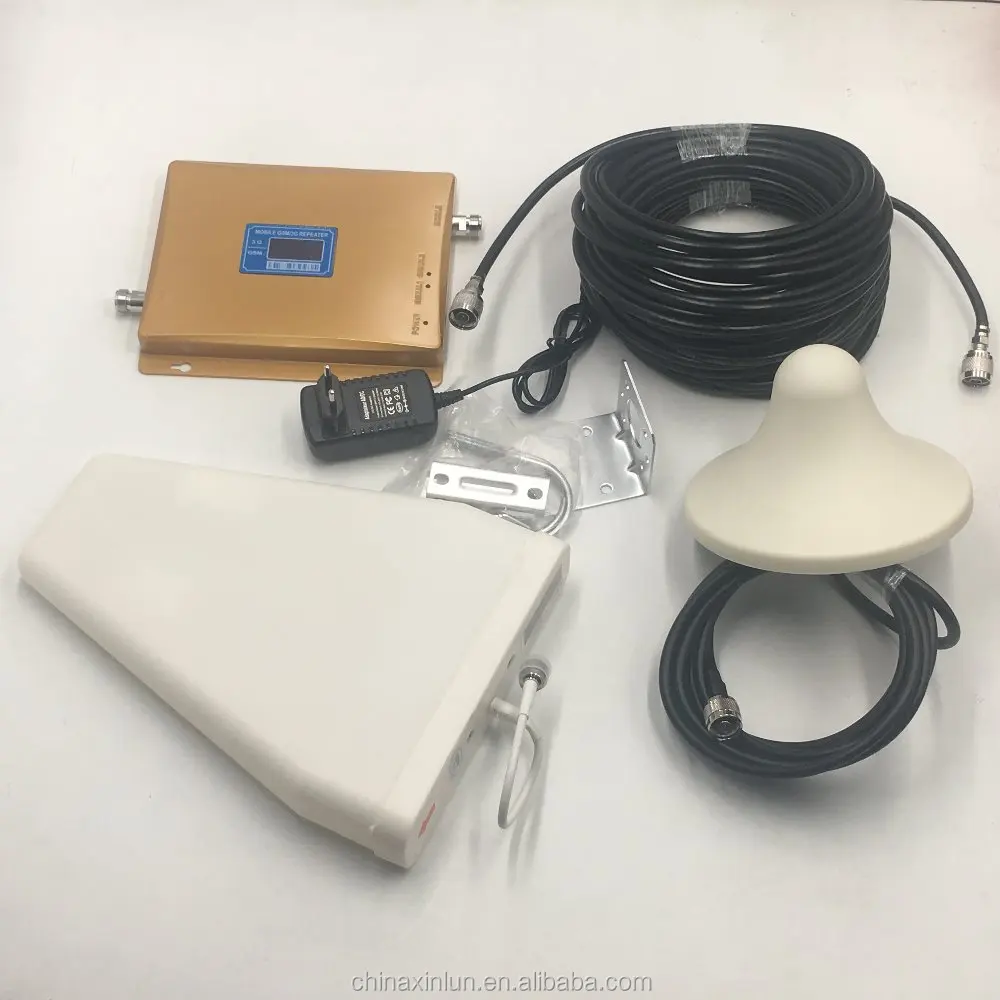

Accessories
a.one dual band signal booster;
b.one indoor antenna;
c.one outdoor antenna;
d.10meter cable and 3meter cable;
e.User manual;
f.power adapter.
Packaging & Shipping
1.Packaging way:paper box ;
2.Delivery time:within 2-5days after payment;
3.Shipping ways:DHL/UPS/FEDEX/EMS etc;
4.Payment ways:T/T,Western Union,Paypal.
Our Services
1.Your inquiry related to our products or prices will be replied in 24hours;
2.Well-trained and experienced staffs to answer all your inquiries in fluent English;
3.Monthly output over 2000pcs;
4.Strong package;
5. Sample order in small quantity is acceptable;
