Wet Film Comb Wet Fim Thickness Gauge CM-2000
US $129.00-$149.00
DTEC DC15FN Pocket size Coating Thickness Gauge with Ferrous and Nonferrous base,dual use,0 1.8mm,economic model,best seller
- Category: Width Measuring Instruments >>>
- Supplier: Deity Testing Equipment Co. Ltd.
Share on (60500987416):
Product Overview
Description
Product Description
DC15FN has been designed as a user friendly and economical way, with the function of LCD displaying and measurement data maintaining automatically. It has the advantages of easy operation, rapid measurement, safe usage and portability.
The model adapts principles of electromagnetic induction and magnetic induced edd-current. It can measure the thickness of non-metal coatings on metal surface. Press the button to select magnetic metal or non-magnetic metal. It is a ideal instrument in manufacture, metal machining industry, chemical industry and commodity inspection, especially in automobile trading.
Product Overview

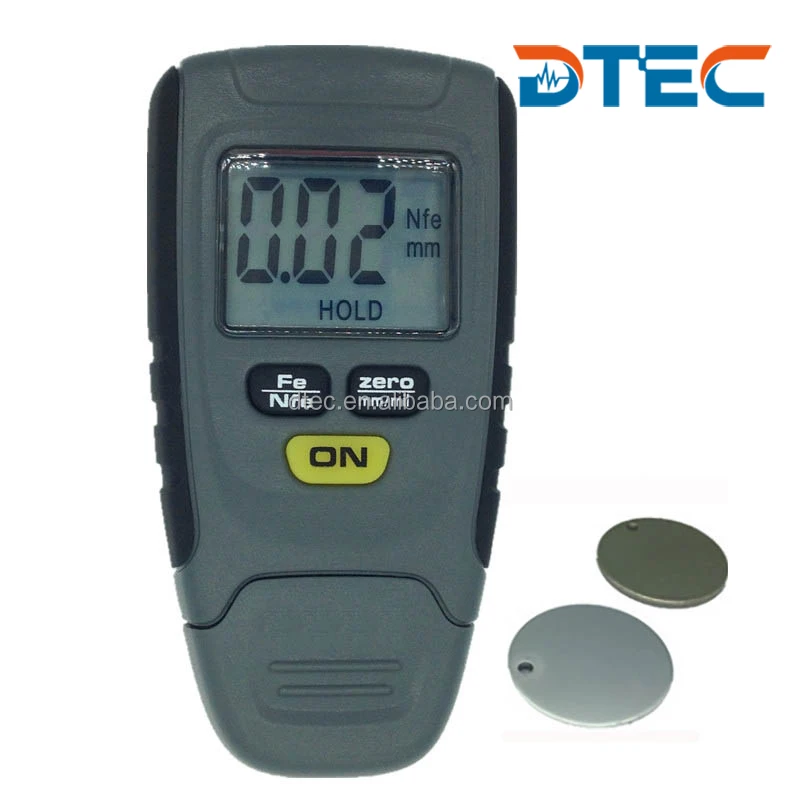

A. Display B. Metal type selection button C. Power on/ measurment button D. Measurement units selection / zero calibration button E. Detection sensor F. Detector protection cap
A:Measurment readings display B:Measurement working indicator C:Lock measurement result indicator D: Magnetic metal indicator E: Non-magnetic metal indicator F: Metric unit indicator G:Imperial unit indicator H:Low battery display indicator
Specification
Measurement Range | 0-1.25mm |
Measuring Target | Non-metal coating thickness on metal surface |
Attachment | Iron(ferrous) and Aluminum(nonferrous) Substrate |
Measuring precision | 2%RDG ±0.02mm(2%RDG ±1mil) (steel and aluminum only) |
Display Resolution | 0.02mm/1mil |
Substrate Min. Diameter | 10mm |
Substrate Min. Thickness | 0.5mm |
Auto power off time | No actions in 1 min if leaving the testing specimen |
Power Supply | 1x3V CR2032 button battery |
Operating Temperature Range | -5°C -40°C |
Operating Humidity Range | 5%~95%RH non-condensing |
Storage environment | -20~60°C,<85% RH(w/o battery) |
Dimension | 11x30x8cm(LxWxH) |
Gross Weight | 0.5KG |
Packing List & Accs
No. | Items |
1 | Main Unit |
2 | Iron Substrate and Aluminum Substrate |
3 | Calibration Foils (0.05mm,0.1mm,0.24mm,0.50mm,1.00mm,2.00mm) |
4 | 3V CR2032 button battery |
5 | Manual Book, Quality Certificate, Warranty Card |
Warranty
The product is warranted to be free from defects in materials and workmanship for a period of one year from the date of purchase on the basis of providing relevant card.
The warranty does not apply to the following conditions:
- Unauthorized disassembling the device will void the warranty.
- We are not responsible for any damage resulting from abrasion, water, dropping or disassembling.
Tips:Most parts of the product could be recycled, please refer to your local regulations for disposing of them instead of throwing into the dustbin.
Packaging & Shipping
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.
