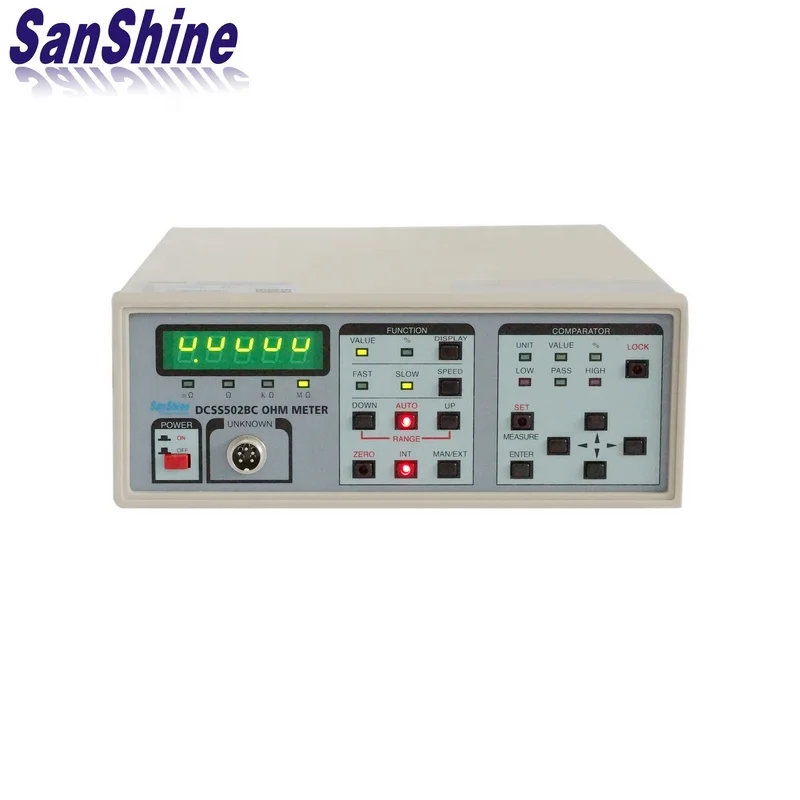

Ohm meter substitute Zentech ohm meter 502BC
- Category: >>>
- Supplier: Sanshine (Xiamen) Industrial And Trading Co. Ltd.
Share on (60501015141):
Product Overview
Description
Product Description
Description of Ohm meter substitute Zentech ohm meter 502BC:
Ohm meter substitute Zentech ohm meter 502BC is designed to measure copper resistance of transformers,other conductors and other coil products. It is widely used of low resistance measurement of switches, heater wires, transformers, relays, motors, electric films and PC circuit boards, etc.. With reliable Good / NG judgment, it is a premier resistance meter for the use in production line or QC department.
Key Features of Ohm meter substitute Zentech ohm meter 502BC:
Basic Measurement Accuracy: ± 0.05%
Single-function Keys, clear LED Display, easy To Operate
GO/NG judgment
Order Items of Ohm meter substitute Zentech ohm meter 502BC
DCSS502BC
Four-terminal Test Clamp (within tester)
SMD Test Cable (optional)
Specification of Ohm meter substitute Zentech ohm meter 502BC:
Ohm meter substitute Zentech ohm meter 502BC is designed to measure copper resistance of transformers,other conductors and other coil products. It is widely used of low resistance measurement of switches, heater wires, transformers, relays, motors, electric films and PC circuit boards, etc.. With reliable Good / NG judgment, it is a premier resistance meter for the use in production line or QC department.
Key Features of Ohm meter substitute Zentech ohm meter 502BC:
Basic Measurement Accuracy: ± 0.05%
Single-function Keys, clear LED Display, easy To Operate
GO/NG judgment
Order Items of Ohm meter substitute Zentech ohm meter 502BC
DCSS502BC
Four-terminal Test Clamp (within tester)
SMD Test Cable (optional)
Specification of Ohm meter substitute Zentech ohm meter 502BC:
Model | SSDC502BC | |
Measure range | ||
10uΩ~199.99mΩ | ±0.1%±2counts | |
200mΩ~1.9999KΩ | ±0.05%±1counts | |
10uΩ~1.9999MΩ | ±0.1%±2counts | |
10uΩ~1.9999MΩ | ±0.5%±2counts | |
Measure Speed | ||
Fast | 11Measurement /S | |
Slow | 7Meas./S | |
Trigger | internal, external, manual | |
Display | 4.5pcs digitals | |
Revising function | zero | |
Automatic judgement | pass or fail | |
Common specification | ||
Environment | temperature :10 ºC ~ 40 ºC ,humidity :10%~90%RH | |
Power consuming | Max.30W | |
Power | 90~125V or 190~250V,48HZ~62HZ | |
Weight | 4Kg | |
Meas. (W×H×L ) | 270×105× 350mm | |
