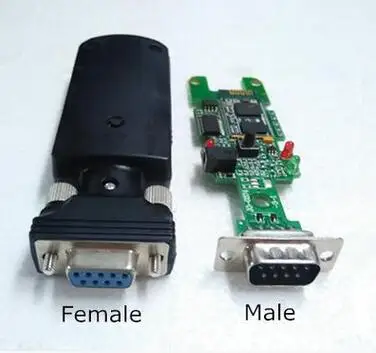

Wireless Data Transfer BLE5.0 RS232 Bluetooth Adapter with DB9 Pin Male/Female Serial Port Class 2
- Category: >>>
- Supplier: Chongqing Jinou Science And Technology Development Co. Ltd.
Share on (60501048305):
Product Overview
Description
Product Description
Wireless Data Transfer BLE5.0 RS232 Bluetooth Adapter Class 2
Bluetooth RS232 adapter can be applied to all kinds of home appliances, equipment (such as medical treatment equipment) and other electronic information products.
As a cable replacement program, it can connect the single-chip processor or processor directly via using PnP mode to achieve the wireless data transmission among equipment transparently.
Bluetooth RS232 adapter can be used independently as well, excluding using by match.
As a cable replacement program, it can connect the single-chip processor or processor directly via using PnP mode to achieve the wireless data transmission among equipment transparently.
Bluetooth RS232 adapter can be used independently as well, excluding using by match.
Bluetooth version | BLE5.0 |
Working Frequency | ISM 2.402~2.483GHz |
RF output power | Class 2 |
Antenna | internal antenna |
Effective Distance | 15 meters |
Profiles | LL, SMP, L2CAP, ATT, GAP, GATT |
Baud rate | 1.2K~230.4Kbps |
Interface | RS232 |
Connector | DB9 pin |

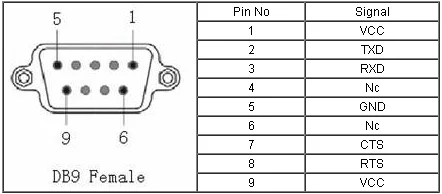

Signal pin | RXD, TXD, RTS, CTS, GND |
Max transmission rate | 20Kbytes/Sec |
Power supply | 6-9 V. (power adapter or DB9 port) |
Working temperature | 0℃～+60℃ |
Storage temperature | -10℃～+70℃ |
Size | 99（L）×34（W）×17（H）mm |
Application
Used in PDA, POS, Smartphone.
Used in Receipt printer.
Used in Bar code reader, RFID reader, IC card reader. MSR card reader.
Used in PLC, CNC machine.
Used in Robot, UAV.
Used in SCADA, data collector.
Used in Receipt printer.
Used in Bar code reader, RFID reader, IC card reader. MSR card reader.
Used in PLC, CNC machine.
Used in Robot, UAV.
Used in SCADA, data collector.
