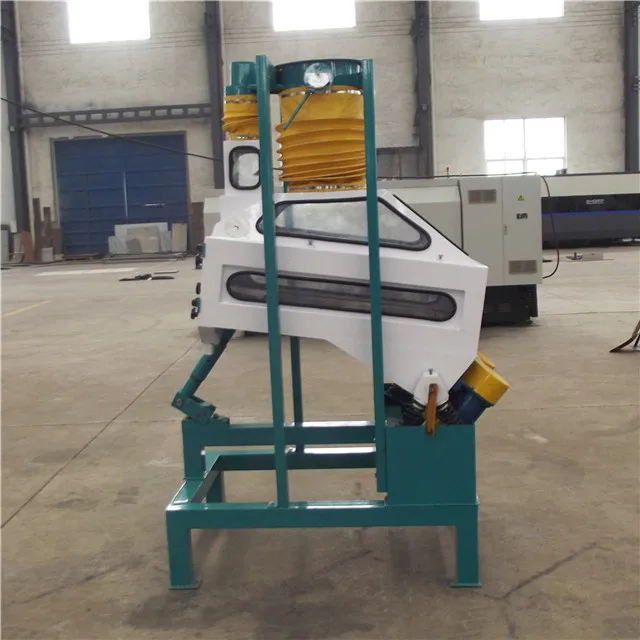

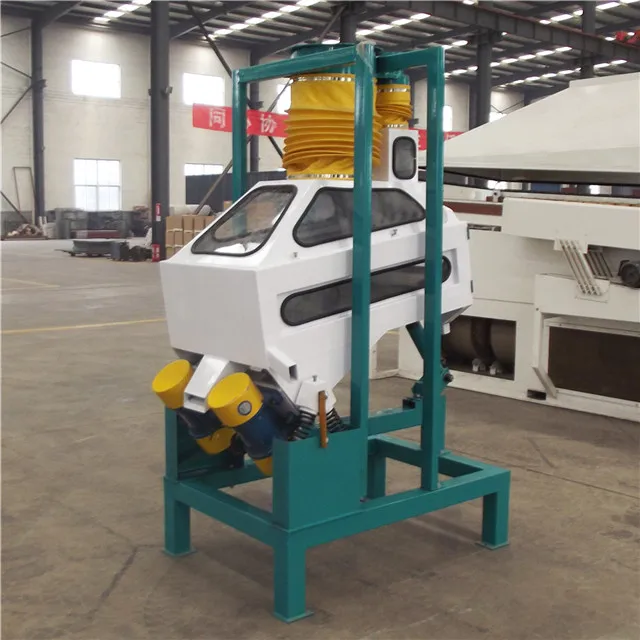

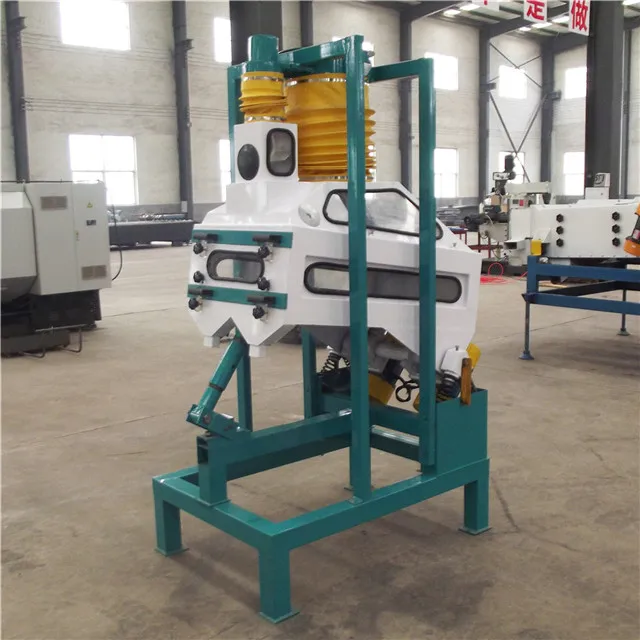

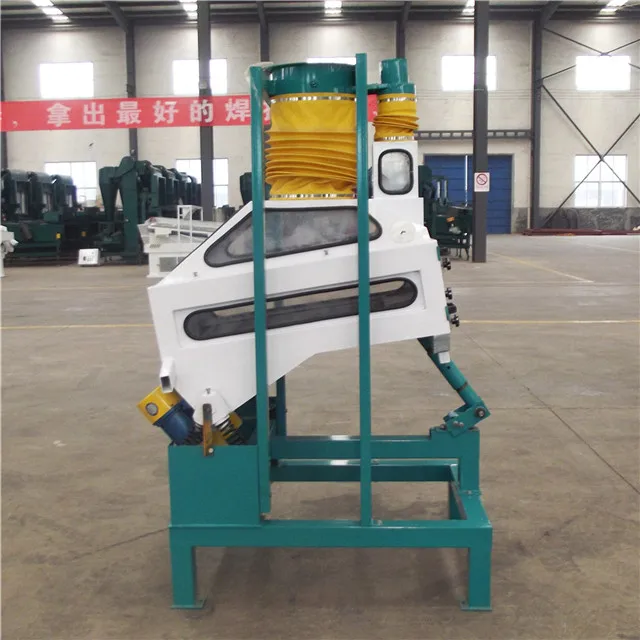

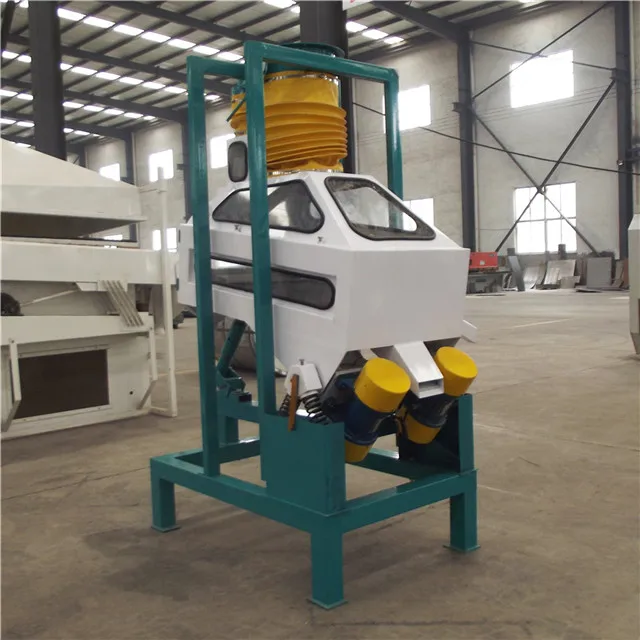

coffee bean destoner stone removing machine
- Category: >>>
- Supplier: Shijiazhuang Synmec International Trading Limited
Share on (60501153396):
Product Overview
Description
Product Description

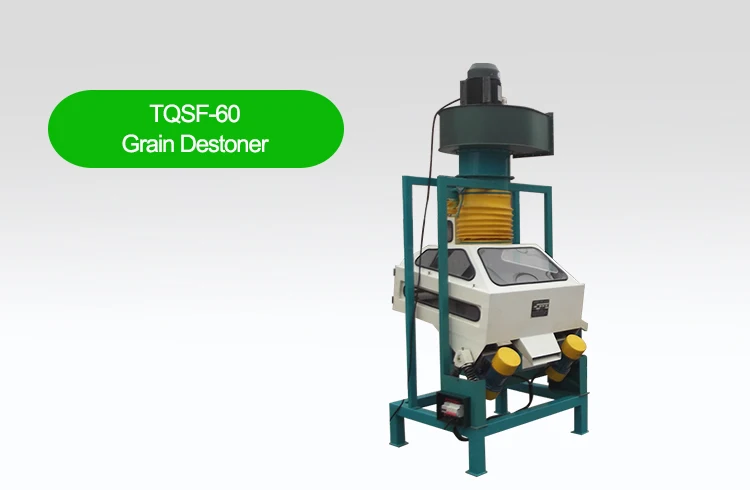

Introduction of TQSF Series destoner
TQSF-60 Series destoner is applied for efficient separation of stones and pebbles, glass, and other high-density impuritiesfrom the grain or seed.
Principle of TQSF Series destoner
TQSF-60 Series destoner is the suction type coffee bean destoner, and its work principle is based on the difference in specific weight of materials. The working table is covered with a woven wire mesh bed, through which air flows from below. Heavy impurity such as stone is not lifted by the air cushion and stay on the mesh bed. The vibratory motion of the table causes the heavy impurity transported to the beginning of the regulating plate at far end of the machine.
Features of TQSF-60 Series destoner
The TQSF-60 Series destoner is widely used for processing all kinds of grains or seeds, and it has the reliable performance and large capacity. This coffee bean destoner with small size is very convenient to operate.
There are two sieve layers in inside the vibrating body. The first sieve layer is mainly used for removing large impurities. The second sieve layer is used to remove the stones.
Specification of TQSF-60 Seriesdestoner
| Model | TQSF-60 | TQSF-80 | TQSF-100 | TQSF-125 |
| Capacity | 500kg | 7500kg | 10000kg | 12500kg |
| Power | 3.5kw | 4.5kw | 6.24kw | 6.24kw |
| Dimension(LxWxH) | 1350x860x800mm | 1350x1050x1800mm | 1450x1216x1800mm | 1460x1500x1940mm |
| Weight | 320kg | 400kg | 500kg | 580kg |
Related Products
Packaging & Shipping
Process flow
Company Information
- Business since2002, based on Huaixi industry park, Shijiazhuang City, China.
- During over 20 years manage, we become the worldwide successful manufacturer for grain cleaning & seed processing machinery, and the biggest one is China, has 11 hectare land with advanced processing equipment.
- In year year 2010 we built one international brand of grain cleaning & seed processing machinery, also funded an independent corporate entity 'SYNMEC International trading Ltd.', that for provide better trading service for our oversea customer.
- Our factory has new office building is 4000 square metres. There are four workshops in the landscape, now three of them are ready.
- Until now, we have sold our machines to more than 120 countries
FAQ
About Machine
1. Can one set of machine process many kinds of seeds?
Yes, you just need to buy extra screens.
2. What is the purity after processed by your machine?
If you buy one whole processing line, the purity can be 99.9% at least.
3. Can you give me a solution according to my warehouse size and my special requirement?
Of course, we can.
4. Can the color be customized?
In normal case, the color is white, which is powder coated. But we also accept the customized color.
5. What is the machine warranty period?
One year after the machine arrives your seaport.
About Shipping
1. What is the package of machines?
The machine will be packed by plastic films and fixed in container or plywood case.
2. Will the machine be damaged during transport?
It will not, the machines will be fixed tightly in the container by belts fasteners, strong iron wire and steel wedge.
3. Is any port of China available?
Yes.
4. Can you deliver the machine to my warehouse?
Yes, we can do door to door.
5. How long does the cargo to delivery to my address?
It takes about 15-45 workdays to arrive your address by sea.
