18U 22U 27U 32U 37U 42U центр обработки данных шкаф сервера 19 дюймов шкаф для сетевого сервера
- Category: Network Cabinets >>>
- Supplier: Ningbo Gelante Electric Co. Ltd.
Share on (60501247632):
Product Overview
Description

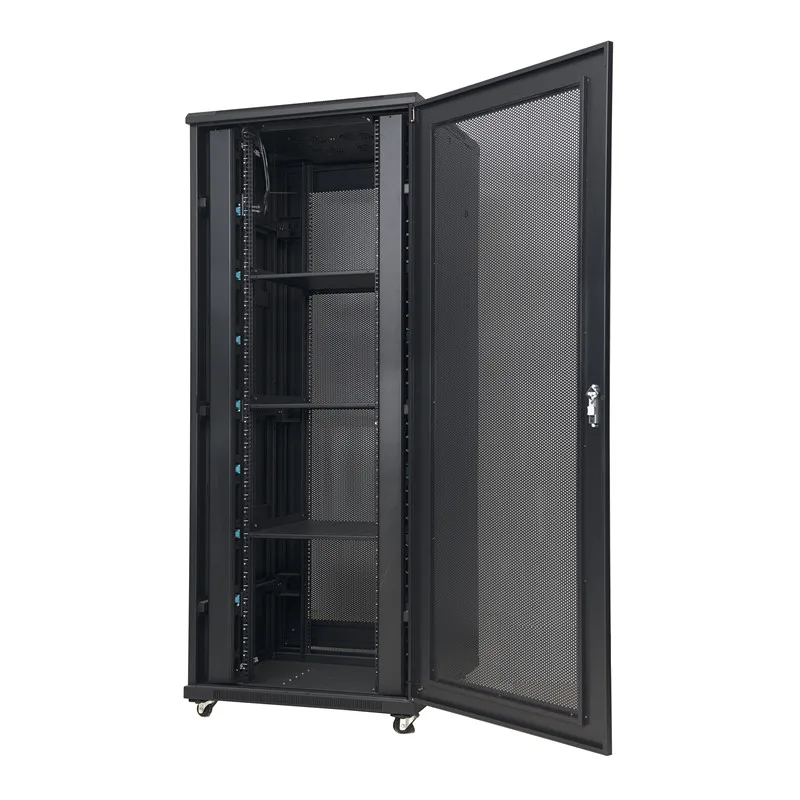

18U 22U 27U 32U 37U 42U Data center server rack 19 inch network cabinet
Product Description
| 18U 22U 27U 32U 37U 42U Data center server rack 19 inch network cabinet | |
| Standards | Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41494; PART1,DIN41494; PART7 Standard. |
| Features | |
| 1. | Exquisite design with precise dimensions and craftsmanship; |
| 2. | Two side panels for each side can be separately open with locks,which are easy to operation and maintenance; |
| 3. | Two back sides with multifunctional cable routing panels; |
| 4. | High-class locks; |
| 5. | Casters and support feet can be installed simultaneously; |
| 6. | Optional pedestals for fixation,cable routing,ventilation,and rat proof; |
| 7. | Curved front screen door & back double screen door enable equipment to ventilate well. |
| 8. | Various optional accessories |
| Load capacity |
Static load: 800KG |
Main material |
| 1. cold-rolled steel; |
2. Thickness of Steel: mounting profile: 2.0mm; mounting angle: 1.5mm; others: 1.2mm. |
| Surface treatment | |
| 1. | Degreasing, pickling, phosphating, laundering, powder coating |
| Protection class | |
| IP20 | |
| Standard Configurations | |||||
| Item | name | quantity | nit | materials | surface treatment |
| 1. | top covers | 1 | pic | 1.2 mm cold-rolled steel | powder coating |
| 2. | side panels | 4 | pic | 1.0 mm cold-rolled steel | powder coating |
| 3. | front doors | 1 | pic | 1.2 mm cold-rolled steel | powder coating |
| 4. | left back doors | 1 | pic | 1.2 mm cold-rolled steel | powder coating |
| 5. | right back doors | 1 | pic | 1.2 mm cold-rolled steel | powder coating |
| 6. | rails | 1 | pic | 1.5 mm cold-rolled steel | powder coating |
| 7. | cable manegers | 2 | pic | 1.5 mm cold-rolled steel | powder coating |
| 8. | beams | 6 | pic | 2.0 mm cold-rolled steel | powder coating |
| 9. | frames | 2 | pic | 2.0 mm cold-rolled steel | powder coating |
| 10. | triangle fixing plates | 4 | pic | 2.0 mm cold-rolled steel | powder coating |
| 11. | casters | 4 | pic | --- | --- |
| 12. | M12 support feet | 4 | pic | --- | --- |
| 13. | cage nuts | 40 | pic | --- | --- |
| Type | capacity | width (mm) | depth (mm) | height (mm) | packing dimensions | volume |
| JA6825 | 25U | 600 | 800 | 1235 | 785*110*467 | 0.268 |
| JA6125 | 25U | 600 | 1000 | 1235 | 985*110*467 | 0.293 |
| JA6842 | 42U | 600 | 800 | 1991 | 785*110*845 | 0.419 |
| JA6142 | 42U | 600 | 1000 | 1991 | 985*110*845 | 0.438 |
| JA6848 | 48U | 600 | 800 | 2258 | 785*110*977 | 0.463 |
| JA6148 | 48U | 800 | 1000 | 2258 | 985*110*977 | 0.49 |
| JA8142 | 42U | 750 | 1000 | 1991 | 985*110*845 | 0.554 |
| JA8148 | 48U | 750 | 1000 | 2258 | 985*110*977 | 0.626 |
f=front door
Our Services
| 1. | Inquiry will be replied in 24hrs; |
| 2. | According to the actual situation or special circumstances to send samples |
| 3. | OEM&ODM are welcome |
| Believe us is the best choice for you ! If you have any doubts or if you need any information ,please don't hesitate to contact me. |
Company Information
Packaging & Shipping

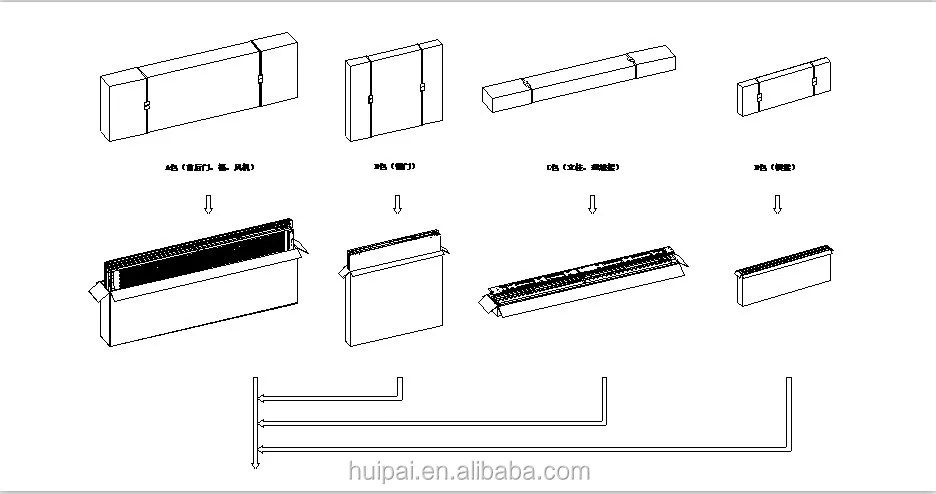

Our product delivery packing
Shipment pictures
FAQ
1.Are you Trading Company or manufacturer? |
A: We are manufacturer, our factory has been established for 10 years |
| 2.What are your main market? |
| A:Mostly Europe and America, then Australia,South Africa |
| 3.How long time to make a sample: |
2-7 days if we make a new sample for you. If you just select our existing sample, we can send you sample the next day. |
| 4.Lead time: |
| 7- 30 days, it depends on the quantity and power sockt plug itself. |
