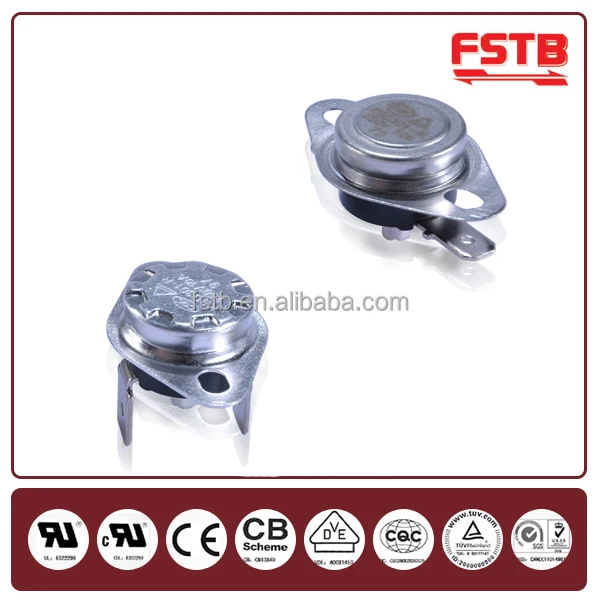

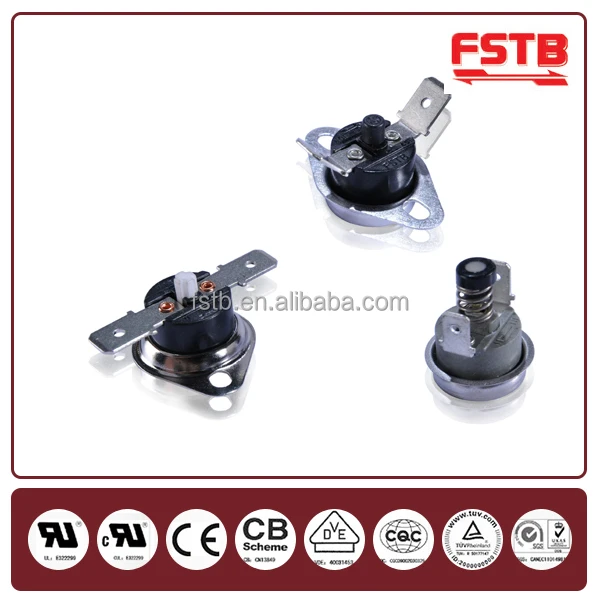

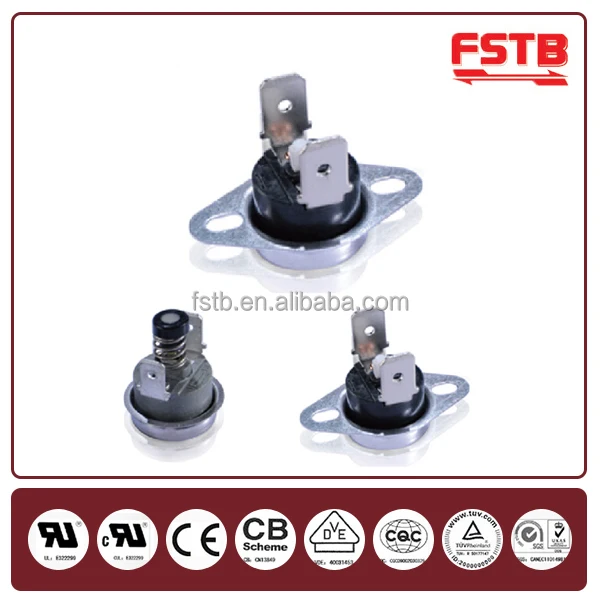

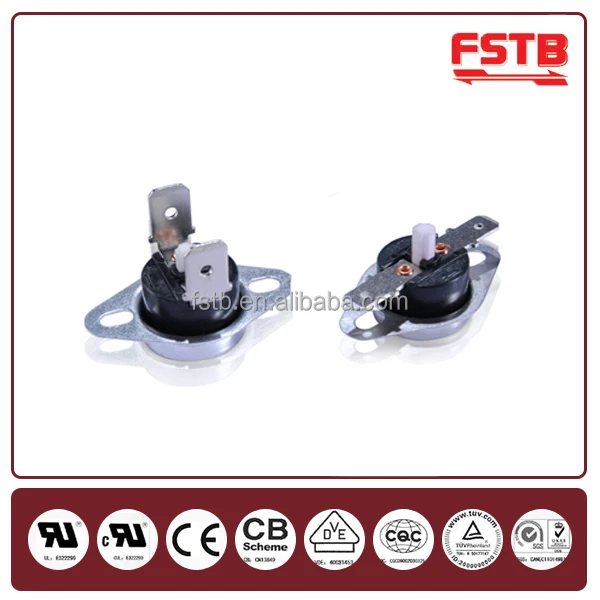

KSD301R Water Heater Thermostat Bimetal l60 Thermal Fuse Snap Circuit Auto Spare Parts
Product Description
KSD301-R bimetallic thermostat is a kind of miniature hermetically sealed bimetal temperature limiter (1/2" disc). It is of single-pole single-throw structure and works under resistive load. This safety limiter is in wide use in a great variety of compact type home appliances, such as coffee maker, water dispenser, toaster, microwave oven, electric pad and portable icebox etc., to provide temperature control or temperature protection.(KSD301)
Advantages:
- Easy mounting.
- Rapid heat transmission.
- High durability.
- No breakdown, no flashover.
- Every product will be tested, extremely high temperature pass rate.
- High precision.
Parameters:
Use | Temperature control/Overheat protection |
Appliance | Coffee maker/ Drinking machine/toaster/Microwave oven/ Heating/ Portable Refrigerator/etc |
Reset type | Automatic |
Base material | resist heat resin base |
Amperage | 5A/10A/16A |
Max. Operating Temperature | 190°C |
Differential | Refer to the regulation |
Tolerance | Refer to the regulation |
Protection class | IP00 |
Contact material | Silver/Gold |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temp. characteristics: | Normal type: OFF temperature higher than ON temperature.(Normal close) K type: ON temperature higher than OFF temperature.(Normal open) One-shot type: The thermostat switches on at room temperature and it won’t be able to reset after switching off. |
Maximum ambient temperature | 205°C(Long period)
|
Diameter of bimetal disc | F12.8mm(1/2″) |
Approvals | UL/CQC/TUV |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Dimension of the main body:
Safety certificate:
Max. OT | Life | 120V 7A 240V 5A | 250V 5A | 250V 10A | 125V 16A | 250V 16A |
145°C | 10,000 | UL, sec. 2 |
|
|
| CQC, TUV |
150°C |
|
| CQC |
|
|
|
180°C | 6,000 |
|
| UL, sec. 2 | UL, sec. 2 |
|
190°C |
|
|
| CQC, TUV |
|
Installation and Direction for Use:
- Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.
- The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.
- When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.
- If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. Moreover, cautious measures should be taken to prevent liquids getting into/onto the thermostat’s insulation parts.
- The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.
- Liquids must be kept out of the thermostat’s inner part! The base must avid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.
- The terminals should be bent, or else, the reliability of electric connection will be influenced.
