Full automatic TPU jelly shoes injection moulding machine

Product Overview

Description

PVC three color jelly shoes machine

Use and character:

1. PLC program control of industrial man-machine interface, Display of tactile screen, Full automatic operation.

2. Full state control. Intuitively set of parameters.

3. Equipped with air blow system. The produce is light-weight & soft & micro- foaming &highly- felxibility &bright surface & no painting & environmental.

4. Save energy.

5. Produce various kinds of slipper, single & Double &three color soles ,three color upper



Suitable material: PVC TPR

Produce:various kinds of pvc soles, slipper, sandal, strap, etc.

Specifications:



Items	Units	KR38024Q-X3
Material	kind	TPR\\PVC
Mould stations	stations	20\\24\\30
Injection capacity(Max.)	g	700/250*2
Injection measuring accuracy	g	±.5
Injection pressure	Kg/cm²	760/900*2
Diameter of screw	mm	65/45*2
Rotate speed of the screw	r/min	-160/180*2
Clamping pressure	kn	main700 1030
Mold size	mm	500*350*280
Power of heating plate	kw	12
Power of motor	kw	18.5+11
Oil pump pressure	Mpa	21*2
Power of machine	kw	41.5
Dimension(L*W*H)	M	7.8*6.3*2.5
Machine weight	T	13.8



Product Description:

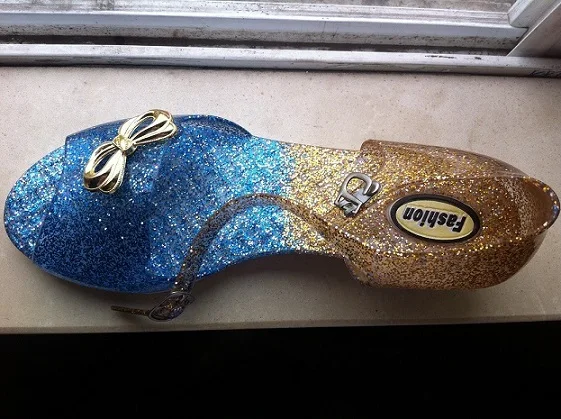

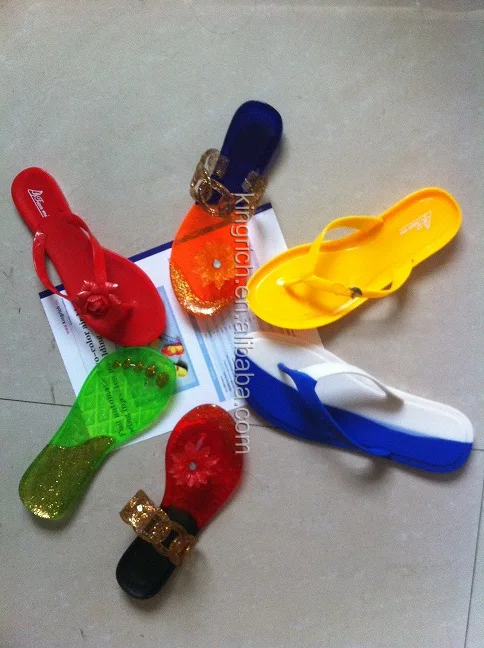

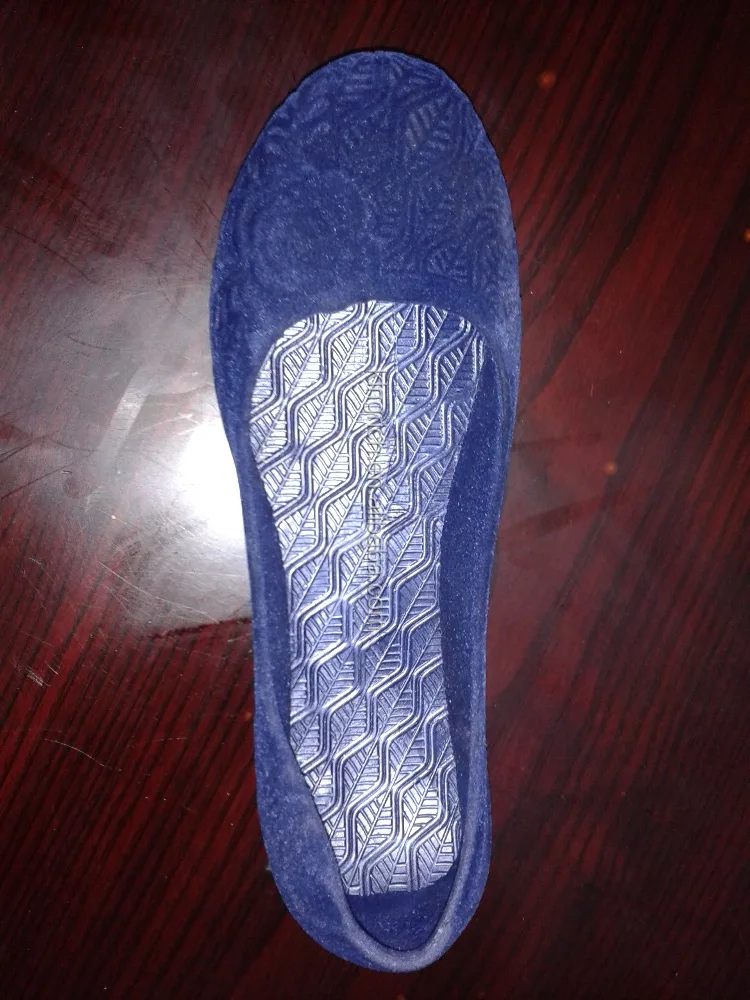

three color shoes Sample:



INSTALLATION:
Installtion & Training will be completed by our technicians, charge is free within 15 working days.
The expanse of round-trip air tickets,meals and local transportation,accommodations (3-star hotel or better).
Interpreters(if required)for technicians will be paid by clients.

WARRANTY:
1year warranty(from the installation date)for all machine parts.
Exception:consumable machine parts such as screw,motor and ect.Damage caused by mis-operation
