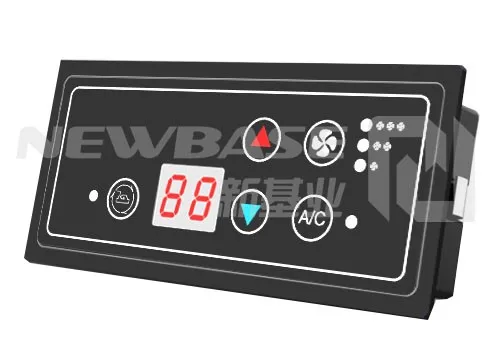

Factory OEM ODM 24v bus auto vehicle heater control panel climate

Product Overview

Description

24v bus auto aircon vehcile heating only control panel  apply to internal climate control of  truck and agriculture machinery.



1.Main functions:

heating,fresh air,auto control,power lost memory, error alarm, voltage auto-protection, evaporator fan 3-grade adjustment, interior temp. display



2.Application case:

TURKEY,RUSSIA



3.Techincal data:

Power supply	DC24V/12V
Power consumption	4.8w
Current	Max.400mA
Dimensions(mm)	118X54X22mm
Input	1) Interior temp. sensor 2) Voltage detection 3) ACC power
Output	1) Heating 2) Evaporator high 3) Evaporator medium 4) Evaporator low
Display	LED
Ambient temperature	-30°c—80°c  5%-95%RH Non-condensing
Storage temperature	-10°c—70°c   5%-95%RH Non-condensing
Display precision	Temp value. Dual digit display, Accuracy,1 °c
Protection	IP54
EMC	EN50081&EN50082-2
Security level	Applied to EN61010-II,Pollution degree :II
Weight:	190g

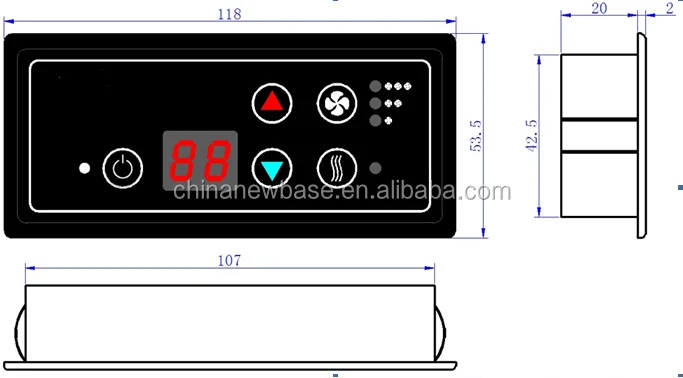

4.Dimensions:



 5.Viarant items:

 1) bus a/c control panel (heating & cooling ac panel)



2) bus HVAC control panel





 6.Our Principle:



Professional - Focus  - Attention
