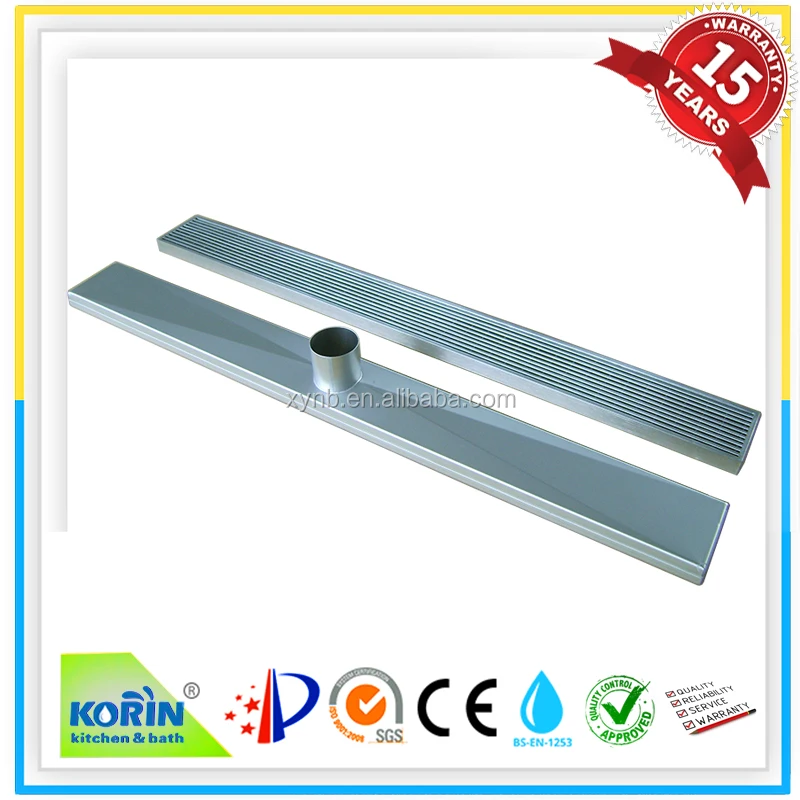

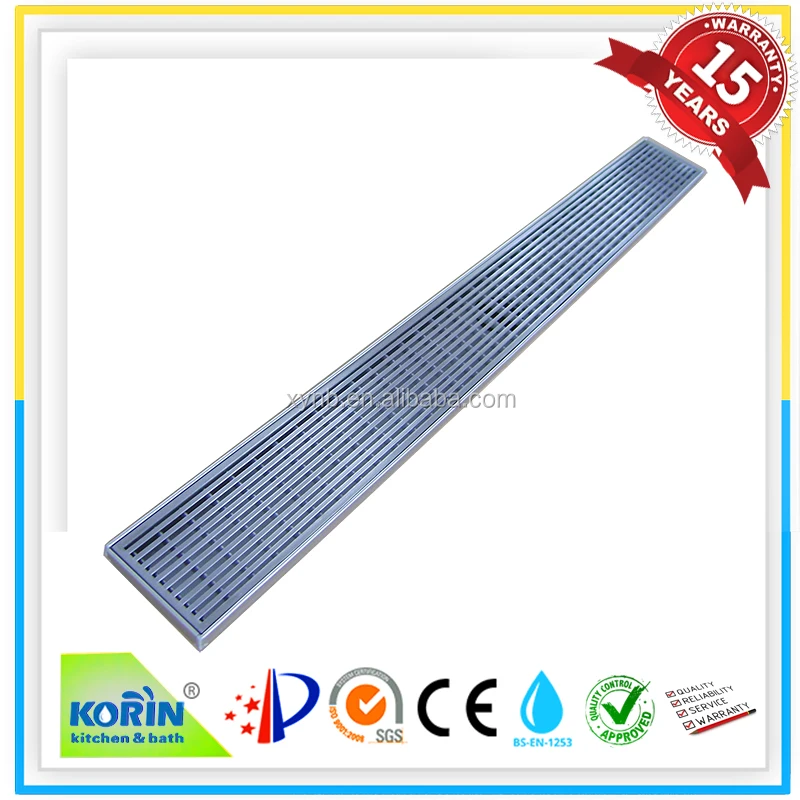

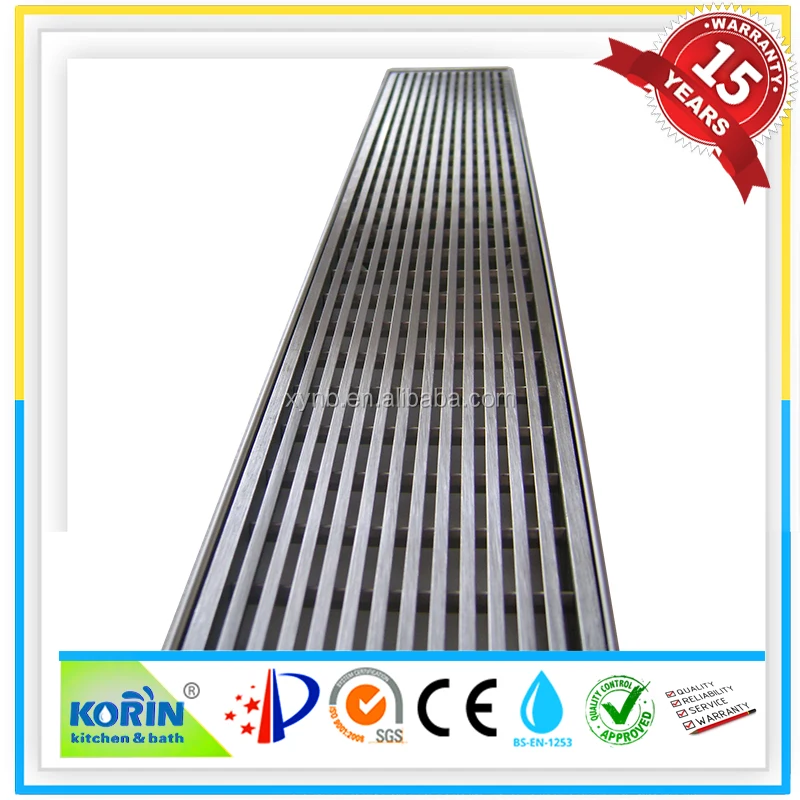

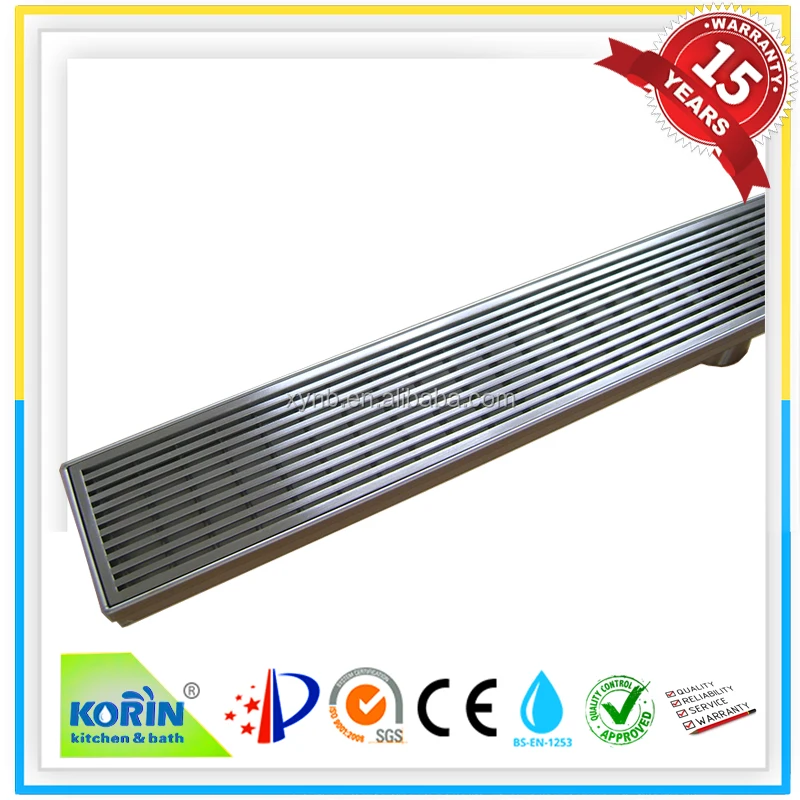

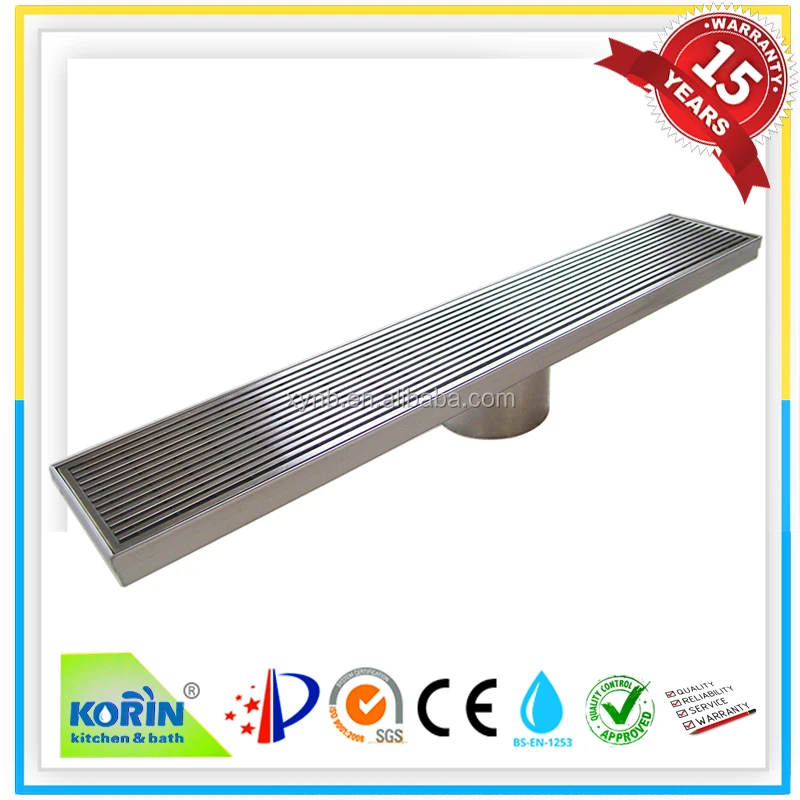

stainless steel linear shower floor drain with wedge wire grate
- Category: >>>
- Supplier: Ningbo Zhenhai Xinyu Kitchen & Bath Technology Co. Ltd. [Zhejiang China]Ningbo
Share on (60501586102):
Product Overview
Description
Product Description
1. Material: Stainless steel 304/ 316/ 316L
2. Size: length from 300mm to 6000mm, any szie available
3. Standard: Australia Standard
4. Certification: ISO9001, SGS, CE
| Product Name | stainless steel bathroom shower floor swimming pool linear drain wedge wire grate |
| Material | stainless steel 304/ 316/ 316L |
| Color | original stainless steel / black/ gold |
| Application | Floor, Bathroom, swimming pool, etc. |
| Surface | Polished, Brushed, Color plating |
| Style | Strainer |
| Customized service | Available |
| packing | 1PC/bubble bag, with PE Foam in Black White Box, carton box, wooden pallet outside |
Products Show
Our Service
High quality
High quality
High quality
Introduction of Wedge Wire Linear Drain:
The Stainless Steel Linear Drain is the most important port to connect the system of drainage channels and the flooring.
As the most important parts of the drainage system in the house, its performance is directly effect the quality of the indoor air, and it is also very important to control the peculiar smell of the bathroom.
The Stainless Steel Linear Drain is mainly used in bathroom, kitchen, washroom, swimming pool or other wet rooms.
Specifications of Wedge Wire Grate Linear Drain:
The wedge wire grate is composed of two parts, one is the grate panel, the other is trough/ channel.
Details of the wedge wire grate :
Material: SS 304/ SS316
Wedge wire: 2x3mm, 2.5x3.5mm, 3x4.2mm, 3x5mm, 2.5mm, 3mm, 3.5mm spacing or as required
Supporting wire: 3x6.5mm, 20mm, 25mm, 30mm spacing or as required.
Frame: variety sizes of frame, such as 3x15mm, 3x18mm, 3x20mm, 5x18mm, 5x20mm etc.
Width: 50mm, 65mm, 70mm, 89mm, 95mm, 100mm, 150mm, 200mm, 350mm or as requirements.
Length: 100mm, 200mm, 500mm, 1000mm etc. any sizes.
Details of the Drain Channel:
Material: SS 304/ SS 316
Plate thickness: 1.2mm
Width: 70mm, 80mm, 85mm, 100mm or as requirements.
Length: 300mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1200mm etc. Longest can be 6000mm.
Outlet: sideout / bottom outlet, with deodorization device, filter, 40mm/50mm diameter or as requirements.
Installation flange: Choice of flange or none.
Welcome your customized drawing!!! No tooling cost!
Our Company
Workshop
Our Equipment
Technology
Professional welding
Workshop
Our workshop
Team
Our Team
Packing & Delivery
Packing Details : 1PC/bubble bag, with PE Foam in Black White Box, carton box, wooden pallet outside
Delivery Details : 20~35 days after deposit confirmed
1. inspection before packaging
2. Professional packing
3. 10 or 20 pcs products in one outside carton
4. Around 100pcs in one wooden pallet
5. container loading
6. container loading
More products
Customer Photo
2016 Shanghai sanitary exhibition
We attend the exhibition every year in Shanghai or Canton fair.
Welcome you to visit us at any time!
Designs products sale service warranty
15 years limited Warranty , 5 years warranty for quick-wear parts.
stable quality , good service,innovative design.
competitive prices will bring you More stable sales.
more than 30 patents and Never copy others.
products acquired various international testing certificates such as CE,meet all export requirements.
Fast delivery.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 7 years production experience in drainage products.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
