Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

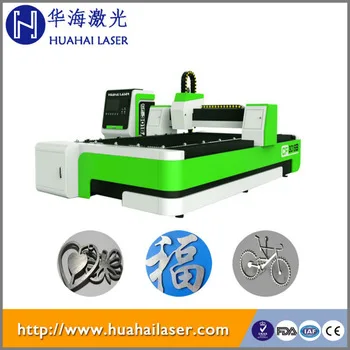

Huahai 500W/750W/1000W/1200W IPG/Raycus Fiber Metal Laser Cutting Machine price for cutting metal sheet
- Category: >>>
- Supplier: Wuhan Huahai Century Laser Co. Ltd.
Share on (60501778591):
Product Overview
Description
500W/750W/1000W/1200W IPG/Raycus Fiber Metal Laser Cutting Machine price for cutting metal sheet
Dear Customer:
Welcome to our website and hope our products will make you satisfied.
We think creatively,design bravely,manufacture precisely and loyalty to our
customers.
And we have our own factory.So We can configure the machine according to customer requirements .
You give us a chance, we give you a surprise. Survive by quality, profit by management, development by creation. Yours,
Wuhan Huahai Century Co.,Ltd
Product Introduction:
HB3015 CNC Double Driver 300 500 700W 1000W sheet metal fiber laser cutting machine adopts the most sophisticated Germany IPG laser and double driver, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine.
Fiber Laser Metal Cutting application:

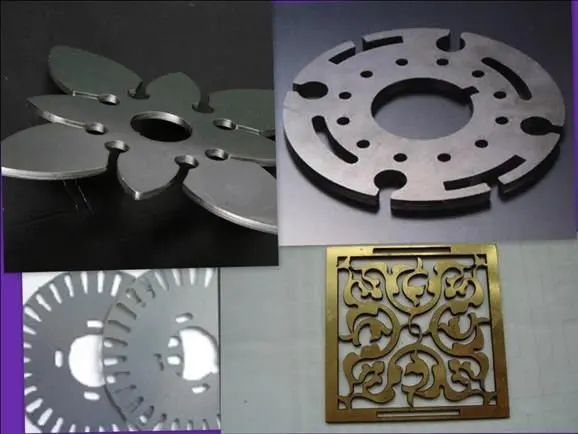

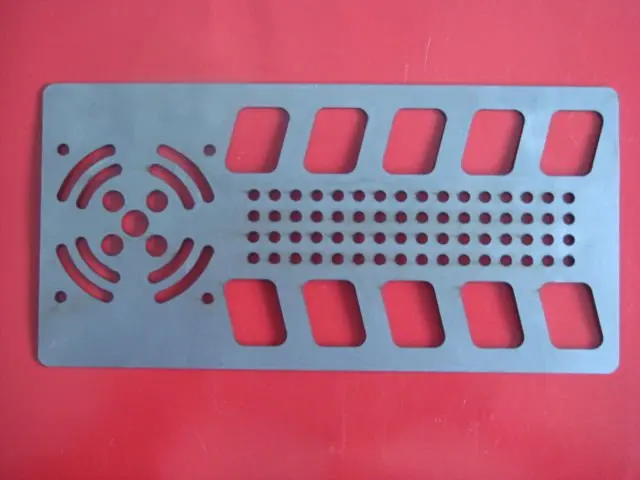

It has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, metal pipe,spectacle frame, etc, which have brought customers a high ratio of interest.
Glasses,jewelry,chassis and cabinet,lamp&lanterns,metal ware,hardware,precision machinery,auto parts, elevator,nameplate,advertisement,electronics,toys and other industries.
Fiber Laser Metal Cutting apilicaple material:
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe.
Function Advantage:
1. World top imported fiber laser,stable performance,the service life of key parts can reach up to 100 hours.
2. Distinguished laser beam quality, which made cutting line more precise,working efficiency higher,processing quality better.
3. Adopt fully enclosed constant temperature laser working enviroment, makig sure the stable work more effective.
4. Particular corner energy following technology,making the cutting effect of sharp corner more good.
5. Owned the Japaness advanced cutting head controlling technology, and the automatic failure alarming protective display function for
cutting head, using more safely, more convenient for adjustment, an cutting more gooder.
6. Particular punching gas controlling technology, solving punching problem for thick plate.
7. Equiped with high precision, high responsive driver, which is suitable for fast precision cutting.
8. Equiped with automatic fuel loading system, which let the machine tool running more stable.
Technical Parameters:
Model | FC-HB 3015-300 | FC-HB 3015-500 | FC-HB |
Laser Source | FL Fiber Laser Source | ||
Laser Power Output | 300W | 500W | 1000W |
Max.Positioning Speed | 15m/min. | 18m/min | 24m/min. |
Working Area
| 3000*1500mm(Optional) | ||
Laser wave length | 1070nm | ||
Laser input power | 1.2KW | 2KW | 5KW |
Min line width | ≤0.1mm | ≤0.1mm | ≤0.125mm |
Cutting depth(up to materials) | 0.2--3mm | 0.2--5mm | 0.2-8mm |
Driving way | Imported servo motor | ||
Repeated Positioning Accuracy | ±0.01mm | ||
Vertical Length of X&Y Axis | 0.03mm | ||
Transmission Way | Gear Racking Transmission | ||
Linear Length of X&Y Axis | 0.02mm, 0.04mm | ||
Z Axis Floating Accuracy | ±0.05mm | ||
Machine Noise | <75db | ||
Cooling way | Water cooling | ||
Beam Quality | Base Mode | ||
Environment temperature | 5—35 °C | ||
Power Supply | 3 Phase/380V/50Hz | ||
