PRY A High speed Gluing Folding Machine

Product Overview

Description

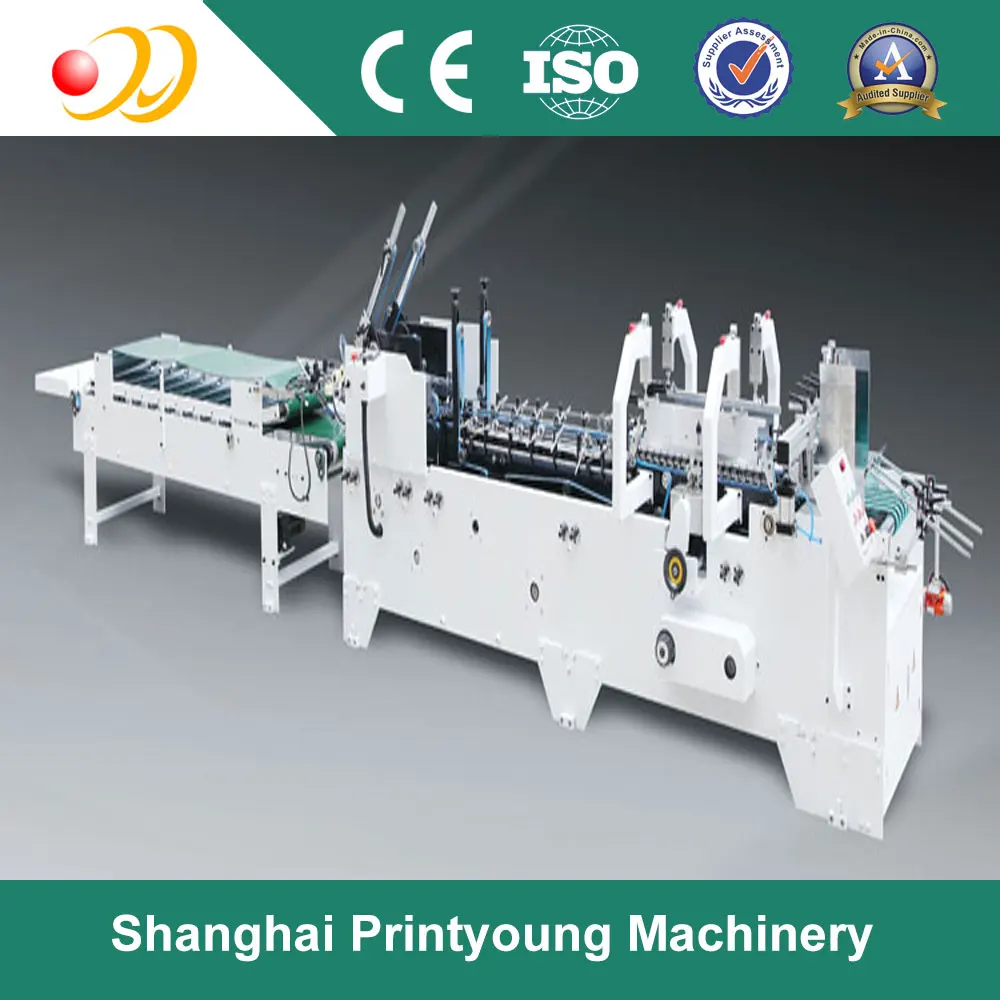

                                                                               PRY-A High-speed Gluing Folding Machine







Product introduction:
Series A Model A 2-fold folding gluing machine, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components,feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, perfectly combing the requirements of auto packaging together. (in case of any special function required, we can design according to the customer’s intension.).





 Carton type and size:







Model		PRY-650A	PRY-780A
A	MAX	650	780
	MIN	90	90
B	MAX	700	700
	MIN	50	50



Main Tech. Data/model	PRY-650A	PRY-780A
Paper Material	Cardboard250-700g
Max. Liner speed	220m/min
Feeding way	Automatically and continuously feeding
Way of folding	Fold 1 and fold 3 are 180°
glue	Water-base cold giue
Needed power	2.5kw   380v	2.5kw  380v
Weight	1.6T	1.8T
Overall dimension	6.6×1.3×1.45	6.6×1.45×1.45
